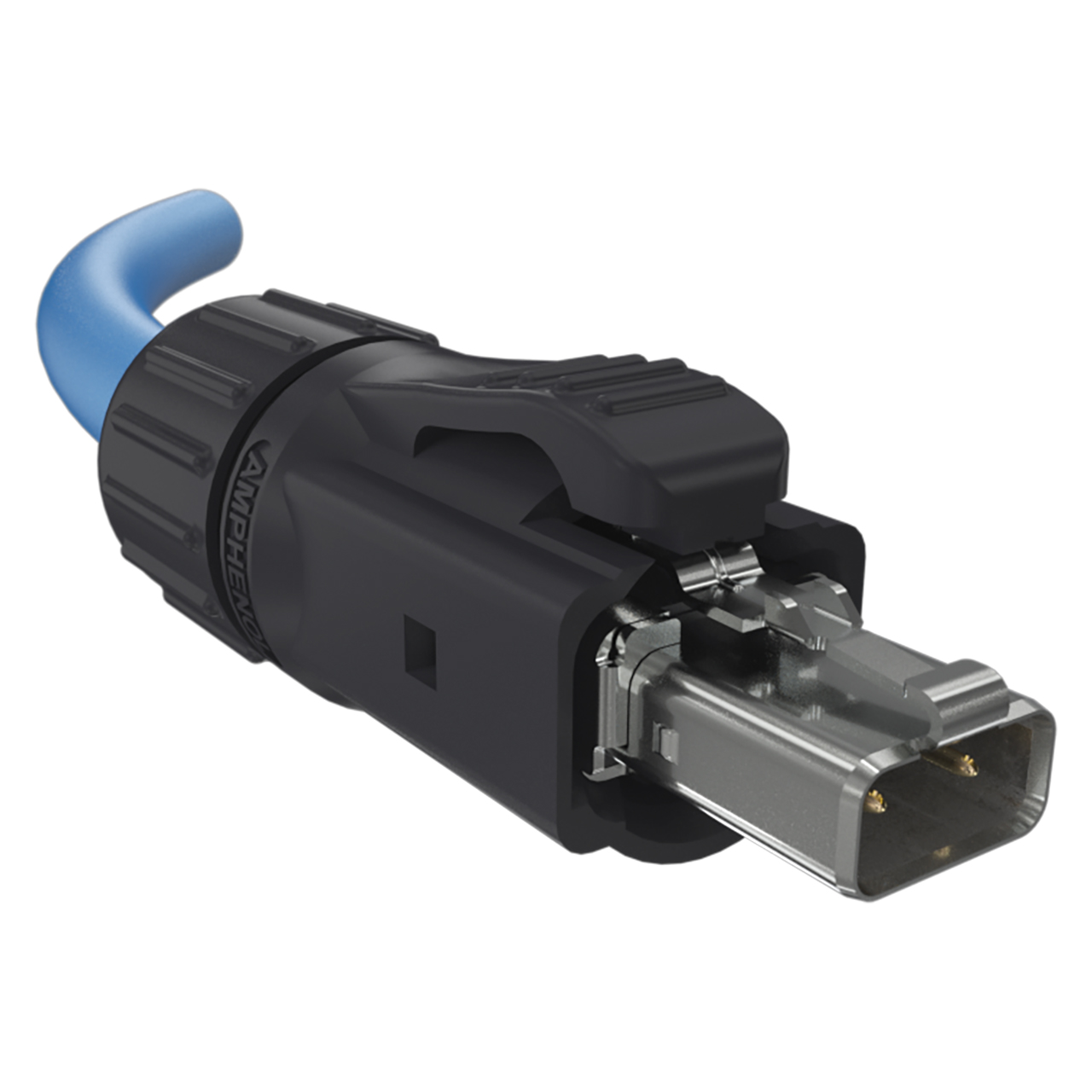

Amphenol MSPEP2L02A0 SPE IP20 Single Pair Ethernet Solder Plug with Latch Lock - 28-18 AWG - Cable OD 0.138in to 0.252in

ITEM #: AMPH-MSPEP2L02A0 MFG #: MSPEP2L02A0

Primary Image
  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2
Free Shipping with $49 Minimum Order

List Price:

$8.34

Our Price:

$5.99

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


MSPEP2L02A0 - Overview

Single Pair Ethernet (SPE) IP20 Connector
Single Pair Ethernet (SPE) connectors for Industrial applications bring direct Ethernet connectivity to peripheral devices like sensors, actuators, and vision system cameras that operate at speeds up to 1Gb/s. SPE eliminates slow, expensive and complex fieldbus protocols and connections by simplifying and standardizing existing and new industrial network systems.

Robust SPE receptacles mate to field terminable plugs, providing a complete shielded interface with metal latching features. Current handling up to 4A supports PoDL (Power over Data Link) capability up to 1km.

Target Markets/Applications:
- Industrial Internet of Things (IIoT)
- Factory/Process Automation - Machine to Machine, Sensors, Actuators, Nodes, I/O
- Modules
- Robotics
- Building Automation - Environmental
- Lighting Control, Sensors
- Data
- Traffic Control
- Monitoring Systems
- Healthcare/Medical Equipment

  • Features:

    • Fully compatible with IEC 63171-6 interconnects from other authorized vendors ensuring future compatibility and investment security
    • Single pair cable reduces cost, weight and space requirements compared to 2 and 4 pair cabling
    • Mechanically robust and secure latching with 360° shielding for excellent performance in harsh environments
    • Field terminable IDC plugs provide installation flexibility
    • SPE eliminates the need for costly protocol conversion gateways
    • Two way 600MHz data transmission Supports Ethernet protocols of 1Gb/s up to 40m, and 10Mb/s up to 1km
    • 2 contacts and 2 wire cable for single pair ethernet Minimizes connector and cabling cost, increases cabling density and ease of installation
    • 4A current rating Supports PoDL, up to 1km cable lengths with no signal degradation
    • PCB mount receptacle shields have robust integrated solder tails with available board-locks
    • Suitable for Pin-in-Paste assembly and prevents damage from mechanical stresses
    • Mated pair maintains 360° shielding for the signal contacts Provides excellent EMI immunity
    • Positive latching with robust thumb-actuated metal latch Prevents accidental unmating
    • IDC (Insulation Displacement) termination plugs Easier field installation and service

  • Specifications:

    • Housing Color: Black
    • Flammability Rating: UL 94 V-0
    • Operating Temperature Range: -40°F - 221°F (-40°C - 105°C
    • Packaging: Tray
    • Termination Style: Solder Pad
    • Voltage Rating: 60V DC
    • Current Rating: 4A

  • Item Includes:

    • 1x Amphenol MSPEP2L02A0 SPE IP20 Solder Plug with Latch Lock - Solder - 28-18 AWG - Cable OD 0.138in to 0.252in - 2 Grommet
