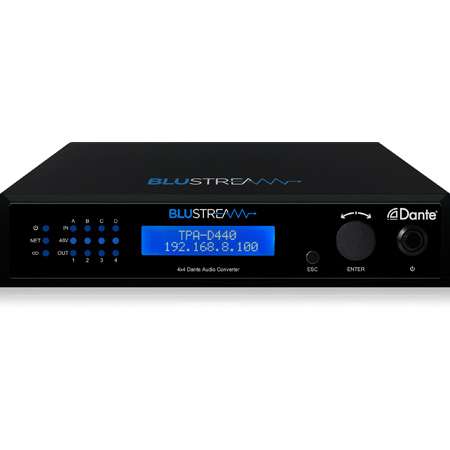

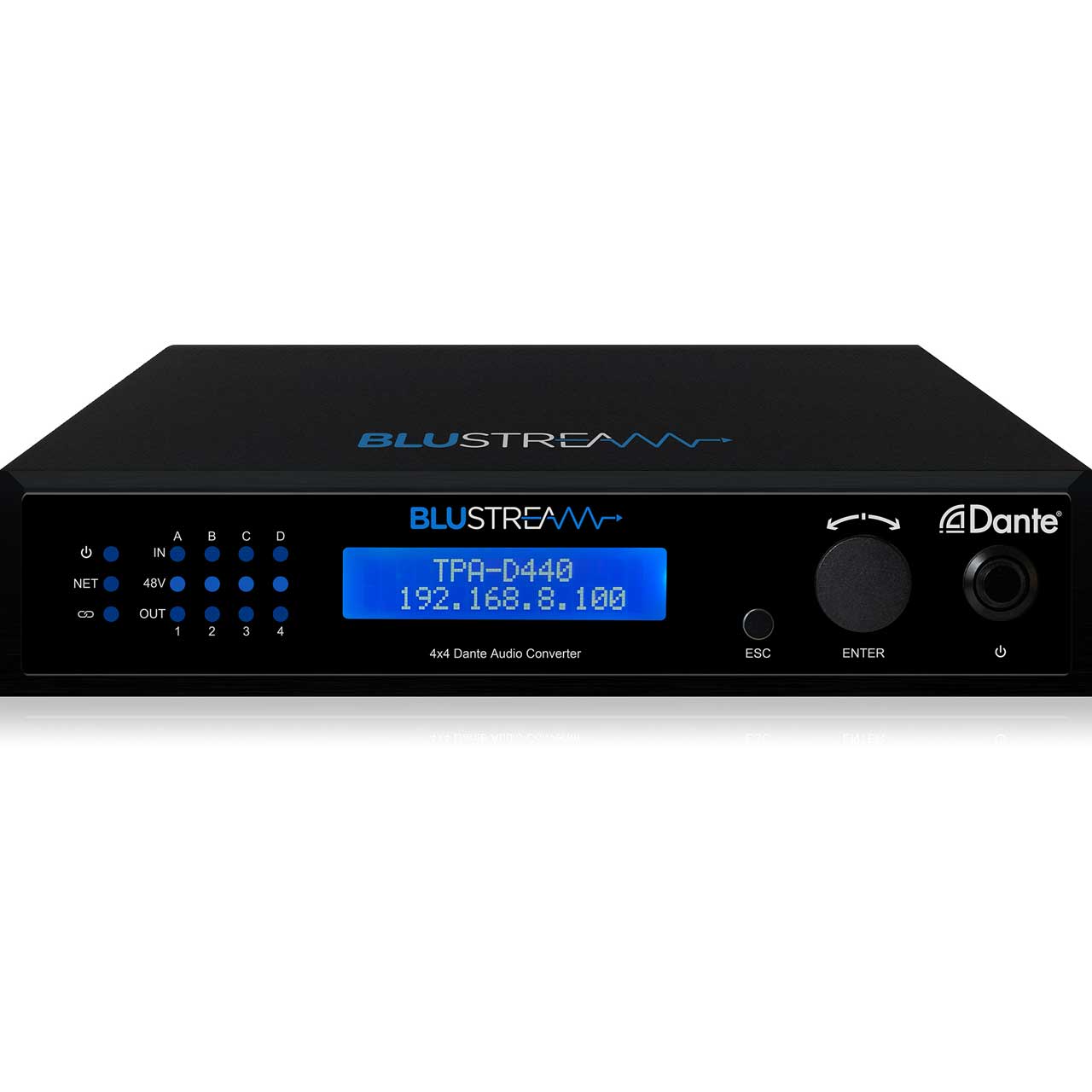

Blustream DA44AU 4x4 Dante Digital Audio Converter

DA44AU - Overview

• Features:

  • Features 4 x analog audio inputs that are converted to a Dante® compatible signal
  • Features conversion of 4x Dante® signals to analog audio outputs
  • Analog audio inputs support both balanced and unbalanced audio + MIC line level signals
  • MIC line level supports 48V phantom power
  • Supports 44.1, 48 & 96kHz sample rates @ 24-bit
  • Configurable Dante® device latency (supports 1, 2 or 5ms configurable using Dante® Controller)
  • Independent input gain / output volume settings per channel
  • Supports AES67 RTP audio transport


• Specifications:

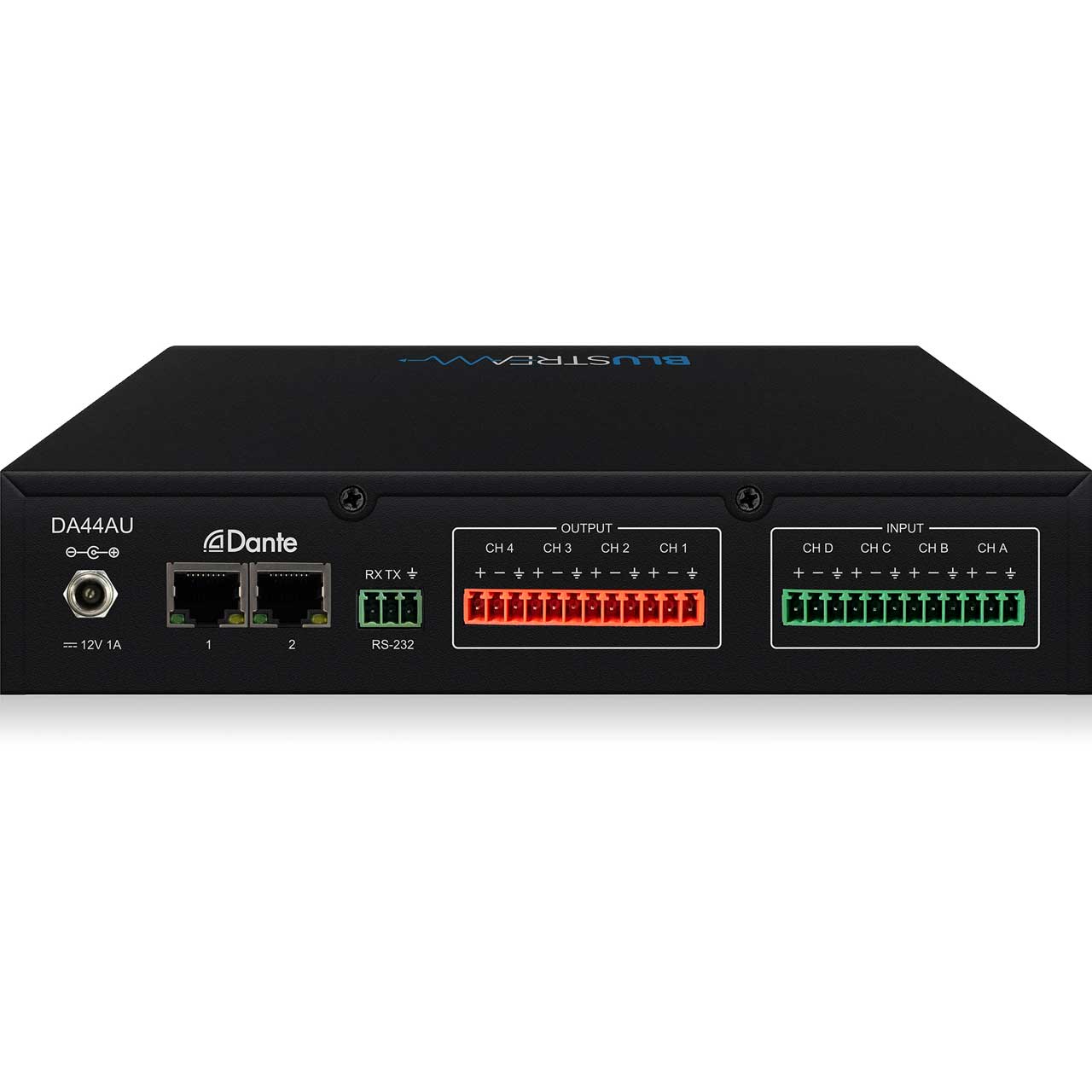

  • Audio Input Connectors: 12-PIN Phoenix connector (4ch balanced / unbalanced analog audio / MIC)
  • Audio Output Connectors: 2 x RJ45, female (1Gb Dante® network), 12-PIN Phoenix connector (4ch balanced /
    unbalanced analog audio / MIC)
  • Casing Dimensions (W x H x D): 120mm x 23mm x 34m without feet
  • Operating Temperature: 32°F to 104°F (-5°C to +55°C)
  • Storage Temperature : -4°F to 140°F (-25°C to +70°C)
  • Power Supply: 12V/1A DC


• Item Includes:

  • 1x DA44AU
  • 1x 12V/1A DC Power Supply
  • 1x Mounting Kit
  • 1x Quick Reference Guide


• Warranty:

  • 3 Year Warranty


• GTIN:

  9340242003188
