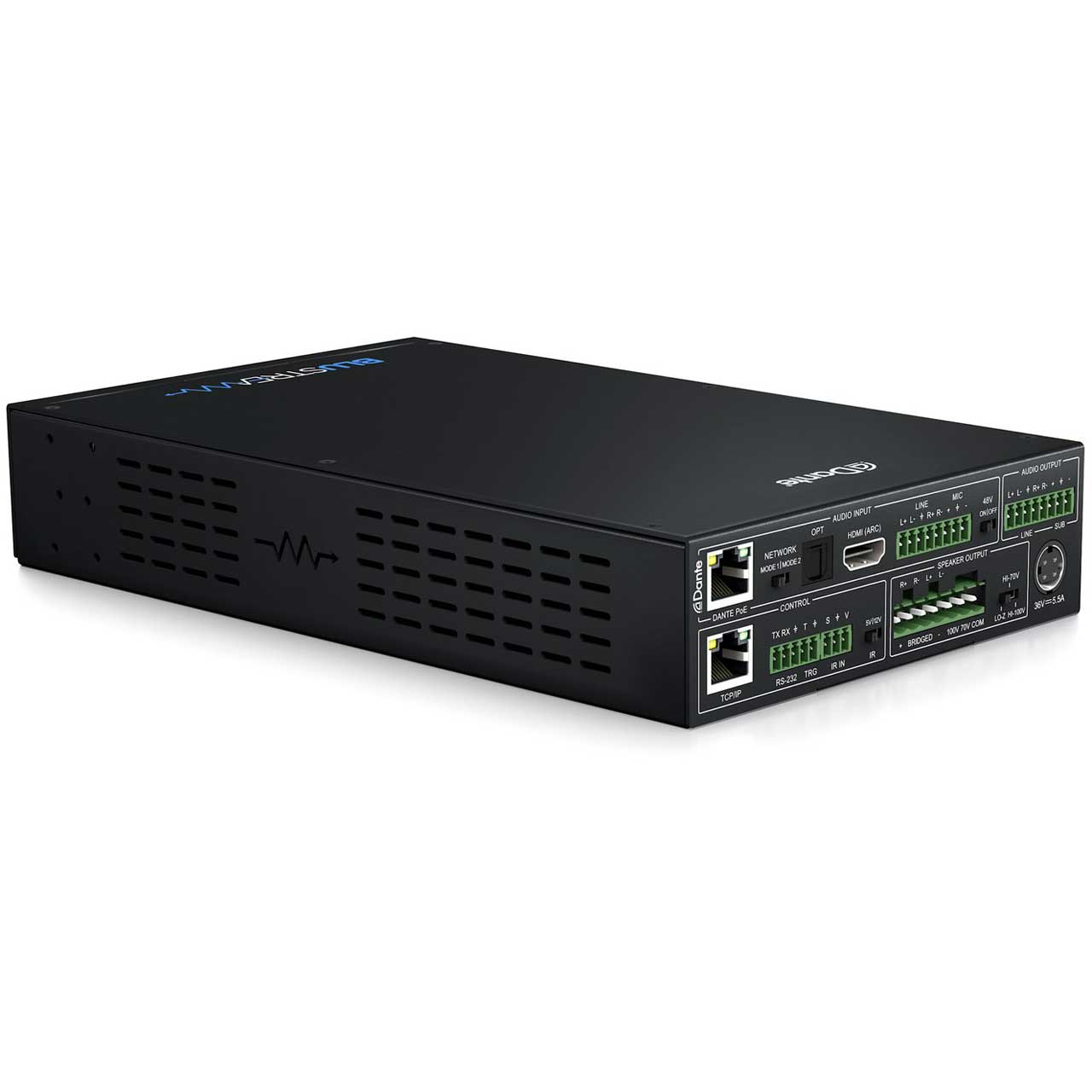

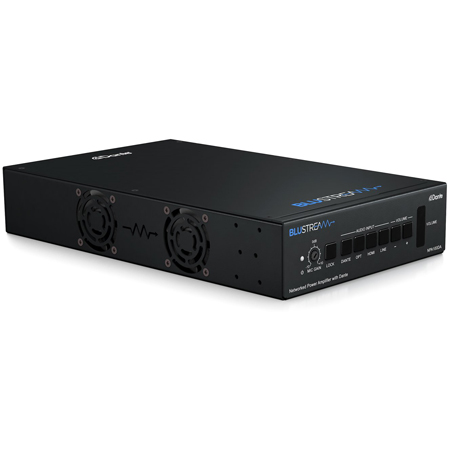

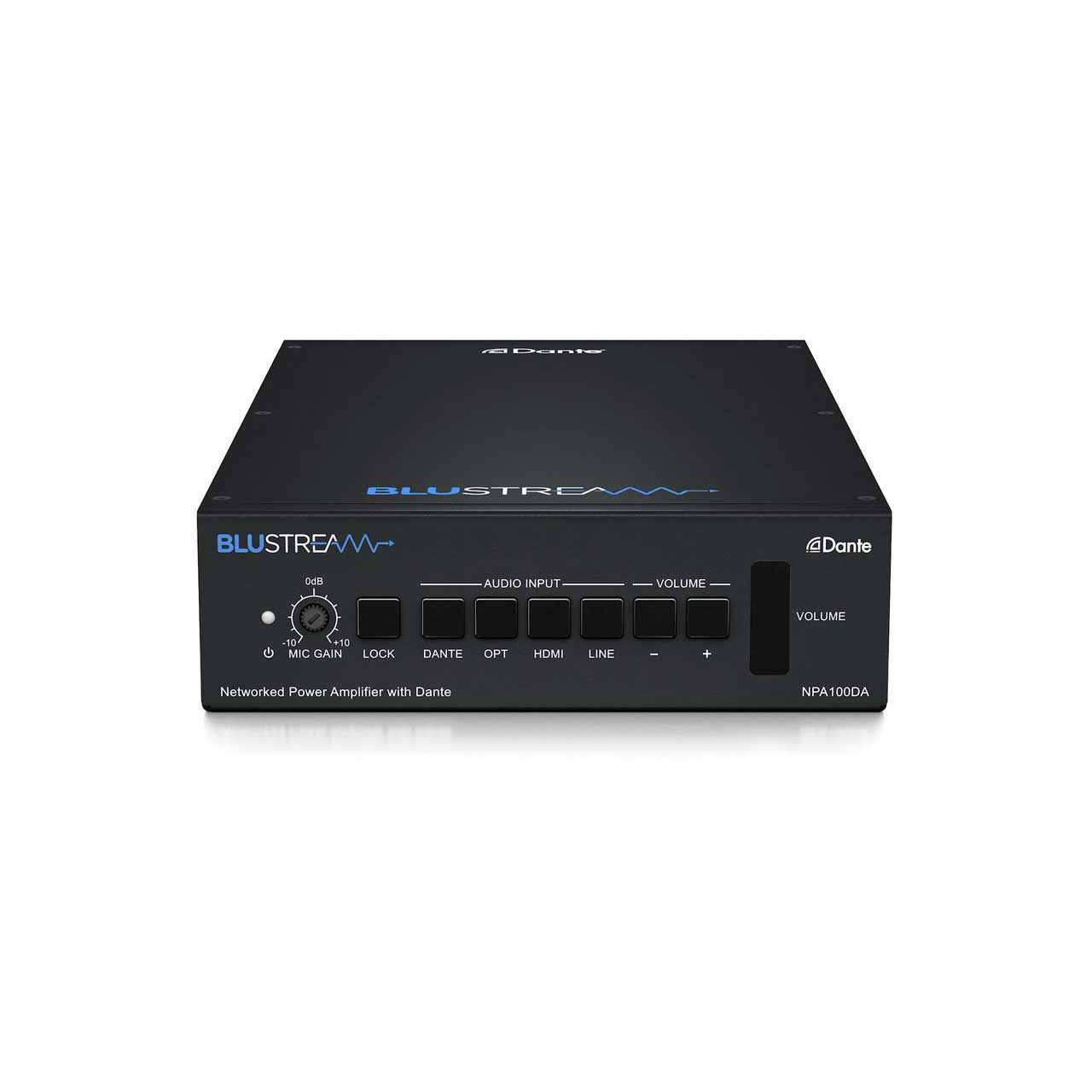

Blustream NPA100DA Networked Power Amplifier with Dante HDMI ARC/Optical S/PDIF/Mic Input - 48V Phantom Power/DSP PoE++

Name: Blustream NPA100DA Networked Power Amplifier with Dante HDMI ARC/Optical S/PDIF/Mic Input - 48V Phantom Power/DSP PoE++
Brand: Blustream
SKU: BLU-NPA100DA
Price: 1600.00 USD
Availability: PreSale

ITEM #: BLU-NPA100DA MFG #: NPA100DA

Blustream

Our Price:

$1,600.00

Add to Wish List Leasing Options

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info

Report Lower Price Large Quantity Quote

Required Accessories

Recommended Accessories

NPA100DA - Overview

Bluestream NPA100DA networked audio zone amplifier delivers advanced audio integration within a commercial or residential AV installation.

The NPA100DA features a 2x 50W digital amplifier (1 x 100W mono) or 70V / 100V hi-level constant voltage output, dedicated LFE subwoofer output, Dante audio integration and 2ch balanced / un-balanced audio outputs.

The NPA100DA supports a variety of inputs including 2ch Dante audio, HDMI ARC, MIC audio with 48V Phantom power support, optical audio and 2ch balanced / un-balanced analog audio.

The NPA100DA can be powered via PoE++ from a compatible network switch, or locally should the switch not support PoE++. The unit also includes the ability to lower the amplifier power output subject to PoE capabilities, support for combined or independent LAN and Dante connections, DSP with a 10 band EQ, audio delay for lip sync correction, independent gain control for audio inputs and control via front panel, IR, RS-232, TCP/IP, Web Gui or 12v trigger.

Features:
- Advanced network audio amplifier with Dante integration.
- Supports 2 x 50W @ 4 / 8 ohm, 1 x 100W @ 4 / 8 ohm, or 70 / 100V constant output for multiple speakers with longer cable runs
- Supports power via PoE++ on Dante LAN connection or via local power supply
- Dual network option - independent Dante and LAN control ports, or combined to a single LAN port
- Independent gain control for input channels
- DSP with 31 band EQ with +/-10dB gain and audio delay
- Local 12V input trigger for automated power control
- Control via front panel, IR, RS-232 and IP
- Auto standby mode with signal sensing
- In-built web-GUI for setup and control

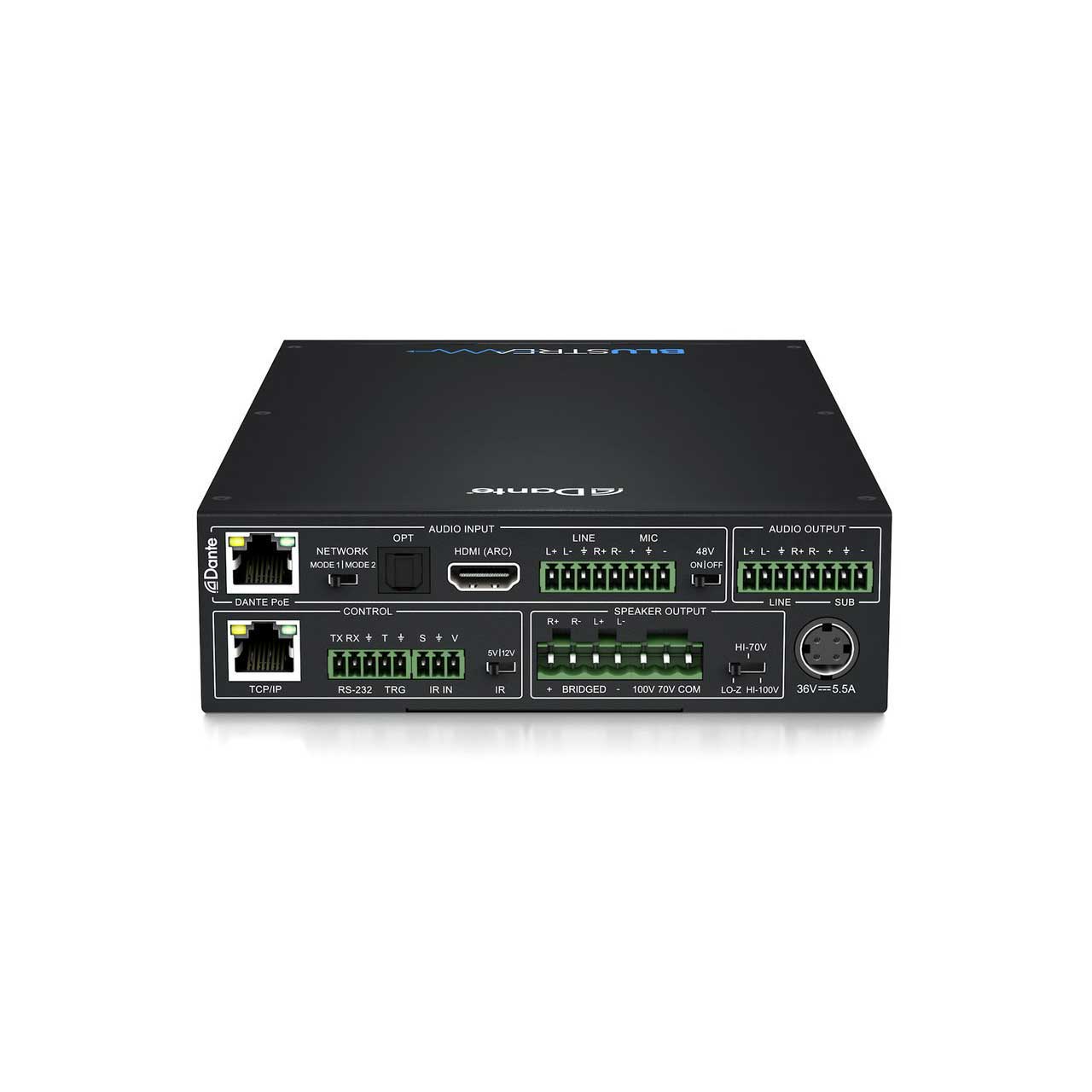

Specifications:
- Audio Inputs:
  1x 5-Pin Phoenix connector (Analog)
  1x 3-Pin Phoenix connector (MIC)
  1x HDMI Type A
  19-pin, female
  Locking (ARC)
  1x Optical (S/PDIF)
- Audio Outputs:
  1x 4-Pin Phoenix connector (4 / 8 ohm speaker)
  1x 3-Pin Phoenix connector (70 / 100v speaker)
  1x 5-Pin Phoenix Connector (analog audio)
  1x 2-Pin Phoenix connector (LFE subwoofer)
- Ethernet Port: 1 x LAN RJ45 connector (Dante), 1 x LAN RJ45 connector (Network)
- RS-232 Serial Port: 1 x 3-Pin Phoenix connector
- IR Input: 1 x 3-Pin Phoenix connector
- Trigger Input:
  1x 2-Pin Phoenix connector
  19" Rack mounting and wall / surface mounting kit included
- Dimensions Including Connections (WxDxH): 9.92 x 5.90 x 1.77" (252 x 150 x 45mm)
- Shipping Weight: 6.17Lbs (2.8kg)
- Operating Temperature: 32° to 104°F (0° to 40°C)
- Storage Temperature: -4° to 140°F (-20° to 60°C)
- Power Supply: PoE++ Type 4, 1 x 36V/5.5A DC
Item Includes:
- 1x NPA100DA
- 1x 36V/5.5A power supply
- 1x Remote control
- 1x IR receiver
- 1x Rack mounting kit
- 1x Wall / surface mounting Kit
- 4x Rubber feet
- 1x Quick reference guide
GTIN:
9340242004048
