The amazing audio meters on Blackmagic Audio Monitor 12G have real analog style ballistics that correctly conform to audio meter standards. The secret is that each audio meter segment has an independent RGB LED which can be changed to any color required for different meter standards. Plus each segment is independently machined and isolated, so no light bleeds between segments. The meters can be changed between VU -20dBFS and -18dBFS, PPM EBU -20dBFS and -18dBFS, PPM BBC -20dBFS and -18dBFS, Loudness EBU +9 and +18 plus Loudness in K-weighting LUFS +9 and +18 scale.

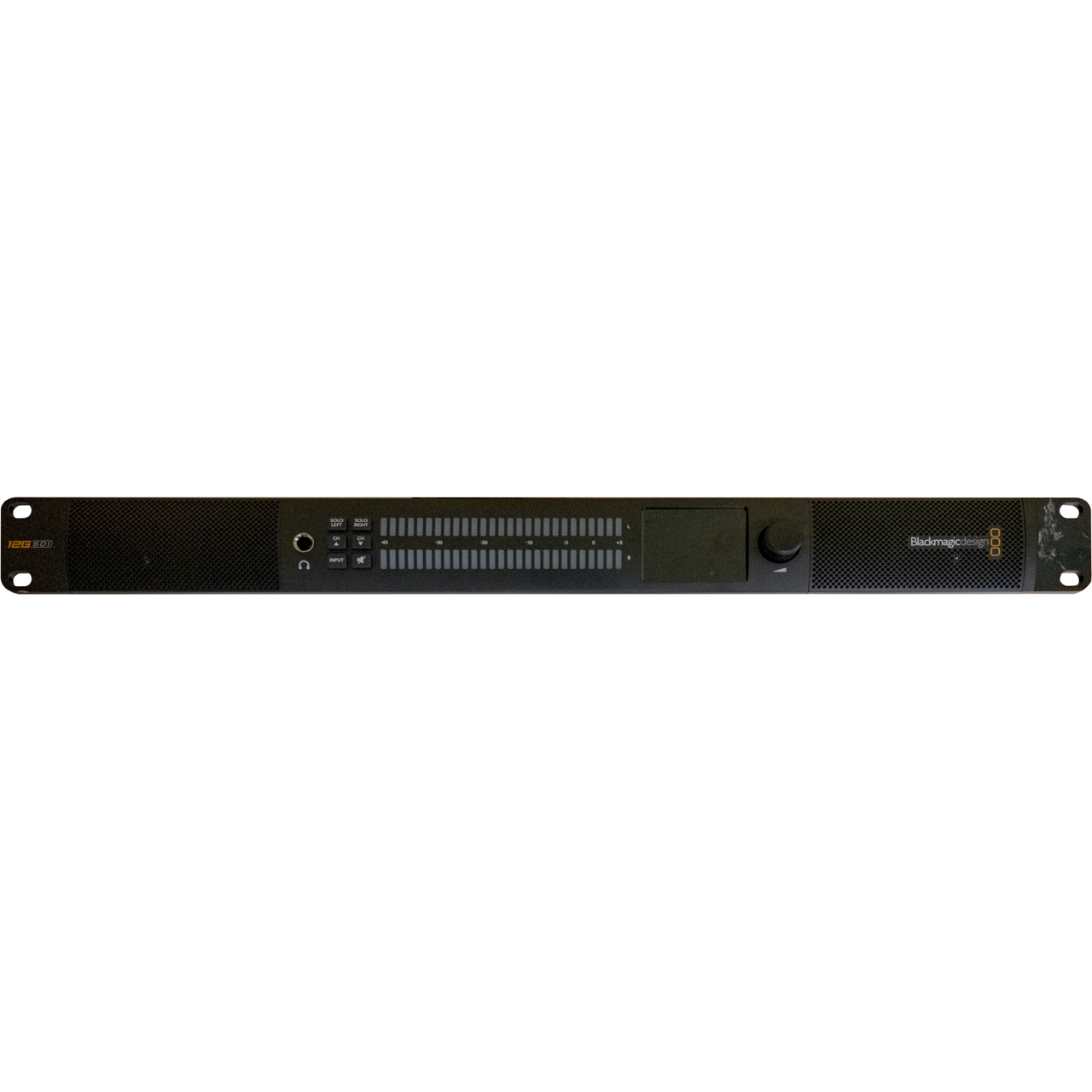

The front panel of Blackmagic Audio Monitor 12G includes a range of controls. Plus, customers get more than audio monitoring because the built in LCD lets customers monitor the 12G-SDI and 2110 IP video inputs. The LCD features additional status such as the input type selected, the video standard and the selected embedded audio pair from the video input.
The HDMI output lets customers use a large screen TV or a computer monitor as a broadcast monitor. The HDMI output is converted from the currently selected input, either 12G-SDI or the 2110 IP video inputs. There's even a 12G-SDI loop output, which also outputs the current selected video input. This means the SDI loop output can include video from either the SDI or 2110 IP video inputs. Plus customers can monitor all embedded audio pairs from the video inputs.
Blackmagic Audio Monitor 12G de-embeds audio from all SD, HD and Ultra HD video standards. This means it's perfect for connecting to existing SDI broadcast equipment to new 2110 IP based systems. In high definition, Blackmagic Audio Monitor 12G supports all 720p video standards up to 720p60, all 1080 interlaced standards up to 1080i60 and all 1080p standards up to 1080p60. In Ultra HD customers get all video standards up to 2160p60.

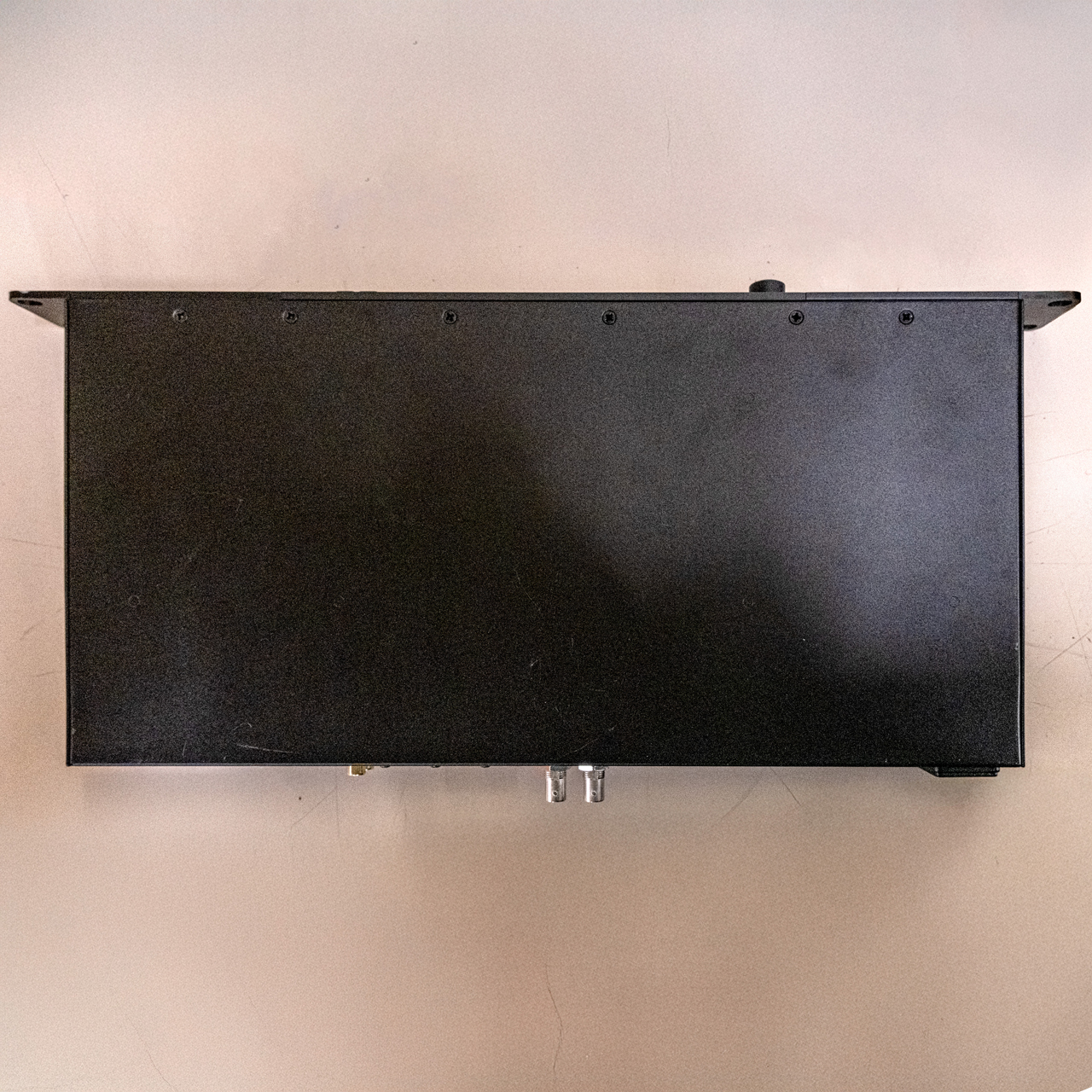

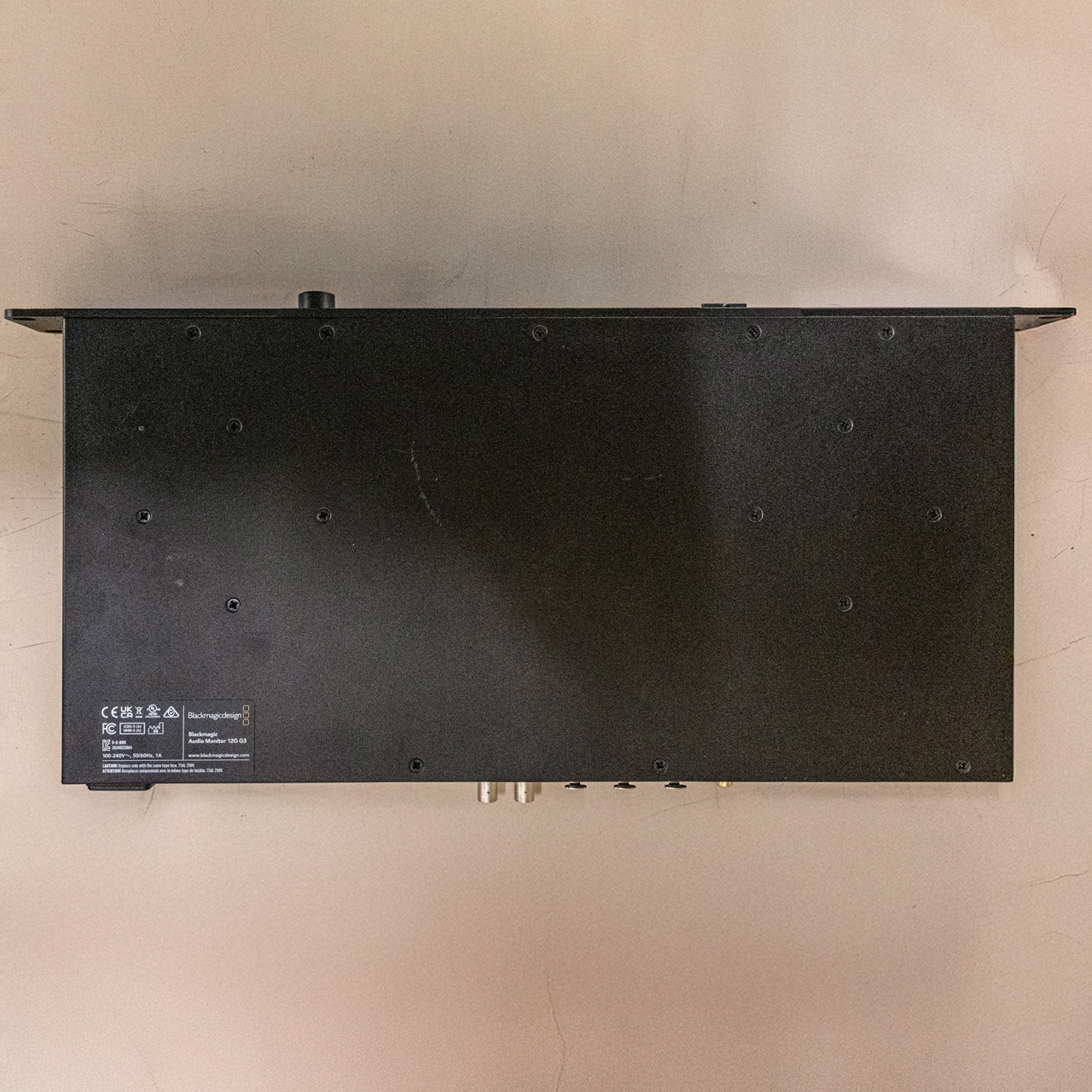

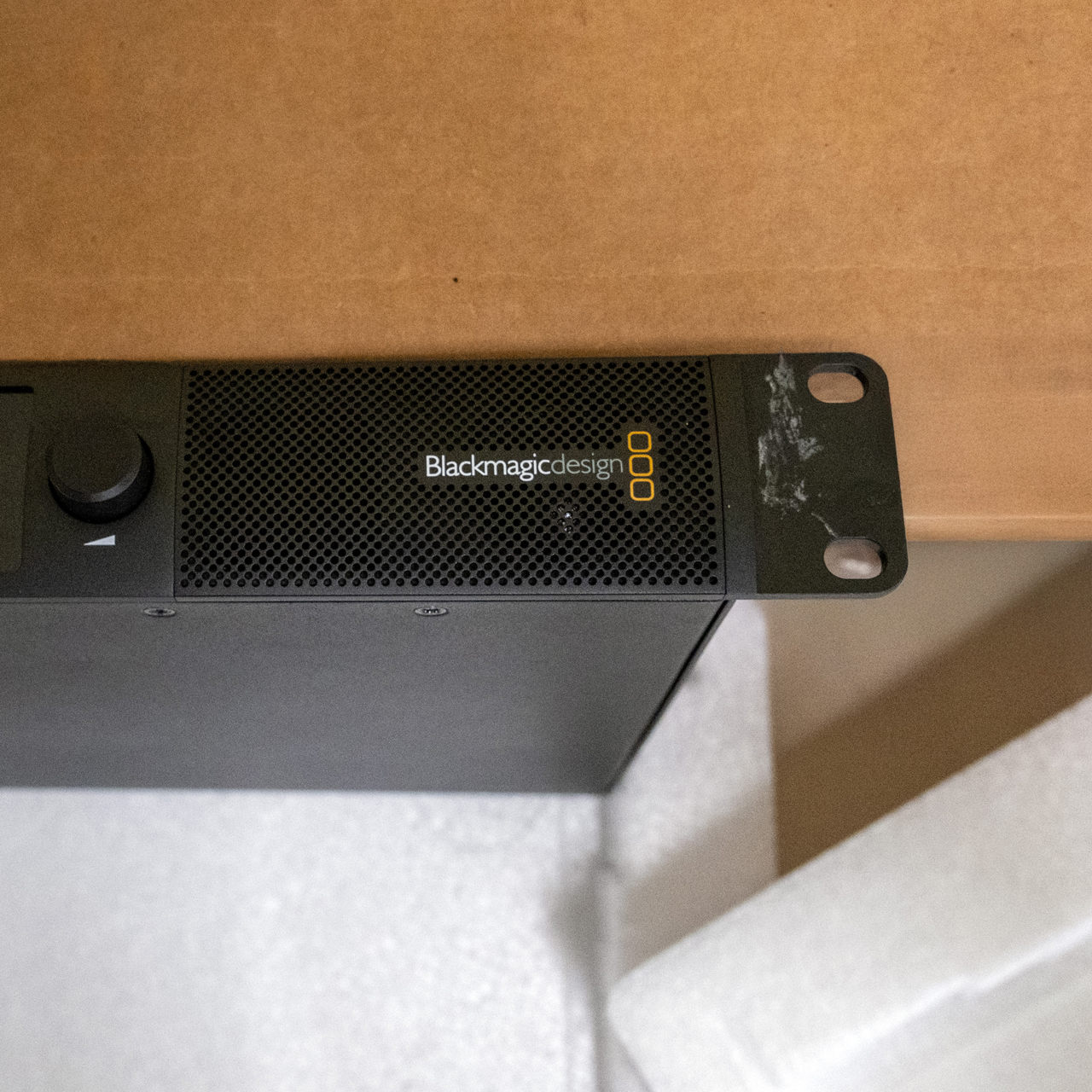

Please Note! This is a B-Stock unit. It has been refurbished by the vendor. Rack ears and unit have some scratches/blemishes. No longer under warranty.
