Blackmagic Design BDLKDVQDHDMI4K DeckLink Quad HDMI Recorder - SD/HD/UHD/4K

ITEM #: BMD-BDLKDVQDHD4K MFG #: BDLKDVQDHDMI4K

Primary Image
Blackmagic Design
Free Shipping with $49 Minimum Order

Our Price:

$545.00

Add to Wish ListLeasing Options
Availability: In Stock
iAvailability Description Popup
  • This item is not returnable. See Terms & Conditions for details.
Report Lower PriceLarge Quantity Quote

BDLKDVQDHDMI4K - Overview

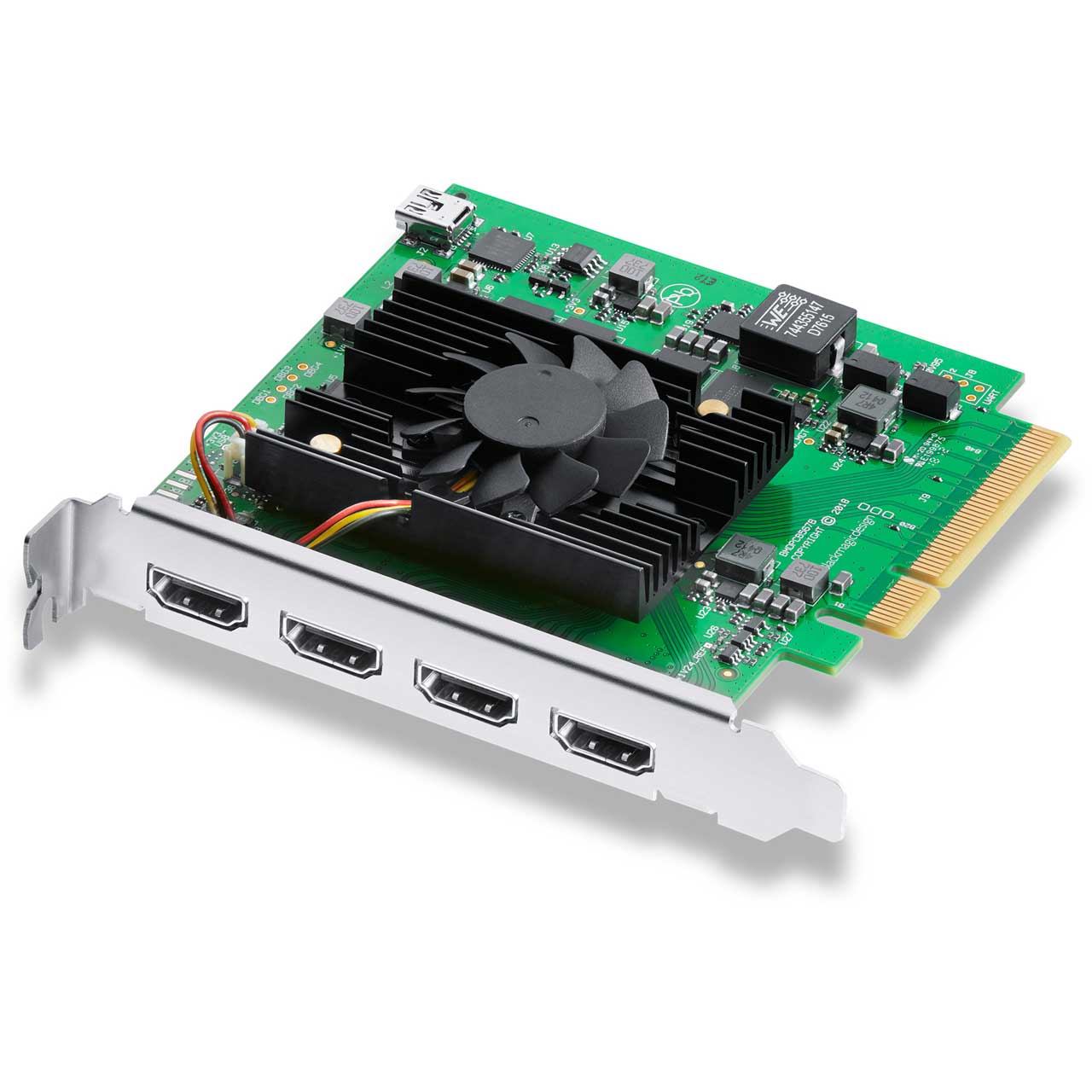

The Blackmagic Design DeckLink Quad HDMI Recorder is a high performance PCIe card that lets you capture from 4 different HDMI sources in any combination of SD, HD, Ultra HD, 4K and even computer formats, all at the same time. Featuring 4 independent HDMI 2.0b input connections, DeckLink Quad HDMI is like getting 4 separate and customizable capture cards in one, making it perfect for software live switching, real time computer game capture, streaming and more.

DeckLink capture and playback cards are used every day on Hollywood feature films, episodic television programs, music videos, commercials and more. Featuring the latest cutting edge technologies such as 12G-SDI and 8K support, DeckLink cards give you the highest quality video and work with more applications and platforms than any other card. Every DeckLink PCI Express card can be installed in Mac, Windows and Linux based workstations and servers, giving you ultimate flexibility!

  • Specifications:

    • Connections
    • HDMI 2.0b Video Inputs: 4
    • HDMI Audio Inputs: 8 Channels embedded in SD/HD/UHD/4K
    • Computer Interface: PCI Express 8 lane generation 3, compatible with 8 and 16 lane PCI Express slots

      Video Standards
    • SD Video Standards: 525i59.94 NTSC, 625i50 PAL
    • HD Video Standards: 720p50, 720p59.94, 720p60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60 1080i50, 1080i59.94, 1080i60
    • Ultra HD Video Standards: 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60
    • 4K Video Standards: 4Kp23.98 DCI, 4Kp24 DCI, 4Kp25 DCI, 4Kp29.97 DCI, 4Kp30 DCI, 4Kp50 DCI, 4Kp59.94 DCI, 4Kp60 DCI
    • Digital Video Interface (DVI) Standards: 640x480p60, 800x600p50, 800x600p60, 1440x900p50 1440x900p60, 1440x1080p50 1440x1080p60, 1600x1200p50, 1600x1200p60, 1920x1200p50, 1920x1200p60, 1920x1440p50, 1920x1440p60, 2560x1440p50, 2560x1440p60, 2560x1600p50, 2560x1600p60
    • Audio Sampling: Television standard sample rate of 48 kHz and 24 bit
    • HDMI Color Precision: 8, 10, 12-bit RGB 4:4:4 in all modes up to 4Kp30 DCI and 8, 10-bit YUV 4:2:2 and 4:2:0 in all modes. 8-bit RGB 4:4:4 in all DVI modes
    • Color Space: REC 601, REC 709, REC 2020
    • HDMI Video Sampling: 4:4:4, 4:2:2 and 4:2:0
    • HDMI Configuration: HDMI 2.0b supports Deep Color and HDR. Automatically configures to connected display
    • Multiple Rate Support: HDMI inputs are switchable between SD, HD, Ultra HD, 4K DCI and DVI modes
    • Copy Protection: HDMI input is unable to capture from copy protected HDMI sources. Always confirm copyright ownership before capture or distribution of content

      General
    • Size: 4.29"
    • Weight: 4.51 oz
    • Power Consumption: 23 W
    • EMC Certifications: FCC, CE, RCM and KC
    • Operating temperature: 5° to 40° C (41° to 104° F)
    • Storage temperature: -20° to 45° C (-4° to 113° F)
    • Relative Humidity: 0% to 90% non-condensing
    • OS Needed: Mac 10.15 Catalina,Mac 11.1 Big Sur or later, Windows 8.1 and 10, both 64-bit., Linux


  • Warranty:

    • 3 Year


  • GTIN:

    9338716006094
