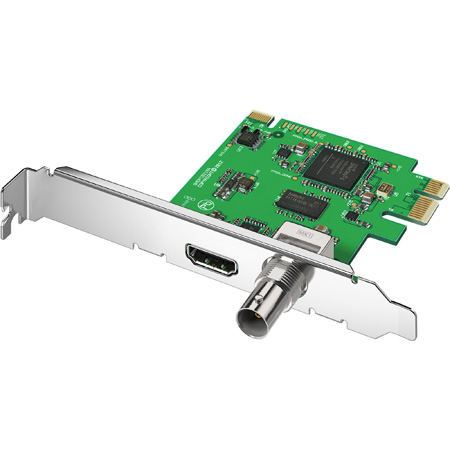

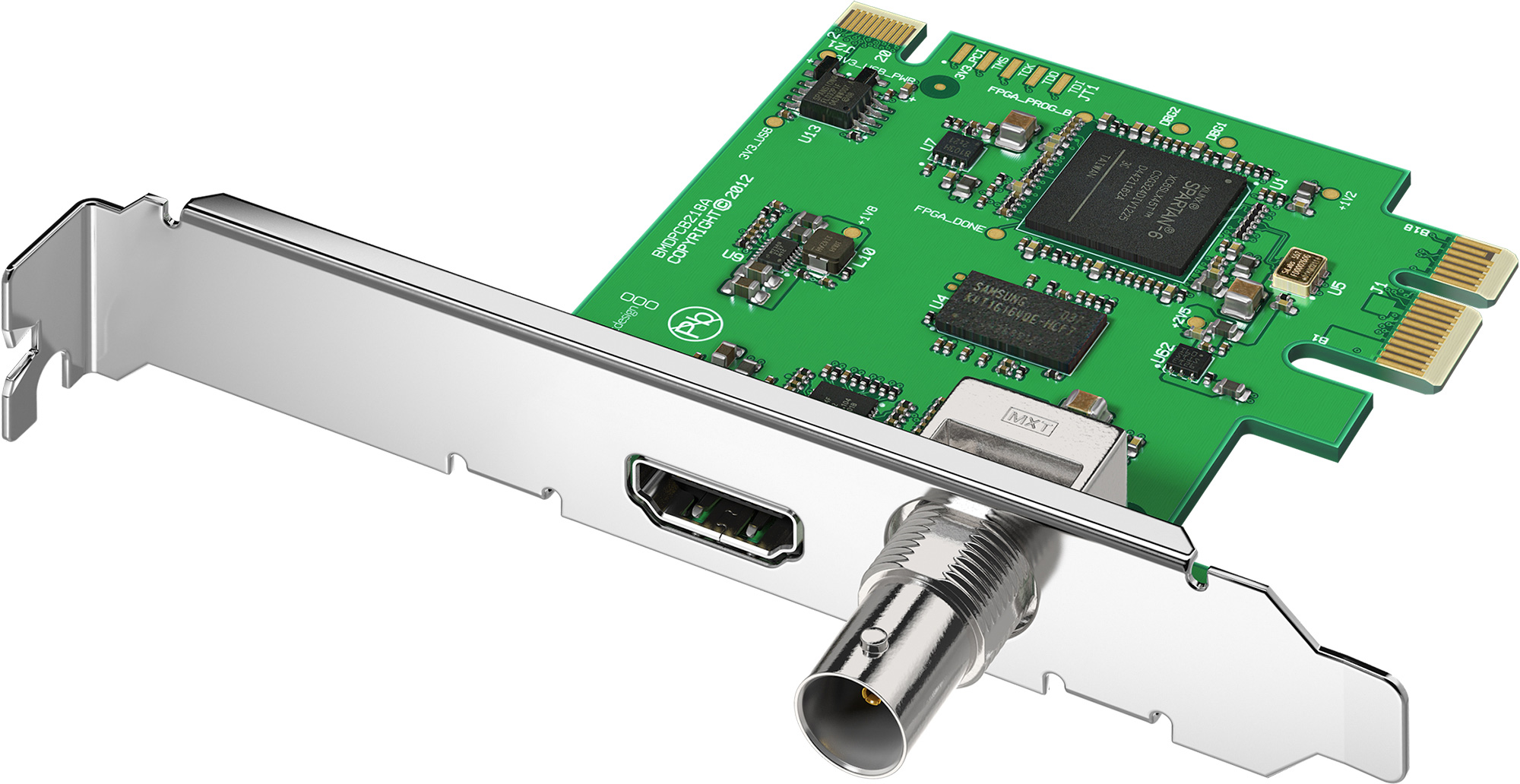

Blackmagic Design BDLKMINIMON DeckLink Mini Monitor

ITEM #: BMD-DLMM MFG #: BDLKMINIMON

Primary Image

This item is no longer available.
Ask a Markertek Expert if you need assistance finding an appropriate substitute.

(800) 522-2025Email

Items similar to the BMD-DLMM

BDLKMINIMON - Overview

The Blackmagic BMD-BDLKMINIMON DeckLink Mini Monitor allows you to monitor uncompressed 10-bit video from your computer! It includes SDI and HDMI outputs for connecting to any television or monitor. The DeckLink Mini Monitor auto switches between SD and HD so it handles all common video formats, it's the perfect solution for monitoring from editing software while you edit! Includes two PCI Express shields for both full height and low profile slots.

  • Features:

    • SDI Video Output: 1 x 10 bit SD/HD switchable.
    • HDMI Video Output: 1 x HDMI type A connector.
    • SDI Audio Output: 16 Channels embedded in HD and 8 channels in SD.
    • HDMI Audio Output: 8 Channels embedded in SD and HD.
    • Computer Interface: PCI Express 4 lane, compatible with 4, 8 and 16 lane PCIe slots.


  • Specifications:

    • Connections:
    • SDI Video Output: 1 x 10 bit SD/HD switchable.
    • HDMI Video Output: 1 x HDMI type A connector.
    • SDI Audio Output: 8 channels embedded in SD and HD.
    • HDMI Audio Output: 8 Channels embedded in SD and HD.
    • Computer Interface: PCI Express 1 lane, compatible with 1, 4, 8 and 16 lane PCIe slots.

      Codecs:
    • Supports: AVC-Intra, AVCHD, Canon XF MPEG2, Digital SLR, DV-NTSC, DV-PAL, DVCPRO50, DVCPROHD, DPX, HDV, XDCAM EX, XDCAM HD, XDCAM HD422, Apple ProRes 4444, Apple ProRes 422 (HQ), Apple ProRes 422, Apple ProRes (LT), Apple ProRes 422 (Proxy), Uncompressed 8-bit 4:2:2, Uncompressed 10-bit 4:2:2.

      Software:
    • Software Included: Media Express, Disk Speed Test, LiveKey, Blackmagic System Preferences and Blackmagic driver on Mac OS X. Media Express, Disk Speed Test, LiveKey, Blackmagic Control Panel and Blackmagic driver on Windows 7 or Windows 8. Media Express, Blackmagic Control Panel and Blackmagic driver on Linux.
    • Internal Software Upgrade: Firmware built into software driver. Loaded at system start or via updater software.

      OS Needed:
    • Mac 10.15 Catalina,Mac 11.1 Big Sur or later, Windows 8.1 and 10, both 64-bit., Linux

      Video Standards:
    • SD Format Support: 625/25 PAL, 525/29.97 NTSC.
    • HD Format Support: 720p50, 720p59.94, 720p60, 1080PsF23.98, 1080p23.98, 1080PsF24, 1080p24, 1080PsF25, 1080p25, 1080PsF29.97, 1080p29.97, 1080PsF30, 1080p30, 1080i50, 1080i59.94 and 1080i60.
    • SDI Compliance: SMPTE 259M and 292M.
    • Audio Sampling: Television standard sample rate of
    • 48 kHz and 24 bit.
    • Video Sampling 4:2:2
    • Color Precision 10-bit
    • Color Space REC 601, REC 709
    • HDMI Configuration: HDMI automatically configures to connected display.
    • HDMI Resolution: Pixel for pixel HD resolution input to connected device.
    • HDMI Color Precision 10-bit
    • Multiple Rate support: SDI and HDMI are switchable between between standard definitlon and high definition.

      Processing:
    • Colorspace Conversion: Hardware based real time.
    • HD Down Conversion: Software based down conversion during video playback.
    • Real Time Effects: Apple Final Cut Pro internal effects. Adobe Premiere Pro Mercury Playback Engine effects. Avid Media Composer internal effects.
    • Power Draw: 4 Watts


  • Item Includes:

    • DeckLink Mini Monitor
    • Software CD


  • GTIN:

    9338716001914
