VCC-M2H10BI-4FN1 - Overview

Bolin's 2 Series PTZ camera is a compact design, one camera multipurpose solution that fits into most video production workflows. It's a functional video conference camera with capabilities to help you enter the world of broadcast. Choose from simultaneous video outputs of 3G-SDI, HDMI, IP, USB2.0, or use them independently. Cloud video conference, easy RTMP and RTSP streaming, quiet and smooth movements with camera presets, web interface to configure, view, and move the camera on the fly - the power is in your hands.

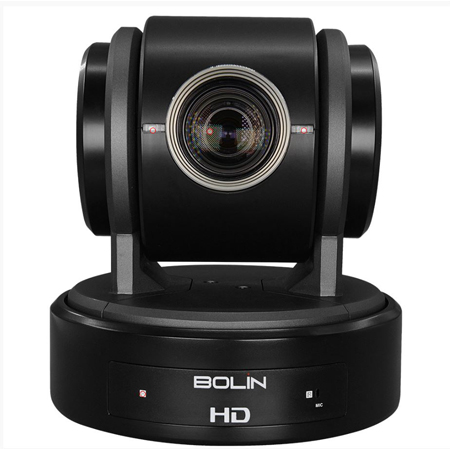

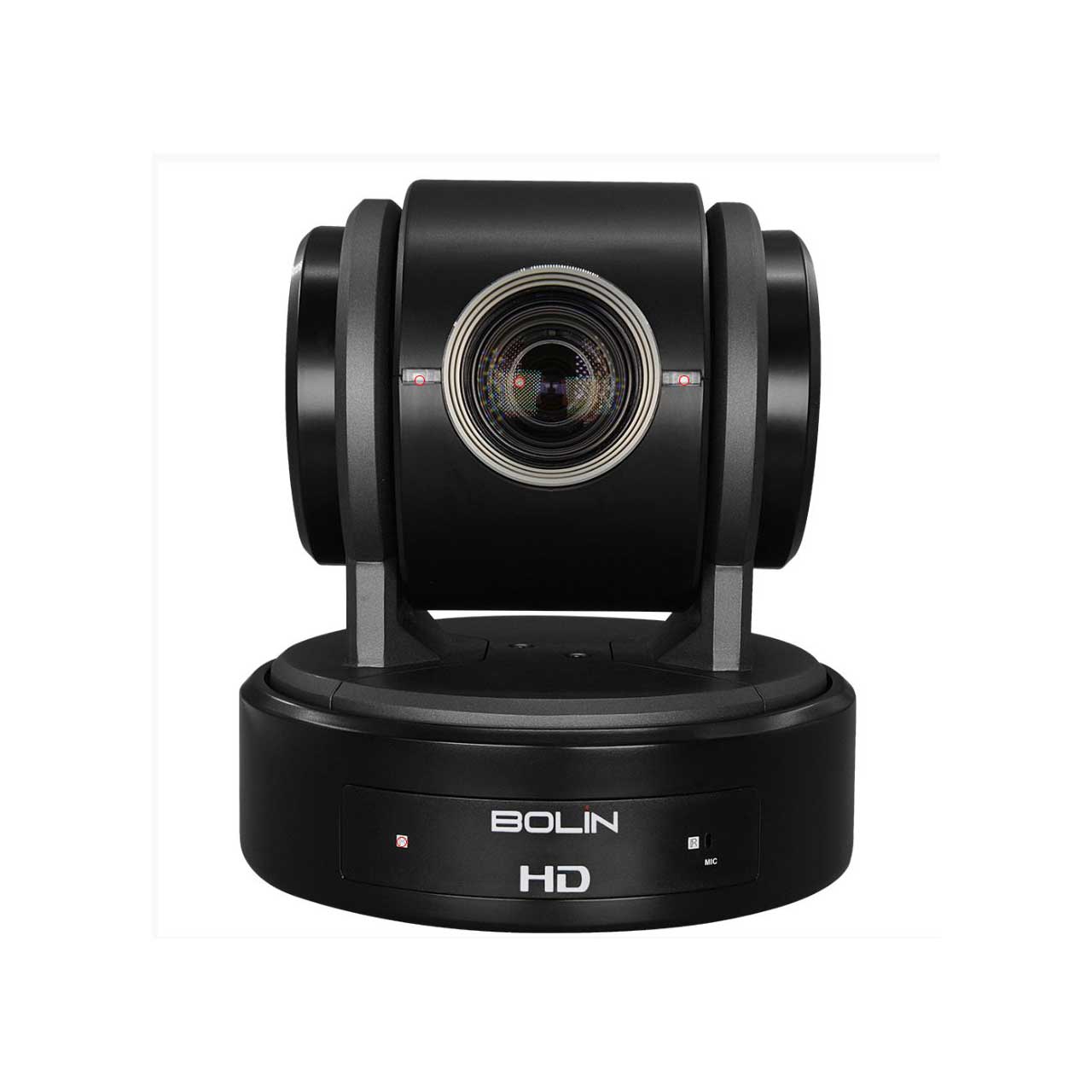

Compact Design with No Compromises!
Compact and mobile body design with a base frame made of Magnesium Alloy for durability and balance. It's perfect for for huddle-rooms and small size broadcast studio spaces. As an entry level PTZ camera, it features high performance for wide range of use from small video conferencing to various Pro AV application.

Power In Your Hands - Designed with Flexibility, Quality and Portability in mind
Great features abound like FHD high resolution images, simultaneous 3G-SDI, HDMI, IP, USB2.0 video output with audio embedded, Cloud video conference and USB plug and play. More? There's SDI/HDMI for ProAV, Easy RTMP and RTSP IP streaming, view let's you move the camera on the fly, and it's always quiet, fast, smooth movement under your control.

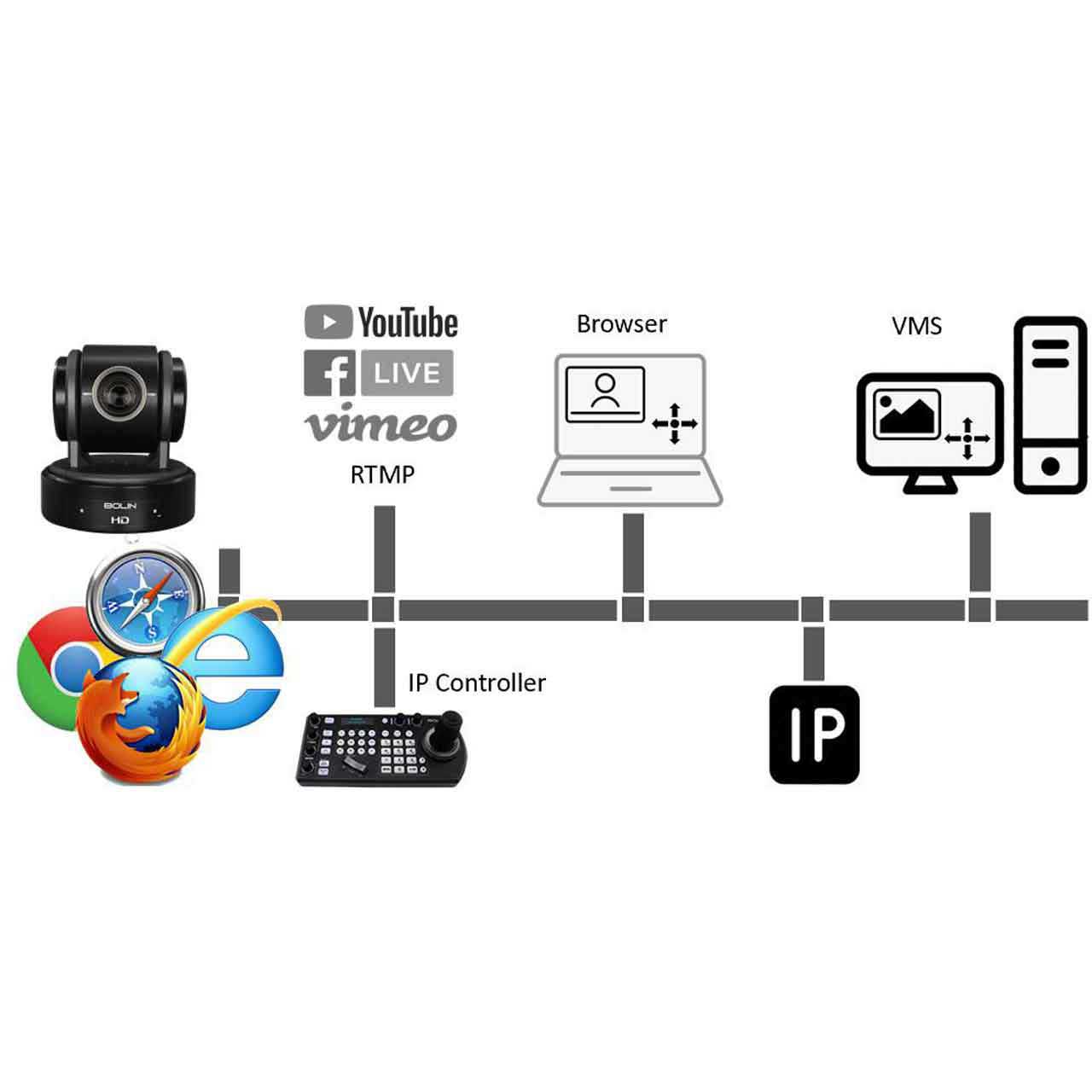

IP Video Streaming - Remote Control and View
Remotely view smooth and stable video streaming (up to 1080p60) plus audio over an IP network via web browser. Supports RTSP, RTMP for online video and live streaming. Full function PTZ camera IP control via Visca Over IP protocol. With VLC plug-in there's HTML5 support for Microsoft Edge, Google Chrome, Firefox, and Safari browsers.

  • Features:

    • Compact and mobile body design with base frame made of Magnesium Alloy for durability and balance for huddle-room and small size broadcast studio space.
    • As an entry level PTZ camera, it carries high performance for wide range of use from small video conferencing to various Pro AV application.
    • FHD high resolution images.
    • Simultaneous 3G-SDI, HDMI, IP, USB2.0 video output with audio embedded.
    • Cloud video conference USB plug and play.
    • SDI/HDMI for ProAV.
    • Easy RTMP and RTSP IP streaming, view - move the camera on the fly.
    • Quiet, fast, smooth movement under your control.

  • Specifications:

    • Image Sensor: 1/2.8 inch CMOS 2.13MP
    • Lens 10X: 4.7~47mm. 16X digital zoom
    • Digital Zoom: 16X
    • Horizontal Angle of View: 60.9°(W)~6.43°(T)
    • Aperture: F1.6(W)~F3.0(T)
    • Min. Illumination: 0.5Lux (Day), 0.1Lux (Night)
    • Focus: Auto Focus, Manual Focus,
    • White Balance: AUTO, ATW, Indoor, Outdoor, One Push WB, Manual WB
    • Exposure: Full Auto, Shutter Priority, Iris Priority, Manual, Bright
    • Features: Defog mode, Flipper, Mirror, De-Flicker, WDR
    • Noise Reduction: 2D/3D
    • S/N Ratio: =50db
    • Pan Movement: Horizontal:±350 degrees continuous pan (Zoom Adaptive Speed Range: 0.1°?100°/S )
    • Tilt Movement: Vertical:+90 degrees to -30 degrees (Zoom Adaptive Speed Range: 0.1°?50°/S)
    • Preset Position: 128(Speed adjustable: Up to 150°/S, 6 presets on remote controller.)
    • Preset Speed: 0~5 Level Adjustable
    • Preset Memory: YES, (Preset Memory for image parameters)
    • Home Position: Support
    • Environmental: Indoor

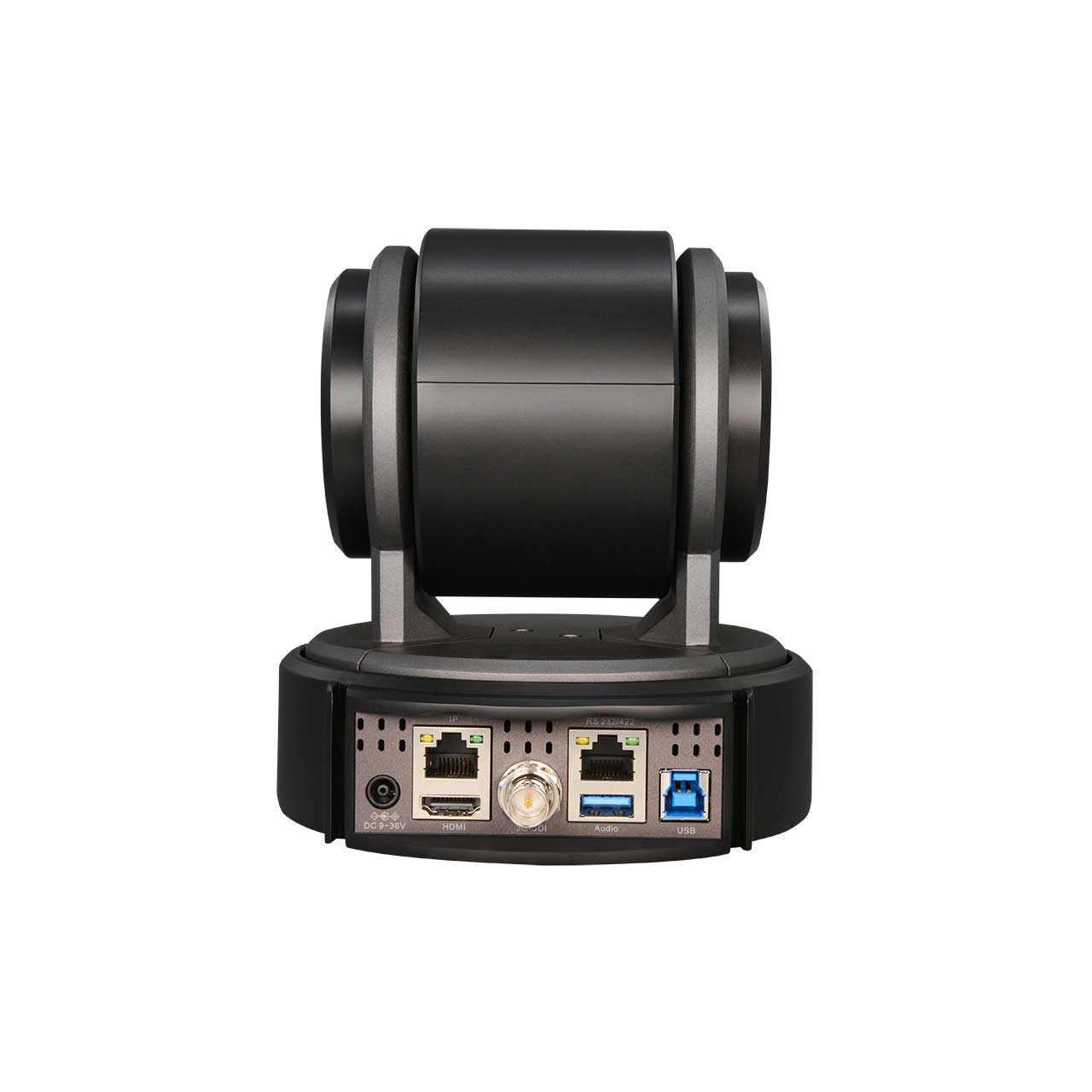

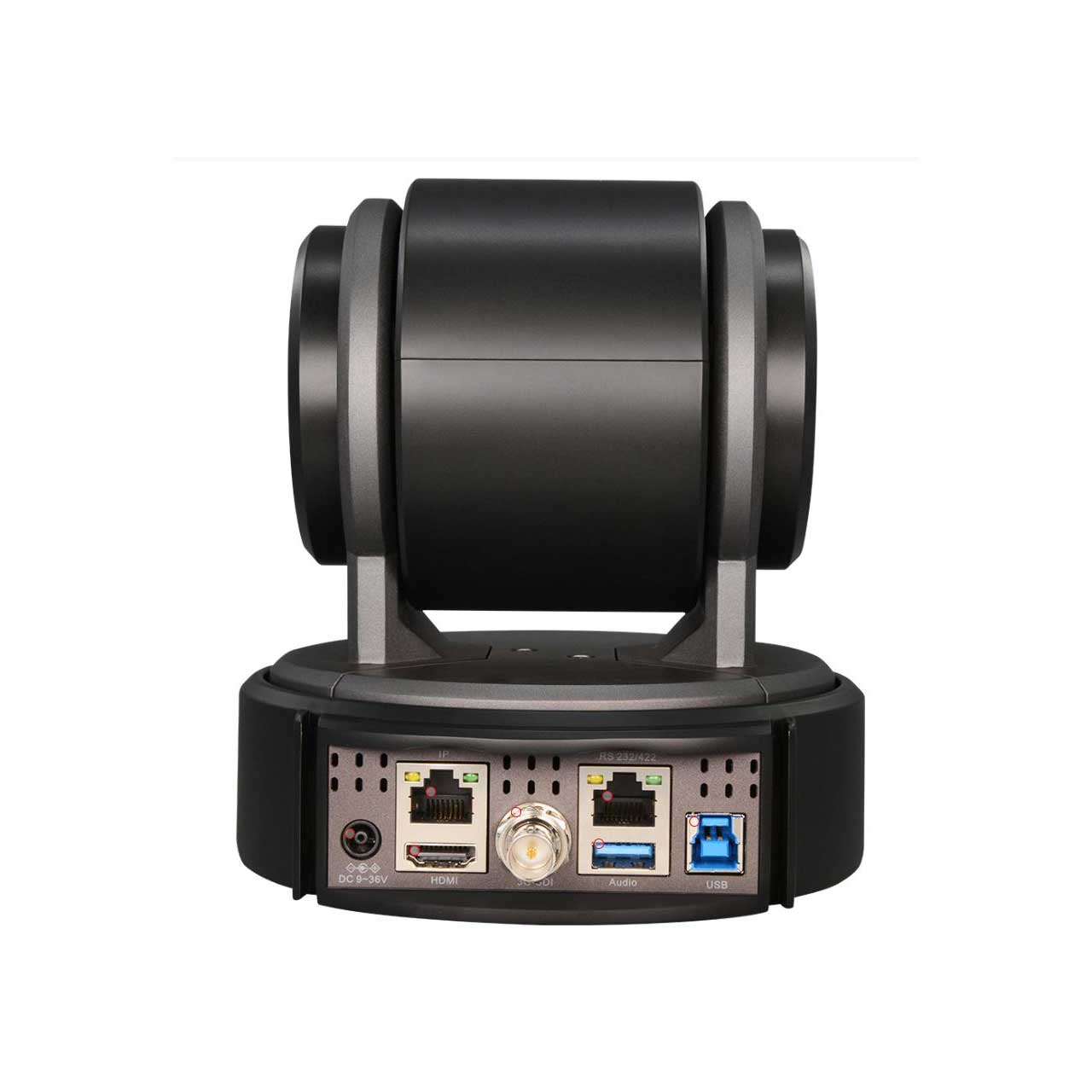

    • Video Output: SDI, HDMI, IP, USB2.0 Simultaneous
    • Video Format(HDMI): 1080p:60/59.94/50/29.97/30/25; 1080i:60/59.94/50; 720p:60/59.94/50/30/25
    • Audio I/O: USB Port. (USB port to 3.5mm audio jack adapter for Audio input x1, Audio output x1 cable included)
    • Control Interface: 1XRJ45: IP; 2XRJ45: RS232/RS422/RS485, IR Remote Controller
    • Control Protocol: VISCA / Pelco D / IP Onvif / VISCA over IP
    • System Upgrade: USB2.0 (for FW upgrade only), System upgrade via USB 2.0
    • 3G-SDI: Signal Fluctuations 800mv -/+10% (external cable extension requirements 75-5, 128 twisted pair shielding , coaxial cable)
    • Standard: SMPTE 292(1.5Gb/s), SMPTE 425-A(3Gb/s) With SMPTE352 SDI Metadata Supported
    • Signal Format: 1080p:60/59.94/50/29.97/30/25; 1080i:60/59.94/50; 720p;60/59.94/50/30/29.97/25
    • USB Port: USB2.0, Type B
    • Compression: MJPEG?H.264
    • Video Format: 1920x1080, 1280x720, 720x576, 640x480, 320x240; Frame Rate: 30/25/20/15/10
    • Compatible Integration: UVC
    • Video Compression: MJPEG, H.264 /265
    • IP Video Format: 1080p:60/50/30/25; 720p:60/50/30/25
    • Protocols: IPv4,TCP/IP,UDP,DHCP,RTP,RTSP,HTTP,RTMP
    • Browser Support: HTML5 support for Microsoft Edge, Google Chrome, Firefox, and Safari browsers.
    • Audio Compression: AAC-LC Broadband Audio Encoding(Duplex Communicate Supported,Audio/Video synchronization)
    • OSD: Customized OSD
    • Compatible Integration: ONVIF, VISCA Over IP
    • Operating Temperature: -10 to +50 (°C)
    • Operating Humidity: =80% Suitable for Use
    • Power Input: 12VDC, PoE+ (IEEE 802.3at)
    • Power Consumption: 10.8W
    • Dimension: 145x152x155mm
    • Weight: 1.5kg
    • Body Color: Black, White

  • GTIN:

    6973775120249
