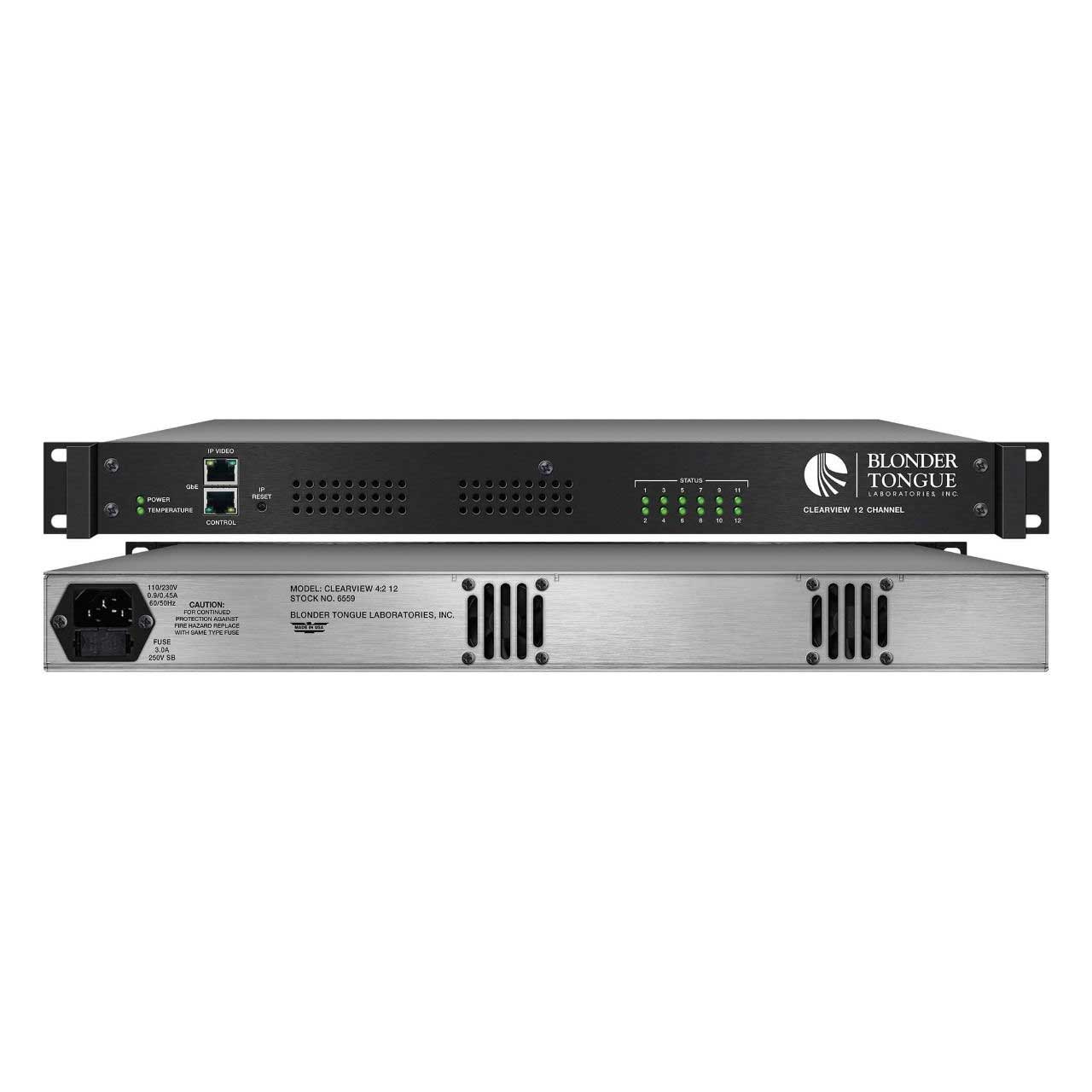

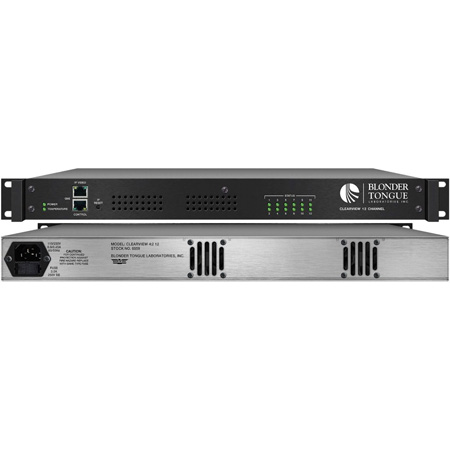

Blonder Tongue Clearview 4:2 12 Program HD 1080 Transcoder with Audio Passthrough & COM3000

CLEARVIEW 4:2-12 - Overview

• Features:

  • Decrypts AES-128 encrypted H.264 video content
  • IP input that supports up to 12 SPTS H.264 HD programs
  • IP output supports up to 12 SPTS MPEG-2 HD programs
  • Preserves embedded watermarking on outbound MPEG-2 video content
  • Easy-to-use GUI for monitoring & control
  • 12 front panel Status LEDs, one for each program stream
  • One front panel Temperature LED


• Specifications:

  • Input
  • Connectors: 1 x Front Panel RJ45 (IP Video Port, Input/Output)
  • Standard Protocols Supported: UDP/IP
  • Standard: 1000Base-T (GbE)
  • TS Packet Length: 188 bytes
  • Sync Byte: 0x47
  • Decryption: AES-128
  • TS Supported: 12 SPTS
  • Video Resolution:
    480i (30 FPS)
    720p (60 FPS)
    1080i (30 FPS)
    1080p (30/60 FPS)
  • Audio: Pass-through
  • Routing Protocol: Unicast

    Alarms & Monitoring
  • Local Monitoring:
    1x Power LED
    1x Temperature LED
    12x Status LEDs
  • Local Control: 1x IP Reset button
  • Remote Control: 1x RJ45 (1000Base-T GbE)

    Output
  • Connector: 1 x Front Panel RJ45 (IP Video Port, Input/Output)
  • Standard: 1000Base-T (GbE)
  • Protocols Supported: UDP
  • Standard: ISO/IEC 13818-1 Systems
  • TS Packet Length: 188 bytes
  • Sync Byte: 0x47
  • Bit Rate: Constant
  • # of TS Supported: 24 SPTS
  • CODEC: MPEG-2
  • Output Resolution: 480i (30 FPS)
  • Audio: Pass-through
  • Routing Protocol: Unicast

    General Specifications
  • Dimensions: 19.0 x 19.2 x 1.75" (483 x 488 x 45 mm)
  • Unit Weight: 9.5 lbs. (4.31 kg)
  • Shipping Weight: 12 lbs. (5.44 kg)
  • Power: 110/230 VAC, 0.9/0.45 A, 60/50 Hz
  • Power Consumption: 60 W
  • Operating Temperature: 32 to 122 °F (0 to 50 °C)
  • Storage Temperature: -13 to 158 °F (-25 to 70 °C)
  • Operating/Storage: 0 to 95% RH @ 35 °C max,
  • Humidity: non-condensation
