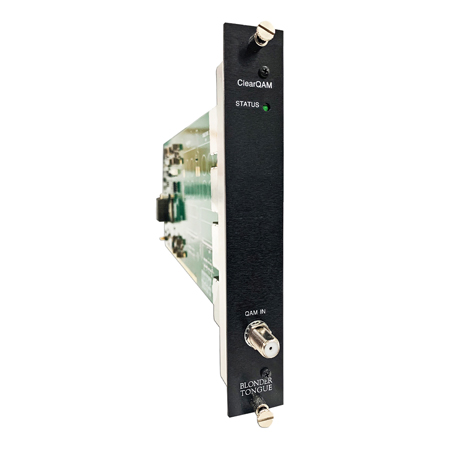

Blonder Tongue NXG-CQAM-32 ClearQAM Input Module - Tunes up to 32 Clear QAM Input Channels - 54 to 1002 MHz

ITEM #: BT-NXG-CQAM-32 MFG #: NXG-CQAM-32

Primary Image
Free Shipping with $49 Minimum Order

Our Price:

$3,459.00

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


NXG-CQAM-32 - Overview

The Blonder Tongue NXG-CQAM-32 ClearQAM input module is essential for those looking to process HD and SD programs from a Cable or Telco TV service provider. This module is equipped with multiple full-band-capture QAM tuners, allowing for the ingest of up to 32 programs from the incoming cable system.

The NXG-CQAM-32 is capable of tuning any 32 "clear QAM input" channels from 54 to 1002 MHz, making it an ideal choice for a wide array of applications. Once programs are received, they are made available to the NXG backplane for additional processing.

This module ensures that you can get the most out of the content that you are receiving, providing the highest quality possible. With its advanced technology, the NXG-CQAM-32 is sure to provide reliable performance and exceptional results.

  • Features:

    • Supports 32 programs per module
    • Supports 54 to 1002 MHz frequency range

  • Specifications:

    • Input
    • Connector: 1x "F" Female
    • Standards: ITU-T J.83 (64 and 256 QAM)
    • Tuning Range: CATV (54-1002 MHz)

    • Symbol Rate:
      - 5.3606 Msymbols/sec (QAM 256);
      - 5.057 Msymbols/sec (QAM 64) - Auto Detect
    • Bandwidth: 6MHz
    • QAM Power Level: -15 to +20 dBmV
    • Return Loss: 12dB
    • Impedance: 75Ω

      General
    • Dimensions (W x H x D): 1.15 x 7.0 x 15.5 in (29 x 178 x 394 mm)
    • Weight: 2.0 lbs (0.9 kg)
    • Power: DC via NXG Mainframe Backplane
    • Power Consumption: 16 W
    • Operating Temp.: 32 to 122 °F (0 to 50 °C)
    • Storage Temp.: -13 to 158 °F (-25 to 70 °C)
    • Operating Humidity: 0 to 95% RH @ 35 °C max, non-condensing

      Alarms & Monitoring
    • Front Panel: 1x Status LED (Bicolor)

  • Warranty:

    • 3 Year Warranty
