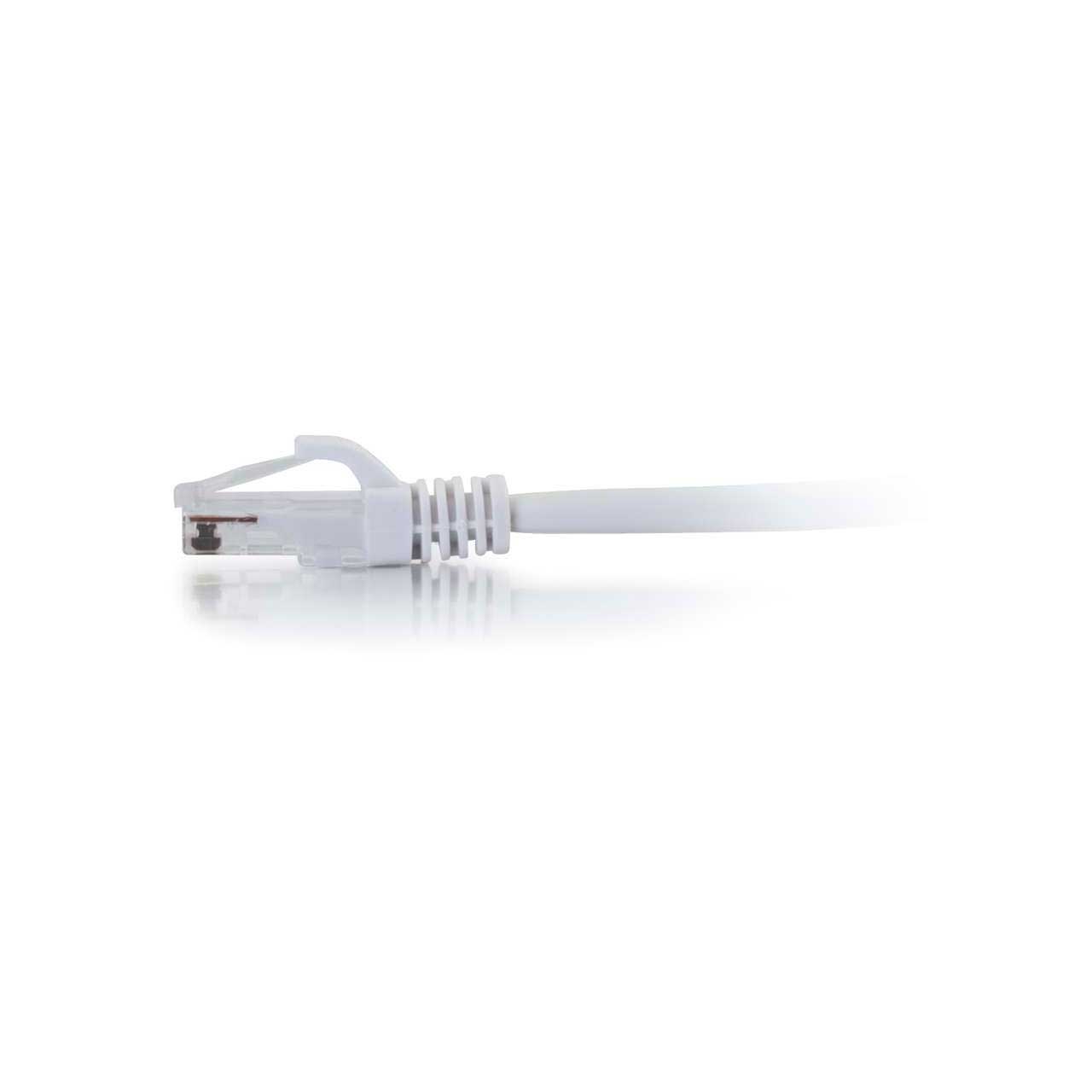

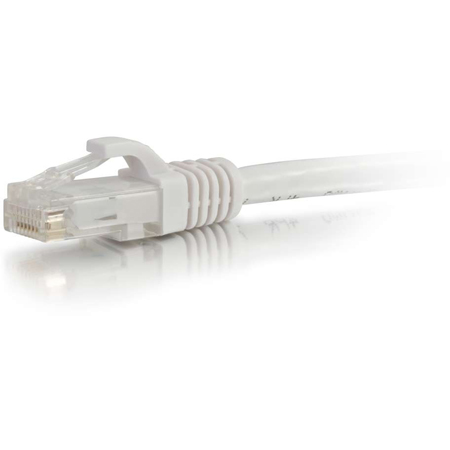

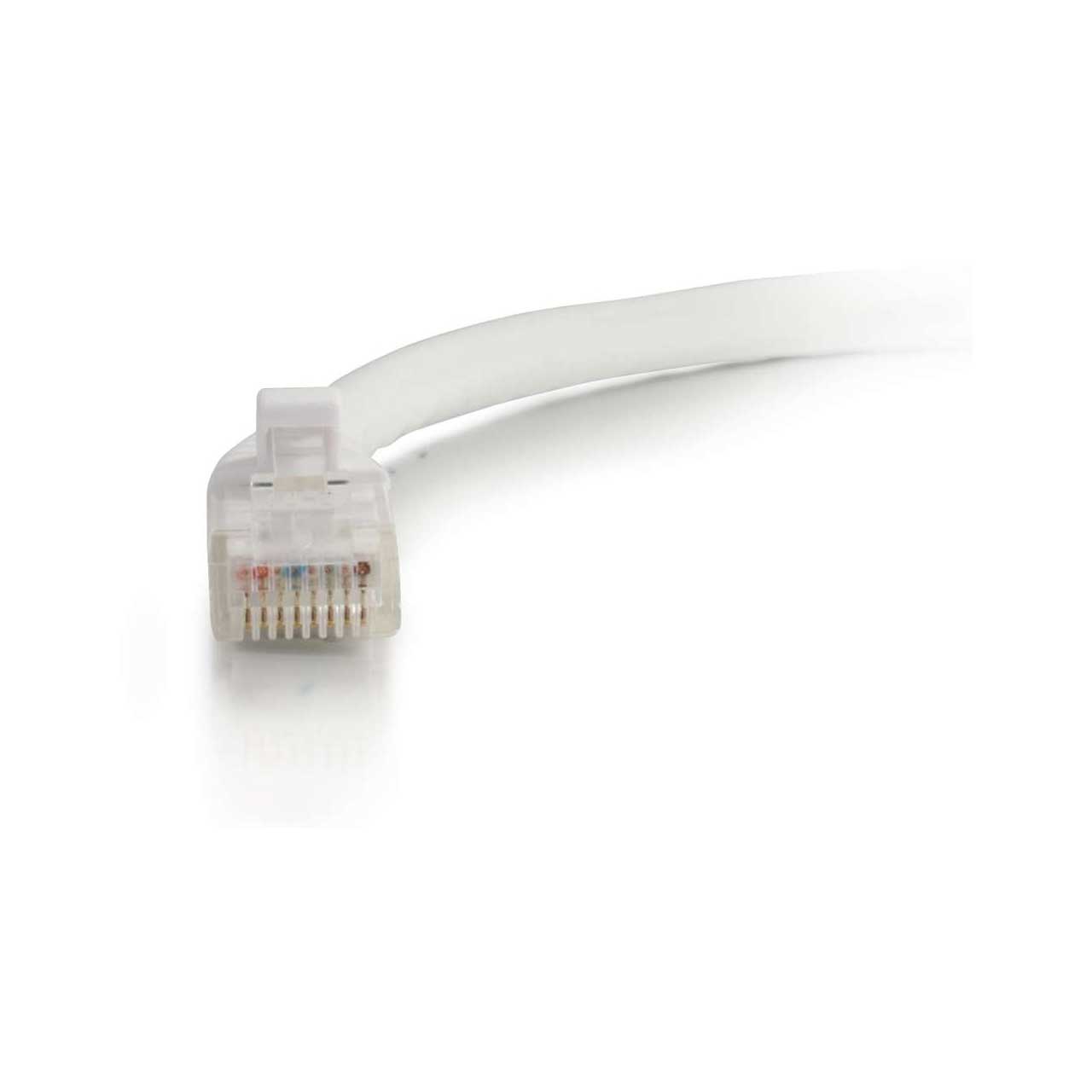

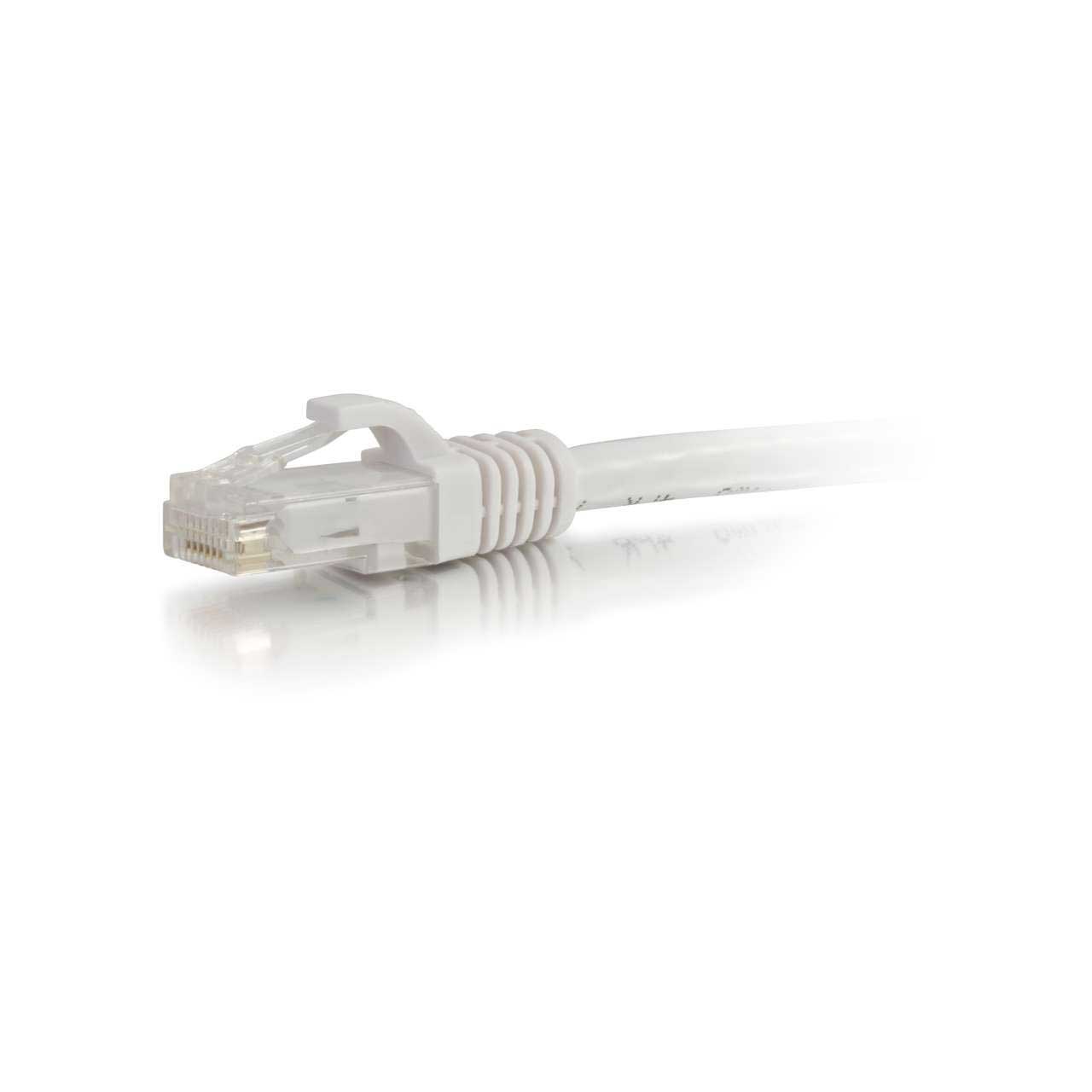

C2G 27167 CAT6 Snagless UTP Cable - White - 100 Foot

ITEM #: C2G-27167 MFG #: 27167

Primary Image
  • Product Image Thumbnail 1 of 3
  • Product Image Thumbnail 2 of 3
  • Product Image Thumbnail 3 of 3
Free Shipping with $49 Minimum Order

Our Price:

$49.99

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


27167 - Overview

Use the C2G 27167 for fast Ethernet and Gigabit computer networks that require bandwidth-intensive voice, data, or video distribution applications. Meets all Cat6 TIA/EIA standards, and drastically reduces both impedance and structural return loss (SRL). Each of the individual pairs is bonded together to help maintain the twist-spacing throughout the line right up to the termination point. Constructed from high quality copper cable, this design minimizes Near-End Crosstalk (NEXT) levels. The molded, snagless boot prevents unwanted cable snags during installation and provides extra strain relief. Available in a variety of colors to easily color-code your network installation.

  • Features:

    • Snagless design protects clips when plugging and unplugging
    • Standard RJ45 connectors and unshielded twisted pair wires
    • Available in 10 colors to color-code a network
    • Available in lengths up to 150ft

  • Specifications:

    • Electrical Characteristics
    • Conductor DC Resistance - 9.38, 100m (maximum)
    • Impedance - 100
    • Capacitance - 5600pf/100m
    • Propagation Delay - 545ns/100m (maximum)
    • Delay Skew - 45ns/100m (maximum)

      Physical Characteristics
    • Wiring Scheme - T568B
    • Standard: Category 6 TIA/EIA-568-B-2.1, draft 9
    • Connector: 50 micron gold-plated RJ45
    • Temperature Rating - 60°C
    • Voltage Rating - 30V
    • Approvals - RoHS Compliant
    • Warranty - Lifetime
    • Package Type - Polybag

      Conductor (Qty. 4 twisted pair)
    • Conductor Type - 24AWG (7/0.20), Stranded Bare Copper
    • Insulation - H-D PE
    • Diameter - 0.98 ± 0.05mm
    • Colors - Blue, Blue-White, Orange, Orange-White, Green, Green-White, Brown, Brown-White

      Connector Type (Qty. 2)
    • Connector Type - 8P8C (RJ45)
    • Gender - Male
    • Connector Material - Polycarbonate
    • Contact Material - Copper Alloy, Gold Plating - 50æm
    • Hood Material - Molded PVC

      Overall Cable
    • Jacket - PVC
    • Minimum Average Thickness - 0.60mm
    • Outer Diameter - 6.20 ± 0.30mm

  • Item Includes:

    • 1x C2G 27167 CAT6 Snagless UTP Cable - White - 100 Foot

  • GTIN:

    0757120271673
