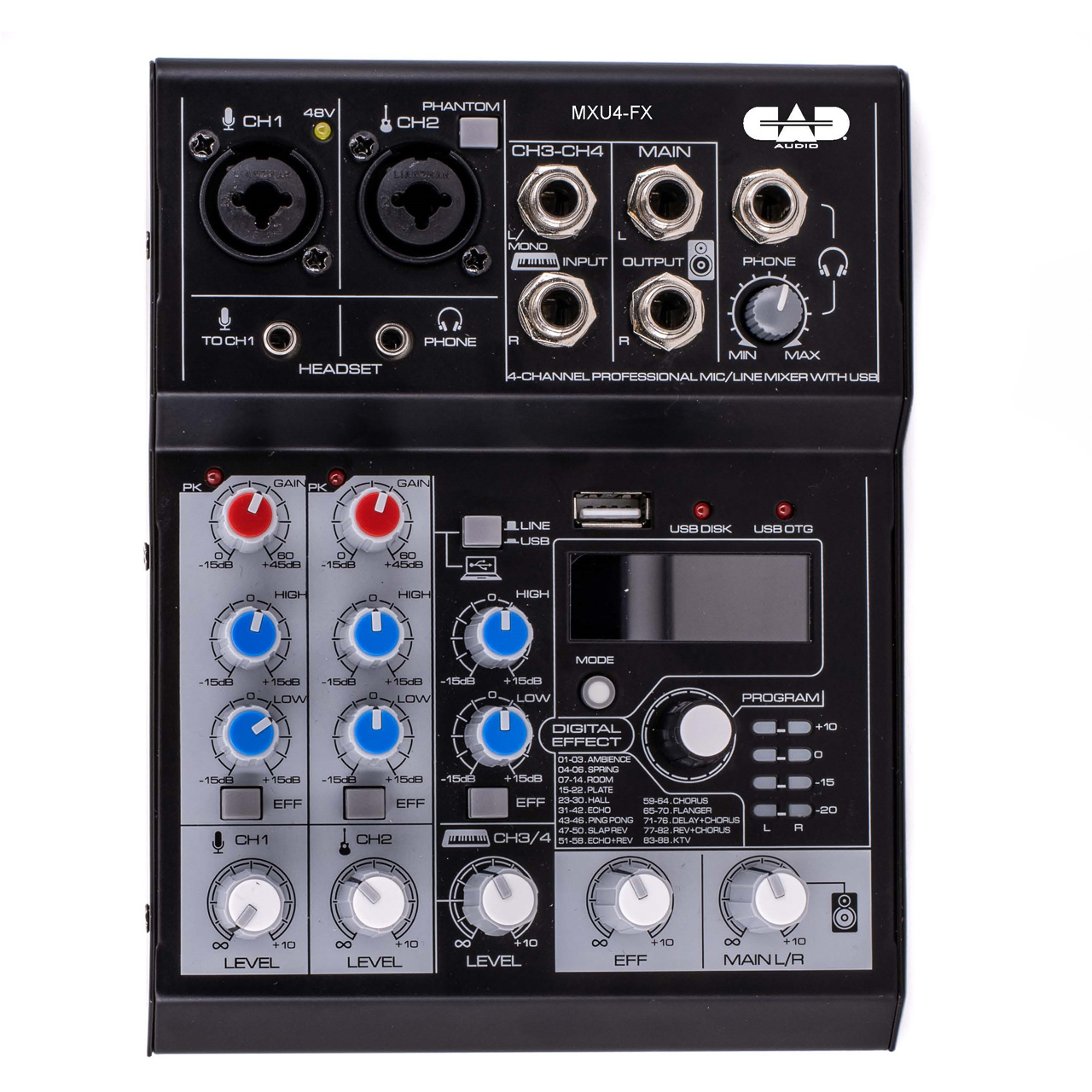

CAD Audio MXU4-FX 4 Channel Mixer with USB Interface and Digital Effects Processor

CAD-MXU4-FX - Overview

• Features:

  • USB output connects to computer for easy recording or podcasting
  • USB input for playing MP3/WAV files from a flash drive
  • +48V phantom power for use with condenser microphones
  • 2-band EQ per channel
  • Built-in effects processor provides 88 presets for chorus, delay, reverb and more


• Specifications:

  • Inputs:
    - 2x XLR/TRS combo
    - 2x mono lines
    - 1x stereo line
    - 1x USB
  • Outputs: 1x 1/4" TRS, balanced L/R
  • Mic E.I.N (20Hz - 20kHz): -129.5dBu @ 150Ω source resistance
  • Distortion (THD): 0.005%
  • Noise:
    - Stereo Out (fader at 0dB): -88dBu
    - Stereo Out (fader at ∞): -100dBu
    - Headphone Out (fader at ∞): -88dBu
  • Signal to Noise Ratio:
    - Mic Input: 81dB
    - Line Input: 78dB
  • Attenuation (Crosstalk): Channel gain @ 0: -82dBu
  • Dimensions: 9.7" x 8.7" x 2.6" (24.6cm x 22.1cm x 6.6cm)
  • Weight: 1.95lbs (0.88kg)


• Warranty:

  • 2 Year Warranty


• GTIN:

  0631922109375
