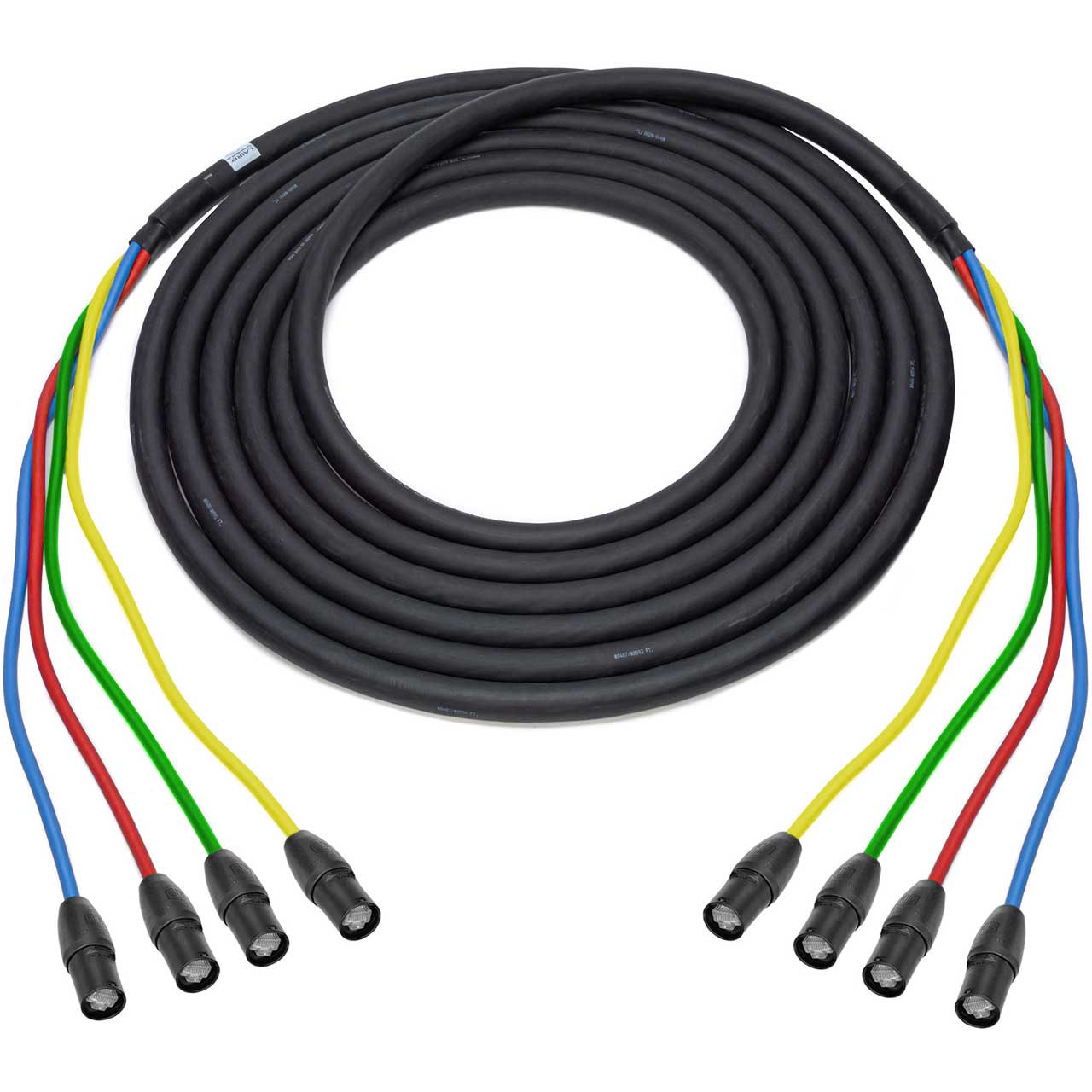

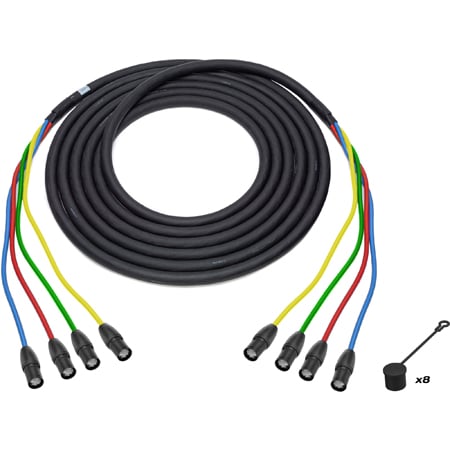

Laird 4 Channel Cat6A Tactical Cable with RJ45 etherCON TOP Connectors - 10 Foot

ITEM #: CAT6AXTRM4EE-010 MFG #: CAT6AXTRM4EE-010

Primary Image
Laird Digital Cinema
Free Shipping with $49 Minimum Order

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

List Price:

$208.95

Our Price:

$189.95

Add to Wish ListLeasing Options
Availability: 2+ Weeks.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup
  • Special Order Item: non-cancelable, non-returnable, non-refundable.
Report Lower PriceLarge Quantity Quote

CAT6AXTRM4EE-010 - Overview

The tactical grade CAT6AXTRM4EE series by Laird offers a rugged field option for Data Transmission, Video Walls, DANTE and other Digital Audio Protocols. It will quickly become recognized as the strongest link in your data chain in studios, live events, staging and rental. These shielded Cat6a cables give you 4-Channels terminated with locking Neutrik etherCON RJ45 TOP cable carrier RJ45 housings to give you years of repeated connections in mobile productions or harsh environments. The Laird CAT6AXTRM4EE is suitable for 10BASE-T, 100BASE-TX (Fast Ethernet), 1000BASE-T / 1000BASE-TX (Gigabit Ethernet) and 10GBASE-T (10-Gigabit Ethernet).

Note: Will not intermate with NE8FDY-C6 and NE8FDY-C6-B CAT6 chassis connectors.

  • Features:

    • Rugged Outer TPE Jacket
    • Four Cat6A Shieled Elements
    • Enhanced 500 MHz Bandwidth
    • ETL Verified to TIA-568-C.2
    • ETL Verified to ISO/IEC 11801
    • Neutrik NE8MX-B-TOP etherCON TOP Series Connectors
    • Less Attenuation & Greater Resistance to EMI


  • Specifications:

    • Four-Channel Category 6A Shielded Snake Cable:
    • Cabled Elements: (4) Cat6A Shielded Elements
    • Cat6 Element: Center Conductor: (8) 23AWG Solid BC (Configured as 4 Pairs) - per CAT6 Element
    • Cat6 Element: Insulation: Polyethylene
    • Cat6 Element: Shield: 100% Foil w/ TC Drain Wire
    • Cat6 Element: Jacket: PVC, .244"
    • Cable Overall Diameter: .894"
    • Capacitance: 5.6 nF/100m (mutual) 330 pF/100m (pair-to-pair ground unbalanced)
    • Operating Temperature: -4°F - 140°F (-20°C - 60°C)

      Neutrik NE8MX-B-TOP etherCON TOP Series Connectors:
    • Insertion Force: ≤ 20 N
    • Withdrawal Force: ≤ 20 N
    • Lifetime: > 1000 mating cycles
    • Protection Class: IP65 (mated)
    • Temperature Range: -22°F - 176°F (-30°C - 80°C)


  • Warranty:

    • 1 Year
