Cobalt +EAS Provides EAS Crawl Burn-ins Directly from Industry Standard EAS Devices - License

ITEM #: CB-PLUS-EAS MFG #: +EAS

Primary Image
  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2
Free Shipping with $49 Minimum Order

Our Price:

$2,995.00

Availability: Software Download
iAvailability Description Popup
  • The link of this software download is generated by the brand manufacturer. Please allow processing time usually within 24 hours.
  • This item is not returnable. See Terms & Conditions for details.


+EAS - Overview

Colbolt Option +EAS - available on a range of Cobalt Digital products - is the ideal solution for keying Emergency Alert System (EAS) text crawls in the active video and inserting station identification logos.

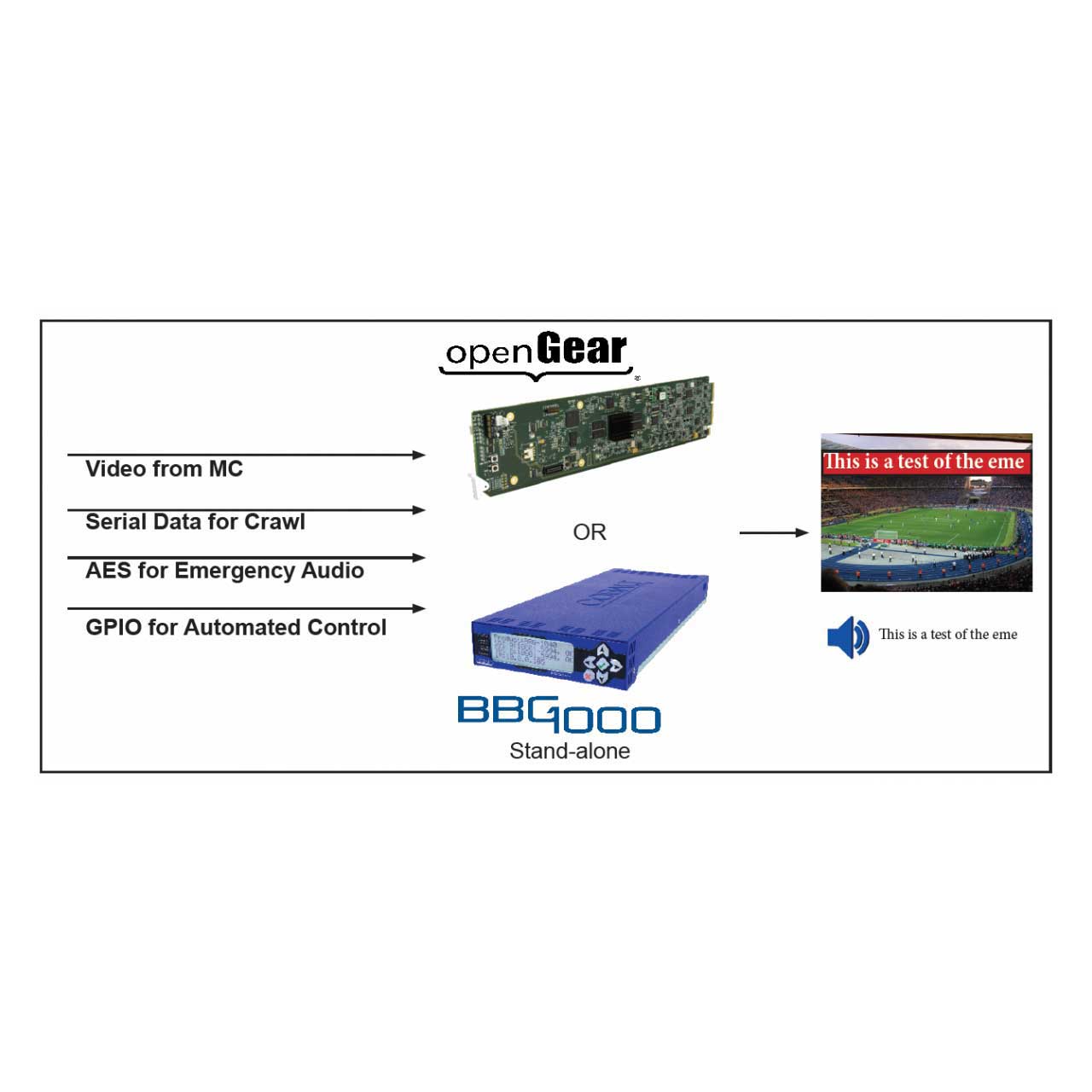

Serial crawl data from an EAS generator (such as Sage™ or Dasdec™) is transmitted to a Cobalt Digital openGear® card or BBG-1000 series stand-alone unit. The crawl data is held until a GPI is sent from the EAS generator, signaling the creation of the text graphics. The GPI also routes digital or analog emergency audio to the embedded video output. Once the GPI goes back to the resting state, the program audio is routed back to the embedded output. Crawl data is played according to the user-selectable loop counter. User-configurable fill background color and text size control can be correlated to event context severity.

  • Features:

    • Integrated, self-contained single-device solution - can integrate as an option with no dedicated new devices/units
    • Compatible with Sage™, Dasdec™, and other EAS crawl generators
    • Audio routing and ducking controls for discrete and embedded workflows
    • Automated control insertion via presence of crawl data or GPI closure
    • Event log for record of EAS crawls
    • User-configurable crawl loop count
    • User-configurable text attributes and background fill color can be correlated to event severity
    • Logo inserter for station identification
    • Available for new cards or can be added to existing cards with easy field software upload

  • Item Includes:

    • 1x Cobalt Plus EAS Provides EAS Crawl Burn-ins Directly from Industry Standard EAS Devices - License
