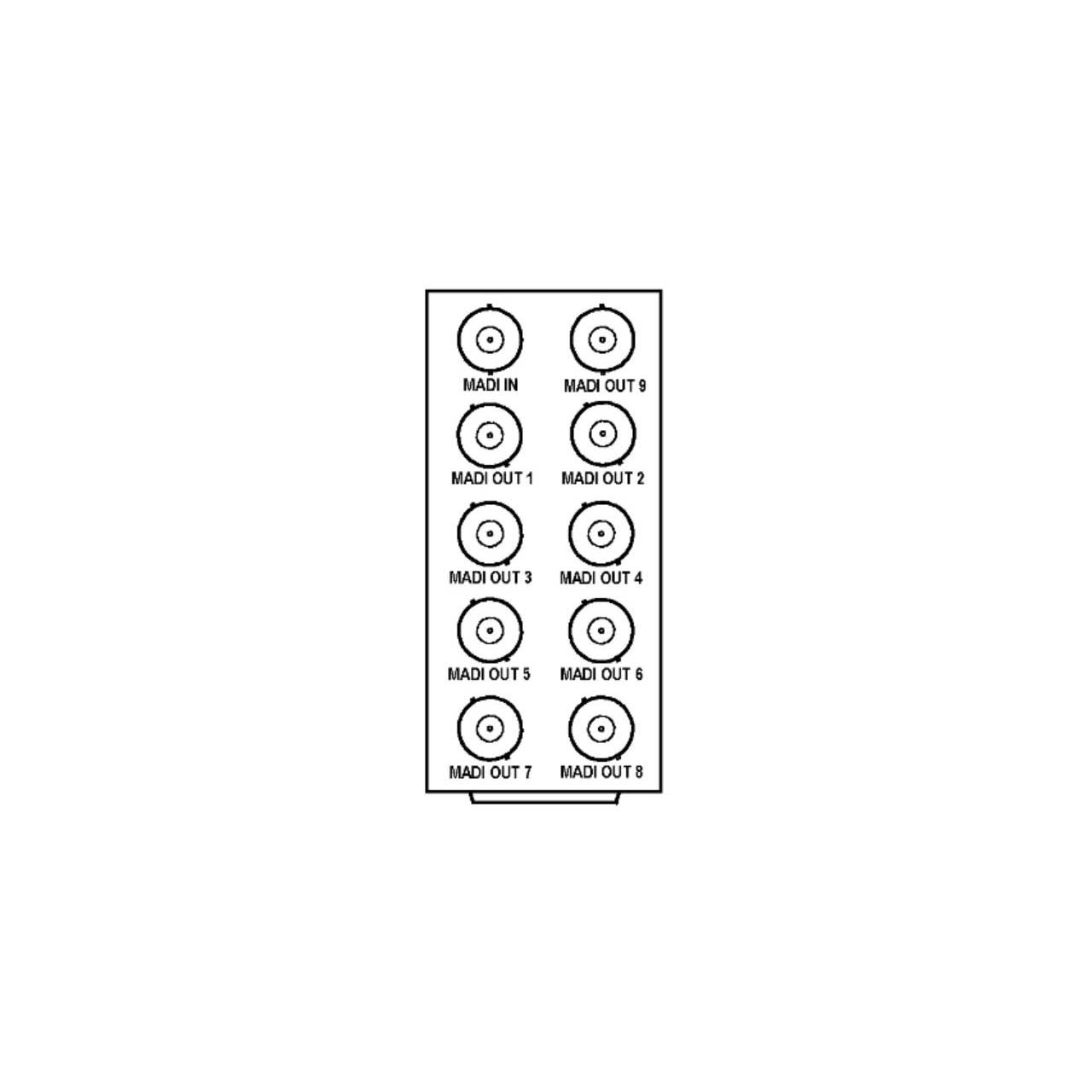

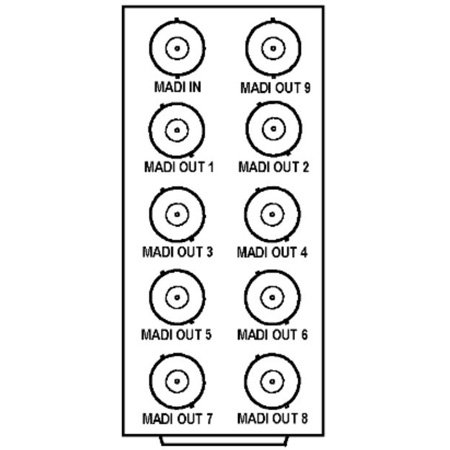

Rear I/O Module for the Cobalt Digital 9257 1x9 MADI Audio Distribution Amplifier card.Single channel MADI in with 9 MADI outputs all on standard BNC coax connectors. The 9257 1x9 MADI Audio Distribution Amplifier provides an award-winning card-based solution for distribution of AES10 MADI signals. The card supports sampling frequencies up to 96 kHz, with a 64-channel payload supported at the industry standard 48 kHz sampling rate (all other sampling rates specified as valid per AES10-2003 are also supported at various payload capacities). Utilizing the openGear open-architecture platform, the 9257 offers scalable incorporation and the easy-to-use DashBoard setup and control operator interface. Up to 20 of the 9257 cards can be installed in a 20 slot frame. The 9257 can reliably equalize up to 250m of 1694A, and offers DashBoard display and alarm for input signal status and LOS alarms.
RM20-9257-A Features:
MADI In
(9) MADI Out
(All coaxial connectors BNC)
