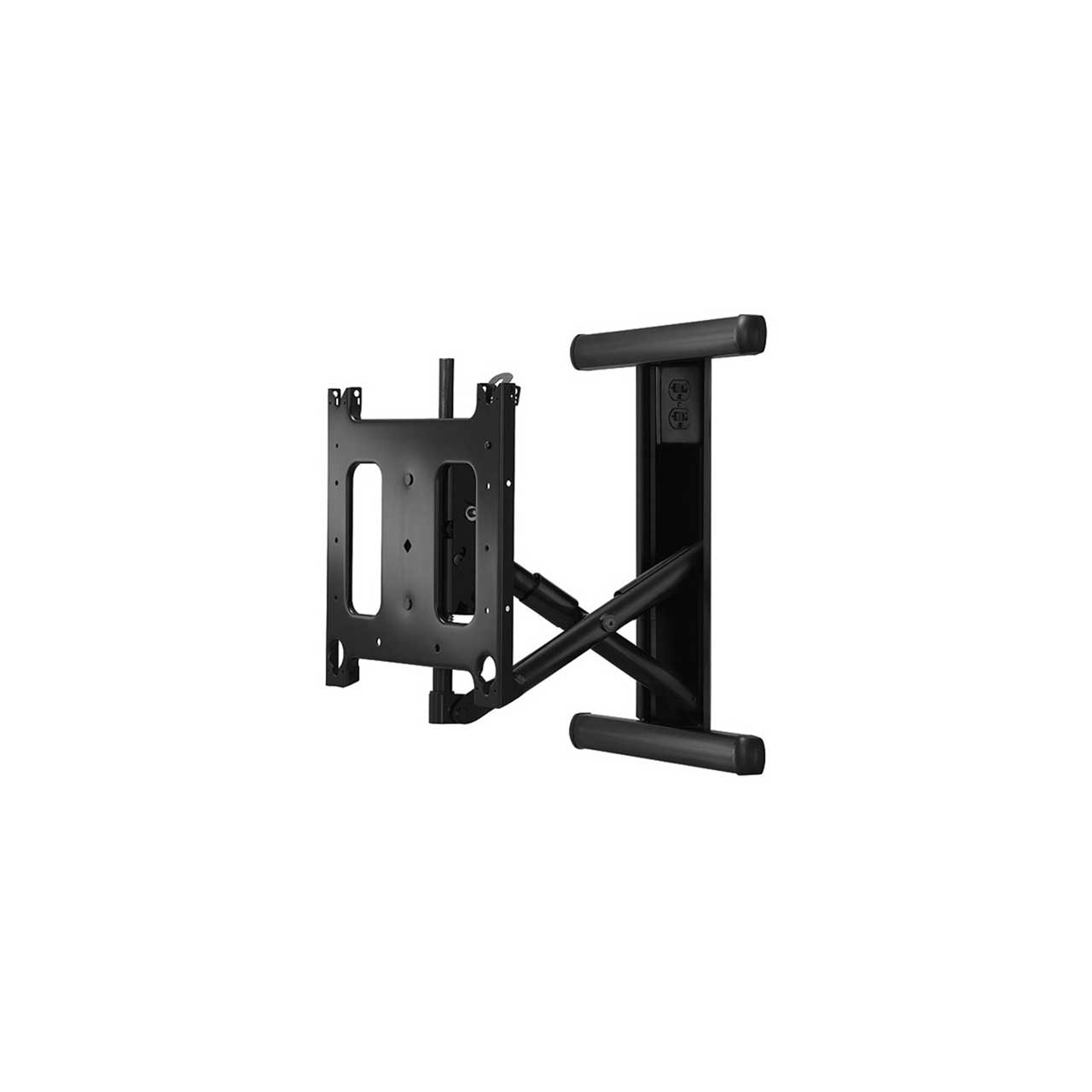

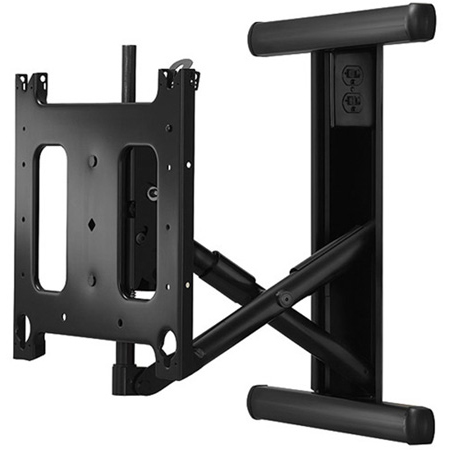

Chief Large 15 Inch Monitor Arm Wall Mount - Black

PIWRFUB - Overview

• Features:

  • Limitless centering on the wall between 16" center studs without cutting studs
  • Low profile design ensures the mount remains concealed behind the flat panel
  • Centris Technology uses the center of gravity to achieve smooth, fingertip tilt
  • ClickConnect Technology provides an audible click to confirm the flat panel is locked in place
  • Easy connect/disconnect with no tools needed
  • Screen can be installed in portrait or landscape orientation ( PAC400 accessory can be used to rotate without removing the screen)
  • Integrated cable management


• Specifications:

  • Certifications: TAA Compliant
  • Color: Black
  • Lateral Shift: 5" (127.mm)
  • Manual Height Adjustment: 1" (25 mm)
  • Maximum Extension: 15" (381 mm)
  • Minimum Depth: 1.7" (43.2 mm)
  • Mounting Pattern Compatibility (Universal Versions): 200 x 200mm - 862 x 517mm
  • Notes: Depth and Extension do not include interface bracket (adds 0.5 - 1.5")
  • Orientation: landscape and portrait
  • Pivot Numerical Value: +/- 40.3° (depending on screen width)
  • Post-Installation Leveling Roll: Yes
  • Shipping Weight: 64 lbs (29.03 kg)
  • Solution Type: Universal
  • Tilt+ 2° , - 15°
  • Typical Screen Sizes: 42 - 71"
  • Wall Stud Compatibility In: 16" (406 mm)
  • Weight Capacity: 200 lbs (90.7 kg)


• GTIN:

  0841872110677
