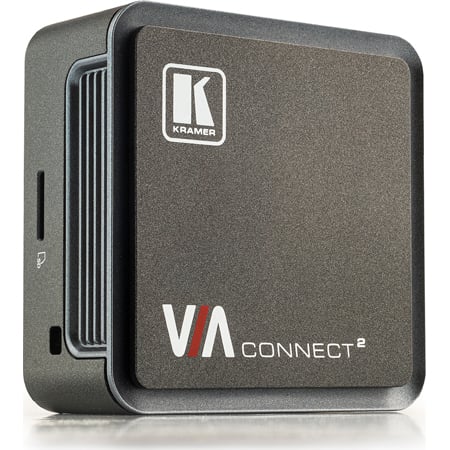

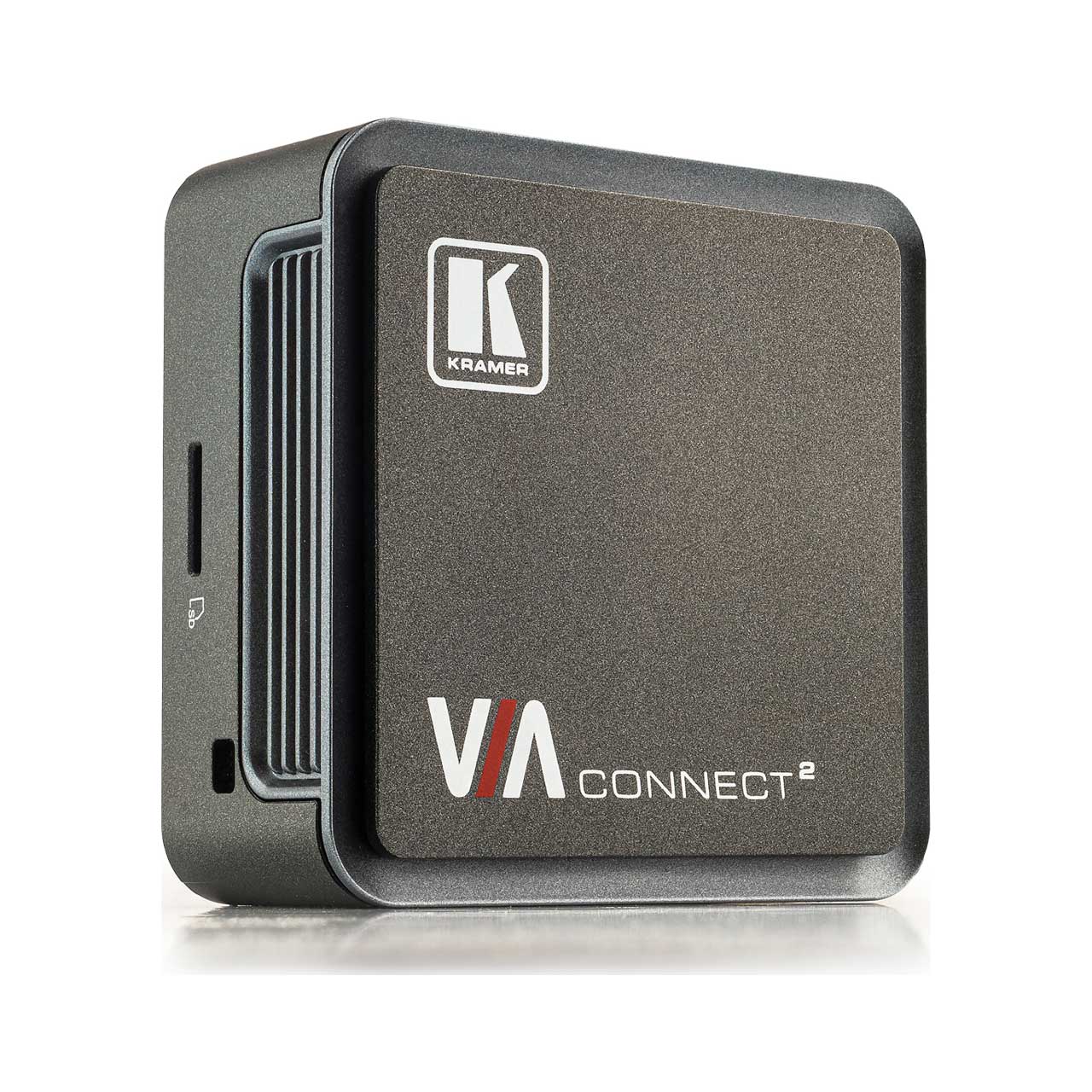

Kramer VIA-CONNECT2 Wireless and Wired Presentation and Collaboration Platform

VIA-CONNECT2 - Overview

Quick and Reliable Wireless Connectivity!

• Features:

  • Quick and Reliable Wireless Connectivity - A simple and intuitive user interface enables iOS™, Android™, Chromebook™, PC, and Mac™ device users to instantly connect to a main display. 2.4GHz/5GHz Wi-Fi and MIMO antennas establish and maintain a fast and reliable connection.
  • Clientless Connectivity - Airplay, Miracast, Join Through Browser.
  • Up to 4K@60 HDMI Wired Input - Enables hard-wiring, auto switching, for connecting a computer or any HDMI compatible device camera, multimedia player or computer that supports HDCP signals.
  • Powerful Security Feature - 802.1x User authentication, 1024-bit encryption, dynamic room code.
  • Built-In Wi-Fi and LAN.
  • Comprehensive Collaboration Functionality - Whiteboard, filesharing, View Main Display, chat, etc.
  • High-Quality Video Streaming - Supports up to 4K@60Hz resolution using the VIA app Multimedia feature.
  • Simultaneous Display - Four participants can simultaneously present content on the main display.
  • Seamless Live Video Streaming - Stream live content from meeting rooms, classrooms and studios using RTMP/RTMPS to all the leading platforms, like YouTube™, Kaltura™, Panopto™ and more.
  • Optimized for Video Conferencing - VIA Versa feature allows users to wirelessly connect to the professional grade camera and AV in their meeting spaces easily and instantly.
  • Wireless USB - Supports Microphone, Speaker & Camera.
  • Built-in Third Party VC integration for Zoom™ & Teams™.
  • Cloud-Based Management - Seamlessly compatible with VIA Site Management (VSM).
  • Easy and Flexible Installation - With a super-compact form factor, it can be discreetly installed on the back of a display, projector or almost anywhere.


• Specifications:

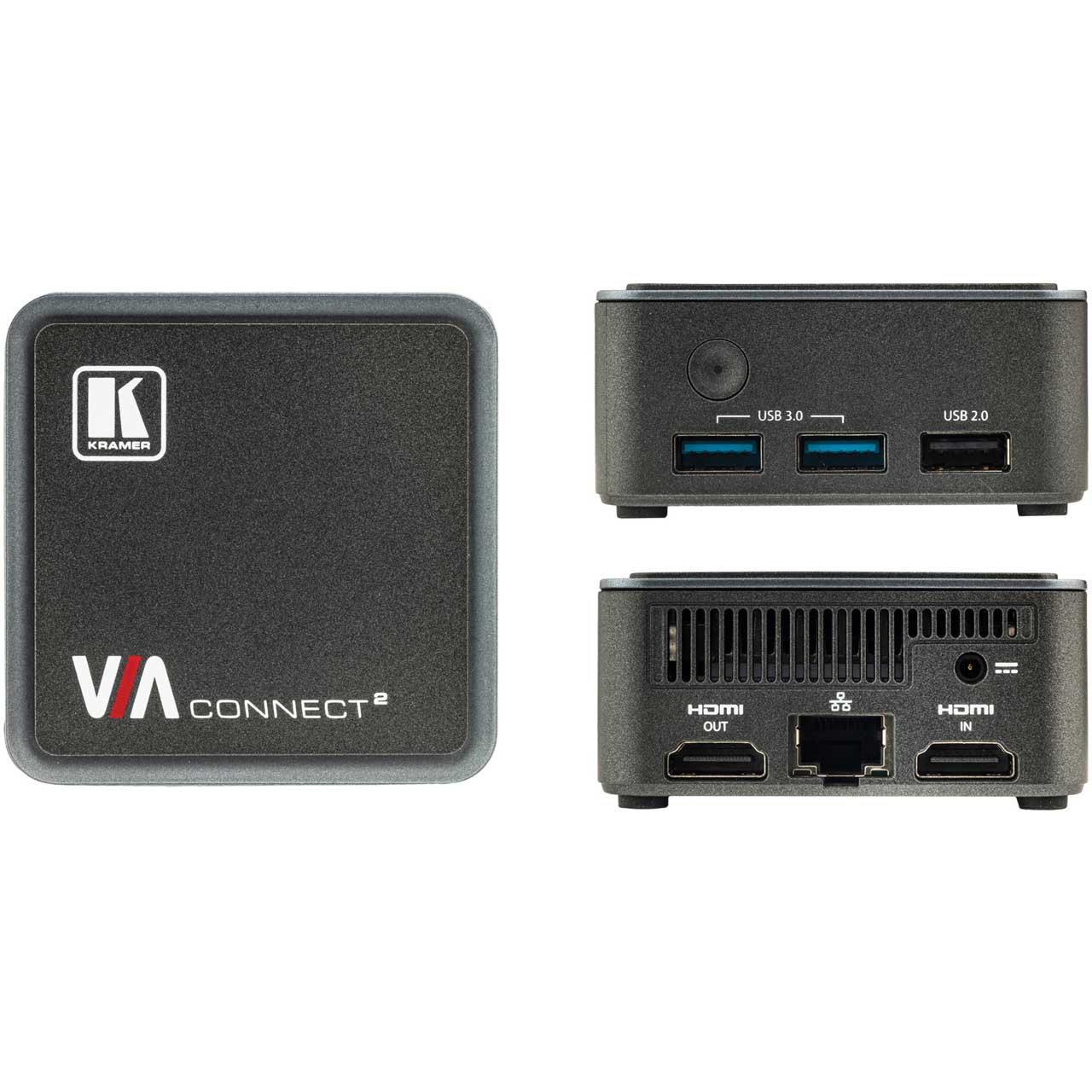

  • Ports
  • 1 Ethernet: On an RJ-45 connector
  • 2 USB 3.0: On a female USB type-A connector
  • 1 USB 2.0: On a female USB type-A connector
  • 2 Pin connector: Video Switching control

    Video
  • Max Resolution: Up to 4K@60 for both Input & Output
  • Web Conferencing Cameras Tested with VIA Versa Feature: Logitech MeetUp, Logitech C270, Logitech BCC950, Logitech C525, Logitech Brio UHD PRO, Logitech C310, Logitech C922, Logitech Rally, Avaya HC020, Avaya HC050, Huddly GO, Yamaha CS700, Minrray MG100A, Microsoft Livecam HD-3000, TedGem 1080p, Vaddio HuddleSHOT, Yealink UVC80, Bose Videobar VB1, BIAMP Devio SCR-20, BIAMP Devio SCR-25,LUMENS B10U, LUMENS B11U, LUMENS B2U, MAXHUB - UCS10, Aver CAM340+, Aver VB342+, Yealink UVC30ROOM, Aver CAM340+, Avonic AV-CM44-VCUC-B PTZ, Konftel C50 PTZ
  • Video Conferencing Apps Tested with VIA Versa Feature: Teams and Zoom
  • All brand names, product names, and trademarks are the property of their respective owners

    Audio
  • Web Conferencing Audio Devices Tested with VIA Versa Feature: Aver VB432 Speaker (Microphone), Yamaha YVC-330 (Speaker, Microphone, Bluetooth phone gateway), Yamaha YVC-1000 (Speaker, Microphone, Bluetooth phone gateway), Nureva HDL300 (Speaker)

    General
  • Processor: Intel® Gemini Lake QC SOC
  • Memory: 4GB LPDDR4 (2400)
  • Storage: 32GB eMMC
  • Networking: 1 x Gigabit LAN Wi-Fi 802.11 ac/b/g/n dual band
  • Operating System: Linux

    Power
  • Input Source: 12V DC
  • Consumption: 1.3A

    Environmental Conditions
  • Operating Temperature: 32° to 104°F
  • Storage Temperature: -40° to 158°F
  • Humidity: 10% to 90%, RHL non-condensing

    Regulatory Compliance (Standards Compliance)
  • Safety: CE

    Enclosure
  • Type: Aluminum
  • Cooling: Fan with sink


• Item Includes:

  • Via Connect² Device
  • Power supply (12V DC) with adapters for US, UK, and EU (1)
  • Video toggle cable (1)
  • VESA mounting bracket (1)
  • VESA screw set (1)


• Warranty:

  • Standard Three (3) Year Warranty


• GTIN:

  7291063092306
