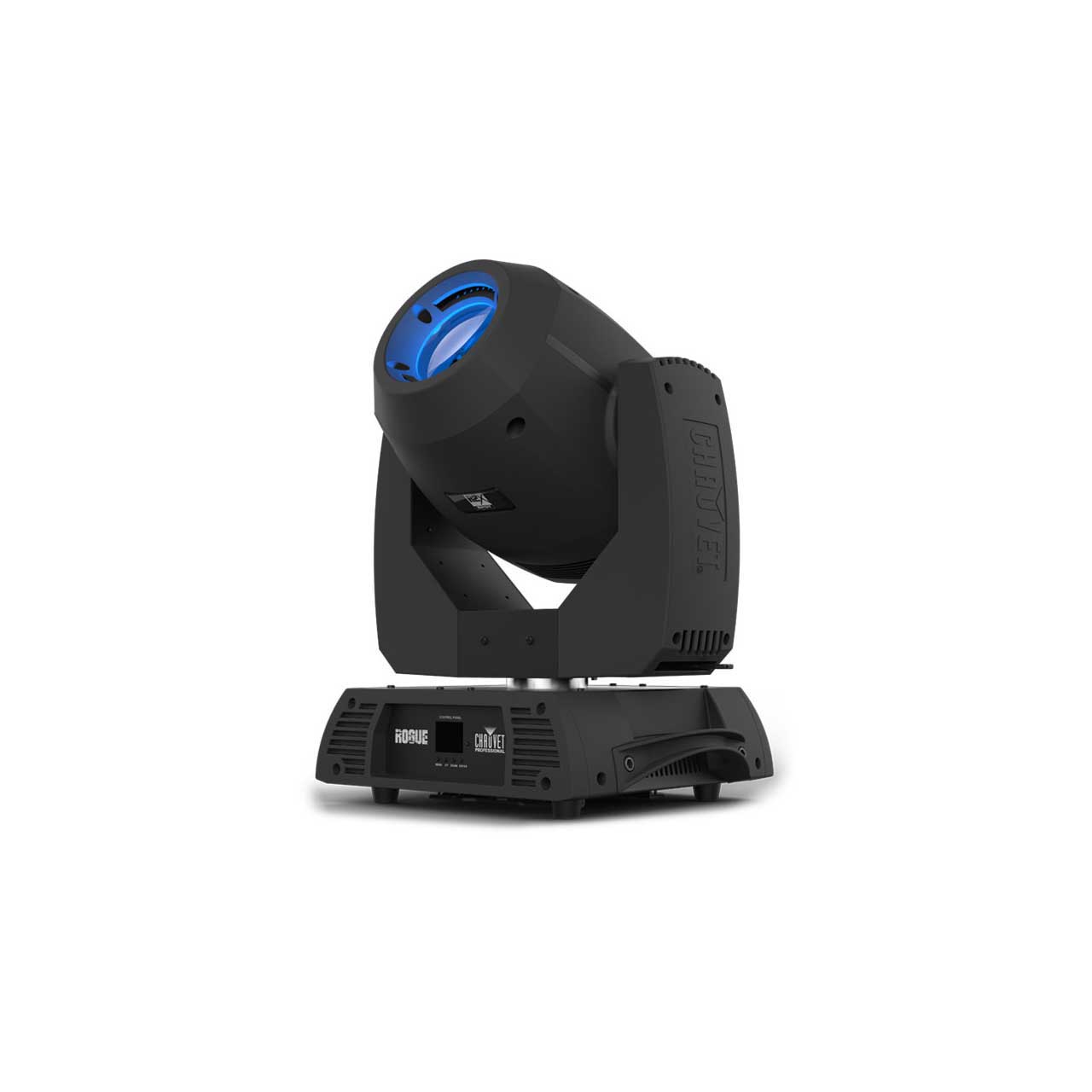

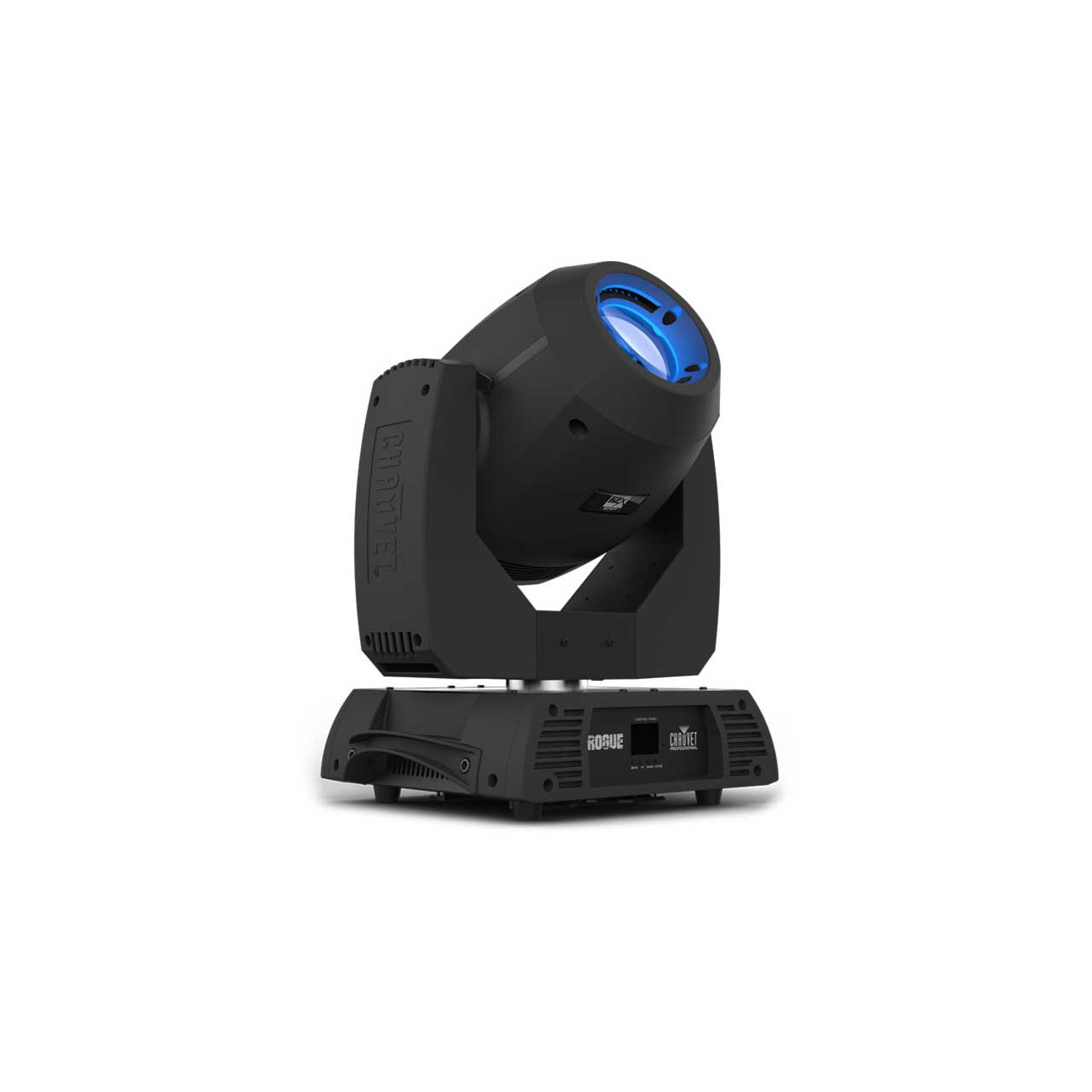

Chauvet ROGUER2XSPOT Rogue R2X Spot - PowerCON Power Cord - 2 Pieces Omega Brackets - Control: 3-pin DMX - 5-pin DMX

ROGUER2XSPO - Overview

• Features:

  • Intense 300 W LED light engine for punchy, bold beams
  • Perfect gobo morphing between gobo wheels
  • Two color wheels with 7 colors, split color ability, and continuous variable speed scrolling
  • Two gobo wheels: one fixed slot scrolling wheel and one rotating, interchangeable, scrolling wheel
  • Iris, 3-facet prism, and frost for beam control
  • Beautiful 16-bit LED dimming for ultimate fade control
  • Neutrik® powerCON® power input/output connections for power linking
  • 3- and 5-pin DMX input/output connections
  • RDM enabled for remote addressing and trouble shooting
  • Selectable LED maximum output to match legacy Rogue R2 Spots
  • Selectable PWM settings to maintain flicker-free operation on camera
  • Simple and complex DMX channel profiles for programming versatility


• Specifications:

  • Optical
  • Light Source: 1 LEDs (CW) 300 W, (8.7 amps), 8831 K, 50,000 hours life expectancy
  • Color Temperature (at full): 8847 K
  • Front lens diameter: 100 mm
  • CRI: 71.7
  • Beam Angle: 16°
  • Field Angle: 18°
  • Lumens - Source: 23,000
  • Lumens - Output: 11,000
  • Illuminance (total): 9,344 lux @ 5 m
  • Selectable LED Power output: 50-100
  • Selectable PWM: 600 Hz, 1,200 Hz, 6,000 Hz, 15,000 Hz

    Dynamic Effects
  • Pan and Tilt: 540°/250°
  • Pan and Tilt Ranges: 540°, 360°, 180° pan/250°, 180°, 90° tilt
  • Colors (1): 7 + white, split colors, continuous scroll at variable speeds
  • Colors (2): 7 + white, split colors, continuous scroll at variable speeds
  • Gobos (1): 7 + open (7 metal), rotating, interchangeable, indexing, slot-n-lock, continuous scroll at variable speeds
  • Gobos (2): 8 + open (8 metal), continuous scroll at variable speeds
  • Gobo Size: Gobo Wheel 1 (rotating): Positions 1, 2, 3, 4, and 7 (metal); size: 28.8 mm (outside), 23.8 mm (image), 0.5 mm (max. thickness)
  • Gobo Size: Gobo Wheel 1 (rotating): Positions 5 and 6 (glass); size: 27 mm (outside), 24 mm (image), 3 mm (max. thickness)
  • Framing Shutters: No
  • Dimmer: Electronic
  • Shutter/Strobe: Electronic
  • Focus: Motorized
  • Frost: Motorized
  • Iris: Motorized
  • Prism: 3 Facets, motorized, rotating
  • Strobe Rate: 0 to 22 Hz
  • Standalone Color Mixing: No
  • Color Temperature Presets: No
  • Move-in-Black: Yes

    Construction / Physical
  • Dimensions (single unit): 16.1 x 13.5 x 19.25" (409 x 343 x 489mm)
  • Weight (single unit): 47.8Lbs (21.7 kg)
  • Exterior Color: Black
  • Housing Material: High-impact flame-retardant polymer

    Connections
  • Power Connection: Edison (local) plug to Neutrik® powerCON®
  • Power Input: Neutrik® powerCON®
  • Power Output: Neutrik® powerCON®
  • Data Connectors: 3- and 5-pin XLR
  • Cable Length (power): 5' (1.5m)

    Control
  • Control Protocol: DMX, RDM
  • DMX Channels: 18 or 21
  • Modes/Personalities: 2 personalities (18, 21)

    Electrical
  • Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
  • Power Linking: 3 units @ 120 V; 5 units @ 208 V; 6 units @ 230 V
  • Power and Current: 488 W, 4.09 A @ 120 V, 60 Hz
  • Power and Current: 480 W, 2.35 A @ 208 V, 60 Hz
  • Power and Current: 481 W, 2.03 A @ 230 V, 50 Hz
  • Breaker Size: F 7A, 250 V

    Certifications / Qualifications
  • CE, MET, FCCIP Rating: IP20, dry location
  • Temperature (Ambient): -4° to 113°F (-20° to 45°C)

    Optional Accessories
  • Professional Clamps: CTC-50HC, CTC-50HCN
  • Safety Cable: SC-07
  • DMX Cables
  • powerCON extension cables


• Item Includes:

  • 1x Rogue R2X Spot
  • 1x Neutrik powerCON power cord
  • 1x Omega bracket with mounting hardware


• GTIN:

  0781462217457
