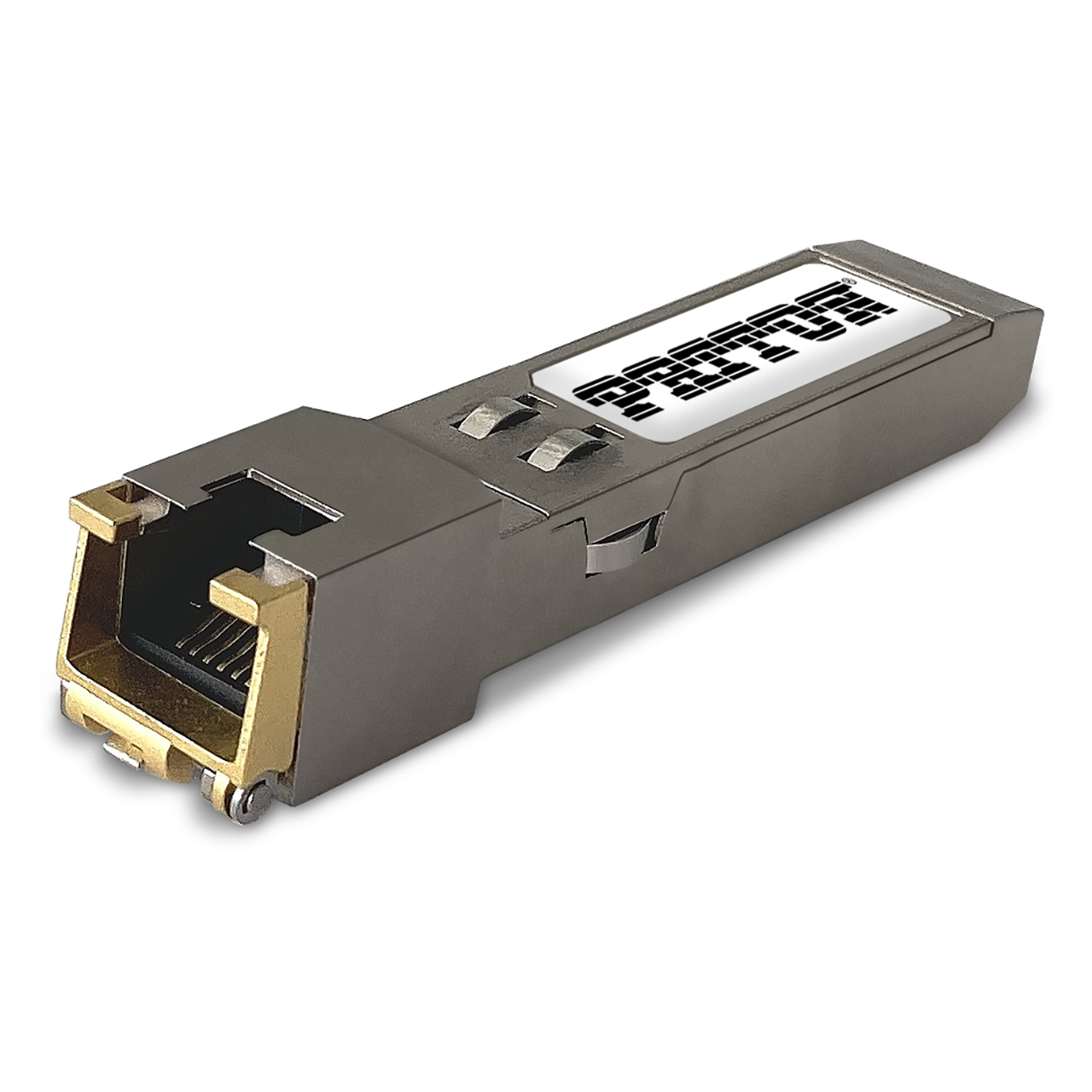

Patton CIT-SFP/RJ45 Connect-IT Serial RS-232/422/485 Device Server SFP Module with 8-Wire RJ-45 Connector

CIT-SFP/RJ45 - Overview

• Features:

  • Multiple Applications - This unique Device Server, Terminal Server and Serial-over-IP Extender comes packaged as a miniature SFP module.
  • Small Form Pluggable - The SFP module can be installed any router, switch or media gateway that has an SFP slot and eliminates "box stacking" installations.

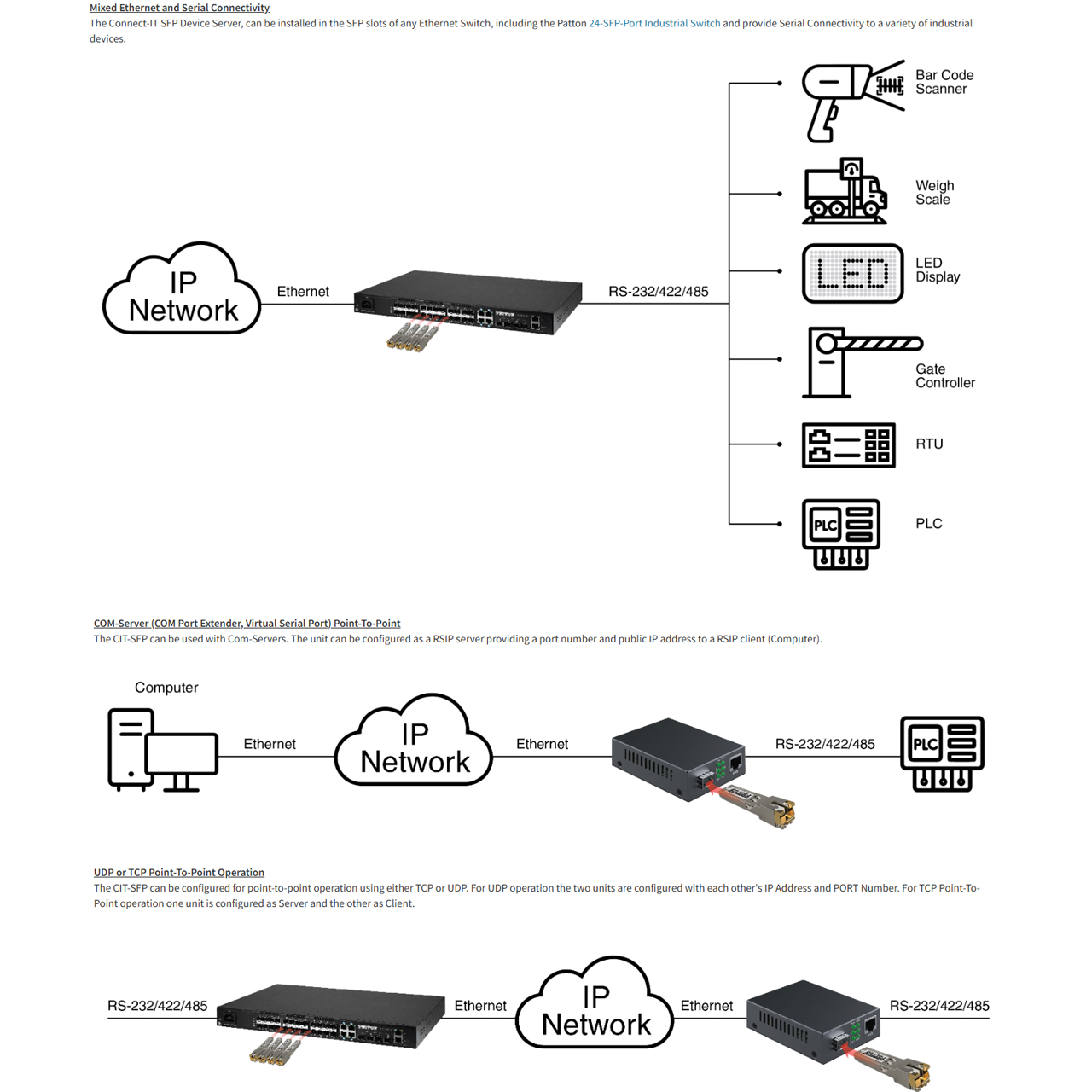

  • Conversion and Transport - Transport, Control, Access, and Monitor Asynchronous Serial Terminals and Devices over the Ethernet/IP/LAN networks.
  • Selectable Serial Interfaces - Software Selectable for RS-232, RS-422 or RS-485.
  • Flexible Data Rates - Supports Serial Interface Speeds from 75 bps to 230 Kbps.
  • COM-PORT Support - Compatible with 3rd-Party COM-Servers, Com-Server Applications, and can function as a Com-Port Extender.
  • Gigabit Support - Supports 100BASE-X and/or 1000BASE-X via SFP Interface.
  • Industry 4.0 - Used for Industry 4.0 Applications Enhancing Industrial Ethernet Switch & Router connectivity to Serial Devices.

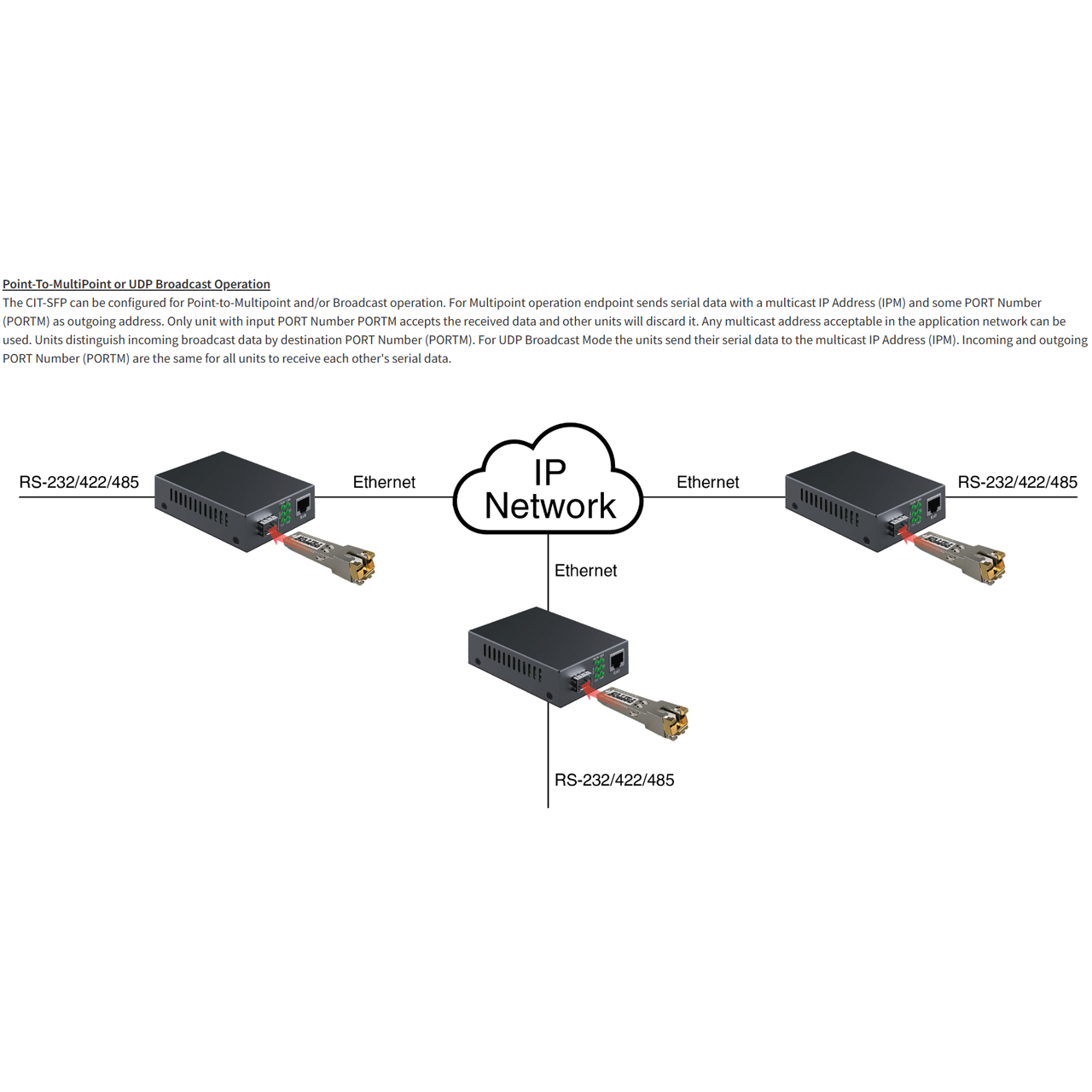

  • Multiple Protocols & Topologies - Serial data transmission can be done using UDP or TCP protocols. UDP allows Point-To-Point (PTP) or Point-To-Multipoint (PTMP) operation. Point-To-Multipoint mode enables broadcasting nodes to build a broadcast configuration.
  • Configuration & Management - Configuration & Management is done via password protected Web, Telnet or SSH access. For security the Web, Telnet and SSH access can be set to write-protected using a switch module. Digital Diagnostic Monitoring (DDM) Available.
  • Industrial Grade - The Hot-pluggable SFP module is packaged in a rugged fully metallic enclosure for Low EMI, has an operating temperature between -40°F to 185°F (-40°C to +85°C), and includes anembedded temperature sensor. It offers low power consumption (< 500mW).


• Specifications:

  Serial Interface
  • RS-232/485/422 (ITU-T Rec RS-232/V28 or RS485/422)
  • Bit Rates (bps) 75, 150, 200, 300, 600, 1200, 2400, 4800, 9600, 14400, 19200, 28800, 38400, 56000, 57600,115200, 128000, 230400, 256000
  • Format Bits: 5...8, Stop bits: 1 or 2, Parity: none/even/odd

    Serial Connector
  • RJ-45 (8-pins)
  • Pin-Out RS232: Pin 4 Ground, Pin 5 RX, Pin 6 TX, Pin 7 CTS, Pin 8 RTS
  • Pin-Out RS485/RS-422 Full Duplex: Pin 4 Ground, Pin 5 RX-, Pin 6 TX+, Pin 7 RX+, Pin 8 TX-
  • Pin-Out RS485 Half Duplex: Pin 4 Ground, Pin 5 DX-, Pin 7 DX+

    Serial Payload
  • Over UDP or TCP

    Operating Modes
  • UDP Point-To-Point
  • UDP Point-To-MultiPoint ("Master" sends serial data using a multicast IP Address (IPM) with a PORT Number (PORTM). Endpoints with input PORT Number PORTM accept received data and other endpoints will discard it
  • TCP Point-To-Point (configured as Server and Client)
  • COM-Server (COM Port Extender, Virtual Serial Port) Point-To-Point. Serial data endpoint should be configured as Server and the Terminal as Client.

    Configuration
  • WebGUI
  • Telnet and SSH CLI Commands (according to ITU-T Rec. M.3400 Telecommunication Management Networks

    Toggle Switch
  • Left Position = Factory Default. The unit will start-up to its default values
  • Center Position = Normal Mode. Remote Management enabled
  • Right Position = Blocking Mode. Write protected, so you can only read the values in the CLI and/or WebGUI

    SFP Ethernet Interface
  • MSA Compliant
  • 100 Mbps (100Base-FX)
  • 1000 Mbps (1000Base-X)

    SFP Host Power
  • MSA Compliant
  • Input Voltage: 3.135 (Min), 3.3 (Typical), 3.465 (Max) V DC
  • Input Current: 120 (Typical), 140 (Max) mA

    Diagnostics
  • The SFP MSA defines an enhanced memory map with a digital diagnostic monitoring interface for SFP transceivers that allows pseudo real time access to device operating parameters. It defines a 256 bytes memory map which is accessible over a 2-wire serial interface at the 8-bit address 1010000X (A0h), the ID fields. The digital diagnostic monitoring interface makes use of the 8-bit address 1010001X (A2h)

    Environmental
  • Storage Temperature: -40°F - 185°F (-40°C - 85°C)
  • Operating Temperature: -40°F - 185°F (-40°C - 85°C)
  • Relative Humidity: 5% - 95% non-condensing

    Compliances
  • Safety EN 62368-1:2020/A11:2020, IEC 62368-1:2020/A11:2020
  • EMC EN 300 386 V1.6.1:2012, EN 55032:2015/A11:2020 class B, EN 55035:2017/A11:2020 criterion A, EN 61000-4-2:2009 ± 8 kV contact discharge ± 15 kV air discharge, EN 61000-4-3:2020 10 V/m (80-1000 MHz), EN 61000-4-6:2014 10 V (150 kHz-80 MHz)
  • RoHS RoHS2 Directive 2011/65/EU and 2015/863/EU WEEE Directive 2012/19/EU
  • Lifetime/MTBF: 1'392'757 H, (10-9 h-1) = 718, Siemens Norm SN 29500, Temperature 104°F (40°C)


• Item Includes:

  • 1x Patton CIT-SFP/RJ45 Connect-IT Serial RS-232/422/485 Device Server SFP Module with 8-Wire RJ-45 Connector
