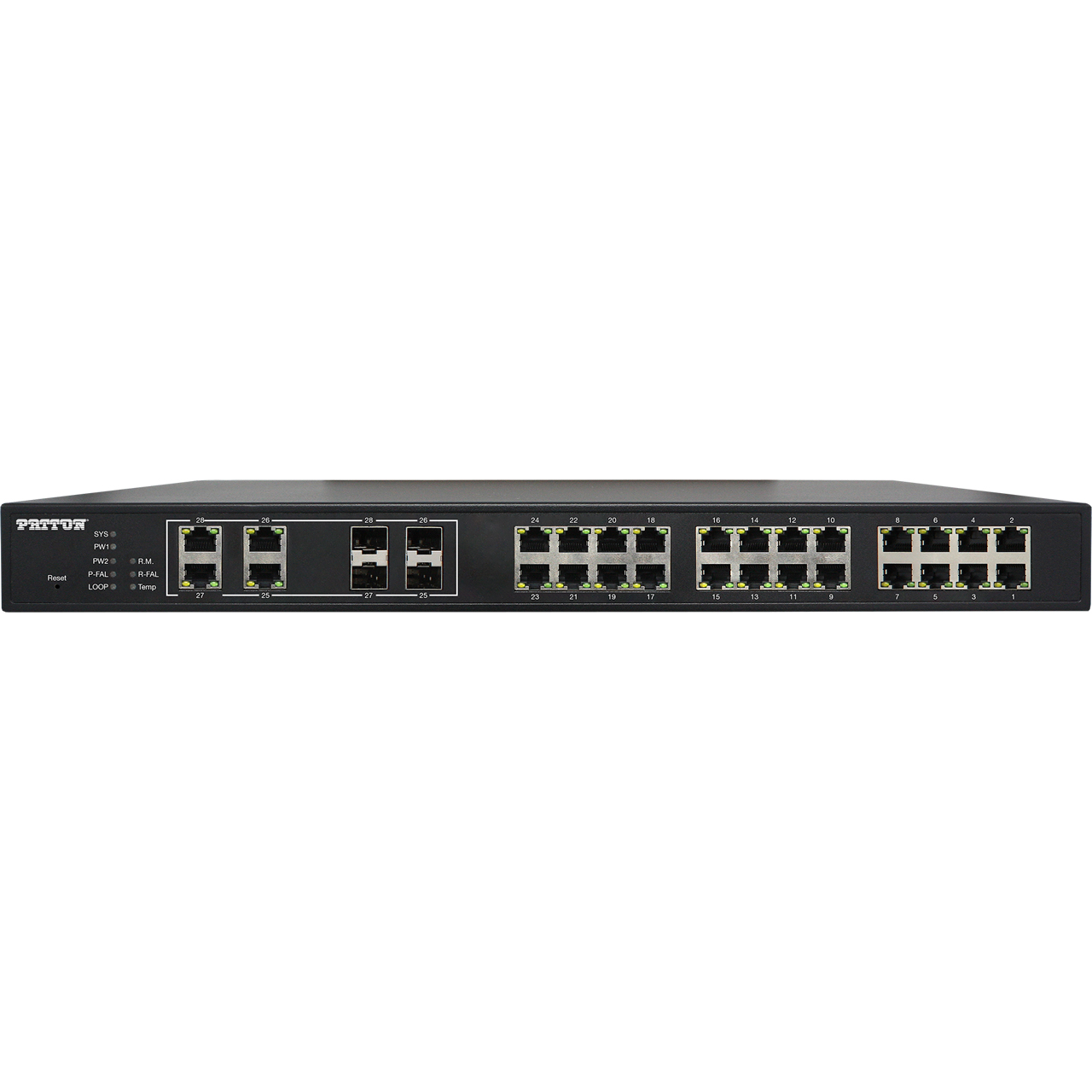

Patton FiberPlex FP2024E Ruggedized PoE/SFP 28 Port Industrial Gigabit Managed Ethernet Switch

ITEM #: FP2024ERJ45SFPUI MFG #: FP2024E

Primary Image
  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2
Free Shipping with $49 Minimum Order

Our Price:

$7,145.00

Availability: Preorder
iAvailability Description Popup
  • Special Order Item: non-cancelable, non-returnable, non-refundable.


FP2024E - Overview

The Patton FiberPlex FP2024E is a 28-port industrial Gigabit PoE+ managed Ethernet switch embedded with 24x 10/100/1000Tx Ethernet ports that support IEEE802.3at/af for a maximum of 30W/port and 4x 100/1000 SFP slots for combo RJ45/Fiber connections.

The unit is a fully manageable Layer 3 Ethernet switch. It supports Source NATs, Destination NATs, and Static Routing. It also has network redundancy function using ERPS, X-Ring (ultra-high-speed recovery time <20 ms), RSTP/STP (802.1w/1D), and MSTP.

The advanced network filtering and security functions, such as IGMP, VLAN, QoS, SNMP, port lock, RMON, and 802.1X/HTTPS/SSH/SSL increase determinism and improve network management for remote SCADA systems or control networks.

Our 10/100/1000 PoE switches comply with industry leading safety standards, such as IEEE 802.3at and IEEE 802.3af. These industrial-managed PoE gigabit switches boast a variety of Power over Ethernet features such as scheduled power cycles, power budgeting, and port settings, as well as Light Layer 3 network management and network redundancy support.

  • Features:

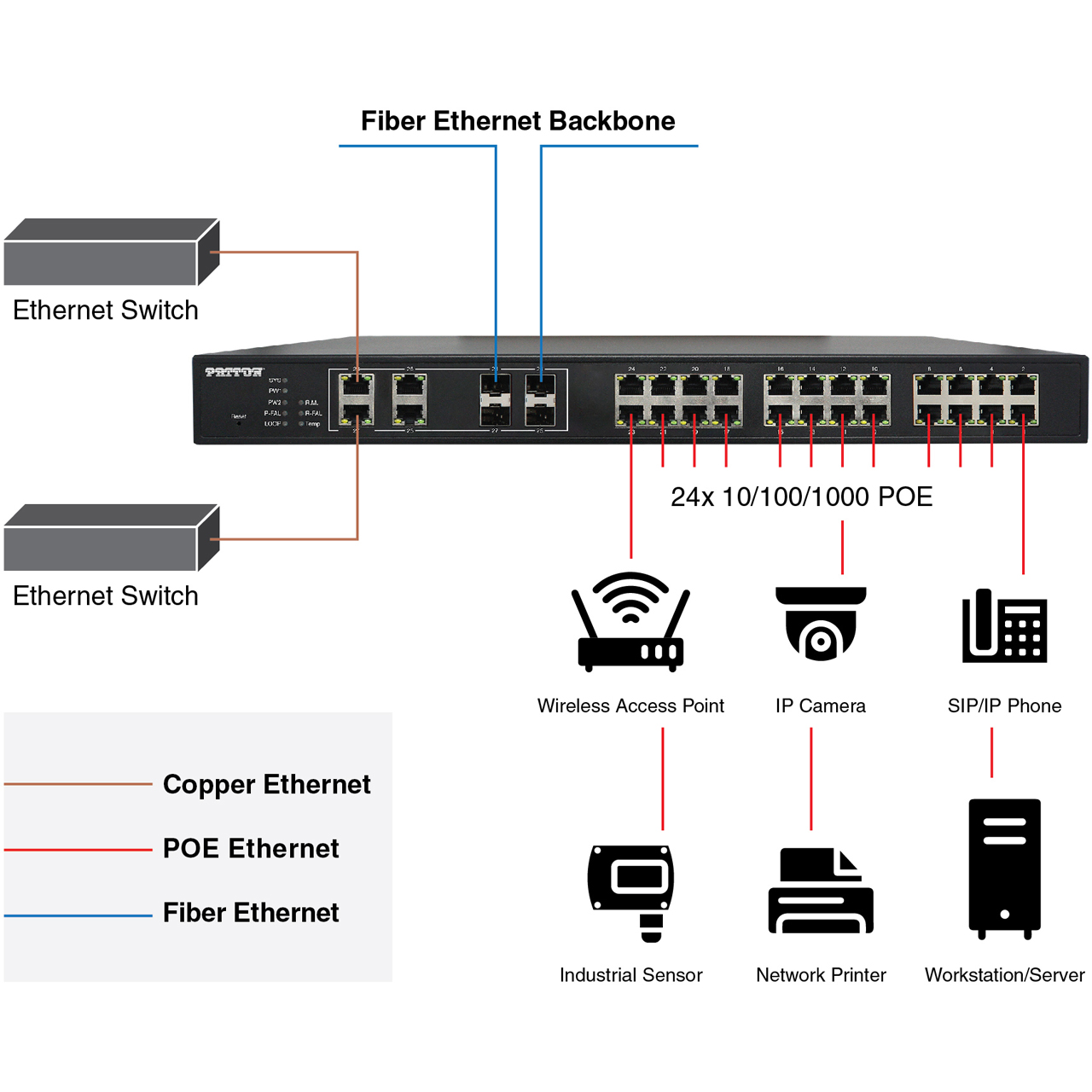

    • Gigabit Ethernet & POE - Supports 24x 10/100/1000Tx IEEE 802.3 af/at PoE+ Gigabit Ports (PSE: 30W/Port) + 4x Gigabit Copper/SFP Ports (4x 10/100/1000Tx RJ45 + 4x 100/1000 SFP Slots).
    • Flexible SFP Support - SFP Socket for Easy and Flexible Fiber Backbone Integration.
    • Management - SNMP v1/v2c/v3, WEB, Telnet, Standard MIB.
    • Security - 802.1x (Port-Based, MD5/TLS/TTLS/PEAP Encryption), HTTPS, SSH and SNMPv3.
    • Redundancy - Proprietary Ring (Ultra-High-Speed Recovery Time < 20 ms), RSTP/STP (802.1w/1D), MSTP Does not support ERPS.
    • DC/POE Power - 48VDC Power Input (46-57 VDC for PoE af, 53-57 VDC is Recommended for PoE at) & 2 Relay Outputs. Power Polarity Reverse Protection. Overload Current Protection.
    • Rugged Design - Extended Operating Temperature: -40°~75°C(-40°F to 167°F), IP30 Protection. 1U Rackmount Chassis.

  • Specifications:

    • Management & Protocols: Web browser, Telnet, Serial Console, TFTP, SNMPv1/v2c/v3, Port Speed/Duplex Configuration, IPv6, IEEE 802.1Q, GVRP, Port-based VLAN, G.8032 ERPS, Proprietary Ring, 802.1w/D RSTP/STP, IP Access Security, Port Security, DHCP Client, Port and IP Binding, and 802.1X Port Access Control.
    • Flow Control: IGMP Snooping/Query for Multicast Group Management, Port Trunking, Static/802.3ad, LACP Rate Limit and Storm Control, IEEE 802.1p QoS CoS/TOS/ DSCP Priority Queuing, and IEEE 802.3x Flow Control.
    • Switch Properties: Memory Buffer 4.1Mbits. Jumbo Frame 9,216bytes. MAC Table Size 8k.
    • Ethernet Ports: 24x RJ45 Port w/10/100/1000TX with PoE+, Auto Negotiation Speed, Full/Half Duplex Mode, and Auto MDI/MDI-X Connection.
    • RJ45/Fiber: 4x 100/1000 SFP Slots.
    • Fiber Wavelength: Depends on SFP Modules.
    • LED Indicators: 10/100T (X): Link/Activity, Duplex/Collision Gigabit Copper: Link/Activity, Speed (1000 Mbps) SFP: Link/Activity.
    • Console Port: RS-232 (RJ45).
    • Power Input Voltage: 46 to 57VDC, Redundant Inputs.
    • Power Connection: 4-Pin Terminal Block.
    • Power Consumption: 20 Watts for System
    • Maximum PoE Power Budget: 685 Watts
    • Packaging: Metal enclosure, IP30 Protection
    • Dimensions (WxHxD): 17.24" x 1.72" x 10.2" (438mm x 43.6mm x 259.2mm)
    • Weight: Unit 8.37lbs
    • Mounting: 1U 19 Inch Rackmount
    • Operating Temperature: -40°F - 167°F (-40°C - 75°C)

  • Item Includes:

    • 1x 1RU 19 Inch Rackmount Kit

  • Warranty:

    • 1 Year Warranty
