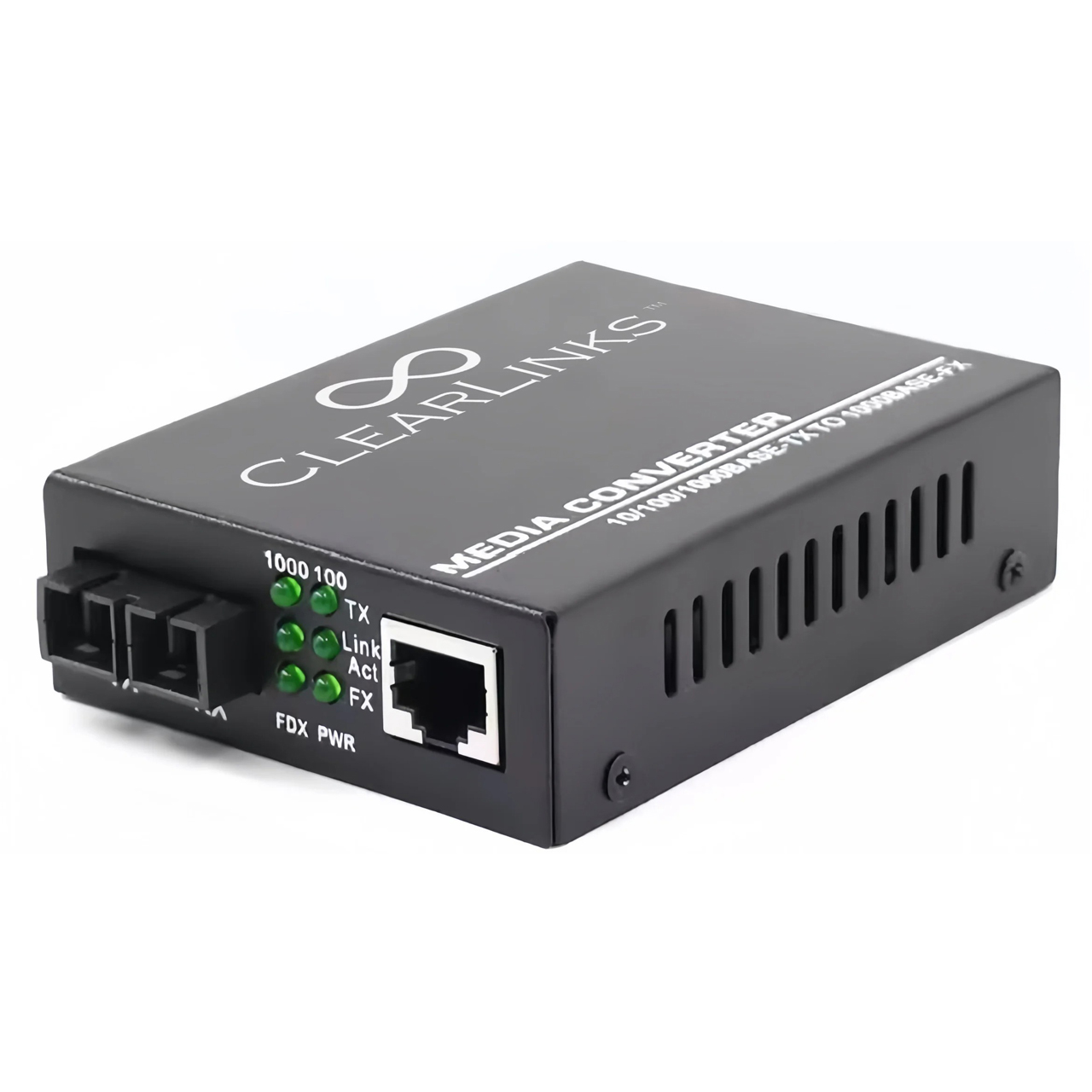

ClearLinks CGU-00101C2 RJ45 to SC 1 Gigabit Media Converter - Single-Mode Fiber - 20km Range w/ SFP

CGU-00101C2 - Overview

• Features:

  • 1310nm Single-Mode Dual-Fiber Optical Module: Enables a transmission range of up to 20 kilometers, making it ideal for long-distance networking applications.
  • Standards Compliance: Fully adheres to IEEE 802.3, 1000Base-TX, 1000Base-FX, IEEE 802.3U, IEEE 802.3X, and IEEE 802.1d standards, ensuring compatibility with a wide range of network infrastructures.
  • Advanced Flow Control: Supports full-duplex flow control and half-duplex back pressure flow control, optimizing network traffic management.
  • Auto-Negotiation & Auto-MDI/MDI-X: Facilitates automatic detection of network speed and crossover requirements, supporting 10/100/1000BASE-T for seamless integration across devices.
  • Robust Design: Built to ensure optimal optical and electrical performance for reliable data transmission and long service life.
  • Wide Temperature Range: Designed to operate effectively under a variety of environmental conditions, enhancing durability and performance in both commercial and industrial applications.
  • Performance Monitoring: Six LED indicators provide clear, real-time status monitoring of both the device and the network.
  • Power Efficiency: Energy-efficient with a power consumption of only 5W, supporting an input range of AC110 to 240V.
  • Comprehensive After-Sales Service: Backed by up to three years of quality assurance and maintenance services for peace of mind.


• Specifications:

  • Optical Ports: 1x 100Base-SC
  • Copper Ports: 1x 10/100/1000BaseT RJ45
  • Wavelength: 1310nm
  • Range: 20km
  • Fiber Mode: Single-mode
  • Input Power: 5V DC, 1A
  • Operating Temperature: 32°F - 122°F (0°C - 50°C)
  • Storage Temperature 14°F - 158°F (-10°C - 70°C)


• Item Includes:

  • 1x Power cord
  • 1x Warranty card


• Warranty:

  • 3 Year Warranty
