Liberty CM-RG6M-BNC C-Tec2 RG6 BNC Compression Connector for Plenum Single - Dual - Tri or Quad Shield Formats

ITEM #: CM-RG6M-BNC MFG #: CM-RG6M-BNC

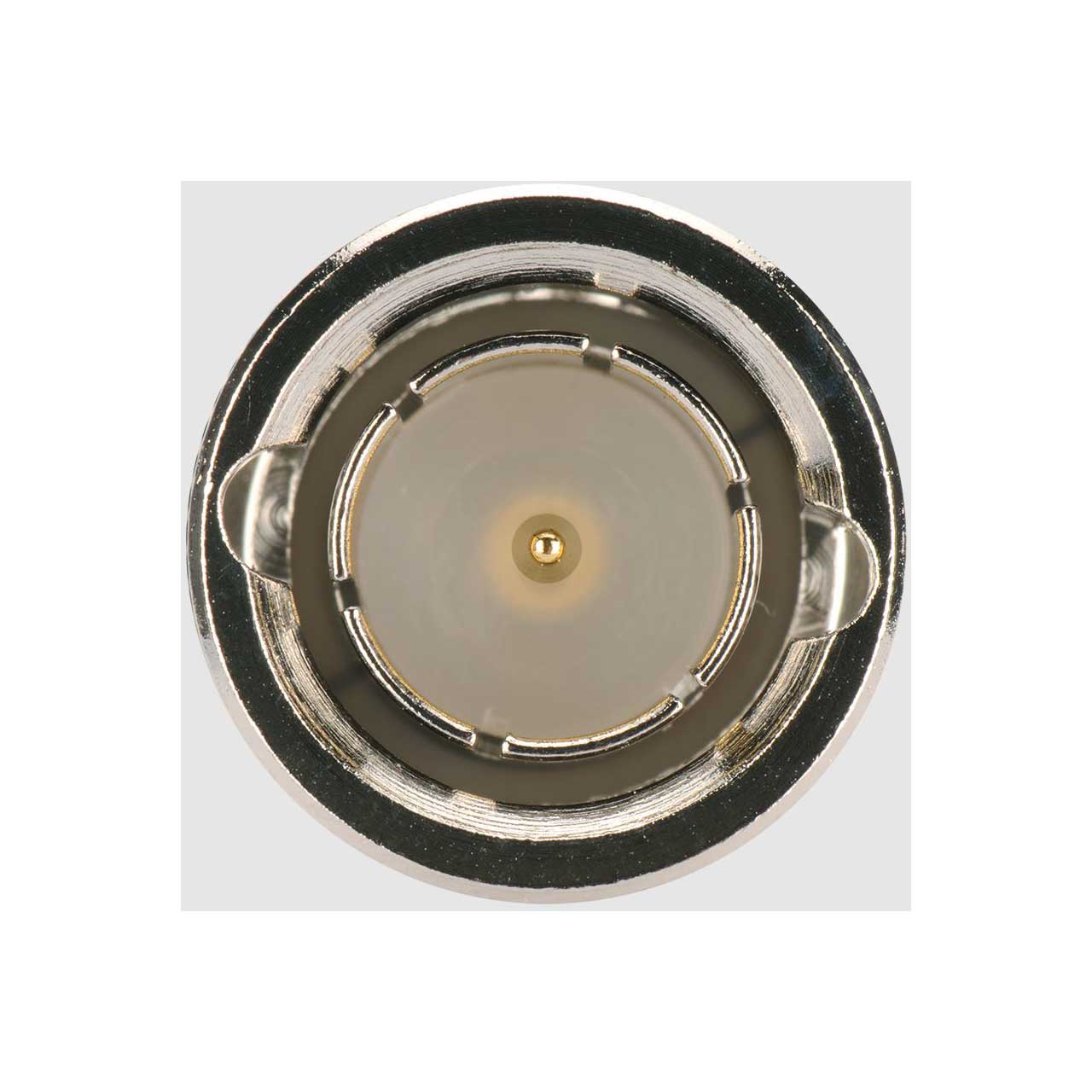

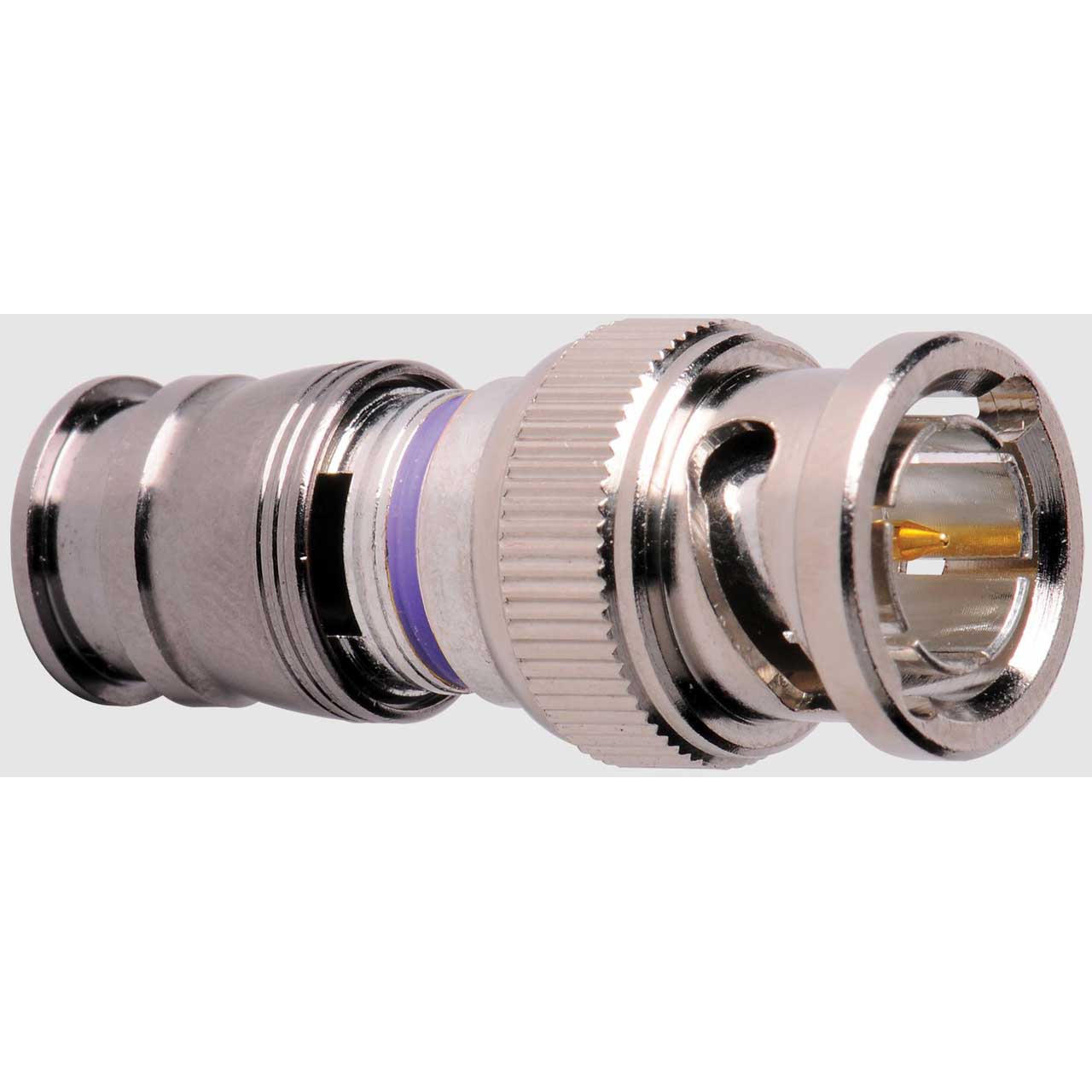

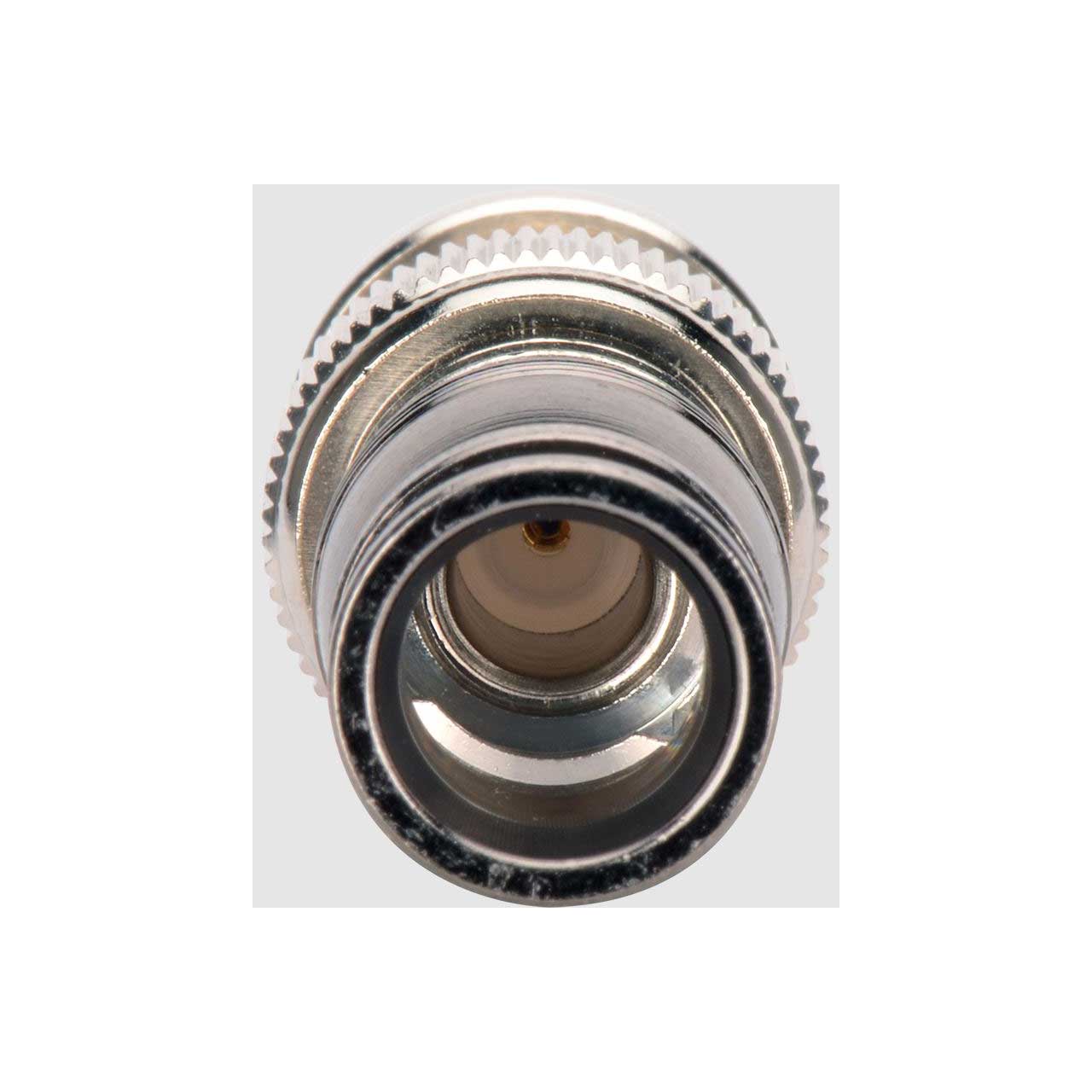

Primary Image
  • Product Image Thumbnail 1 of 3
  • Product Image Thumbnail 2 of 3
  • Product Image Thumbnail 3 of 3

This item is no longer available.
Ask a Markertek Expert if you need assistance finding an appropriate substitute.

(800) 522-2025Email

Items similar to the CM-RG6M-BNC

CM-RG6M-BNC - Overview

Compression Series Connectors for RG6 Plenum 75 Ohm Coaxial Cables

Applications include: Analog and Digital Video, Analog and Digital Audio, Direct Broadcast Satellite, Cable Television, Infrared, Cable Modem, Security Video, Line Level Audio, S/PDIF and AES3id Digital Audio, Base Band Video, IR, Digital Video.

  • Features:

    • Universal Plenum Connector for RG6 sized Coaxial Cable
    • Single Piece Compression Connector
    • Plenum Single Braid shield through Quad shield formats
    • Non-Plenum Single Braid shield through Tri-Shield format
    • Purple Silicone band for easy identification
    • Machined Slot to accept CM-(color) ID Bands


  • Specifications:

    • Impedance (Ohm) nominal: 75.
    • Frequency Range: DC- 1GHz.
    • VSWR: 1.20.
    • R/L @ 1GHz (dB): 22.
    • Insertion Loss @ 1 GHz: 0.2.
    • Working Voltage (rms): 500.
    • Dielectric Withstanding Voltage (rms): 1,500.
    • Insulator Resistance (MO) min: 5,000.
    • Contact Retention (grams) using recommended connector/cable combination: 120.
    • Maximum Mating Cycles: 500
