Contemporary Research 5032-001 IR-RXC External IR Receiver for 232-ATSC 232-STS & ICC2-ATSC/VDC/IRC

ITEM #: CRC-5032-001 MFG #: 5032-001

Primary Image
Contemporary Research Corp.
Free Shipping with $49 Minimum Order

List Price:

$112.00

Our Price:

$96.00

Add to Wish ListLeasing Options
Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup
Report Lower PriceLarge Quantity Quote

5032-001 - Overview

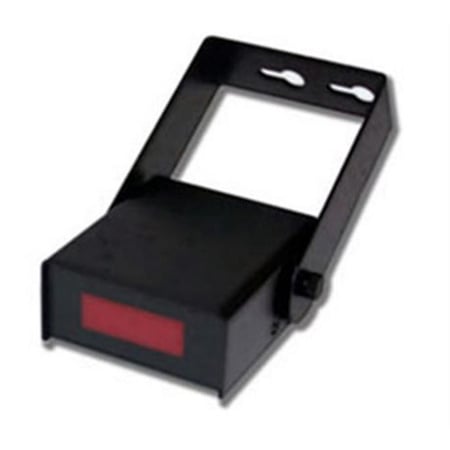

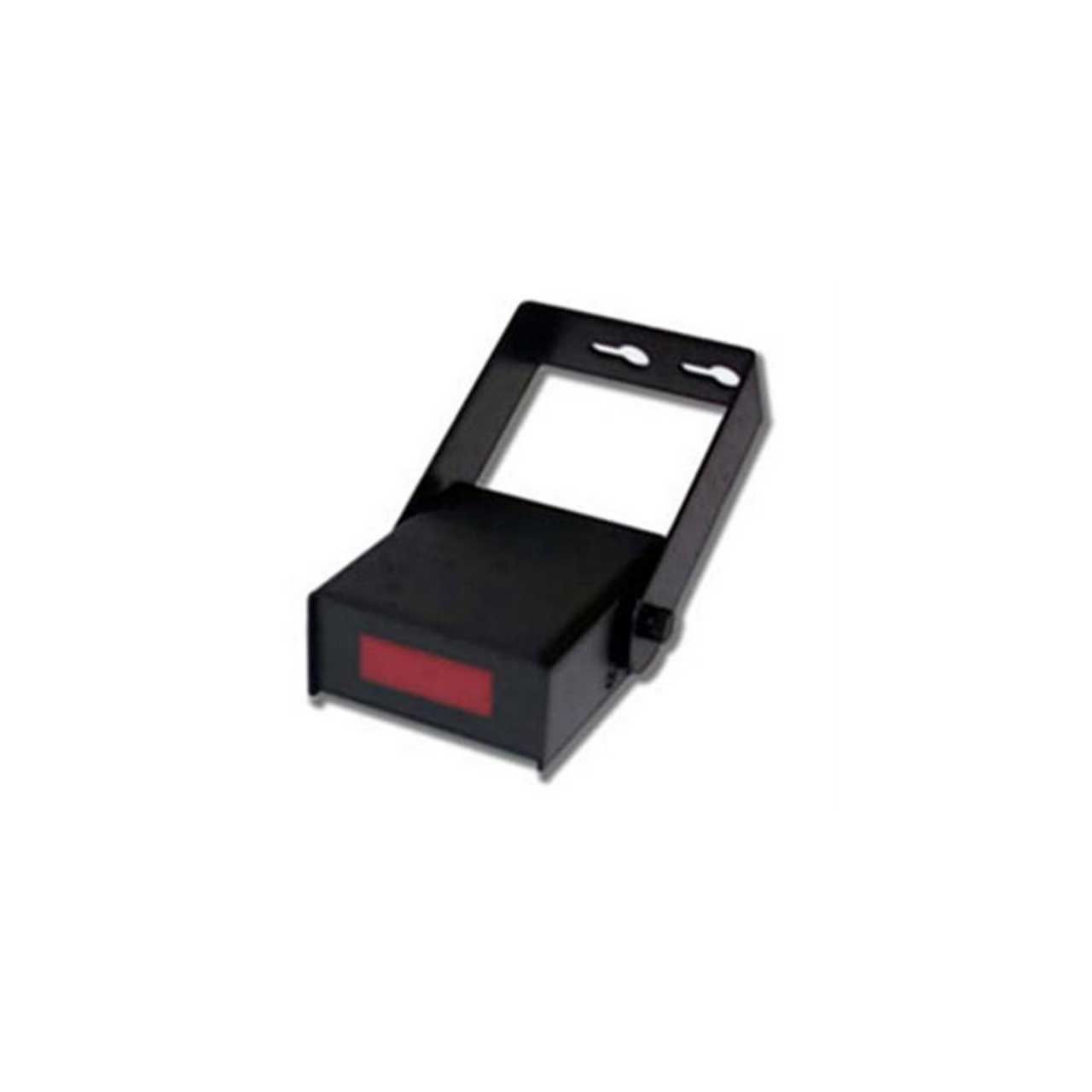

The IR-RXC External IR Receiver extends IR reception for the 232-ATSC, 232-STS, and the ICC2-ATSC/VDC/IRC. Using the included swivel mount, the unit can mounting in any position and aimed for best reception. Powered by the external IR IN input on the tuner, the IR-RXC is switchable for sensing Contemporary Research high-frequency 57 KHz (default) and low-frequency 38 KHz IR, the IR-RXC can be mounted in any position.

  • Specifications:

    • Enclosure: All aluminum with durable black powder coat paint
    • Weight: 3 oz
    • Receiver: 1.13" (H) x 2.35" (W) x 2.65" (D)
    • Bracket: 1.00" (H) x 2.59" (W) x 2.95" (D)
    • Combined: 1.13" (H) x 2.60" (W) x 4.95" (D)
    • IR Reception: Includes high-frequency (57 KHz) or low-frequency (38 KHz) sensors, selected by DIP switch DIP Switch: 4-position switch selects IR operating modes
    • Status LED: Red LED indicates IR code reception
    • IR Out: 3.5mm jack to connect IR signal and power to an iC controller or tuner
    • Power: 10.5-16 VDC (12 typical), 10 mA typical, 25 mA max, powered by iC controller or tuner


  • Item Includes:

    • 12 Foot IR connection cable, 3.5mm male plugs at each end
    • Swivel-mount bracket
