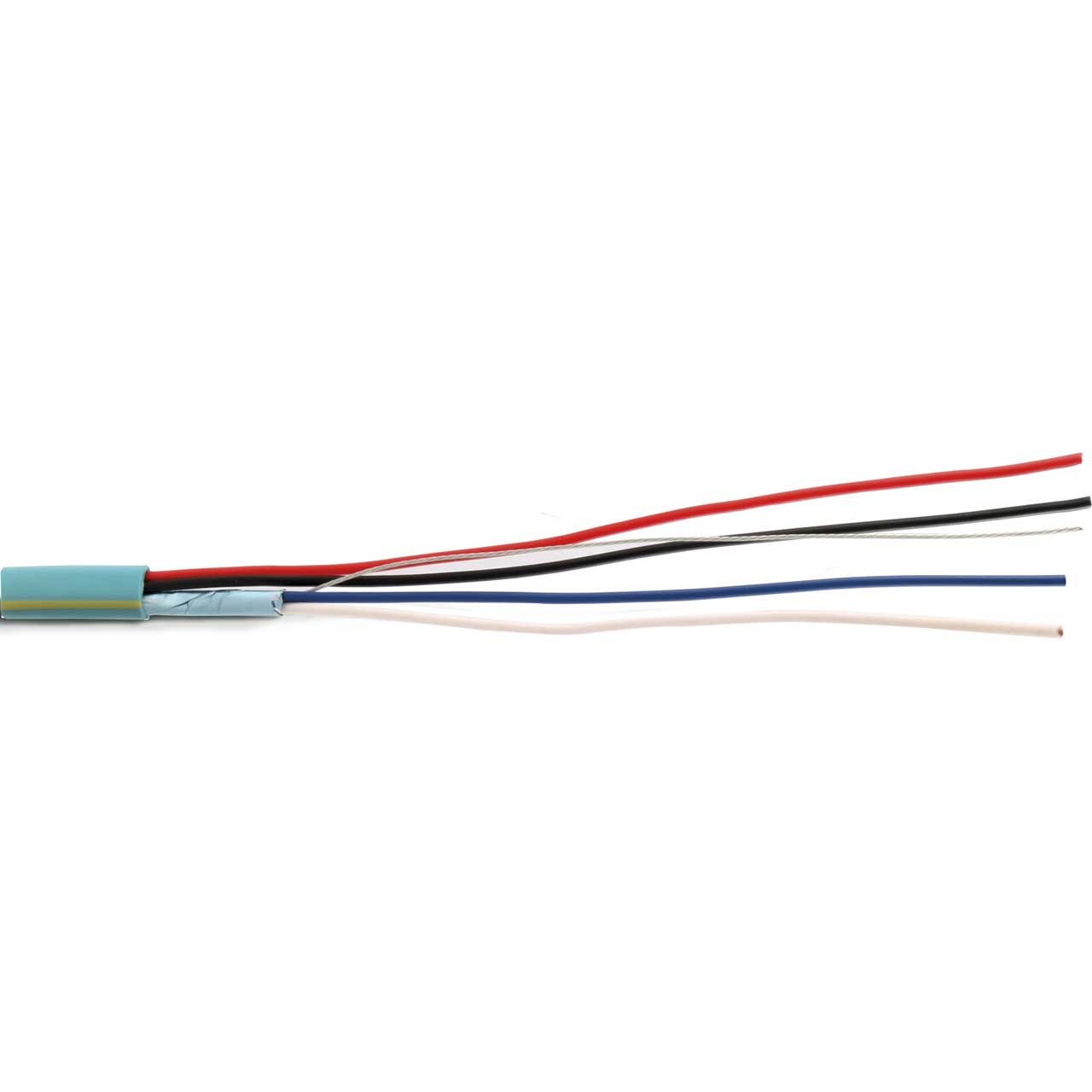

SCP CREST-1 2-Condcutor 22AWG Data & 2-Condcutor 18AWG Power Crestron Cable - 1000 Foot Teal

ITEM #: CREST-1 MFG #: CREST-1

Primary Image
Free Shipping with $49 Minimum Order

List Price:

$420.41

Our Price:

$262.76

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


CREST-1 - Overview

SCP Crest-1 control cable provides communications link between Crestron® control systems, touchpanels, keypads, tuners, audio processors, video switchers, camera pan/tilts, expansion modules, and other Crestron devices. Compare to Crestrons Cresnet® cable. The SCP Crest-1 is also a universal control system cable that can be used on various other Brand systems such as AMX® and Lutron®. IP video and control; general purpose RS-232, RS-485 simplex data and control; and general purpose communication and control systems.

  • Features:

    • UL listed NEC type CL2/CM
    • Bare copper stranded conductors
    • Temperature and voltage rating 75°C, 300V
    • Low capacitance rating on data pair
    • Data pairs shielded for lowest noise
    • Sequential footage marking
    • Color: Teal
    • LSZH Variation also available

  • Specifications:

    • Data = 1 2-Conductor 22 AWG BC Stranded Shield with Drain
    • Power = 1 2-Conductor18AWG Stranded
    • Jacket = PVC Teal
    • Diameter - 6.0mm
    • Characteristic Impedance 75 ±3ohm
    • Capacitance 55pF/m
    • Velocity Ratio 82%
    • DCR: conductor < 33ohm/km
    • DCR: shielding < 13 ohm/km
    • Sparker 4000 VCA
    • Dielectric Strength 2500 VCA

  • GTIN:

    0810070014803
