Artel FiberLink 3115-NA SDI Beamer 3G/HD/SD-SDI over Fiber Extender Transmitter/Receiver Kit - ST Connectors

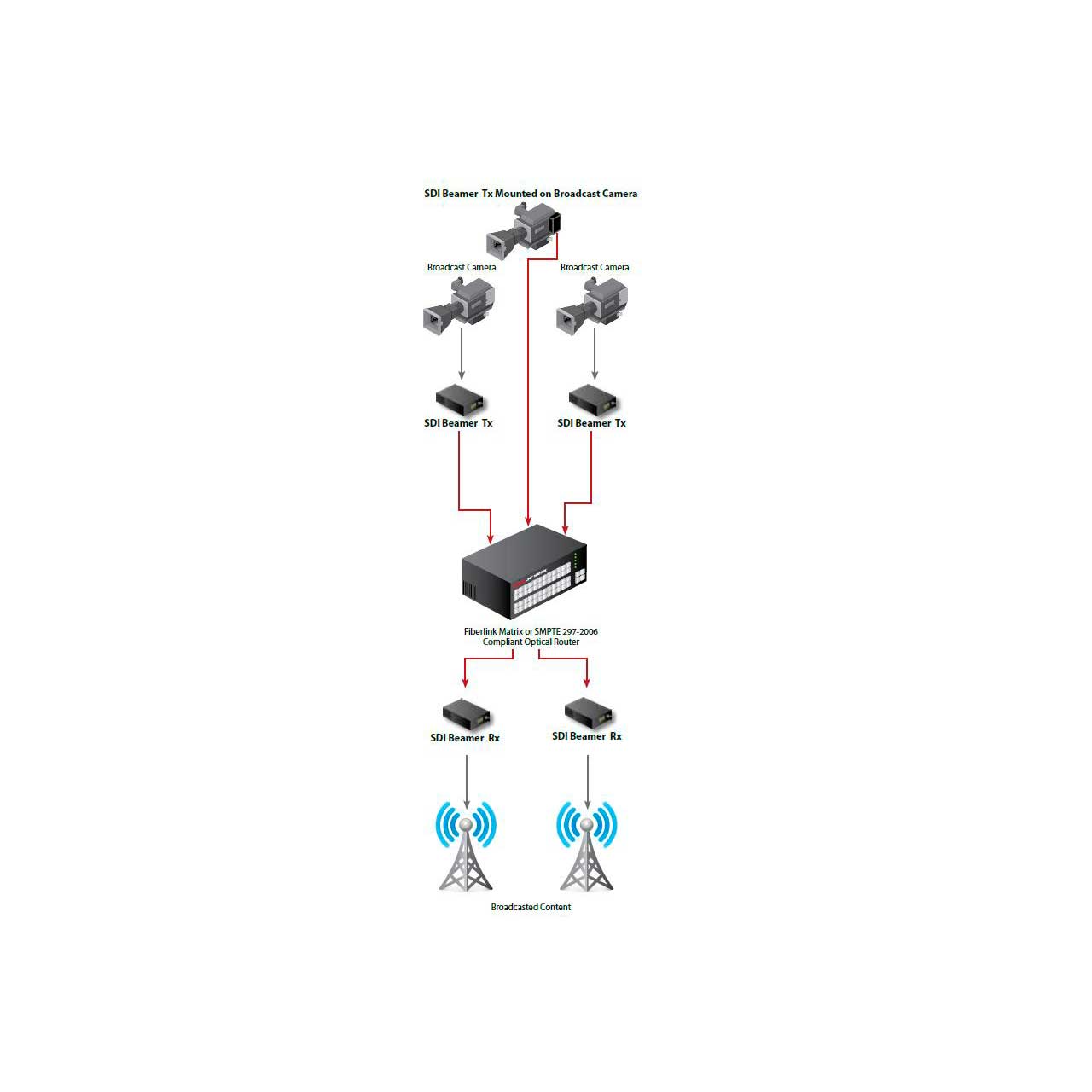

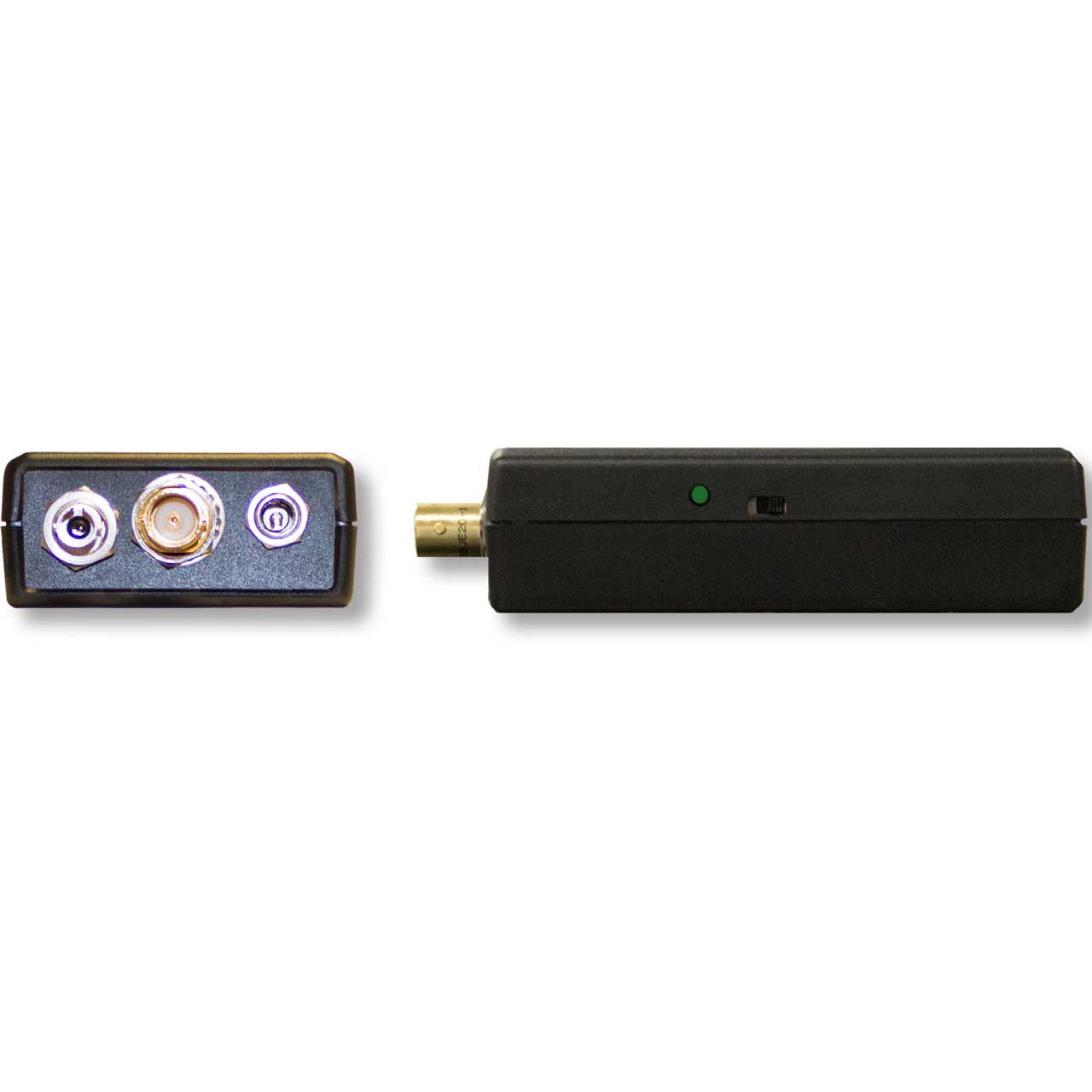

3115-NA - Overview

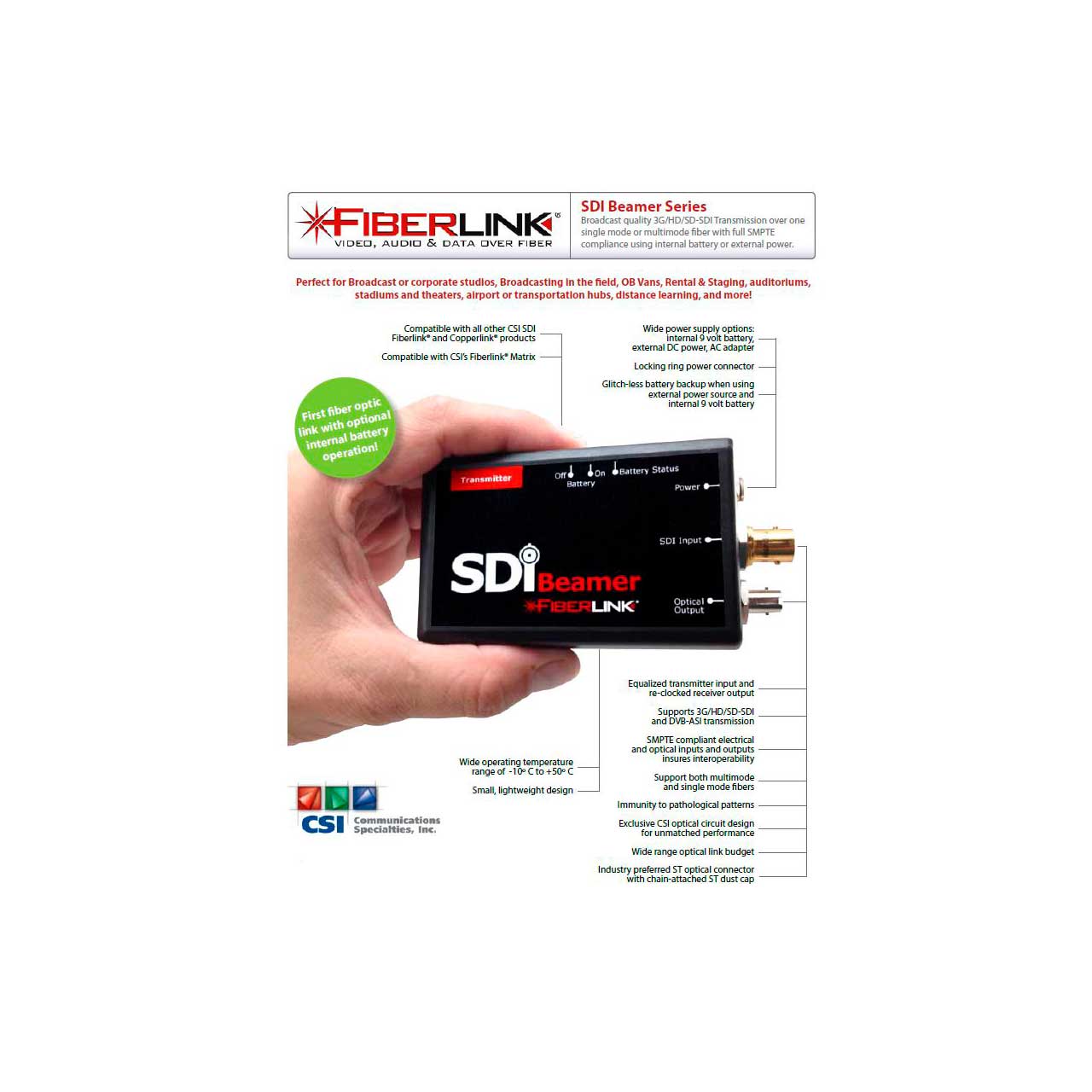

• Features:

  • 3G/HD/SD-SDI - This product supports SMPTE complaint 3G, HD and SD-SDI data rates
  • HDTV Resolutions to 1080p - This product supports HDTV resolutions of 480p, 720p and 1080p
  • This product supports both Single Mode and Multimode fiber types in the same unit with no special ordering, configuration or tweaks
  • Equalized transmitter input and re-clocked receiver output
  • Supports 3G/HD/SD-SDI and DVB-ASI transmission
  • SMPTE compliant electrical and optical inputs and outputs insures interoperability
  • Support both multimode and single mode fibers
  • Immunity to pathological patterns
  • Exclusive Artel optical circuit design for unmatched performance
  • Wide range optical link budget
  • Industry preferred ST optical connector with chain-attached ST dust cap
  • Wide power supply options: internal 9 volt battery, external DC power, AC adapter
  • Locking ring power connector
  • Long 5 hour battery life
  • Glitch-less battery backup when using external power source and internal 9 volt battery
  • Compatible with all other Artel SDI Fiberlink® products


• Specifications:

  • 3112 Transmitter - Optical Output
  • Connector: ST, with chain-attached dust cap
  • Emitter Type: FP Laser
  • Output Power: -8 dBm Min (Single Mode) -3 dBm Min (Multimode 50u/62.5u)
  • Wavelength: 1310nm (nominal)

    3112 Transmitter - Serial Video BNC Input
  • Data Rate Range: 19.4 Mbps to 2.97 Gbps
  • Equalization: Automatic up to 100m of Belden 1694A at 3.0 Gbps, 200m at 1.485 Gbps and 350m at 270 Mbps
  • Number Of Inputs: 1
  • Re-Clocked Data Rates: 270 Mbps (SMPTE 259M, DVB-ASI-270), 1.485 Gbps (SMPTE 292), 2.97 Gbps (SMPTE 424M-2006)
  • Return Loss: >10dB up to 2.97 Gbps
  • Supported Standards: SMPTE 259M, 292, 297-2006, 424M-2006, 305M, 310M, 344M, DVB-ASI

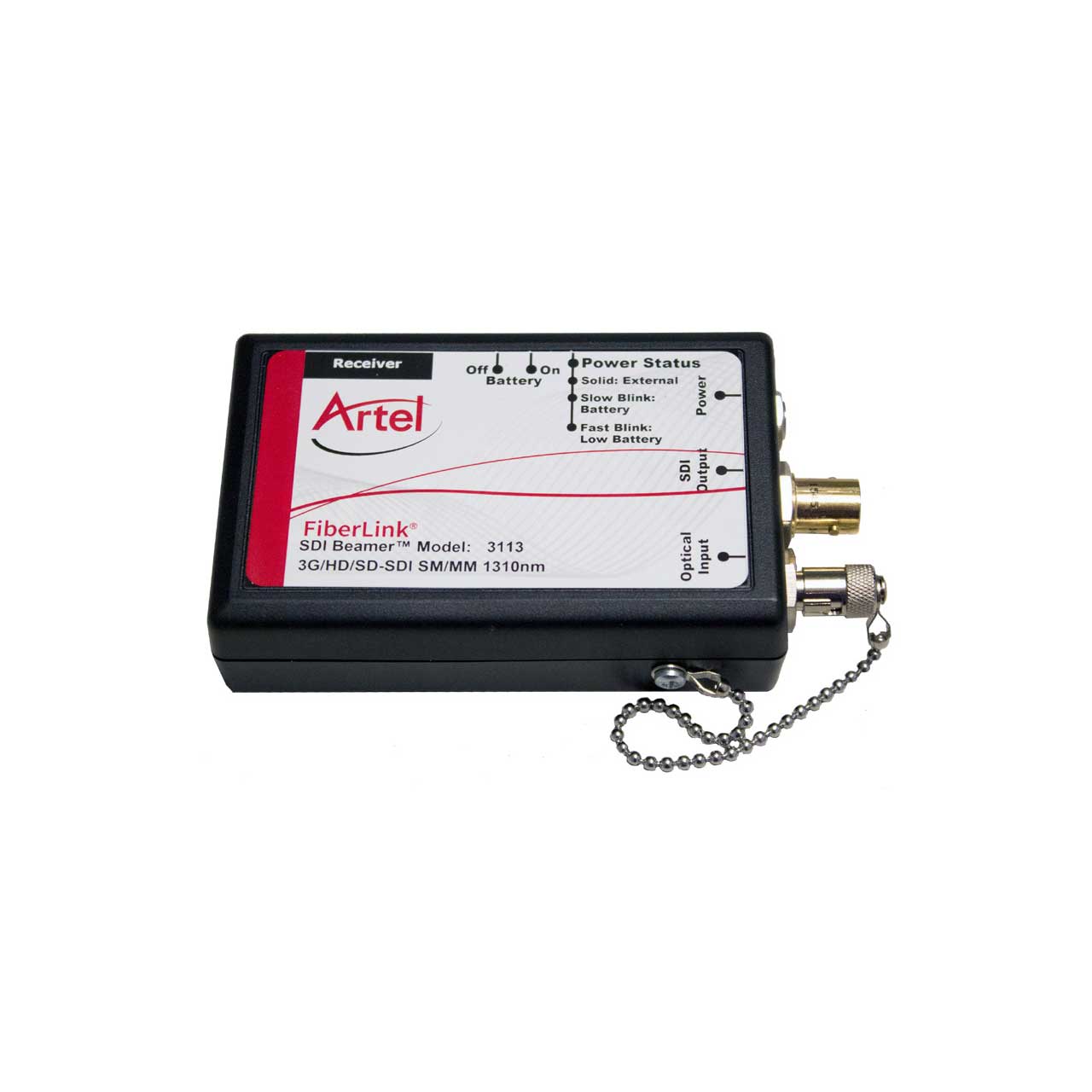

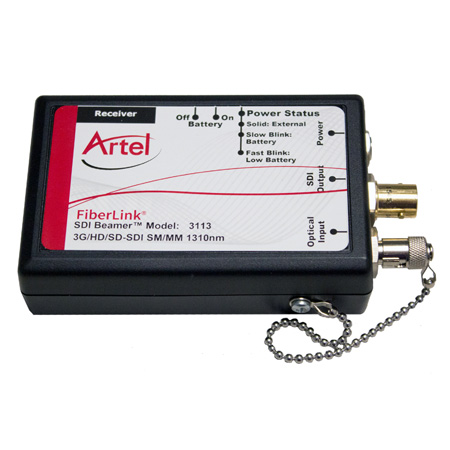

    3113 Receiver - Serial Video BNC Input
  • Alignment Jitter: < 0.2 UI at 270 Mbps; < 0.2 UI at 1.485 Gbps; < 0.3 UI at 2.97 Gbps with color bar signal
  • DC Offset: 0V ± 0.5V
  • Number Of Outputs: 1
  • Overshoot: < 10% of amplitude
  • Reclocking: At 270 Mbps, 1.485 Gbps & 2.97 Gbps
  • Rise/Fall Time: < 135 ps at 2.97 Gbps per SMPTE 424M-2006; < 270 ps at 1.485 Gbps per SMPTE 292; 0.4 ns to 1.5 ns at 270 Mbps per SMPTE 259M
  • Signal Level: 800mV ± 10%
  • Timing Jitter: < 0.2 UI at 270 Mbps; < 1.0 UI at 1.485 Gbps; < 2.0 UI at 2.97 Gbps with color bar signal

    3313 Receiver - Fiber Optic Input
  • Connector: ST, with chain-attached dust cap
  • Maximum Input Power: 0 dBm
  • Minimum Input Sensitivity: -18 dBm at 2.97 Gbps; -20 dBm at 1.485 Gbps -20 dBm at 270 Mbps;
  • Wavelength: 1100 - 1620 nm

    Beamer Series General Specifications
  • Approximate Internal Battery Life: 3 hours, 30 minutes with Lithium battery 1 hour, 50 minutes with Advanced Alakaline battery 1 hour, 30 minutes with Alakaline battery
  • Dimensions: 2.4 x 4.47 x 1.06 (in); 60.96 x 113.53 x 26.92 (mm)
  • Indicator: Power/Battery
  • MTBF: 175,000 Hours
  • Operating Temperature: -10° C to +50° C
  • Power: External 9-24 volts DC or user supplied internal 9 volt battery. Internal battery can be used for glitch-free backup to external power source or battery only operation.
  • Power Connector: Coaxial type with locking threads; 5.5mm O.D., 2.1mm I.D.
  • Power Disipation: Transmitter: 1.20 Watts, 4.09 BTU/hr Receiver: 1.20 Watts, 4.09 BTU/hr
  • Switch: Internal Battery On/Off
  • Weight: 4.23 oz. with batt., 2.60 oz without batt.


• Item Includes:

  • 3112 Transmitter
  • 3113 Receiver
  • Two PDPS-4 Power Supplies
  • Two 9V Lithium Batteries
