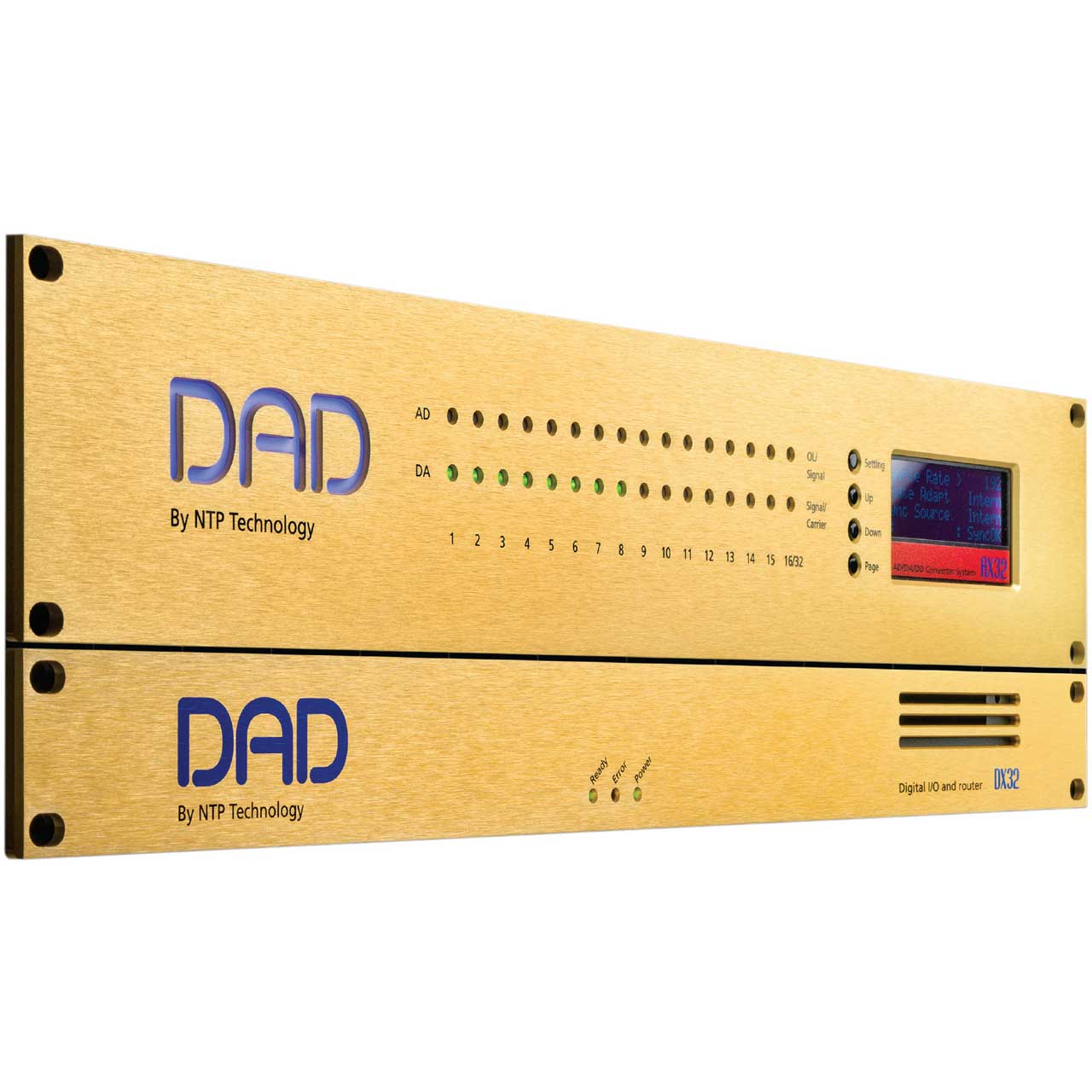

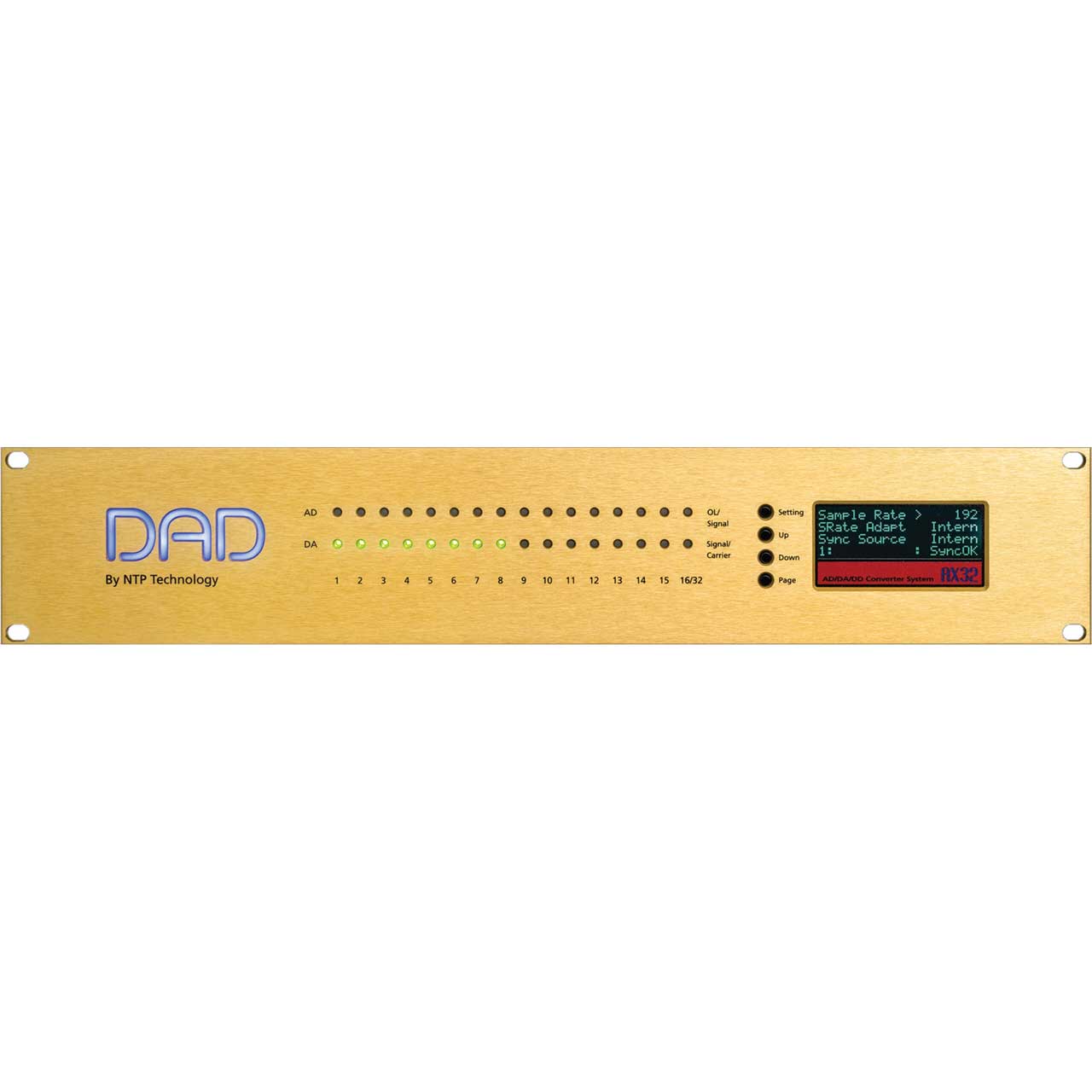

Digital Audio Denmark AX32 Base Unit - No AD/DA Converter Included

ITEM #: DAD-AX32-BASE MFG #: DAD-AX32-BASE

Primary Image
  • Product Image Thumbnail 1 of 3
  • Product Image Thumbnail 2 of 3
  • Product Image Thumbnail 3 of 3
Digital Audio Denmark
Free Shipping with $49 Minimum Order
We are an authorized dealer for this series; however, the manufacturer does not permit online sales. Please contact a sales engineer at 1-800-522-2025 to complete your purchase.
Availability: Ships Factory Direct, Typically in 3-10 Business Days
iAvailability Description Popup
  • Special Order Item: non-cancelable, non-returnable, non-refundable.
Report Lower PriceLarge Quantity Quote

DAD-AX32-BASE - Overview

The Digital Audio Denmark DAD-AX32-BASE is an audio routing centerpiece, digital format converter, world-class AD/DA converter and monitor controller. Quite simply, AX32R changes seamlessly between workflows in seconds, optimizing your production time and efficiency. With the AX32R versatile I/O structure and IP Audio via Layer 3 Ethernet (Dante), up-to 48 analogue audio channels and a flexible digital signalinterface, routing and distribution structure. Aes3 , MADI PLUS 2 additrional SFP MADi Options. With all I/O card and options installed, you can control a 1,500 x 1,500 matrix of audiochannels. 8 I/O cards and 2 I/O modules can be installed. 6 Analog or 8 digital cards many be installed.

The DAD-AX32-BASE is the Base Item without the AD/DA Converter included.

  • Specifications:

    • Flexible AD/DA Interface Configuration with Mic-Pre Option
    • Versatile digital interface structure
    • Easy control of converter parameters
    • 8 to 48 analog channels
    • 8 channels on a card. Up-to 6 analog card can be installed
    • 8 ch. Line in AD card and 8 ch. Line/Mic pre in AD card
    • 8 ch. Line out DA card with output level control
    • Sample rates 44.1 kHz up-to 384 kHz/DSD
    • High precision internal clock and PLL

      Versatile Digital Interface Structure
    • Dante 128 ch. I/O Card w/ SRC
    • 8 AES3 I/O interfaces
    • MADI coax and optical I/O
    • 3G SDI embedded audio I/O
    • Ethernet IP audio interface for 64 I/O channels using Dante(TM)
    • Synch via word clock, AES11, Video, and all digital I/O
    • Adapt to incoming sample rate

      Easy Control of Converter Parameters
    • Operation via DADman control software for Windows and OSX
    • Ethernet control interface
    • Compliant with the Dante Ethernet controller

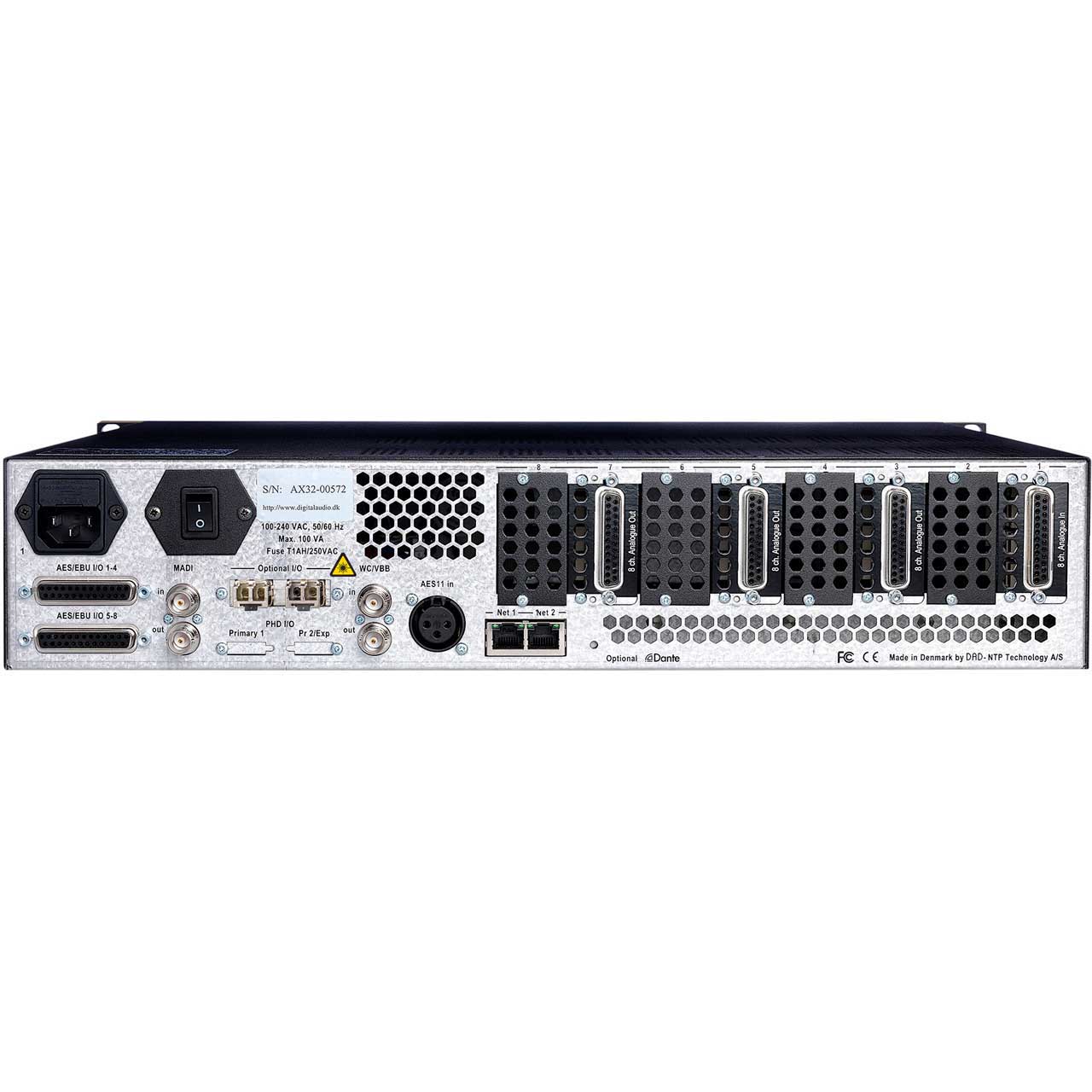

      Standard Interface Capability
    • 8 AES3 I/O on two D25 connectors with16 mono channels
    • MADI I/O on BNC connectors with 64 mono channels
    • Interface for IP Ethernet control

      Optional I/O Interfaces
    • 8 ch. Line pristine A/D card
    • 8 ch. Mic/Line pristine A/D card
    • 8 ch. pristine D/A card
    • Dante 128 ch. I/O Card w/ SRC
    • Dual SDI/HD/3G 2×16 ch. emb/de-embed. card w/ SRC
    • 8 Line AES3 16 ch. I/O Card w/ SRC
    • Dual MADI 128 ch. I/O Card
