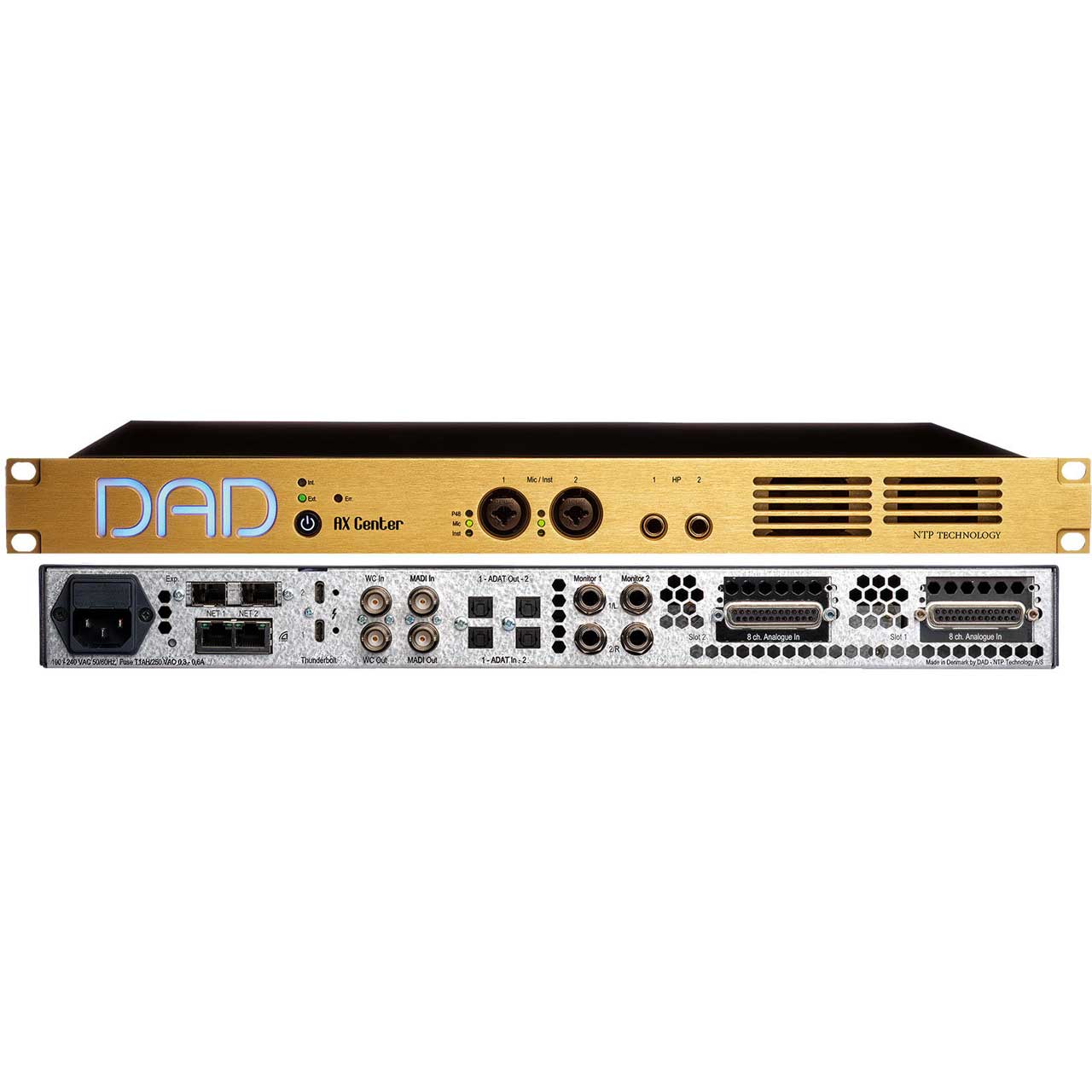

Digital Audio Denmark AXCNTRBASE 2U Rack Thunder/Core 1744x1744 Digital Audio Router and Monitoring Interface

AXCNTRBASE - Overview

• Features:

  • Thunderbolt 3 interface, with 256 Bidirectional Channels at 48 & 96 kHz, 128 channels at 192 kHz and 64 channels at 384 kHz
  • Interchangeable Thunderbolt 3 main and expansion port w. 15W power for ancillary equipment
  • Audio Drivers for macOS and Windows
  • MADI interface on BNC connectors with 64 Bidirectional Channels at 48kHz, 32 channels at 96kHz, 16 channels at 192 kHz and 8 channels at 384 kHz
  • Dual ADAT interface on TosLink Light pipes with 16 Bidirectional Channels at 48kHz, 8 channels at 96kHz, and 4 channels at 192 kHz. Configurable also as 2 Ch. S/PDIF input
  • DANTE AoIP interface via Ethernet with 256 Bidirectional Channels at 48 and 96kHz, 128 channels at 192 kHz.
  • Module Slot for optional dual Madi module via 2 x SFP (LC Fiber or HD/BNC Coax) connectors with 128 Bidirectional Channels at 48kHz, 64 channels at 96kHz, 32 channels at 192 kHz and 16 channels at 384 kHz
  • Two card slots available for DAD I/O Expansion Cards
  • Word Clock I/O, and Video Black and Burst input on BNC connectors
  • 128 channels speaker processing with a total of 1024 filters and delay
  • Summing Processor 64 Output / 512 Input Busses
  • Internal Router: 4096 x 4096
  • 32bit Floating Point Processing
  • DADman control software for macOS and Windows connecting via Ethernet or Thunderbolt
  • Pro|Mon monitor control functionality and integration for Avid Eucon Enabled Devices via DADman
  • 19" Rack Unit 1U Height


• Specifications:

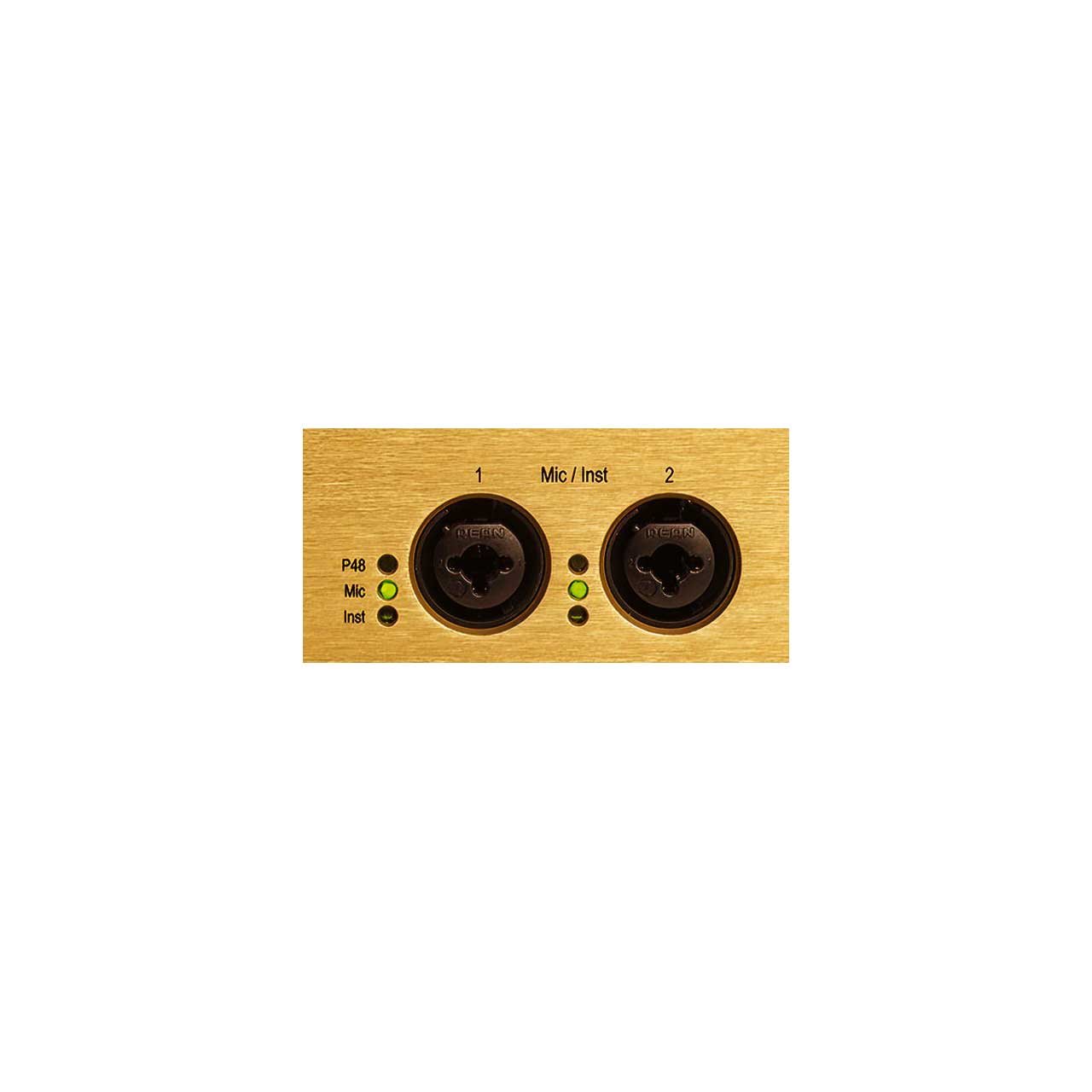

  • 2 Ch. microphone or instrument input

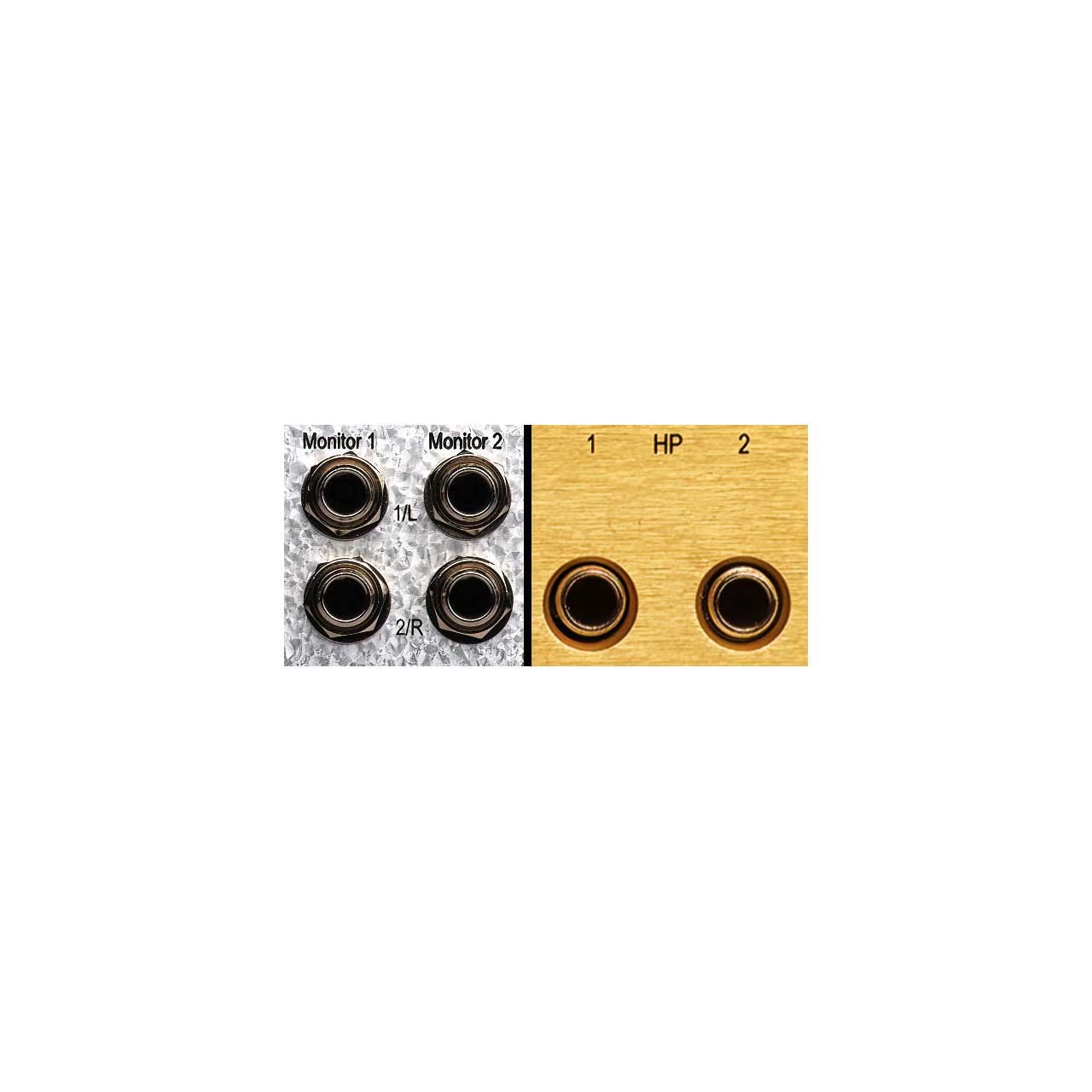

  • Dual stereo headphone output
  • Dual stereo monitor outputs
  • A/D, D/A and D/D Converter with sample rates from 44,1 to 384 kHz and DSD
  • Up to 984 Input and Output Channels
  • Router and Monitoring Interface
  • Thunderbolt 3 I/O (256 Ch.)
  • Dante AoIP I/O (256 Ch.)
  • MADI I/O (64 ch.)
  • ADAT I/O (16 Ch.) / SPDIF (2 ch.)

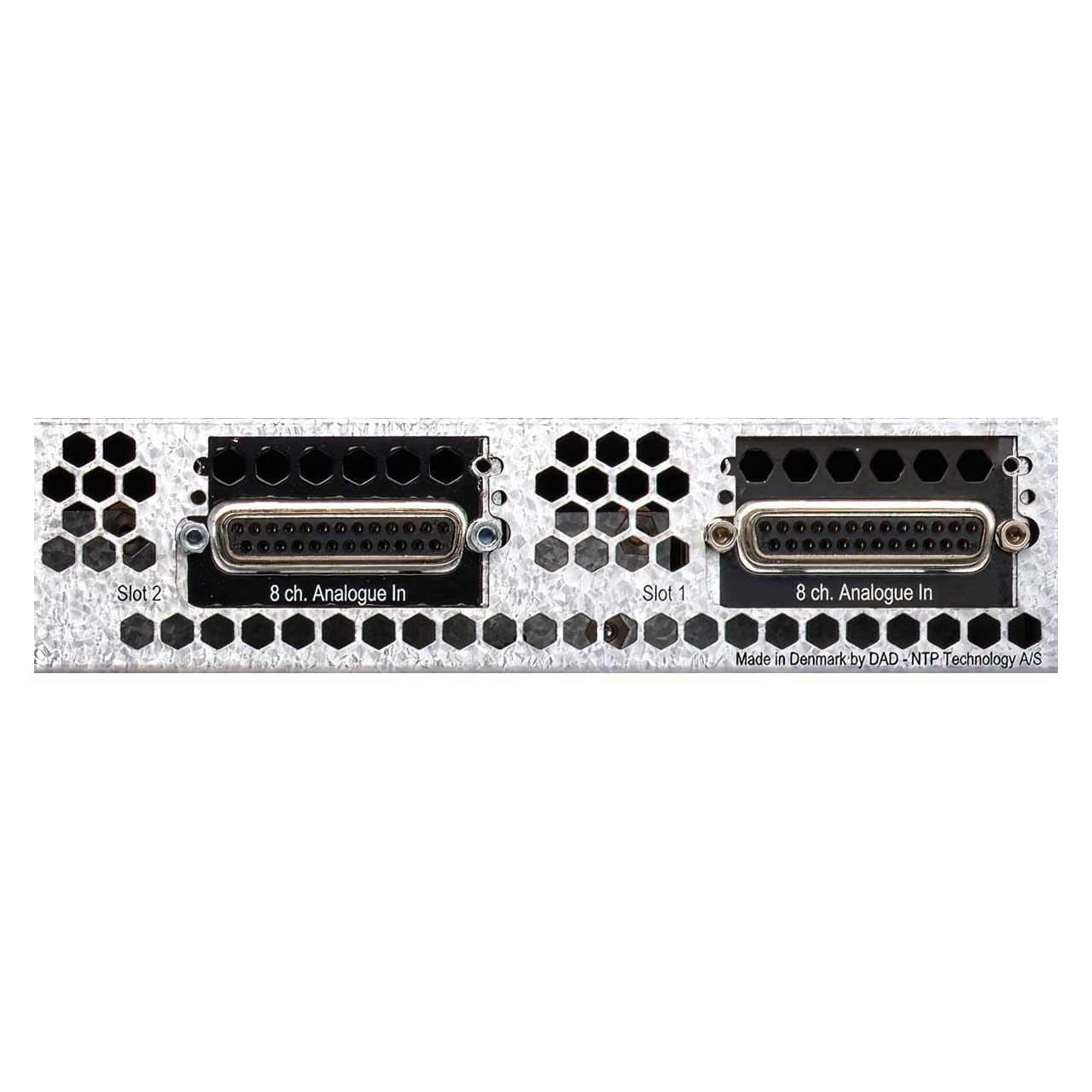

  • 2 Slots for Optional Multi-Format DAD I/O Cards
  • 512x64 Ch. Pro|Mon Summing and Speaker 1024 ch. EQ Processing
