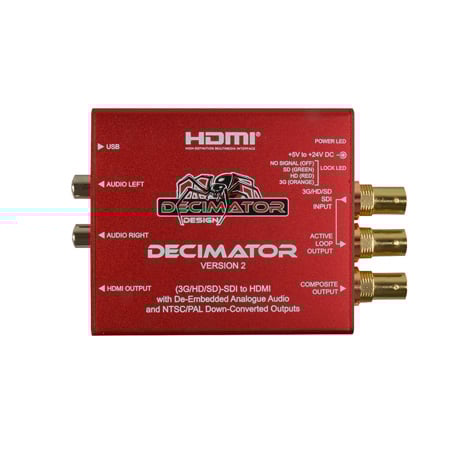

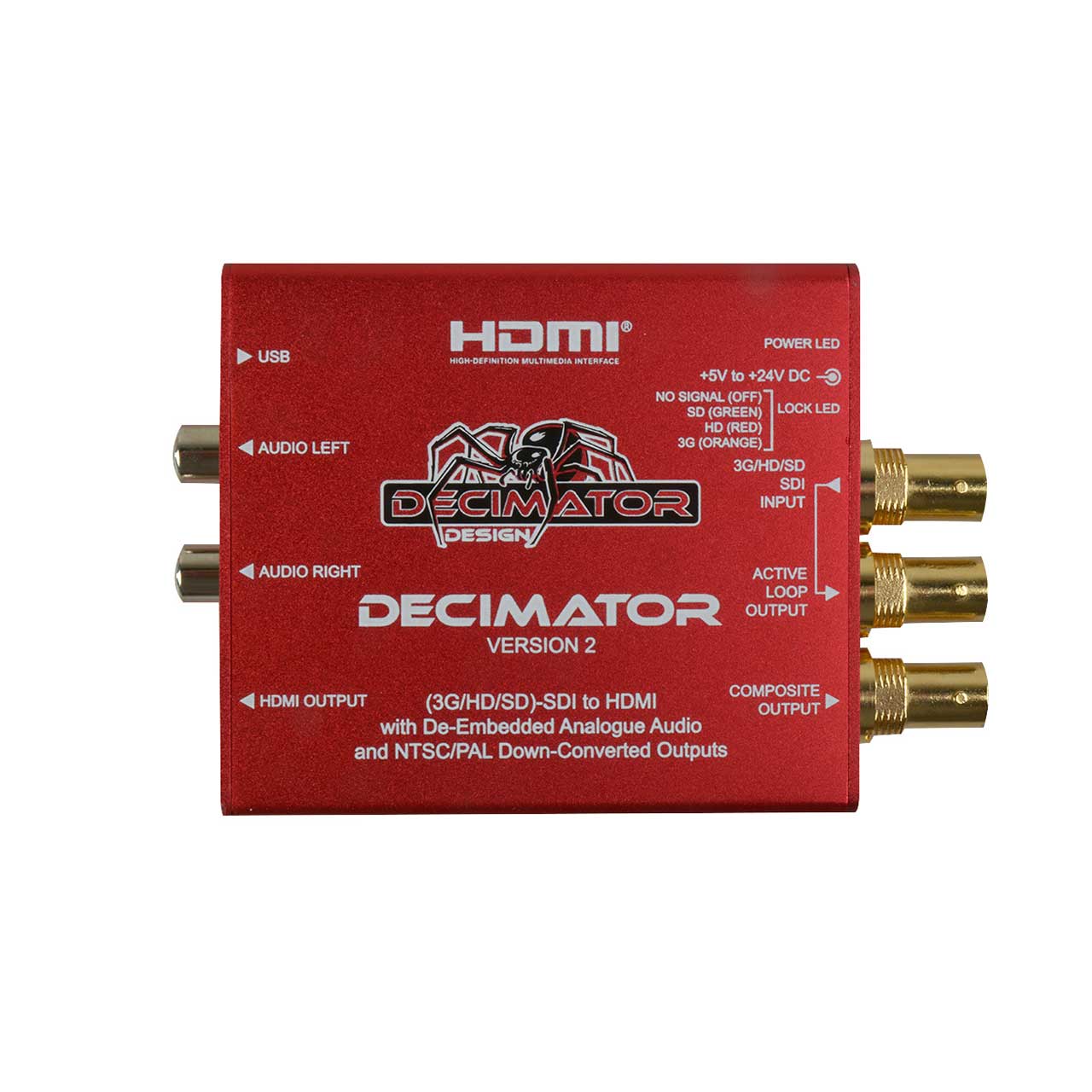

Decimator Design Decimator 2 Miniature 3G/HD/SD-SDI to HDMI Converter with De-Embedded Analog Audio

DECIMATOR 2 - Overview

Simultaneously Scales 3G/HD/SD-SDI to both HDMI and NTSC/PAL with De-Embedded Analog Audio!

• Features:

  • Auto detects 3G, HD or SD (26 Formats in total) and can handle switching of synchronous sources
  • Simultaneous scaling on both the HDMI and Composite outputs with a maximum delay of 1 input frame
  • HDMI output with optional full scaling and aspect ratio conversion.
  • De-Embedded Analog Audio is output on 2x RCA connectors at -10dBu = -20dBFS.
  • 3G/HD/SD-SDI Active Loop-Through Output
  • Adjustable Graticules Generator displayed on the HDMI output with separate enables for Safe Action, Safe Title and Centre Cross
  • Adjustable position for either Safe Action or Safe Title
  • Adjustable colors for Safe Action, Safe Title and Centre Cross
  • Text Overlays displayed on the HDMI output with:
  • Adjustable Foreground and Background colors
  • Adjustable 16-character text
  • Current input format status
  • External Dipswitch Configuration
  • USB port for control and firmware updates
  • Locking DC Power Socket

    Down-converted Composite Output
  • NTSC or PAL is selectable for 3G/HD inputs
  • SD will be passed unchanged.
  • Low latency 3G/HD to SD Down-conversion with ARC (Aspect Ratio Conversion)
  • 16 times over-sampling for Composite Output
  • Passes EIA-708/608 Closed Captions to the Composite Output

    Full 16-Channel Audio Metering Displayed on the HDMI Output
  • Any of the 4 audio groups individually selectable
  • Vertical or Horizontal Bars
  • AES/EBU, VU, Extended VU, BBC, EBU, DIN and NORDIC Scales
  • Bar & Float, Bar only or Float only - Transparency adjustment
  • Separate Bar and Float Ballistics control
  • Adjustable Reference level
  • Red, Yellow and Green Range adjustment
  • Bar thickness adjustment
  • Margin adjustment


• Specifications:

  Video Formats
  • 3G:SMPTE [email protected] and 2.967Gb/s:
    - 1080p@60/59.94/50Hz
  • HD:SMPTE 292M/274M/[email protected] and 1.435Gb/s:
    - 1080i@60/59.94/50Hz
    - 1080p/psf@30/29.97/25/24/23.98Hz
    - 720p@60/59.94/50/30/29.97/25/24/23.98Hz
  • SD:SMPTE 259M@270Mb/s:
    - 625i50
    - 525i59.94

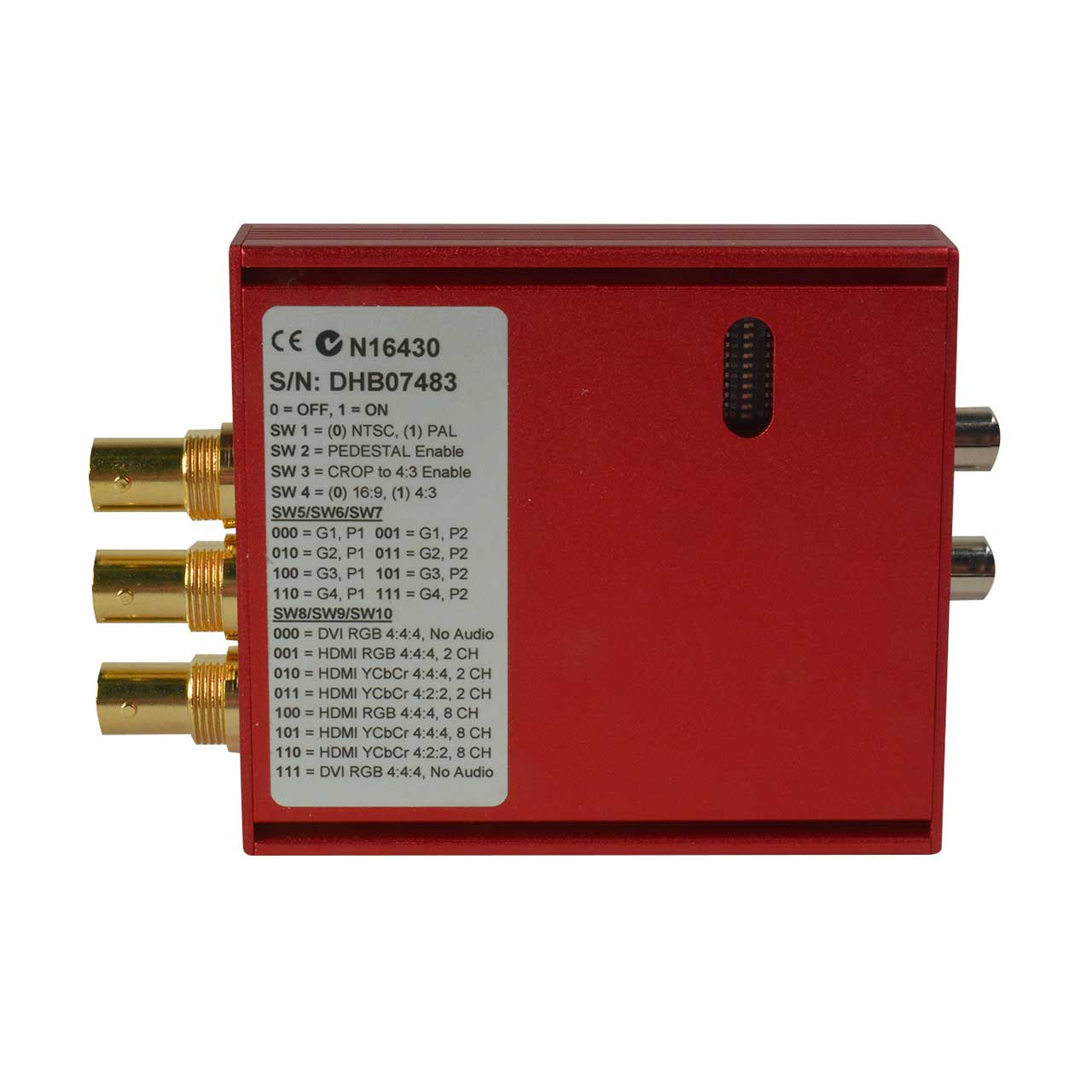

  • DIP Switch Controls
  • NTSC or PAL Selection
  • SD Pedestal
  • Crop 16:9 to 4:3
  • 16:9 or 4:3 Aspect Selection
  • Stereo Pair selection for RCA Analogue Audio
  • HDMI Output format select

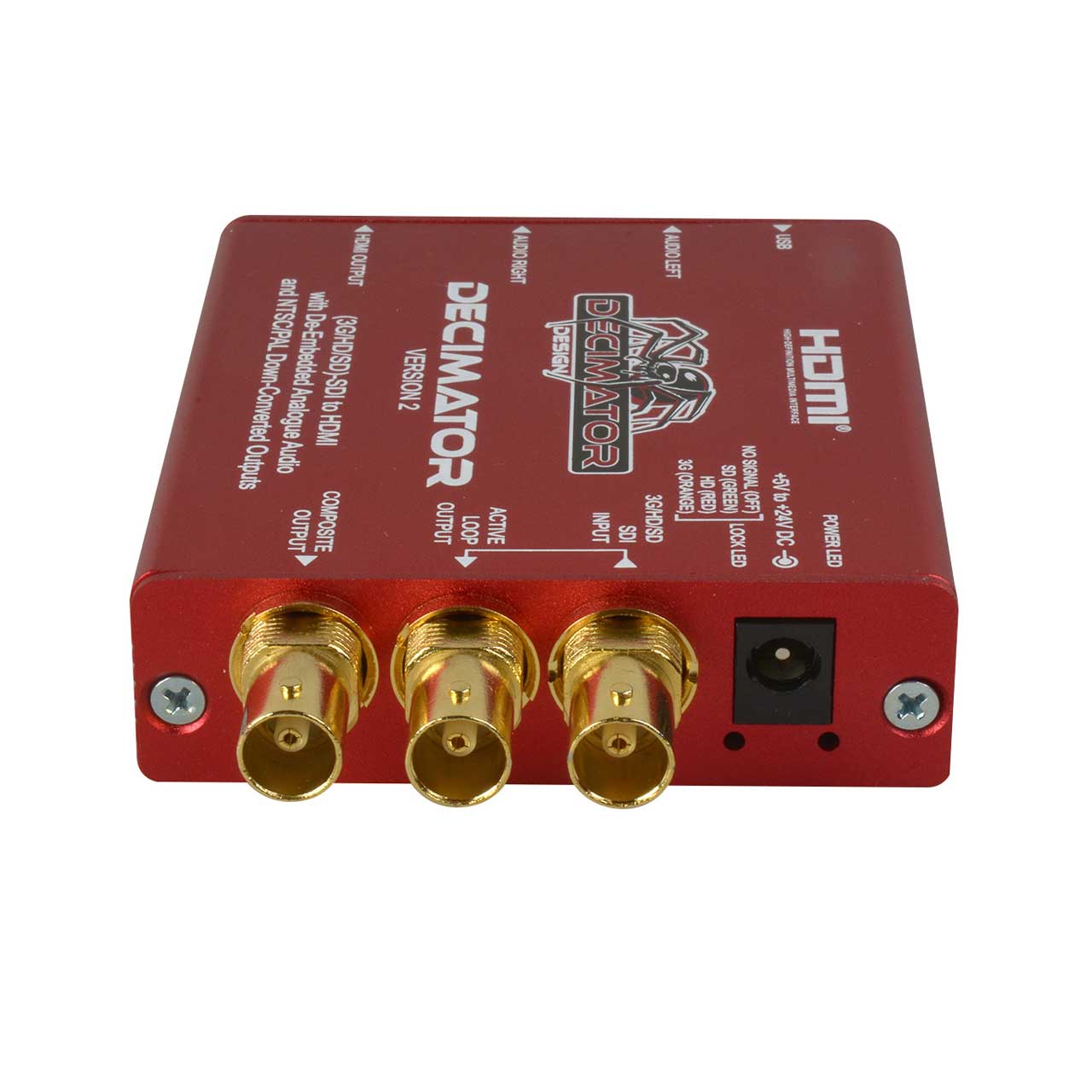

    Inputs
    - 3G/HD/SD-SDI 10-bit
    -Conditional Maximum Equalization cable length of 400M for SDI, 200M for HD-SDI and 100M 3G-SDI using Belden 1694A

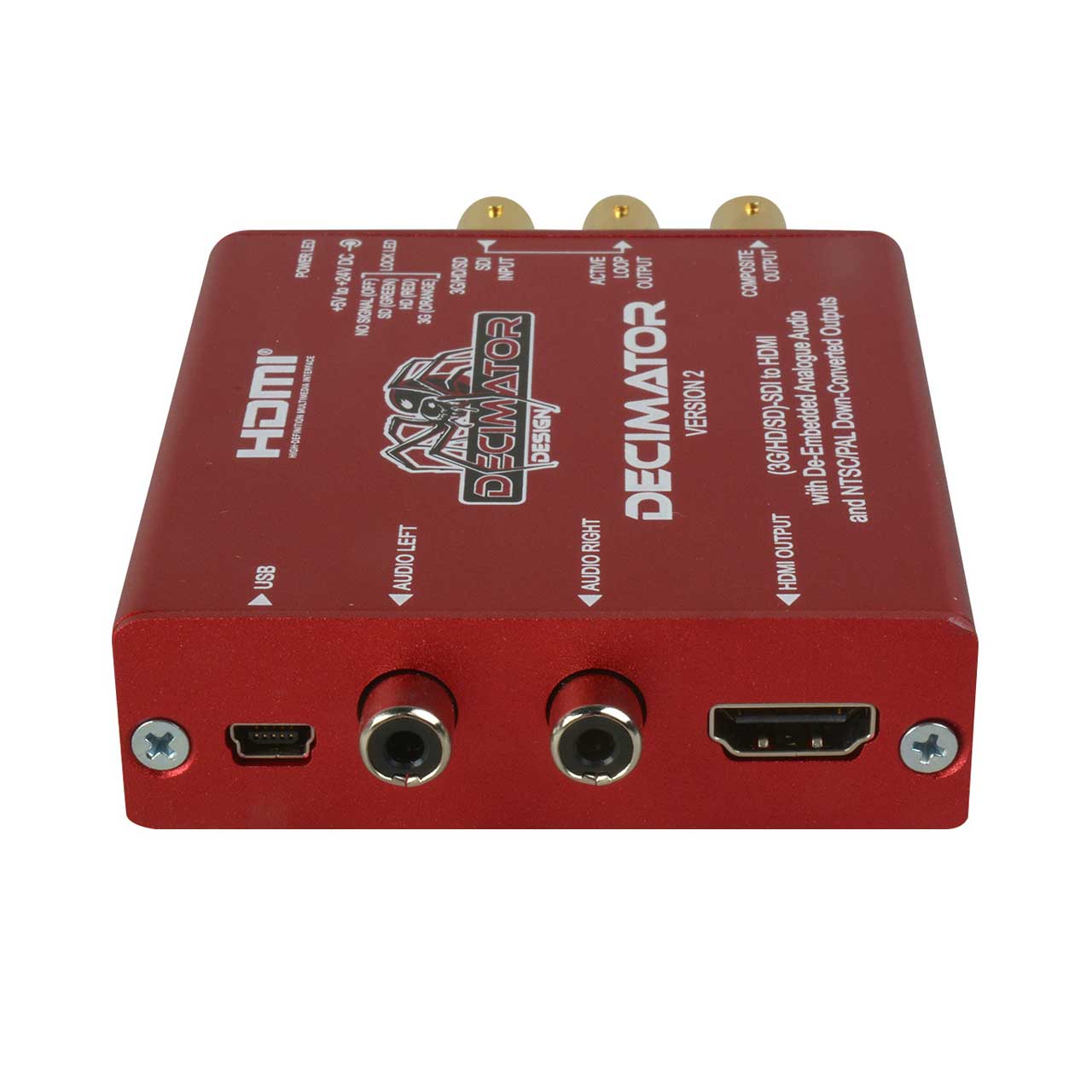

    Outputs
    - HDMI
    - SD-Composite
    - 1x (3G/HD/SD)-SDI Active Loop-Through
    - 2x RCA for De-embedded Analogue Audio (20dBFS=-10dBu)

    LED Status
  • Power
  • Signal Lock

    Dimensions
  • 3.5" x 2.8" x 0.9" (90mm x 71mm x 23mm)

    Power
  • +5V to +24V DC, ~5 Watts
  • Positive Centre Pin

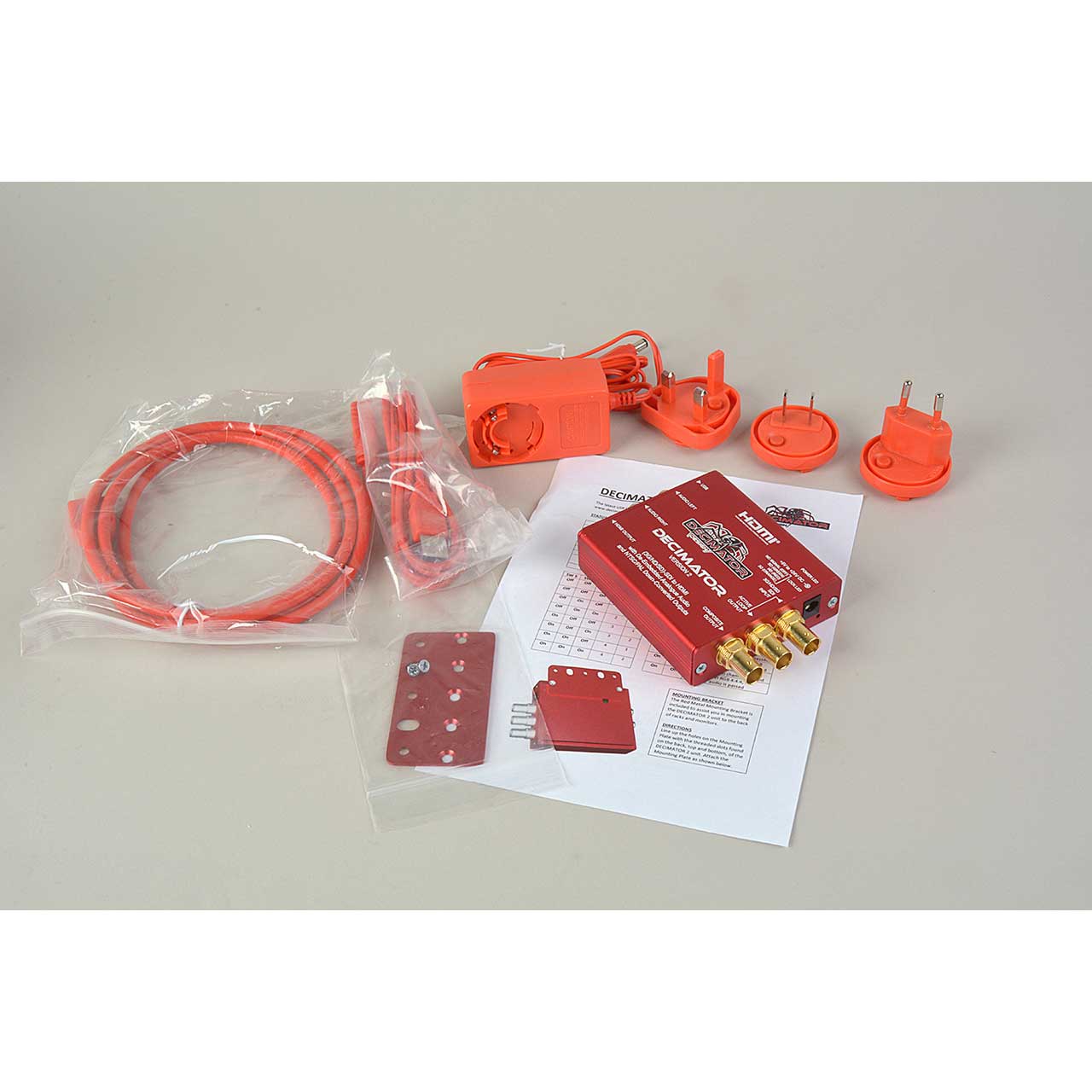

• Item Includes:

  • 1x Decimator 2
  • 1xPower Supply
  • 1xHDMI Cable
  • 1xUSB Cable
  • 1x Mounting Bracket


• GTIN:

  5060417390021
