Decimator Design DMON-QUAD 3G-SDI to HDMI Converter and 1 to 4 MultiViewer Kit with SDI and Ethernet Cables

DMONQUAD-KIT - Overview

• Features:

  • Supports 3G level A and B on inputs and output, allowing conversion between 3G level A and B
  • Low cost (3G/HD/SD)-SDI 1 to 4 Multi-Viewer or 4 to 1 input multiplexer
  • Custom Layouts with various standard layouts
  • 16 Character UMD overlay per window with individual enables, custom positioning and size
  • 8 Channel Audio Metering overlay per window with individual enables, custom positioning and size
  • Horizontal and/or Vertical image flipping per window
  • Audio ID overlay
  • Tallies can be applied to either Tally Boxes (Default) or Border
  • Tally boxes allows for up to 4 Tallies per window
  • Fast switching between inputs using Full-Screen scaling
  • Selectable output format in both Full-Screen Multi-Viewer mode
  • Low latency buffering for each input allowing non-synchronous inputs
  • Linked (3G/HD/SD)-SDI and HDMI outputs
  • 4x (3G/HD/SD)-SDI inputs with auto detection (26 Formats supported in total)
  • Each window is independent of the others, allowing any 3G/HD/SD format of any frame rate to be displayed simultaneously
  • Variable aspect ratios per window
  • In Pass-Through mode the selected input is passed through to both the (3G/HD/SD)-SDI and HDMI outputs


• Specifications:

  • SDI Input & Output Formats
  • 3G: SMPTE [email protected] and 2.967Gb/s, 1080p@60/59.94/50Hz
  • HD: SMPTE 292M/274M/[email protected] and 1.435Gb/s, 1080i@60/59.94/50Hz, 1080p/psf@30/29.97/25/24/23.98Hz, 720p@60/59.94/50/30/29.97/25/24/23.98Hz
  • SD:SMPTE 259M@270Mb/s, 625i50 (PAL), 525i59.94 (NTSC)

    LCD/Button Menu Options
  • HDMI output type
  • Output Select
  • Multi-Viewer Output Format
  • Multi-Viewer Number of Windows
  • Multi-Viewer Layout
  • Multi-Viewer Audio Source
  • Multi-Viewer Reference
  • Full Screen is Scaled
  • Input Routing
  • GPI mode
  • Setup

    HDMI Output Formats
  • 1080p@60/59.94/50/30/29.97/25/24/23.98Hz
  • 1080i@60/59.94/50Hz
  • 720p@60/59.94/50/30/29.97/25
  • 625i50 (PAL)
  • 525i59.94 (NTSC)

    Inputs
  • 4x (3G/HD/SD)-SDI
  • Input Equalization > 100M using Belden 1694A
  • USB for control and updates


  • Outputs

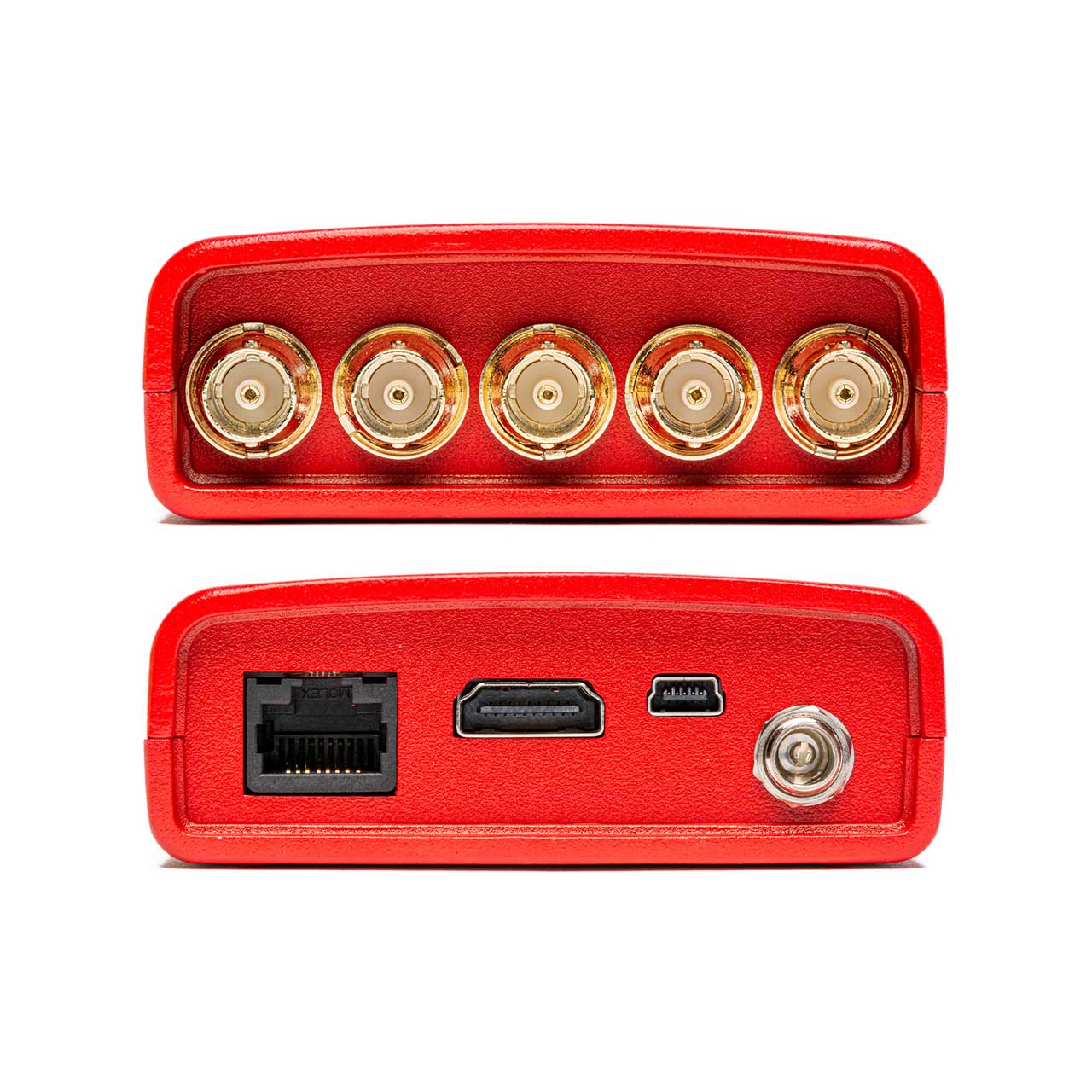

  • 1x SDI (3G/HD/SD)-SDI
  • HDMI Type A

    Physical
  • Power: +5V to +32V DC / Positive Center Pin
  • Dimensions: 3.1" x 4.8" x 1.2"


• Item Includes:

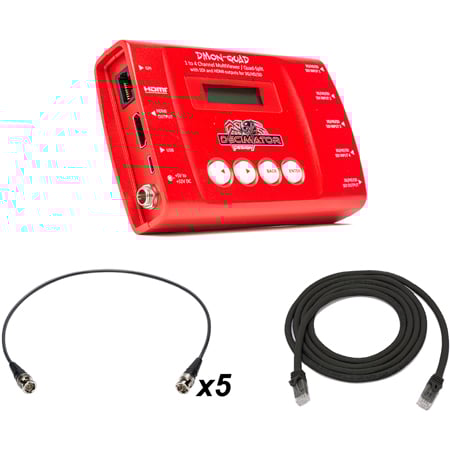

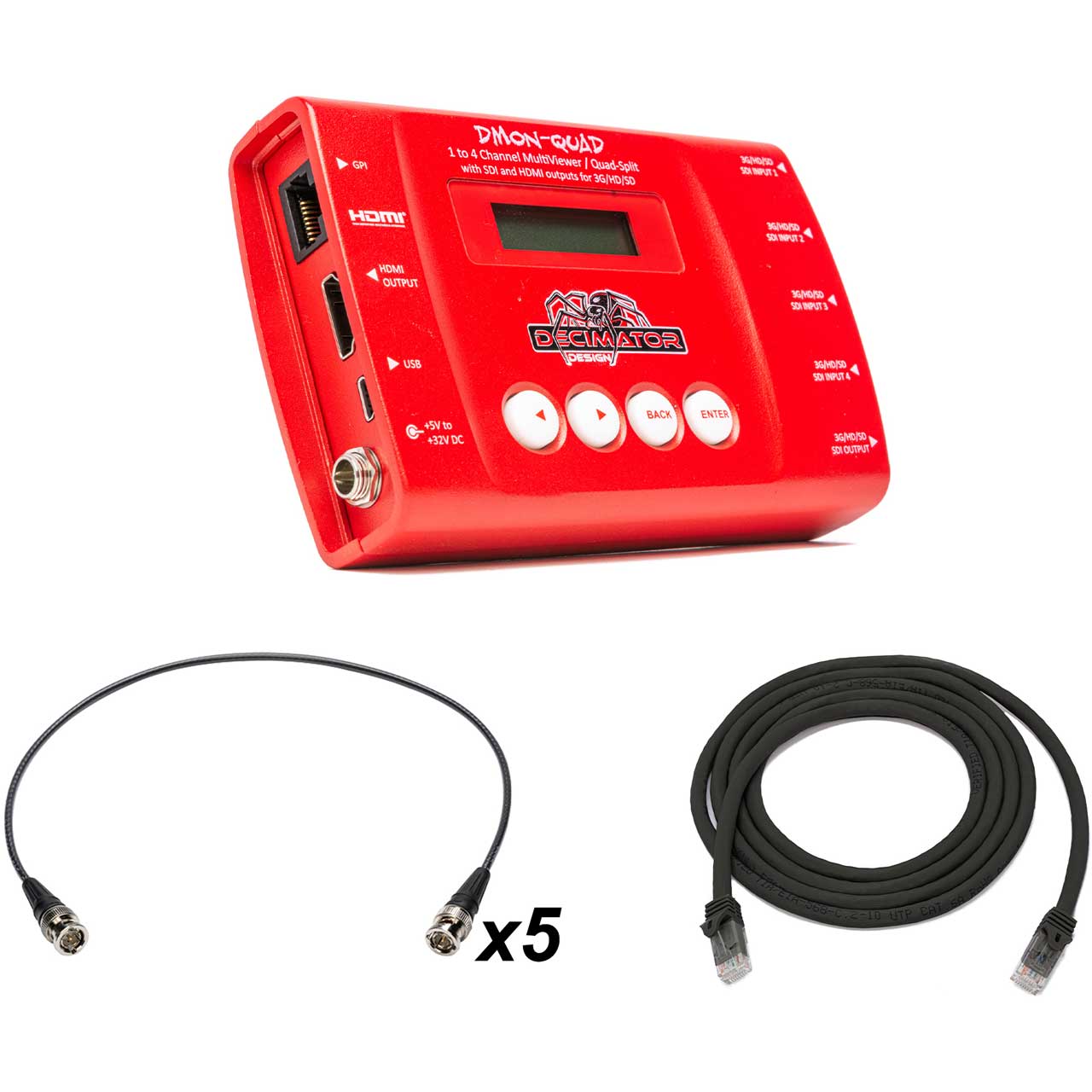

  • 1x Decimator Design DMON-QUAD 3G/HD/SD-SDI to HDMI Converter with 1 to 4 MultiViewer (HDMI and USB cable included)

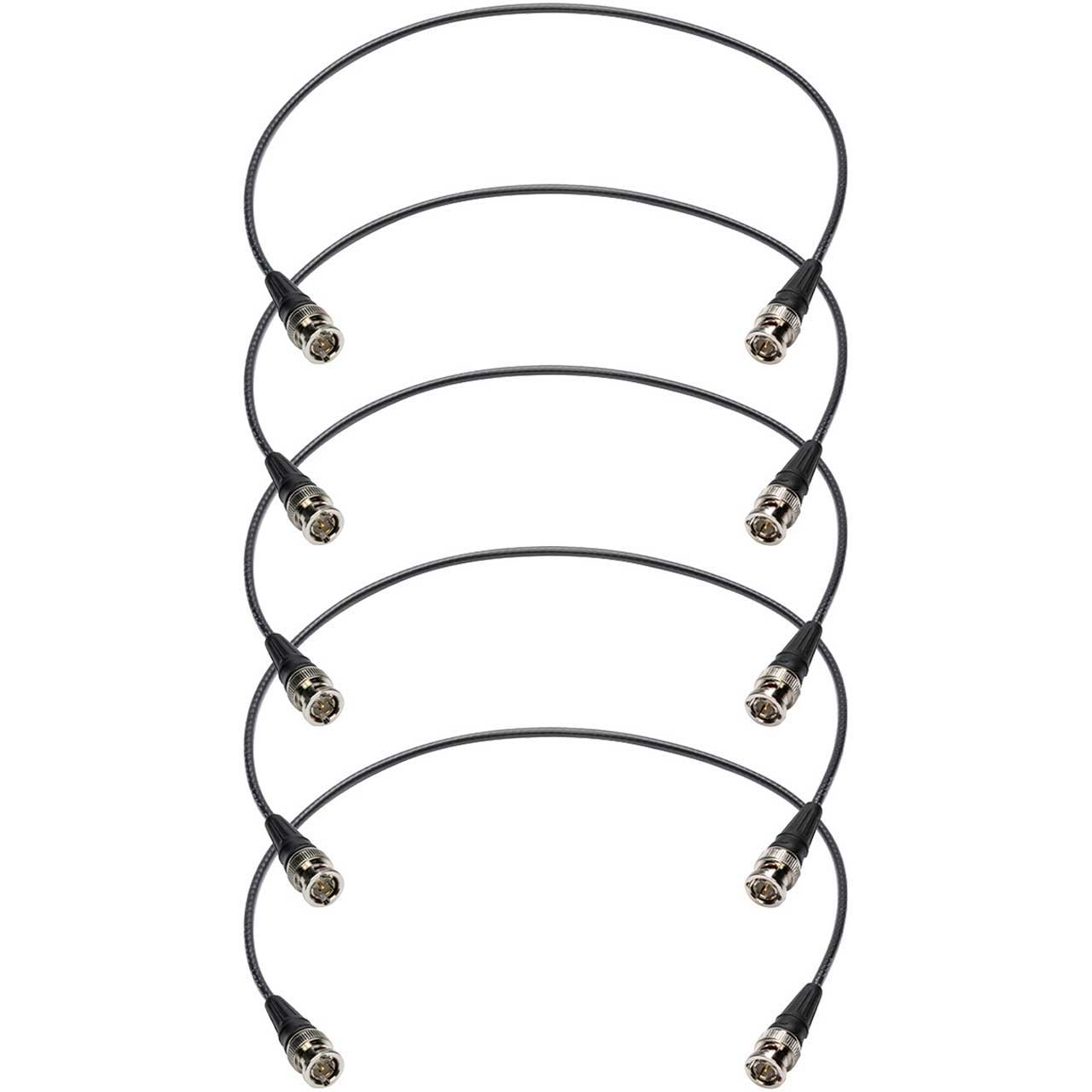

  • 5x 6ft Laird 4855R 12G SDI/4K UHD BNC Cable

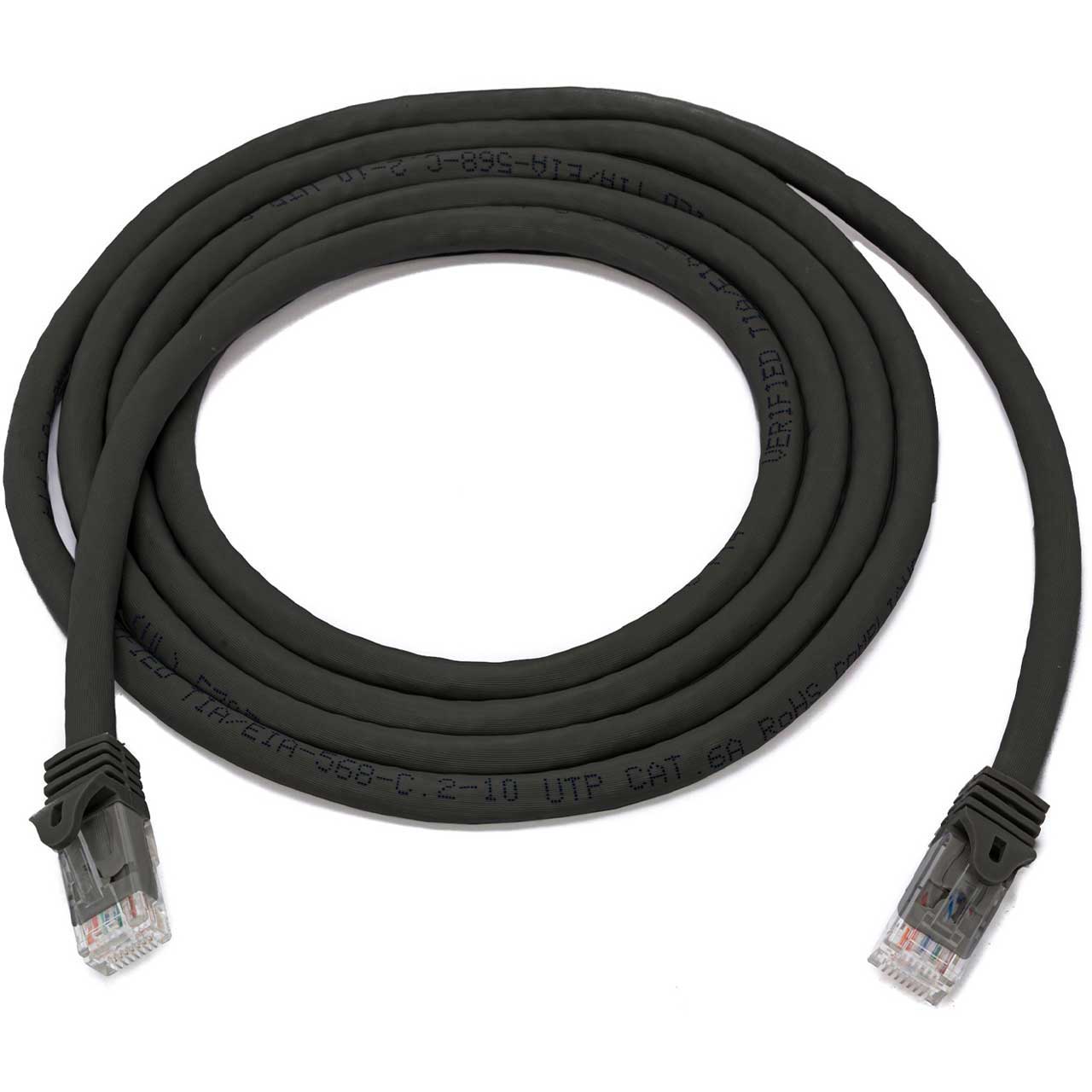

  • 1x 3ft Cat6A 600MHz Snagless Molded UTP 10 Gigabit Ethernet Cable


• Warranty:

  • Decimator Design DMON-QUAD: 3 Month Limited Warranty
  • Laird 4855R BNC Cable: 1 Year Warranty
  • Connectronics CAT6A 600MHz 10 GbE Ethernet Cable: 1 Year Warranty


• GTIN:

  5060417390182
