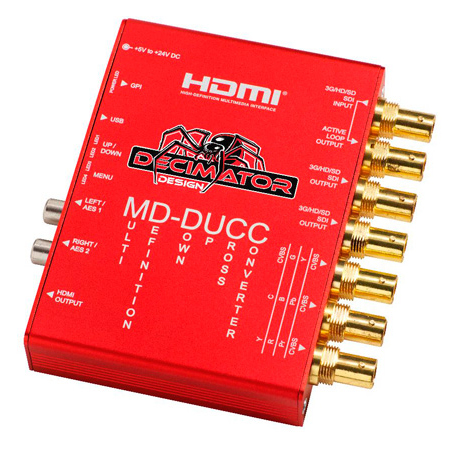

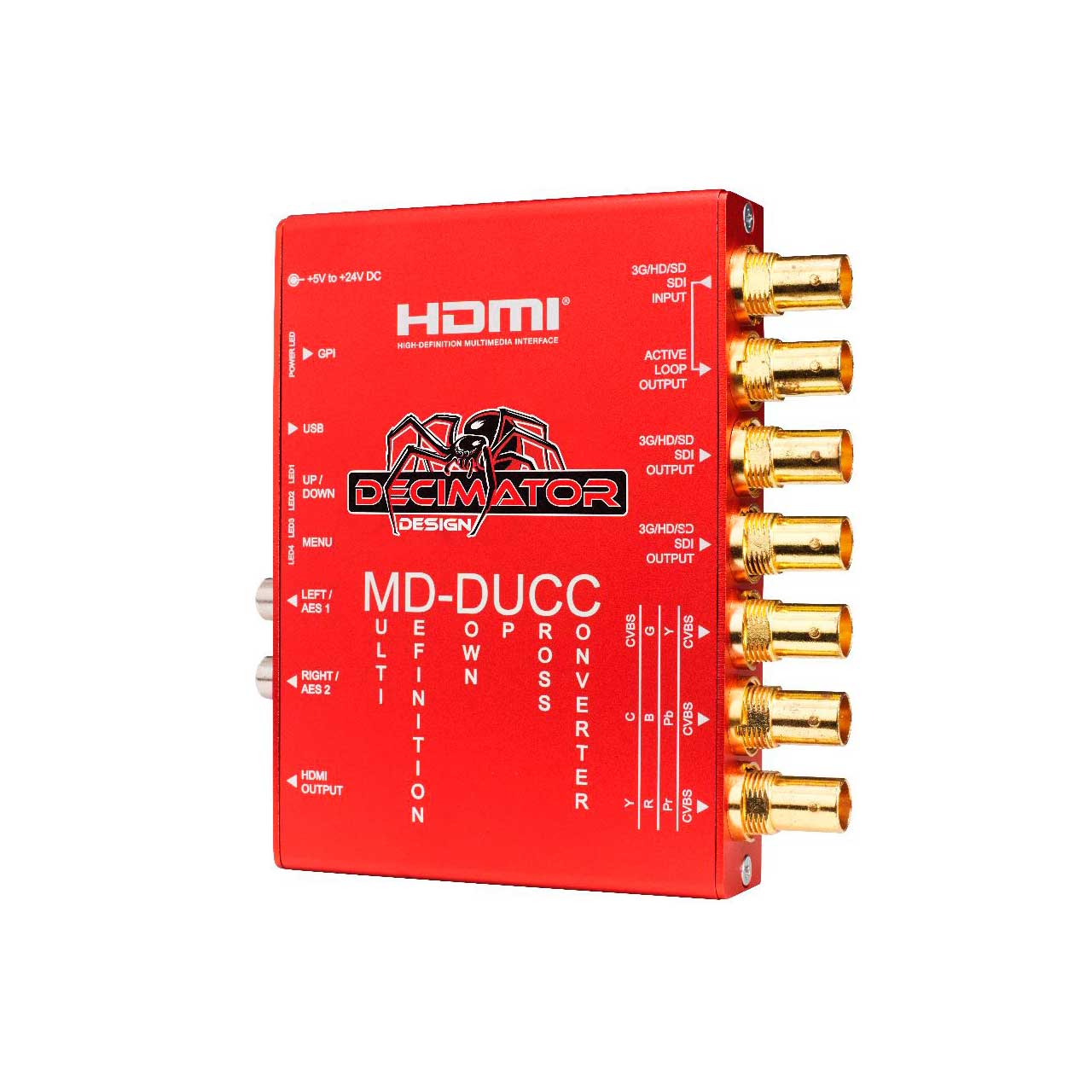

Decimator Design MD-DUCC Multi-Definition Down Up Cross Converter 3G/HD/SD-SDI & HDMI/Analog Video

MD-DUCC - Overview

Auto detects 3G, HD or SD!

• Features:

  • Supports both 3G level A and B on the input and output. Allowing conversion between A and B.
  • Horizontal and/or Vertical image flipping via the built-in scaler.
  • Auto detects 3G, HD or SD (26 Formats in total)
  • Full 10-bit data path and multipoint interpolation
  • Professional motion-adaptive de-interlacing
  • True Down Up Cross conversion, allowing the conversion between any of the supported formats. Simply select the output format you require, no matter what the input format is
  • Complete 16:9, 14:9 and 4:3 Aspect ratio conversion support, with individual selection for HD to HD, HD to SD, SD to HD and SD to SD conversions


• Specifications:

  • VIDEO FORMATS
  • 3G: SMPTE [email protected] and 2.967Gb/s - 1080p@60/59.94/50Hz
  • HD:SMPTE 292M/274M/[email protected] and 1.435Gb/s - 1080i@60/59.94/50Hz - 1080p/psf@30/29.97/25/24/23.98Hz - 720p@60/59.94/50/30/29.97/25/24/23.98Hz
  • SD:SMPTE 259M@270Mb/s - 625i50 - 525i59.94

    INPUTS
  • (3G/HD/SD)-SDI 10-bit
  • Conditional Maximum Equalization cable length of 400M for SDI, 200M for HD-SDI and 100M 3G-SDI using Belden 1694A

    LED STATUS
  • Power
  • Signal Lock

    POWER
  • +5V to +24V DC, ~5 Watts
  • Positive Centre Pin

    CONTROLS
  • HDMI format type
  • Analog Video format type
  • Output format
  • Aspect conversion type for HD to HD, HD to SD, SD to HD and SD to SD conversions.
  • On-Screen Overlays Enables
  • Basic Audio Meter control
  • Basic Graticule Enables

    OUTPUTS
  • HDMI
  • 1 x (3G/HD/SD)-SDI Active Loop-Through
  • 2 x (3G/HD/SD)-SDI 10-bit Outputs
  • (3 x CVBS) / (Y, Pb, Pr) / (G, B, R) / (CVBS, Y & C)
  • AES 1 / Unbalanced Analogue Audio - Left
  • AES 2 / Unbalanced Analogue Audio - Right

    DIMENSIONS
  • 90mm x 123mm x 23mm (3.5" x 4.8" x 0.9")


• Item Includes:

  • 1x Power Supply
  • 1x HDMI Cable
  • 1x USB Cable
  • 1x Mounting Bracket
