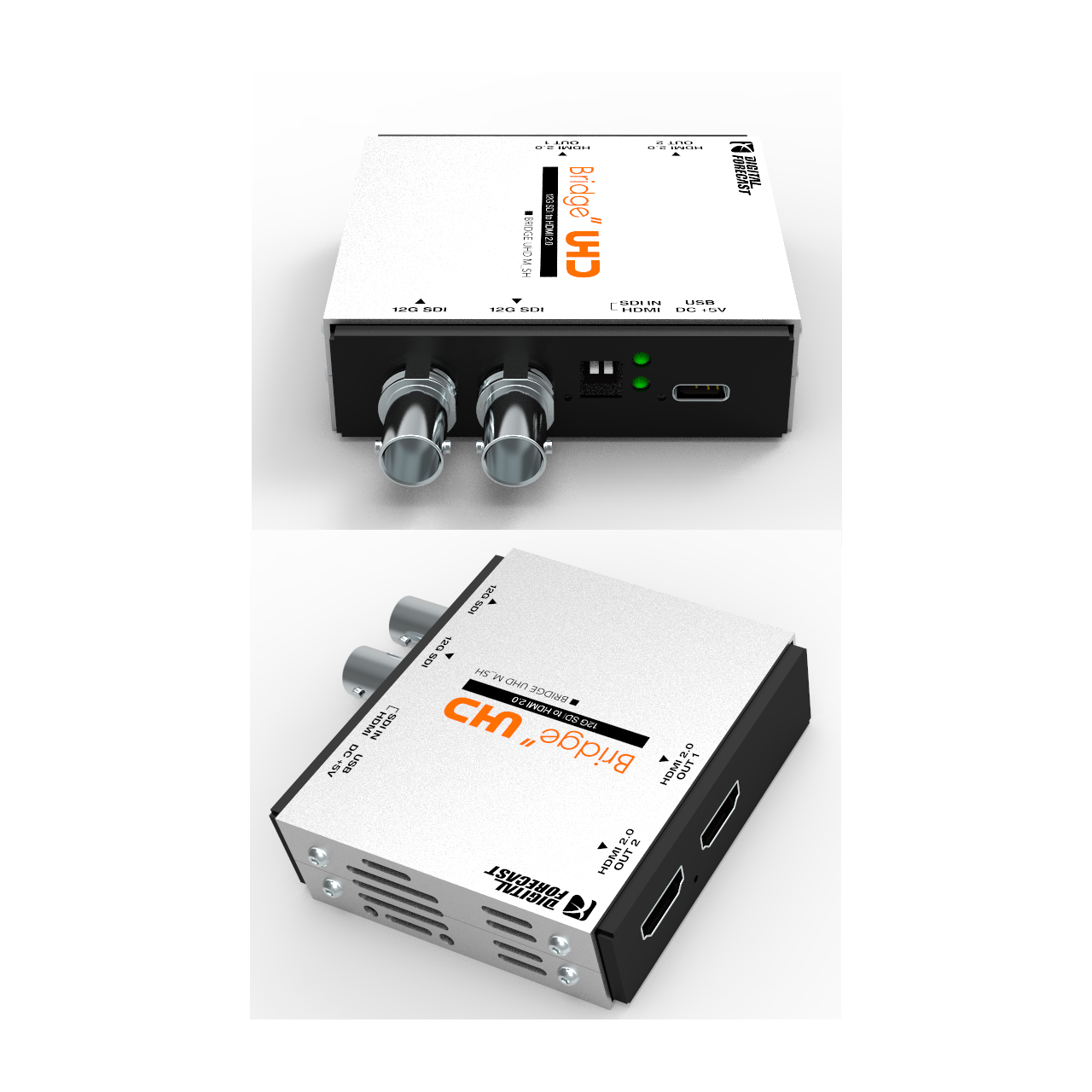

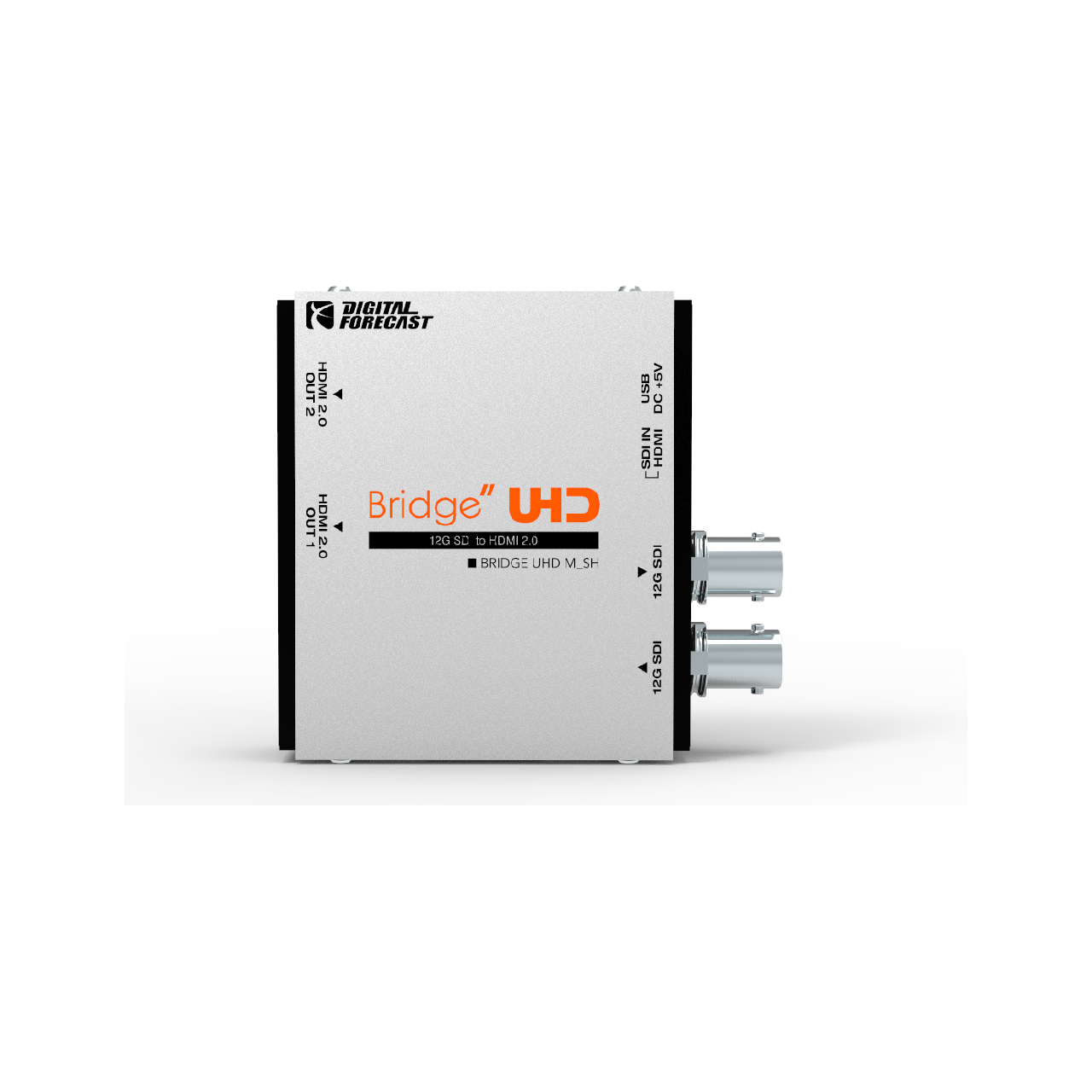

Digital Forecast Bridge UHD M-SH 12G SDI to HDMI 2.0 Converter with HD/3G/6G/12G Support

ITEM #: DF-UHD-M-SH MFG #: UHD M_SH

Primary Image
  • Product Image Thumbnail 1 of 4
  • Product Image Thumbnail 2 of 4
  • Product Image Thumbnail 3 of 4
  • Product Image Thumbnail 4 of 4
DIGITAL FORECAST
Free Shipping with $49 Minimum Order

List Price:

$409.00

Our Price:

$389.00

Add to Wish ListLeasing Options
Availability: Typically Ships in 3-10 Business Days
iAvailability Description Popup
    Report Lower PriceLarge Quantity Quote

    UHD M_SH - Overview

    The Digital Forecast Bridge UHD M_SH converts UHD 4K 12G-SDI video signals (standard broadcasting 4k) to HDMI 2.0 (up to 4K 4:2:2 60Hz HDMI) for connecting broadcast equipment to commercial digital signage displays such as a UHD TV monitor.

    • Features:

      • Standard SDI (HD, 3G, 6G, 12G) format input supported
      • HDMI 2.0 (720p - 2160p) YCbCr 4:2:2 60Hz dual outputs
      • 1x SDI input / 1x SDI RCK thru output (max 12G)
      • USB-C power (+5V DC)


    • Specifications:

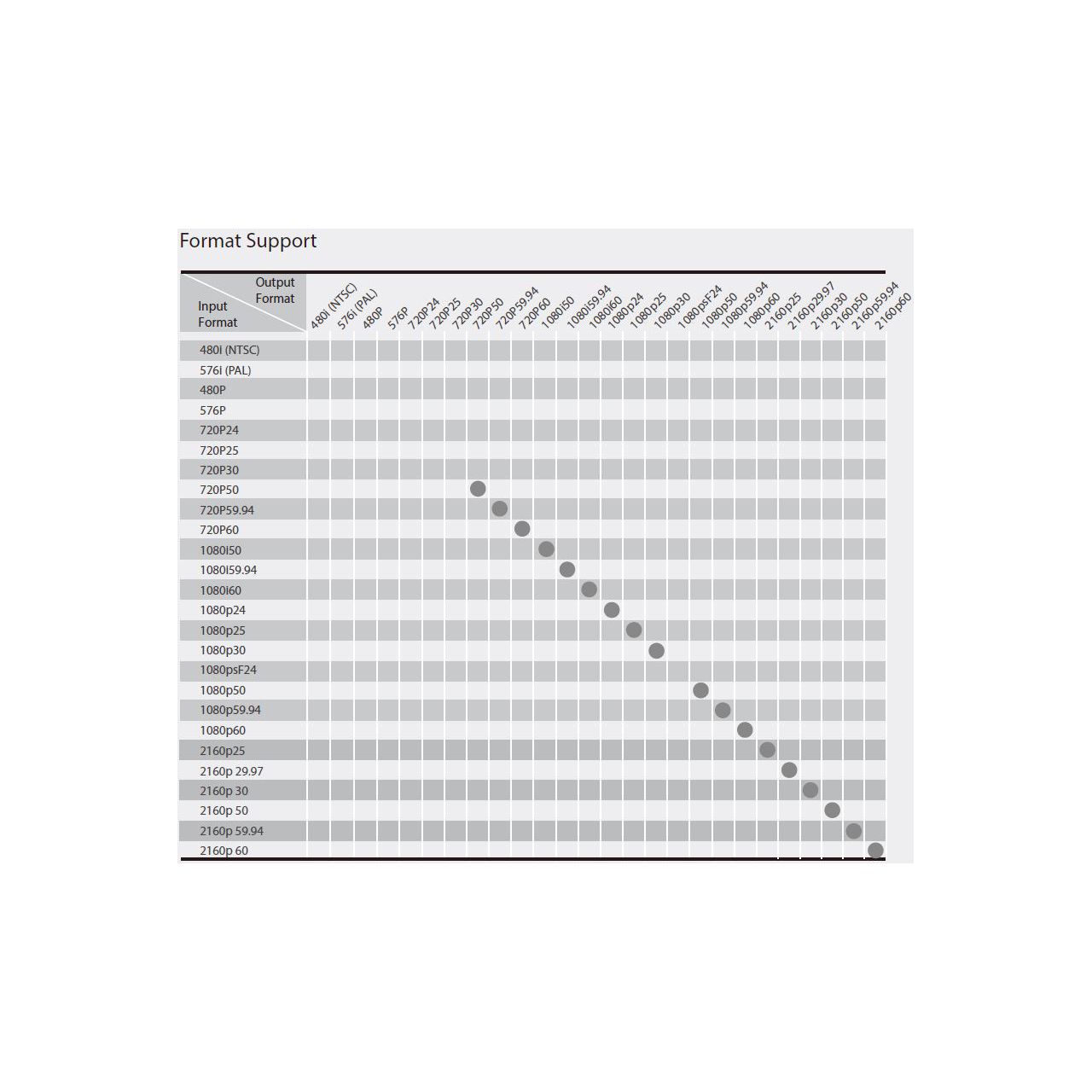

      • Digital Video Specs
      • HD: 720p (50/59.94/60), 1080i (50/59.94/60), 1080p (23.98/24/25/29.97/30)
      • FHD: 1080p (60/59.94/50)
      • 2K/4K: 2160p (23.98/24/25/29.98/30)
      • 4K: 42160p (60/59.94/50)

      • Power Level: +5V USB-C
      • Power Consumption: 4 Watts (max 5 Watts)
      • Operating Temperature: 0°C - 55°C
      • Humidity: 0-95% RH, non-condensing
      • Weight: 0.28lb
      • Dimensions: 3.1 x 2.7 x 0.91"


    • Item Includes:

      • 1x Digital Forecast UHD M-SH 12G SDI to HDMI 2.0 Converter with HD/3G/6G/12G Support
