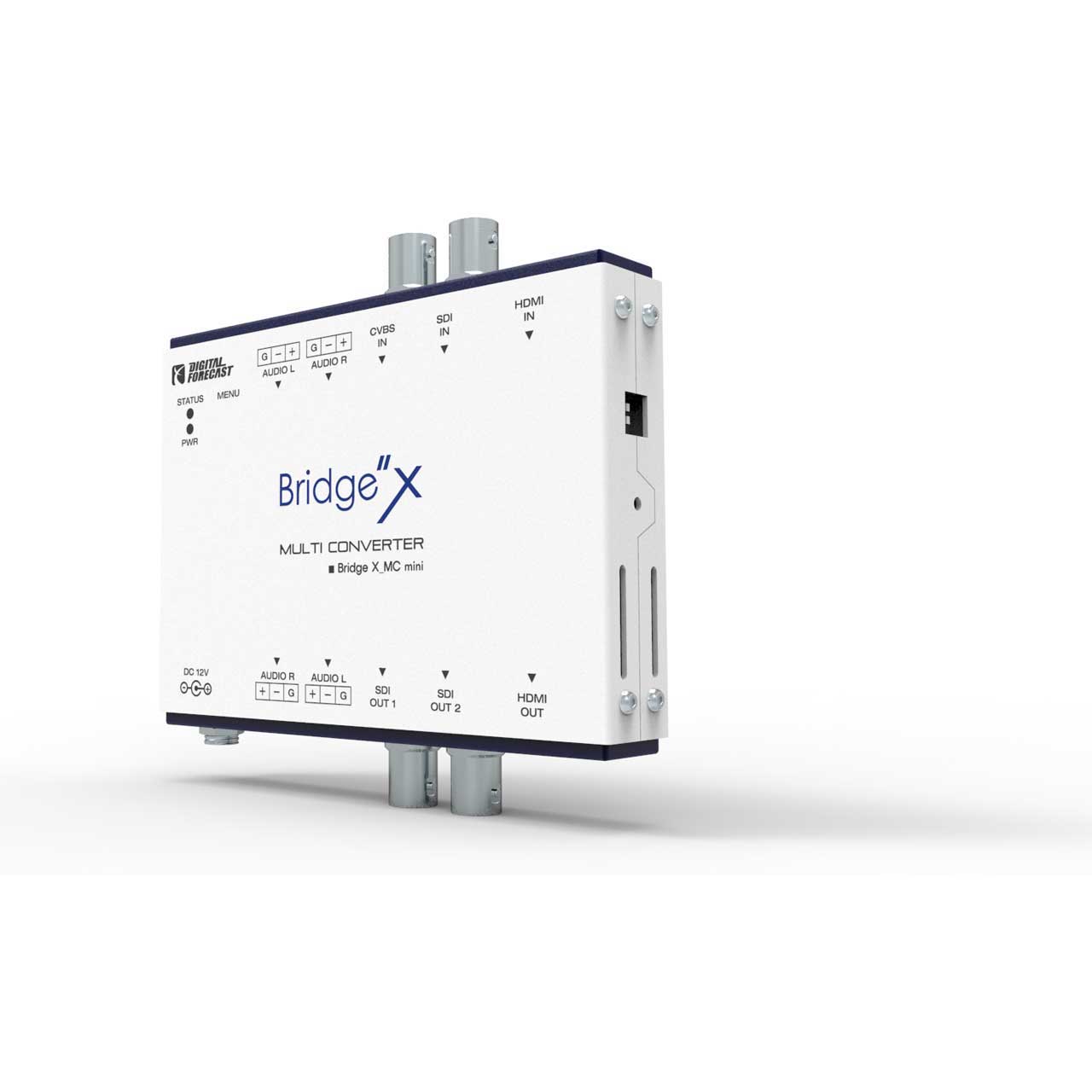

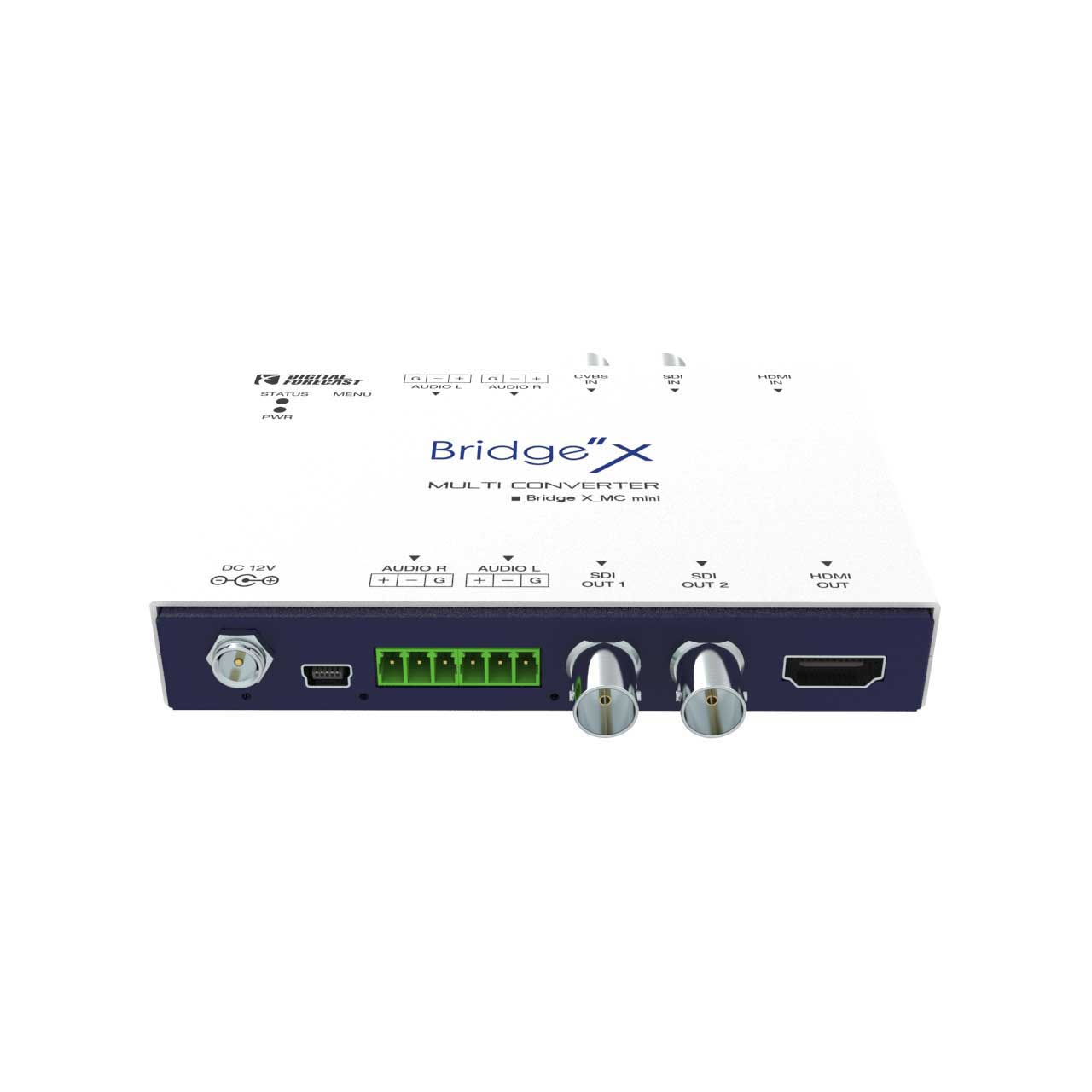

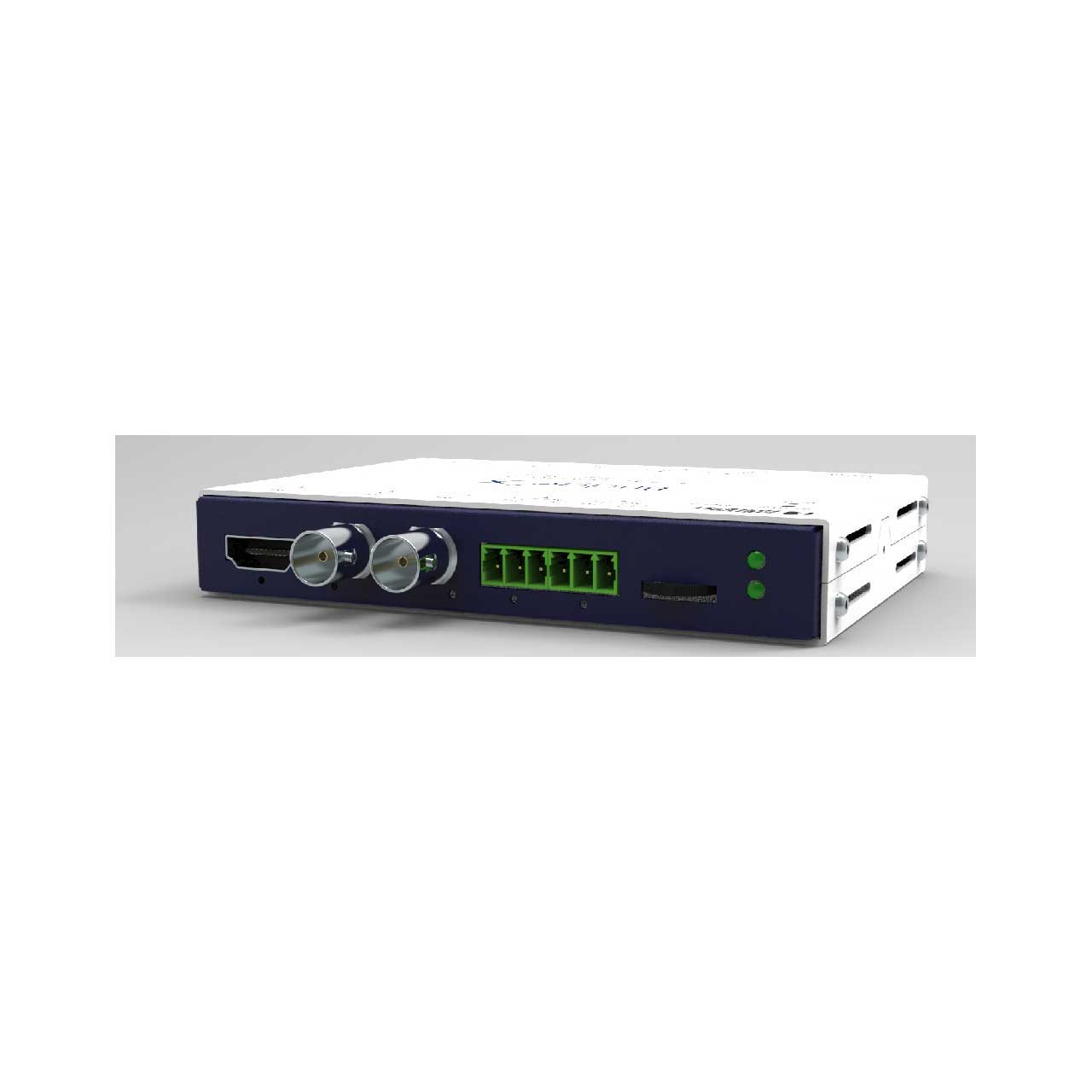

Digital Forecast Bridge X-MC Mini HDMI / SDI / CVBS Multi Converter up to 1080P FullHD

Name: Digital Forecast Bridge X-MC Mini HDMI / SDI / CVBS Multi Converter up to 1080P FullHD
Brand: DIGITAL FORECAST
SKU: DF-X-MC-MINI
Price: 398.00 USD
Availability: InStock

ITEM #: DF-X-MC-MINI MFG #: X_MC MINI

DIGITAL FORECAST

List Price:

$419.00

Our Price:

$398.00

Add to Wish List Leasing Options

Availability: Ships Factory Direct, Typically in 3-10 Business Days

Report Lower Price Large Quantity Quote

Required Accessories

Recommended Accessories

X_MC MINI - Overview

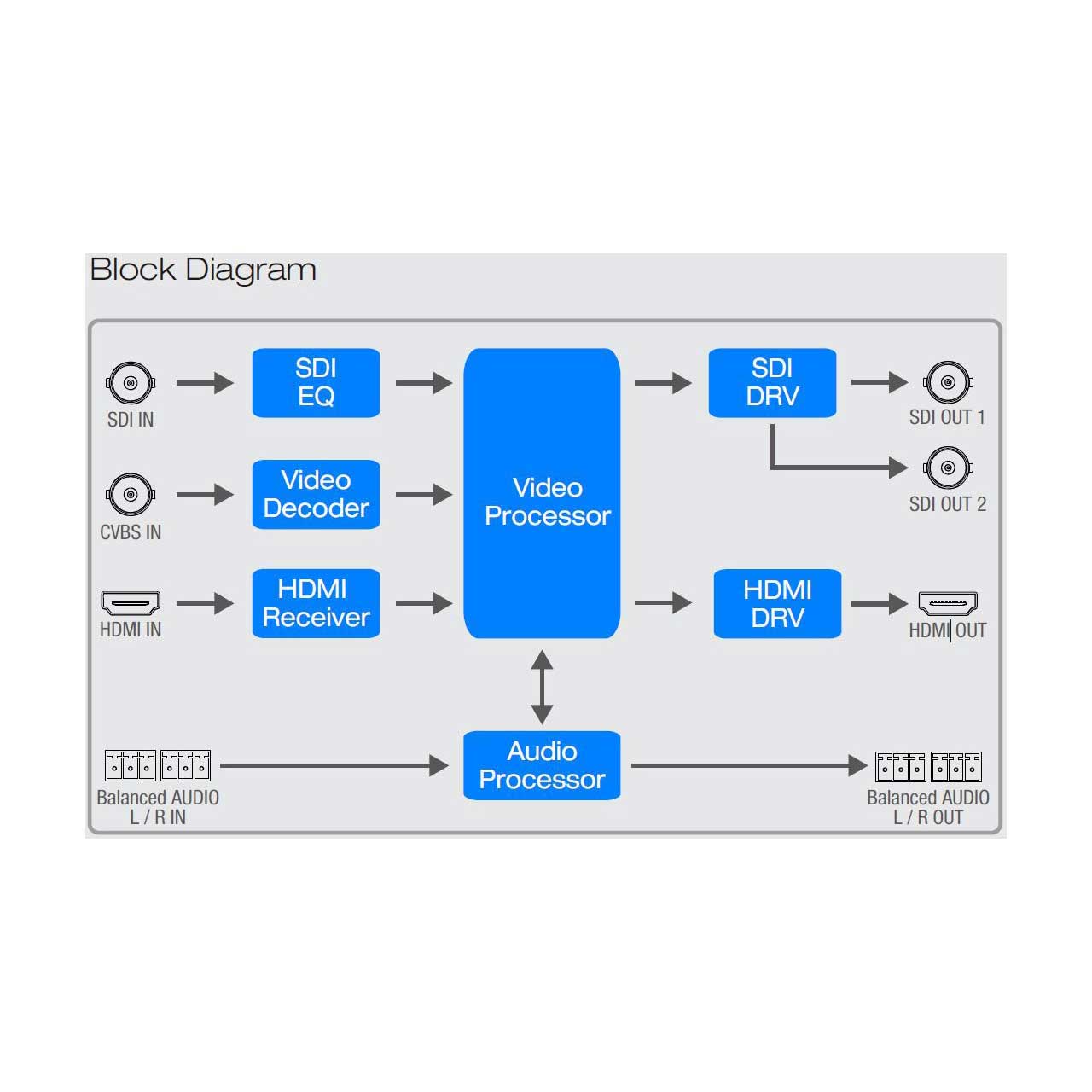

The Digital Forecast Bridge X_MC Mini is a multi-converter taking SDI, HDMI and CVBS signals to the desired resolution and simultaneously convert the signal to SDI and HDMI outputs. A built-in high-performance video scaler and audio mux demux function provides an easy interface between broadcast devices.

Features:
- SDI x1, HDMI x1, CVBS x1 input ( Up to 1080P Full-HD)
- SDI x2, HDMI x1 Outputs ( Up to 1080P Full-HD)
- Balanced Audio L/R input, Audio L/R Output
- HDMI, SDI, CVBS Cross converter with Up/Down scaler
- Output format Fixed or Bypass Mode
- Video H,V Flip, Zoom, function provided
- Convenient OSD menu function
Specifications:
- General Specs
- Dimensions (W x H x D): 4.8 x 3.5 x 0.8 In
- Weight: 0.4lbs
- Power Level: +12 VDC
- Power Consumption: 7 Watts (Max: 8Watts)
- Operating Temperature: 32°F ~ 131°F
- Humidity: 0 to 95% RH, non-condensing

  Digital Video Specs
- Supports HDMI 1.3 format
- Supports CVBS format (NTSC/PAL)
- Supports multi-rate SDI format
- SMPTE 125M: NTSC(480i59.94), PAL(576i50)
- SMPTE 296M: 720p(60/59.94/50)
- SMPTE 274M: 1080i(60/59.94/50) 1080p(30/29.97/25/24/23.98)
- SMPTE 424M: 1080p(60/59.94/50)
Item Includes:
- 1x Digital Forecast Bridge X_MC Mini
- 4x Phoenix Terminal Block Connectors (Audio)
Warranty:
- 2 Year Warranty
GTIN:
0704006295049
