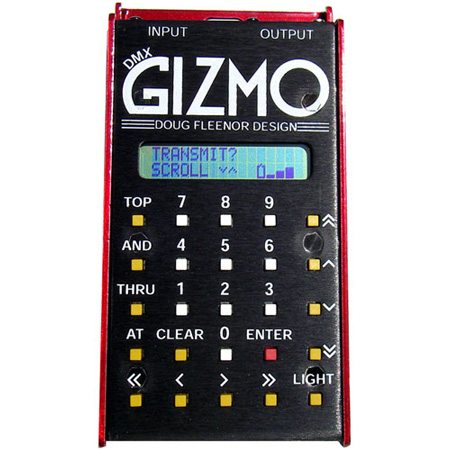

Doug Fleenor Design GIZMO DMX512 Test Box - Transmit/Receive/Save Playback Scenes

GIZMO - Overview

• Features:

  • Receive DMX512 - Receive and display data in several formats. The operator can view all 512 channel levels, selected levels, non-zero channels, the refresh rate, number of channels transmitted,
  • received start codes, flicker, and pass through mode for troubleshooting problems.
  • Save and Recall 100 Scenes - Save and restore snapshots of DMX512 levels. The GIZMO can save and recall up to 100 scenes of either the currently received DMX levels or transmitted data.
  • Continuity, Pin Correctness and Data Reliability - Tests check cables for shorts, open connections, and data reliability.
  • LCD Display - Two line back light display, visible in the dark or direct sunlight with the low power back light display.
  • 9 Volt Battery or AC Power Operation - Uses a typical 9 volt battery or included A/C (wall mount) supply.
  • Durable Metal Housing - The .10" aluminum enclosure can withstand on the road travel
  • Padded Carry Case Included - Manufactured by REELINE features a layer of closed cell foam to protect against moisture.
  • 25 Button Key pad - Full keypad with CLEAR, ENTER, ALL, AND, THRU and TOP buttons.
  • Five Year Warranty - We want you to know it works great.


• Specifications:

  • Input baud rate: 250 Kb/s
  • Input circuit: ESD protected EIA-485 transceiver (LT1785)
  • Input signal: 3 volts minimum, 12 volts maximum
  • Input connector: Male Gold plated 5 pin XLR (Neutrik D-1 series). Pin 1 = common, Pin 2 = Data-, Pin 3 = Data+. Cable check on pin 4 and pin 5
  • Output isolation: 600 Volts
  • Output baud rate: 250 Kb/s
  • Output circuit: ESD protected EIA-485 transceiver (LT1785)
  • Output signal: DMX512-A
  • Output connector: Female Gold plated 5 pin XLR (Neutrik D-1 series). Pin 1 = common, Pin 2 = Data-, Pin 3 = Data+ Cable check on pin 4 and pin 5
  • User interface: 25 button keypad and two line 16 character backlit LCD display
  • Battery: Provided with 9 Volt NiMH rechargeable or User provided 9 Volt Alkaline (see "Notes On The Battery")
  • Wall power supply: Input: 100 - 240VAC 0.5A Max. 50/60 Hz
  • Output: +15V DC 0.666A
  • Connector: 2.5mm type with the center conductor as positive
  • Power input: 15VDC 0.075A
  • Connector: 2.5mm type with the center conductor as positive
  • Color: Front black anodized, rear red clear powder coat
  • Size and weight: Chassis 6.75" L x 3.5" W x 1.4" H, 16 ounces; Power supply: 2.2" L x 1.9"w x 1.0" H, 5 ounces


• Warranty:

  • 5 Year
