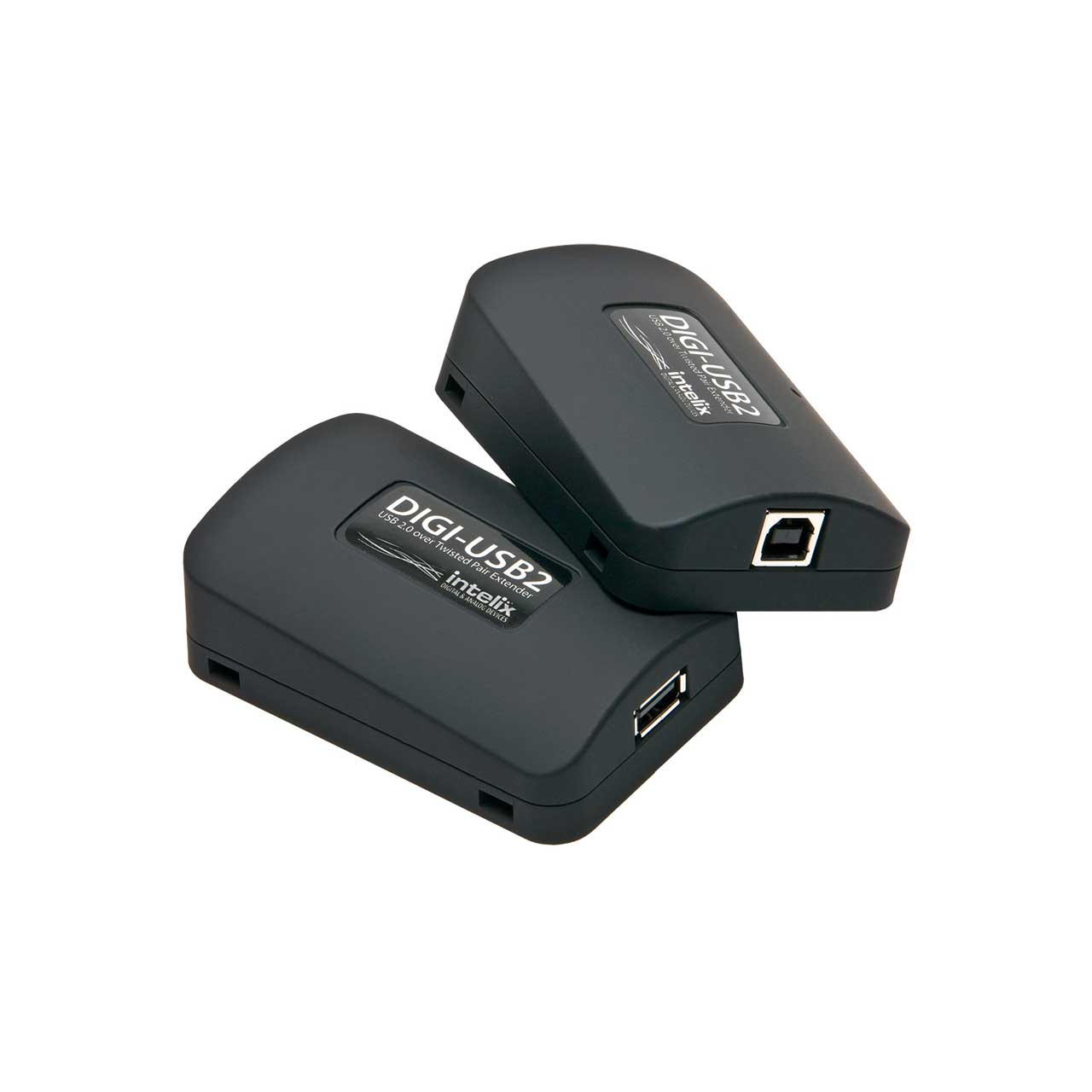

Intelix DIGI-USB2 High-speed USB Extender Set

DIGI-USB2 - Overview

• Features:

  • Extends USB High-Speed (480 Mbps) up to 330 feet
  • Can be powered at either the client or host device
  • Can also be used to extend USB 1.1 signals


• Specifications:

  • I/O Connections (Local)
  • USB One (1) USB Type B
  • Twisted Pair One (1) 8P8C port (Shielded RJ45)
  • 24V DC Power One (1) 5.5 mm Outside Diameter, 2.1 mm Inside Diameter Barrel
  • I/O Connections (Remote)

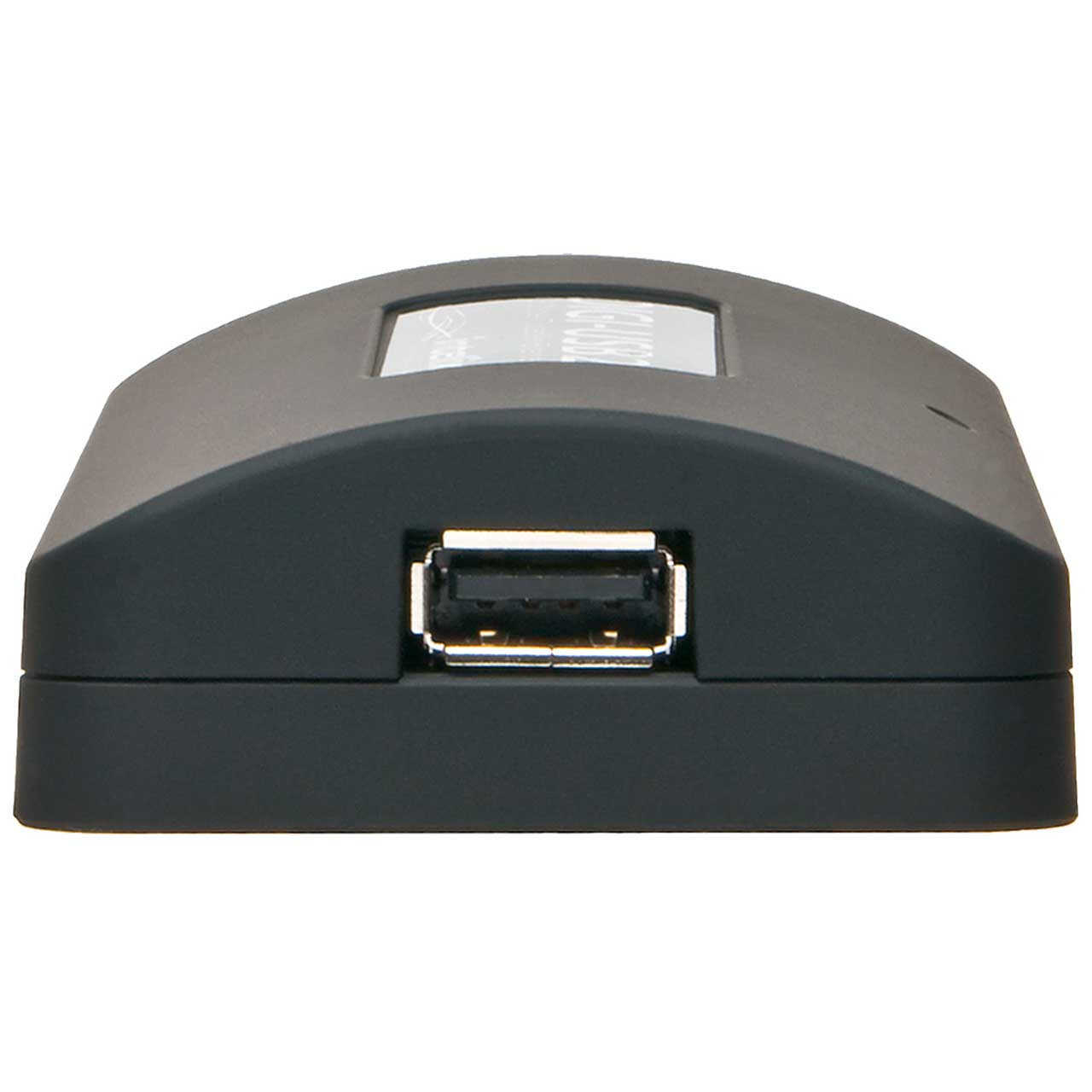

  • USB One (1) USB Type A

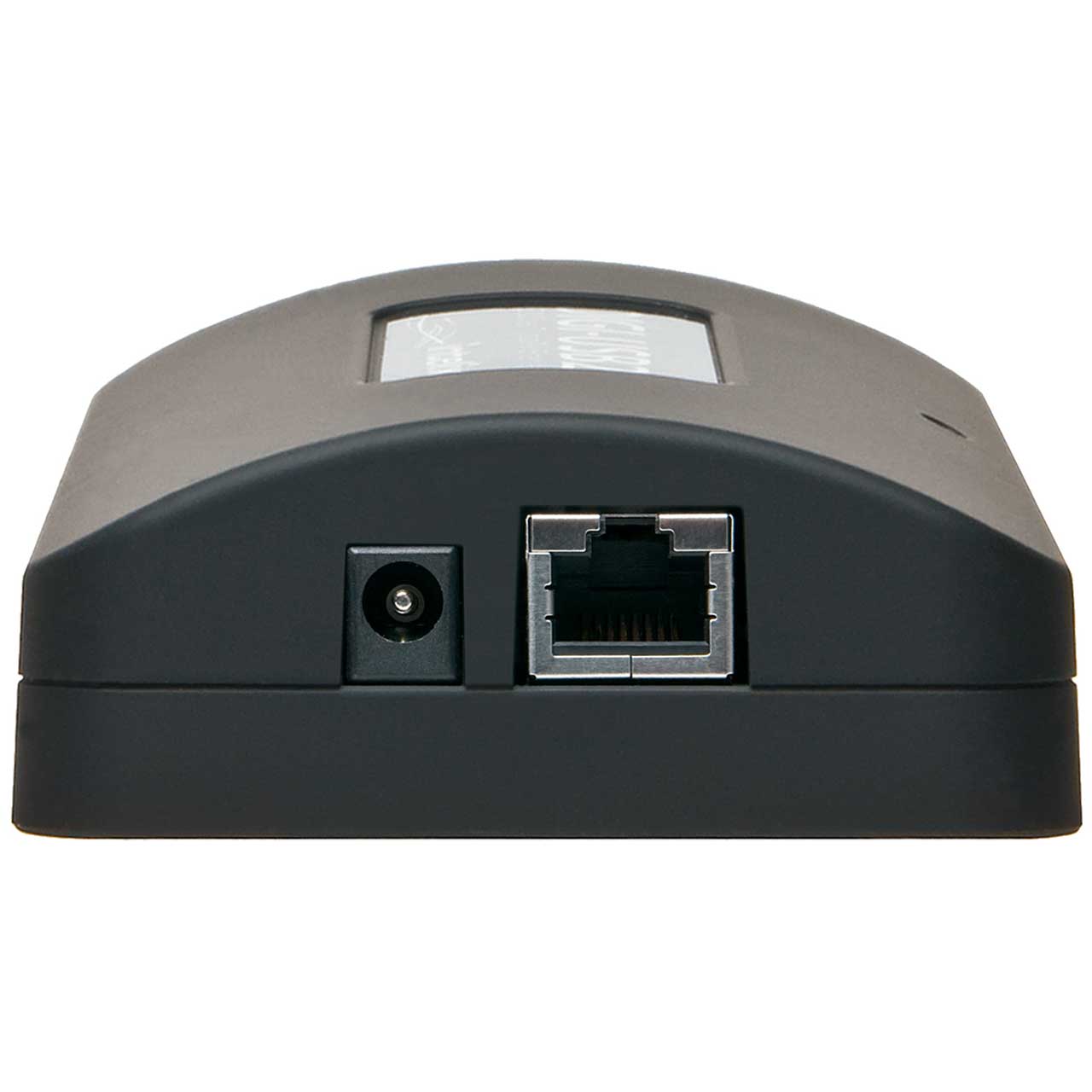

  • Twisted Pair One (1) 8P8C port (Shielded RJ45)
  • 24V DC Power One (1) 5.5 mm Outside Diameter, 2.1 mm Inside Diameter Barrel
  • Maximum Distance
  • CAT5E 100m (330')
  • Supported Signals
  • BOLD
  • USB 2.0 Up to 480 Mbps
  • USB 1.1 Up to 12 Mbps
  • Chassis and Environmental
  • Enclosure Black Rubberized ABS Plastic
  • Dimensions 87mm x 58mm x 28mm (3.43" x 2.26" x 1.20")
  • Shipping Weight 0.45kg (1 lbs.)
  • Operating Temperature 0° to +50°C (+32° to +122°F)
  • Operating Humidity 20% to 80%, Non-condensing
  • Storage Temperature -20° to +70°C (-4° to +158°F)
  • Storage Humidity 10% to 90%, Non-condensing
  • Power, ESD, and Regulatory
  • Power to USB Devices 500mA
  • Maximum Power Consumption 4.3 watts
  • Power Supply 24vDC
  • Regulatory FCC (Class A), CE (Class A), RoHS
  • Other
  • Standard Warranty 2 Years
  • Included Accessories USB cable (A to B), US Power Supply and Installation Guide
  • Mounting Slots for cable ties
  • Distances and picture quality may be affected by cable grade, cable quality, source and destination equipment, RF and electrical interference, and cable patches. Intelix specifications are based on straight-through cabling with standard-grade Cat 5e unless noted otherwise.
