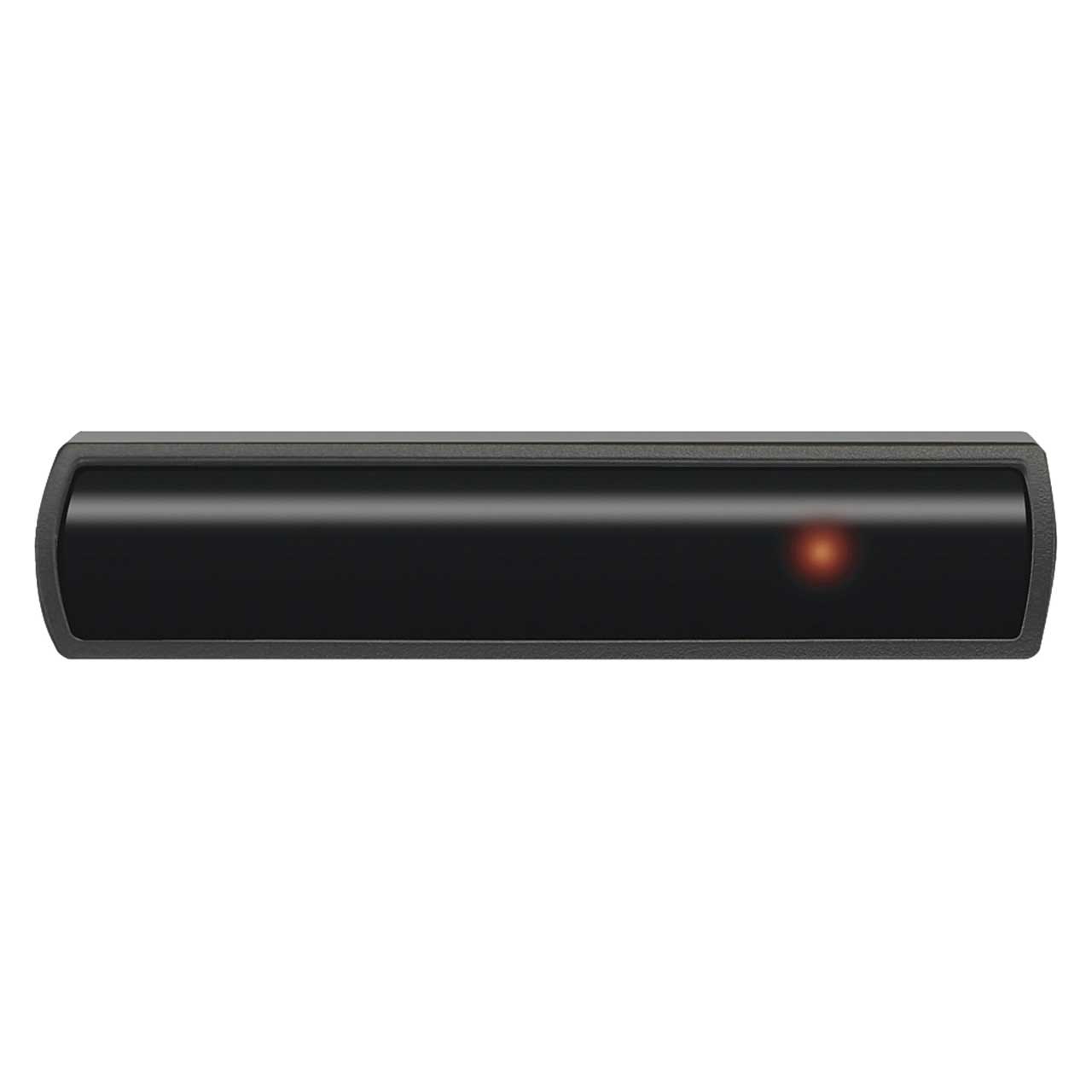

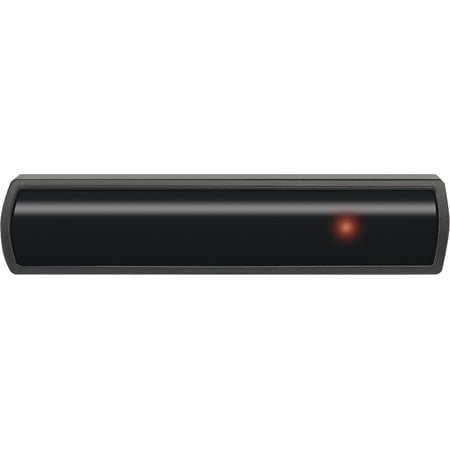

Xantech DL85 LCD Proof Designer Dinky Link -Black

ITEM #: DL85 MFG #: DL85

Primary Image
Free Shipping with $49 Minimum Order

Our Price:

$223.00

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


DL85 - Overview

These small IR receivers have been designed for mounting in very small spaces. They may be mounted under shelf edges, cabinet ledges, in wall speakers, etc. - anywhere an inconspicuous appearance is desired. The high sensitivity of these receivers allows placement behind speaker grilles and still receive IR commands up to 80 feet away. Depending on remote control output strength and ambient conditions.

  • Features:

    • Wire channel for clean installation.
    • System testing redtalk- back LED.
    • Includes 3-Terminal Block for easy extension to remote room locations. SPECIFICATIONS: Infrared carrier frequency bandwidth: 30 - 60 kHz.
    • Reception range: Up to 80 feet.
    • Reception angle: +/- 60 degrees.
    • Cable requirements: See "INSTALLATION" below.
    • Max. Transmission length: 1 mile using 18 gauge wire.
    • Maximum current output: 100mA.
    • Drives IR emitters through Xantech Connecting Blocks, Controllers, etc.
    • Dimensions: 2.55" x 0.55" x 0.35" (65mm x 14mm x 9mm).
    • Power requirements: +12VDC, 10mA

  • GTIN:

    0042777318247
