D-Link DIS-100G-5SW 5-Port Gigabit Unmanaged Industrial Switch with one Gigabit SFP Port

ITEM #: DLNK-DIS-100G5SW MFG #: DIS-100G-5SW

Primary Image
  • Product Image Thumbnail 1 of 4
  • Product Image Thumbnail 2 of 4
  • Product Image Thumbnail 3 of 4
  • Product Image Thumbnail 4 of 4
D-Link Systems
Free Shipping with $49 Minimum Order

List Price:

$319.99

Our Price:

$244.99

Add to Wish ListLeasing Options
Availability: Ships Factory Direct, Typically in 3-10 Business Days
iAvailability Description Popup
Report Lower PriceLarge Quantity Quote

DIS-100G-5SW - Overview

Durable, Reliable, and Efficient
The DIS-100G Series (DIS-100G-5SW) switches are housed in a highly resistant IP30-rated metal casing to protect the switches from harsh environmental conditions. The high electromagnetic compatibility (EMC) protects the DIS-100G Series from unwanted effects when operating in environments with strong electromagnetic interference.

Fully Certified
The D-Link DIS-100G Series industrial switches are compliant with all international requirements for product safety and electromagnetic compatibility to ensure that these switches meet all the necessary standards for safe deployment. Moreover, the DIS-100G Series fully complies with the EN50121-4 wayside control and NEMA-TS2 traffic control standards, which makes these switches an ideal solution for Intelligent Transportation System (ITS) applications.

TAA Compliant.

  • Features:

    • TAA Compliant
    • Four 10/100/1000BASE-T ports
    • One Gigabit SFP port
    • -40 °C to +75 °C wide operating temperature range
    • IP30-rated solid metal housing
    • High EMC endurance

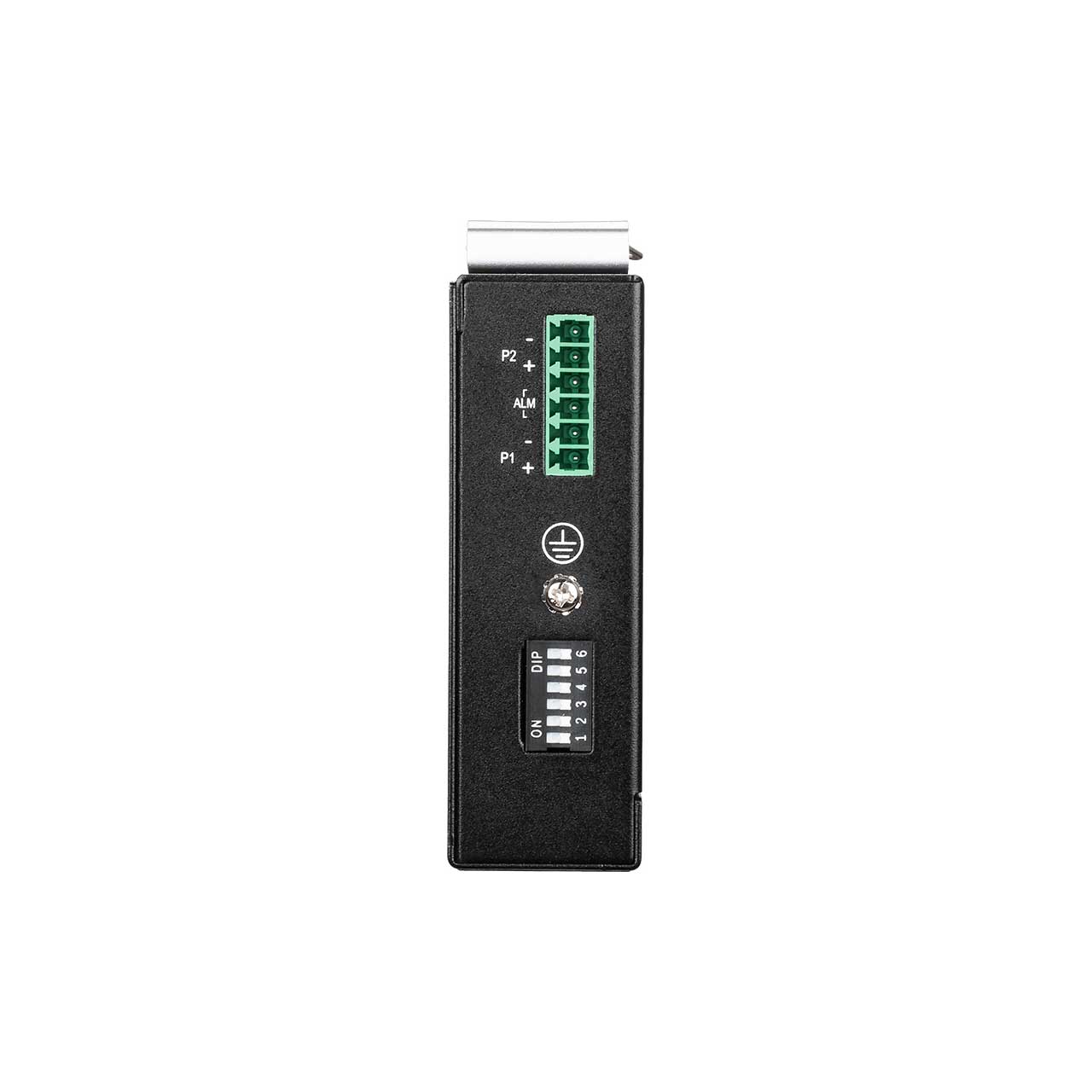

    • Dual power input for redundant power supplies

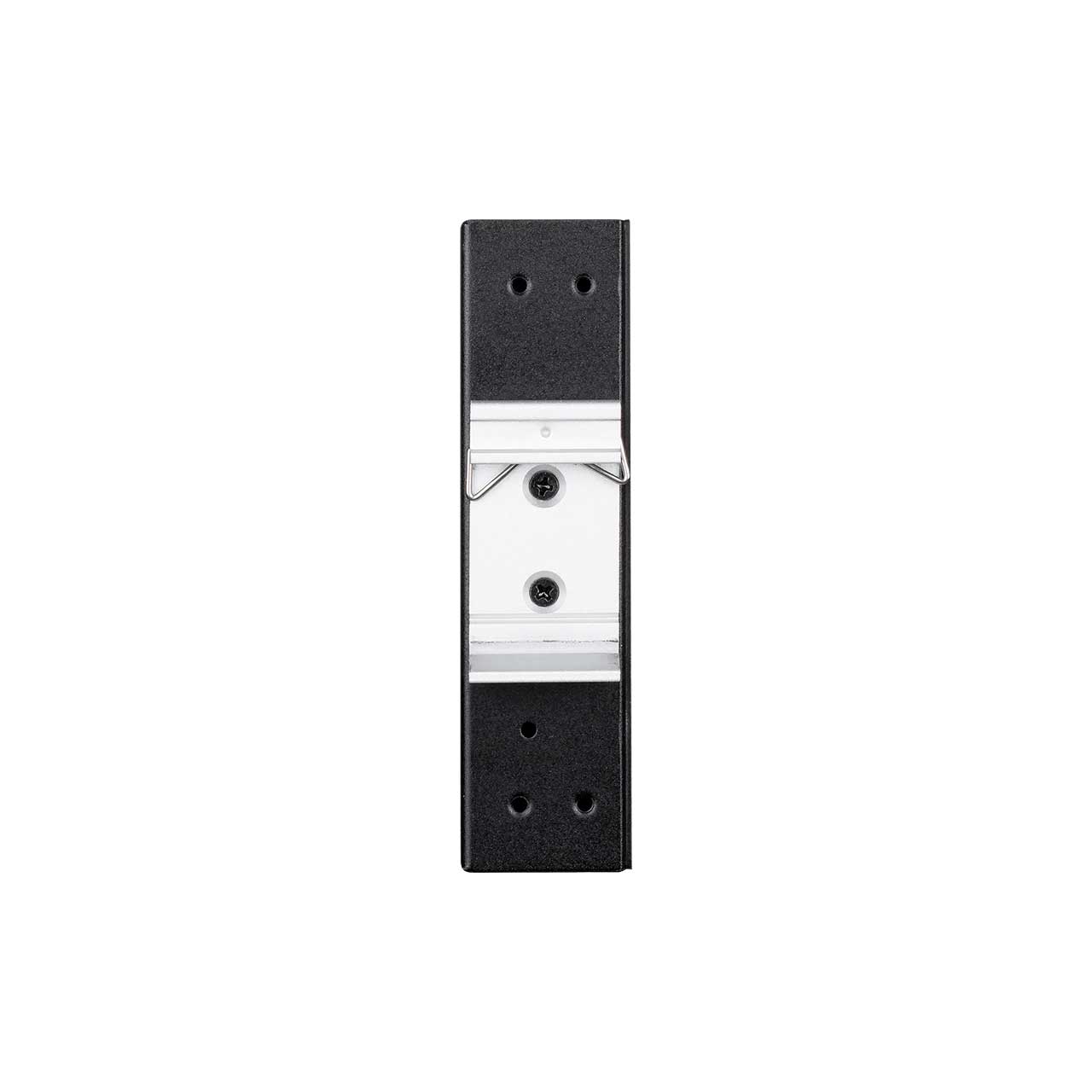

    • DIN-rail and wall mounting options
    • Compliant with EN-50121-4 wayside control and NEMA-TS2 traffic control standards


  • Specifications:

    • 1000Base-T Interface: 4
    • 1000M SFP Interface: 1
    • Auto MDI/MDIX: Yes
    • Alarm Port: Yes
    • 10/100/1000 BASE-T Ports: 4
    • SEP Port: 1
    • Switching Capacity: 10Gbps
    • Max. Packet Forwarding Rate: 7.44Mpps
    • Store & Forwarding: Yes
    • Power Input: 12-58Vdc
    • FAN: Fanless
    • Comply with RoHS 6: Yes
    • Energy Efficiency Ethernet (EEE): Yes
    • Power Saving By Link Status: Yes
    • Power Saving By Cable Length: Yes
    • MAC Address Table Size: 2K
    • 802.3x Flow Control: Yes
    • Head-of-line (HOL) Blocking Prevention: Yes
    • Jumbo Frame: 9K Bytes
    • Number of Queue: 4
    • Broadcast/Multicast/Unicast Storm Control: Yes
    • Maximum Heat Dissipation: 13.03 BTU/hr
    • Dimension: 112.2x29.1x89.4mm
    • Maximum Power Consumption: Maximum 3.82W
    • Operating Altitude: 2000m
    • Operation Humidity: 5 to 95% RH
    • Operation Temperature: -40~75°C
    • Storage Humidity: 5 to 95% RH
    • Storage Temperature: -40~85°C
    • Weight: 0.32kg
    • MTBF: > 25 years


  • GTIN:

    0790069437892
