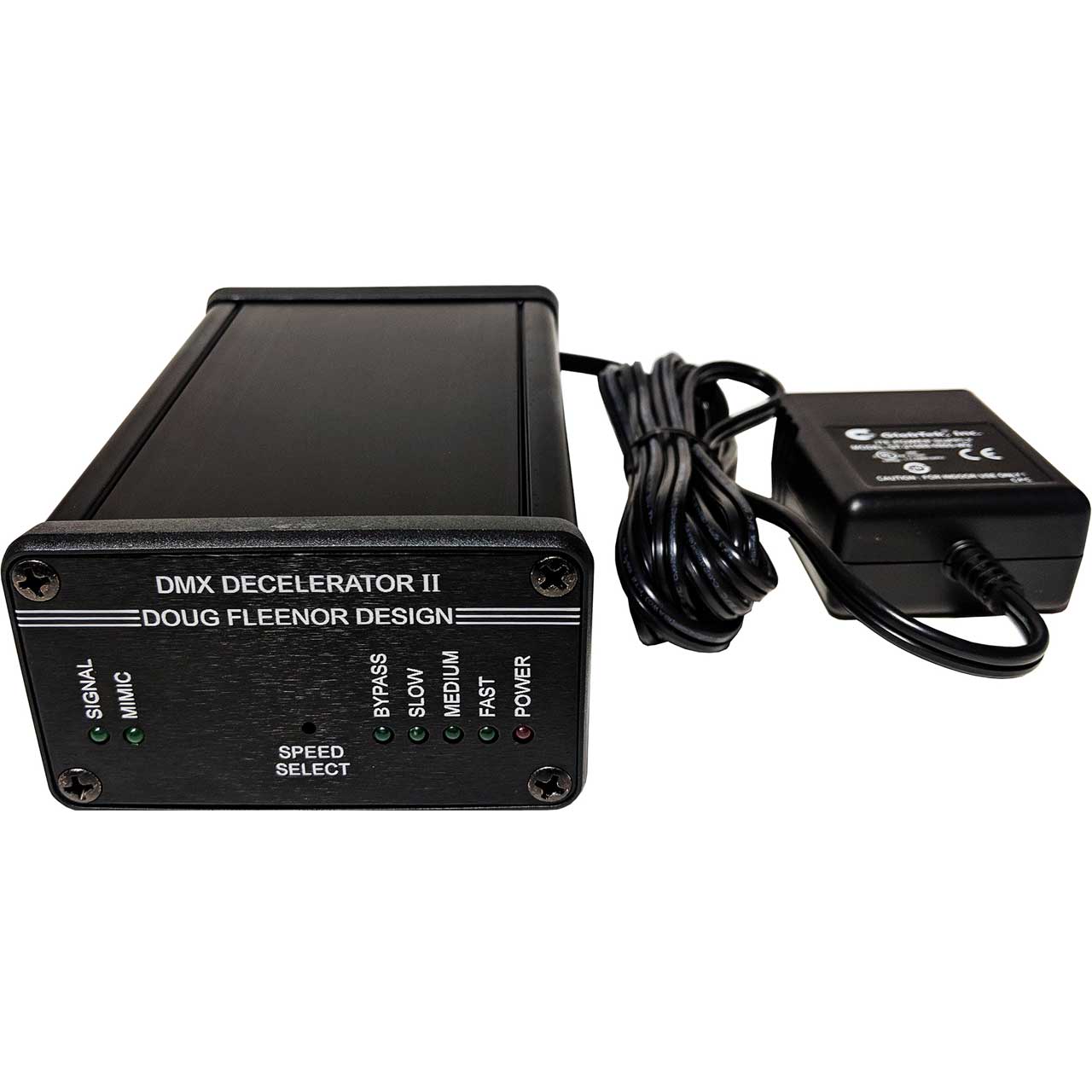

Primary Image
Doug Fleenor Design, Inc.
Free Shipping with $49 Minimum Order

List Price:

$250.00

Our Price:

$208.00

Add to Wish ListLeasing Options
Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup
Report Lower PriceLarge Quantity Quote

DMXDECELERATORII-3 - Overview

The DMX DECELERATOR II is a DMX512 isolator and re-timing device. It can receive any signal within the DMX512 specification and it can accept some signals outside of the specification. It produces a DMX output signal with "relaxed" timing characteristics which are required by some DMX receiving devices. In addition, a BYPASS mode is provided. When this mode is selected, the DMX DECELERATOR II copies the timing from the input signal to the isolated output directly with no changes. This can be useful for diagnosing problems with isolation versus timing.

The DMX DECELERATOR II is powered by a universal input supply. Its DMX512 input is fully opto-isolated and protected against transient voltages.

  • Specifications:

    • Model: DMX DECELERATOR II - DMX re-timing device
    • Input power: 100 - 240 VAC, 50 - 60Hz, 0.5A
    • Environmental: Operating temperature: 0-40° C (32-104° F), 10-90% humidity, non-condensing, indoor use only.
    • Input signal: DMX512, DMX512/1990, DMX512-A (250 Kb/s, 0.2 Volts min. 12 Volts max). Input is terminated.
    • Input circuit: Transient protected EIA-485 transceiver (LT1785).
    • Input protection: 15,000 Volt transient, ± 60 Volt continuous.
    • Input connector: Gold plated 5 pin male (Neutrik D-1 series).
    • Input isolation: 600 Volts.
    • Output signal: DMX512-A with variable timing characteristics.
    • Output connector: Gold plated 5 pin female XLR (Neutrik D-1 series).
    • Indicators: Green signal indicator, green MIMIC indicator (tracks the level of channel 1), 4 green output speed indicators, red power indicator.
    • User controls: One recessed pushbutton switch used to select output timing characteristics or system bypass.
    • Output timing: Below is a list of output settings and their corresponding timing characteristics.
    • Color: Black with laser engraved nomenclature
    • Size and weight: Chassis: 1.8"H x 5.3"D x 3.2"W, 12 ounces. Power supply: 1.0"H x 2.2"D x 1.9"W, 5 ounces.


  • Warranty:

    • Limited Manufacturer's Warranty - 5 Year Parts and Labor
