Drawmer MC1.1 Monitor Pre-Amplifier - 3 Analog Inputs with Phono

ITEM #: DRWM-MC1-1 MFG #: MC1.1

Primary Image
  • Product Image Thumbnail 1 of 4
  • Product Image Thumbnail 2 of 4
  • Product Image Thumbnail 3 of 4
  • Product Image Thumbnail 4 of 4
Free Shipping with $49 Minimum Order

List Price:

$749.00

Our Price:

$679.00

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


MC1.1 - Overview

Ultra low noise, RIAA MM Phono & a HI-FI Crossover
Hot on the heels of the Drawmer MC2.1 well known for its functionality and transparency comes its new sibling the Drawmer MC1.1 Monitor Preamp, offering the same fantastic sound but with a revised feature set more suitable for a less complex post production booth or home use where multiple speaker setups are not permissible or even required, and with the addition of a new RIAA phono stage the MC1.1 is a great solution for your precious turntable setup.

Accurate & Transparent
Not only has the MC1.1 been developed with the serious musician and engineer in mind, allowing you to monitor your personal workstation with complete accuracy, transparency and the ability to faithfully reproduce what has been recorded, the MC1.1 has also been designed for music lovers. As well as being able to connect your MP3 player, iPod or smartphone, you can also enjoy the warmth that only vinyl brings via the integrated RIAA phono stage. It takes just seconds - connect a turntable and active speakers or headphones to bring your vinyl collection to life.

Elegant

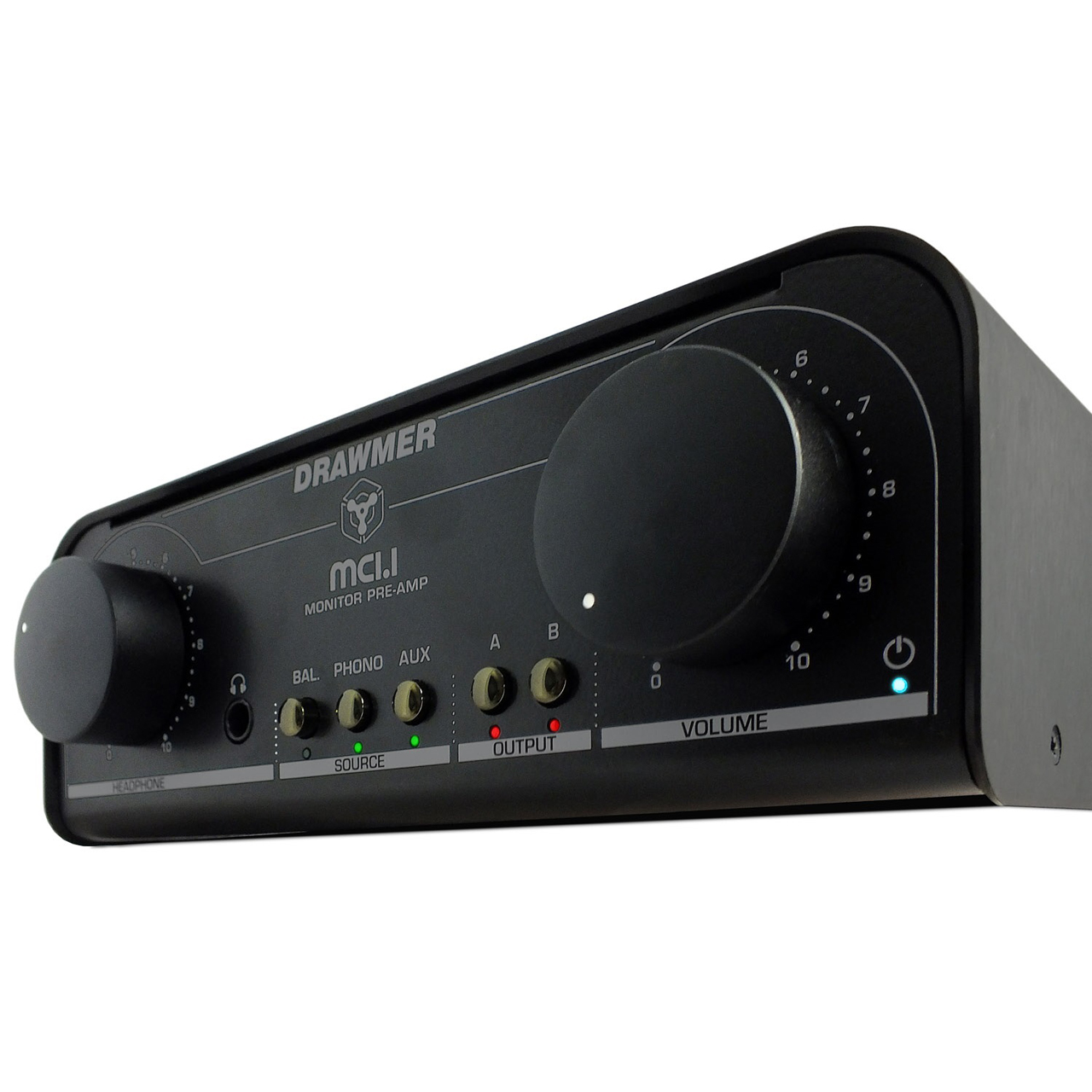

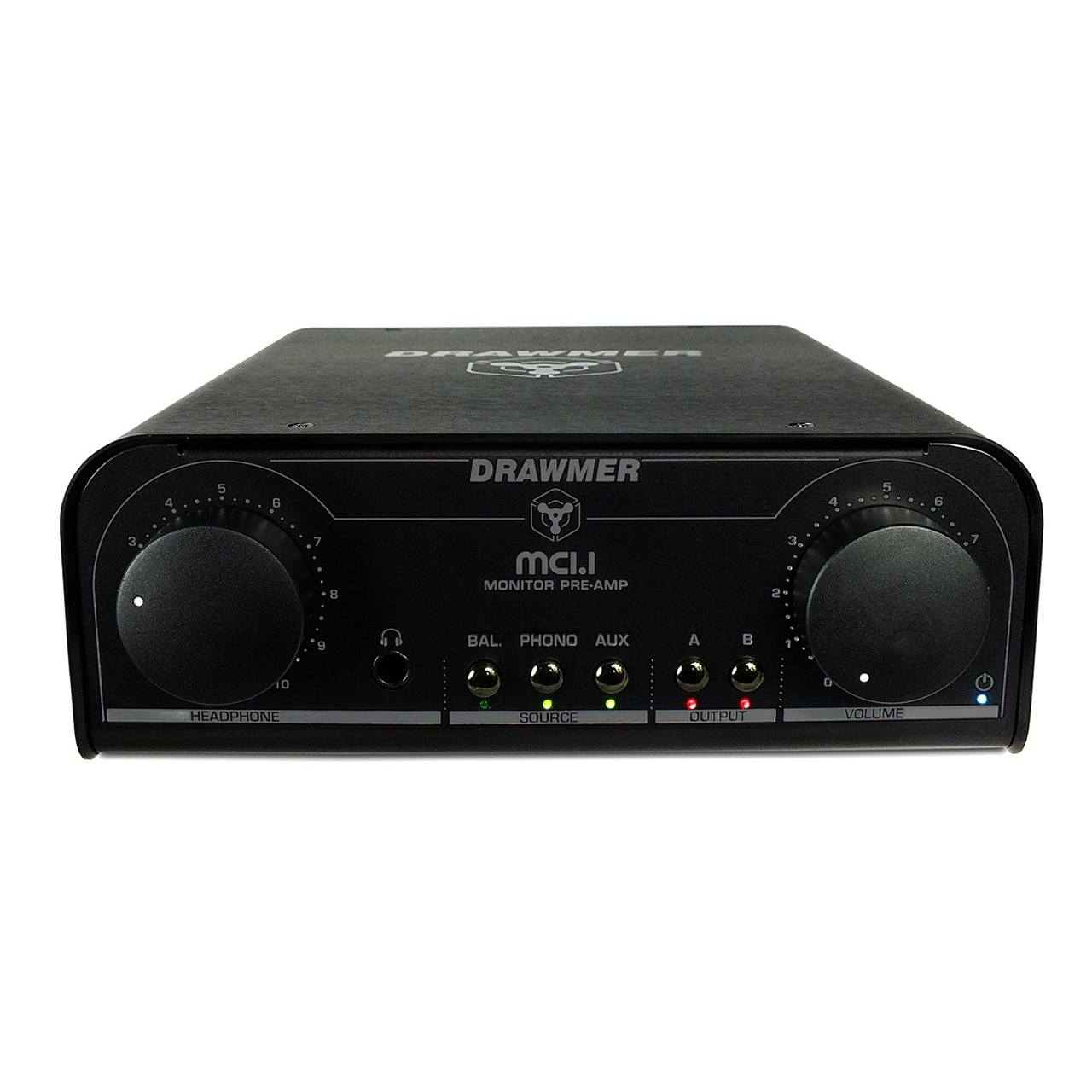

The front panel is dominated by the two large, independent volume controls for the main line outs and the headphone amplifier, both incorporate a paralleled custom quad pot for excellent channel matching and the smoothest possible action. There are also individual switches for each input source and output section making an elegantly simple yet functional user interface.

Tough & Secure
Whilst being smart and stylish the rugged enclosure will withstand the knocks and bumps of the studio, and, coupled with the high quality components used, the MC1.1 is built to last.

  • Features:

    • Ultra low noise and transparent circuit design.
    • Source switches can be active in any combination. 3 Inputs in Total - Two on 1/4" balanced jacks and One 3.5mm Front Panel Aux for your Smartphone/Mp3 Player.
    • 2x Speakers Plus a Mono Sub can be switched individually & simultaneously or give A/B comparisons.
    • Timed relay protection on all speaker outputs to prevent power up/down bangs.
    • A large volume knob incorporating a parallelled custom quad pot for excellent channel matching and smooth feel.
    • A Headphone Amplifier with Individual Level Controls with easy access to the jack on the front.
    • Front Panel 3.5mm AUX Input with Level Control for connecting MP3 player, smartphone or tablet etc.
    • Mix Checking facilities Include Dim, Phase Reverse and Mono, as well as an easy access Mute switch.
    • Kensington security slot (also called a K-Slot or Kensington lock).
    • Very low profile desktop enclosure with a footprint of just 18x16cm.
    • Stylish and Rugged Enclosure will withstand the knocks of the studio.

  • Specifications:

    • Input: Maximum Input Level 21dBu
    • Output: Maximum Output Level before clipping - 21dBu
    • Dynamic Range@ unity gain: 115dB
    • Crosstalk: L/R @ 1kHz: >80dB
    • THD & Noise: Unity gain 0dBu input: 0,002%
    • Frequency Response: 20Hz - 20kHz: ±0.2dB
    • Phase Response: 20Hz - 20kHz: ±2°

      Power Requirements
    • 115V or 230V at 50-60Hz: 20VA
    • Fuse Rating:
      - Conforming to IEC 127-2
      - @ 115V: T315mA
      - @ 230V: T160mA
    • Fuse Type: 20mm x 5mm, Class 3 Slo-Blo, 250V working

      Physical
    • Depth: 10.7" (272mm)
    • Width: 8.46" (215mm)
    • Height: 3.18" (81mm)
    • Weight: 5.511lbs (2.5kg)
