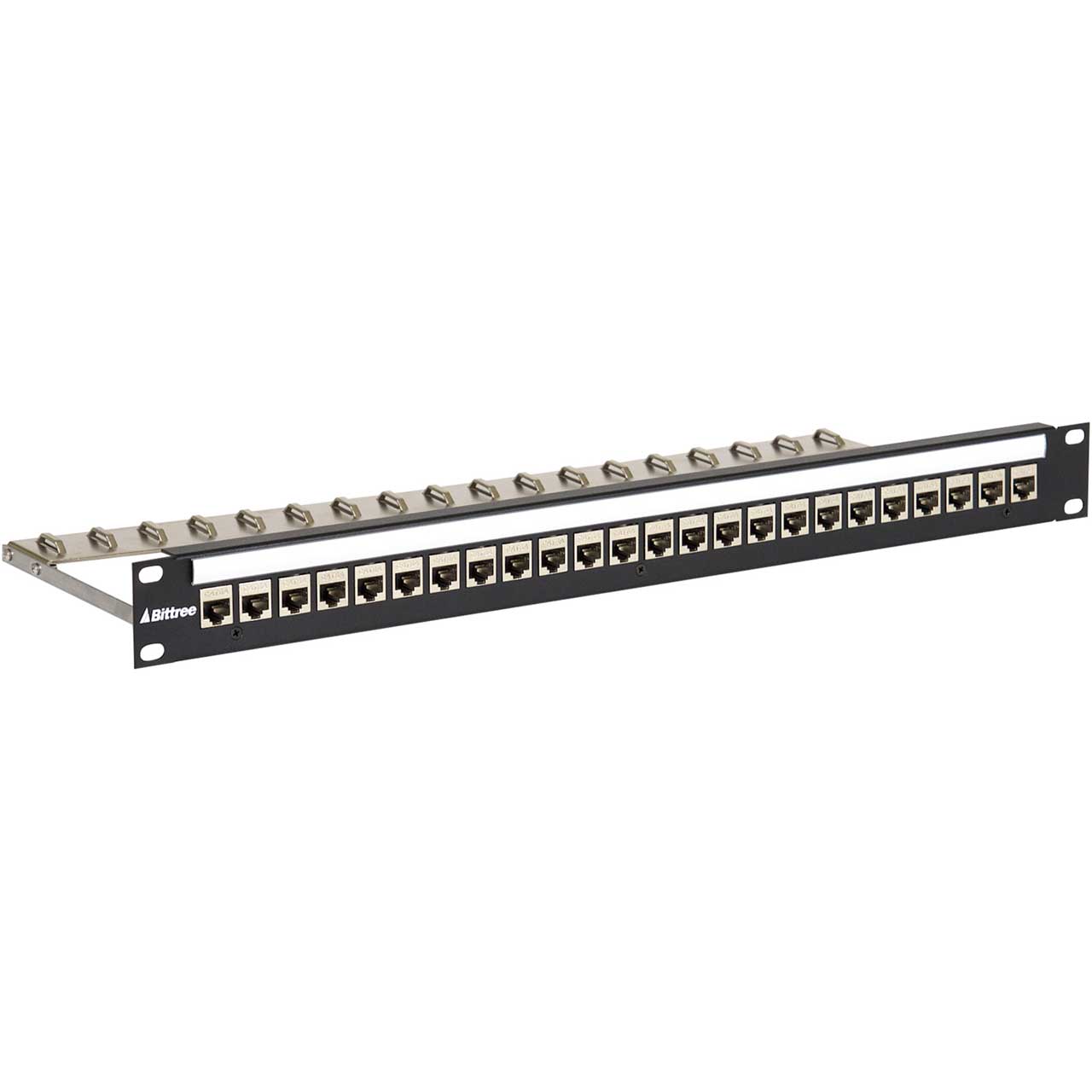

Bittree DSKP124B-C6APS Flush Mount 1RU Patchbay - 1 Row of 24 Jacks / Shielded Cat 6A / RJ45 to ID 110 / 1 Designation

DSKP124B-C6APS - Overview

• Features:

  • CAT 6 Jack Properties:
  • RJ45 jack to 110 IDC (punchdown) interface with shielding for protection from EMI, RFI, and alien crosstalk
  • Exceeds ANSI/TIA-568-C.2 Category 6A requirements
  • Die-cast nickel-plated zinc clamshell housing
  • Nickel-plated phosphor bronze contacts with gold over plate
  • Suppressed internal magnetic coupling up to a bandwidth of 500 MHz
  • Integrated TIA-568A/B color wiring diagram
  • Accommodates 23-26 AWG solid wire
  • Stainless steel internal grounding clip

    Panel Features:
  • Keystone jacks mount flush with the surface of the panel
  • Accommodates high-density (HD) keystone inserts with up to a 17 mm width
  • Folded steel front panel with a durable black powder-coat finish
  • Nickel-plated rear panel and two 45-degree faston lugs enable bussed and bonded grounding schemes when used with shielded modular jacks

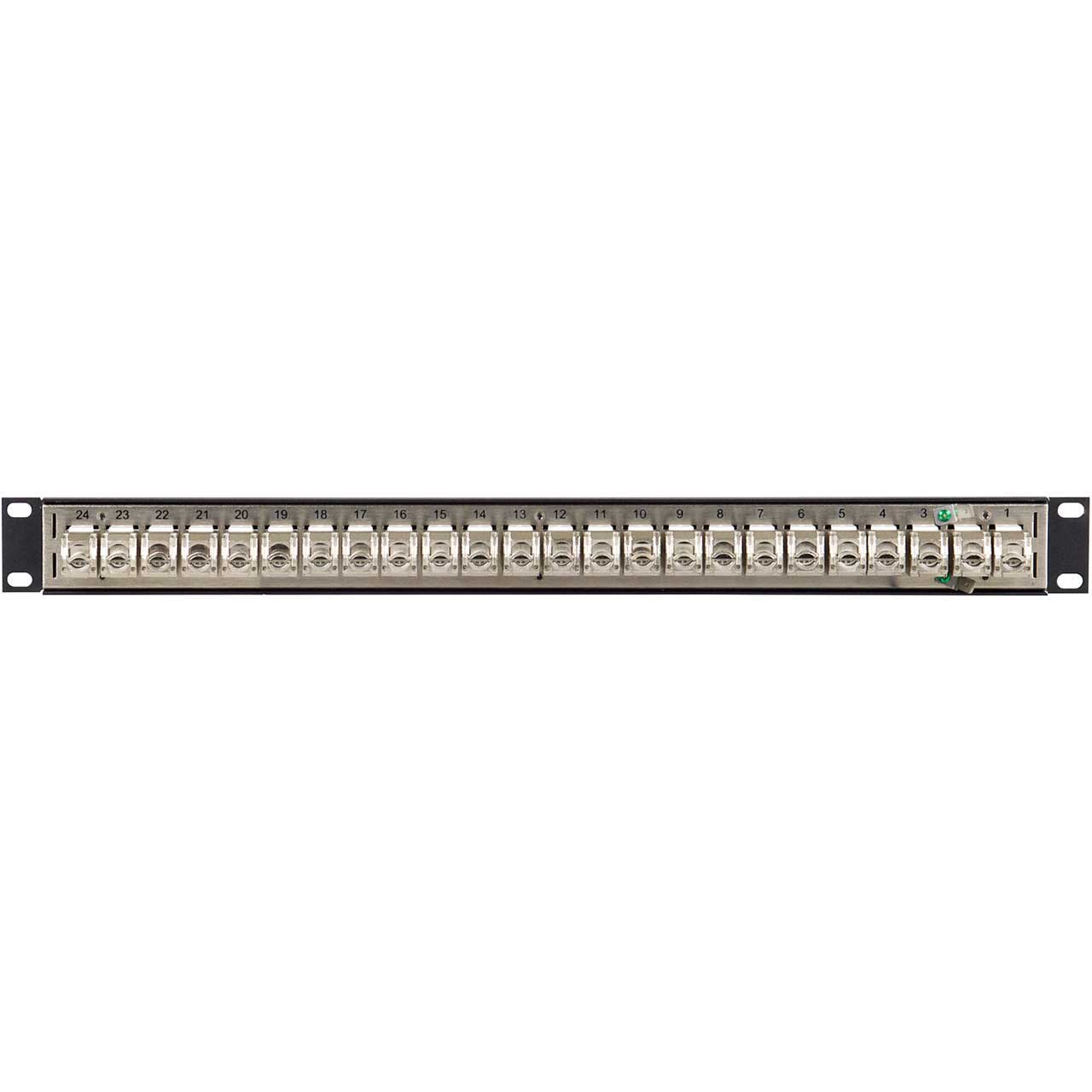

  • Silk screened circuit numbering on the rear
  • 1x DS430-10 designation strip on the front (bar and cap design)
  • 6" (15.24 cm) deep removable rear lacing bar for cable dressing


• Specifications:

  • Compliance: RoHS Compliance
