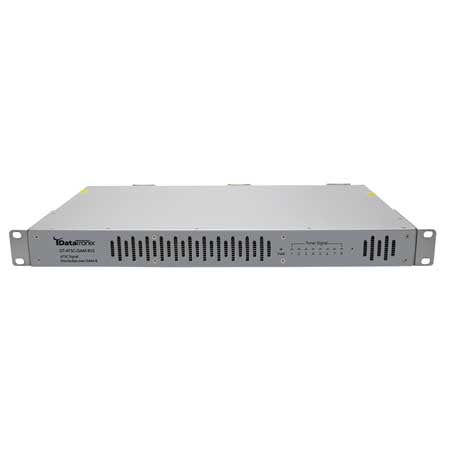

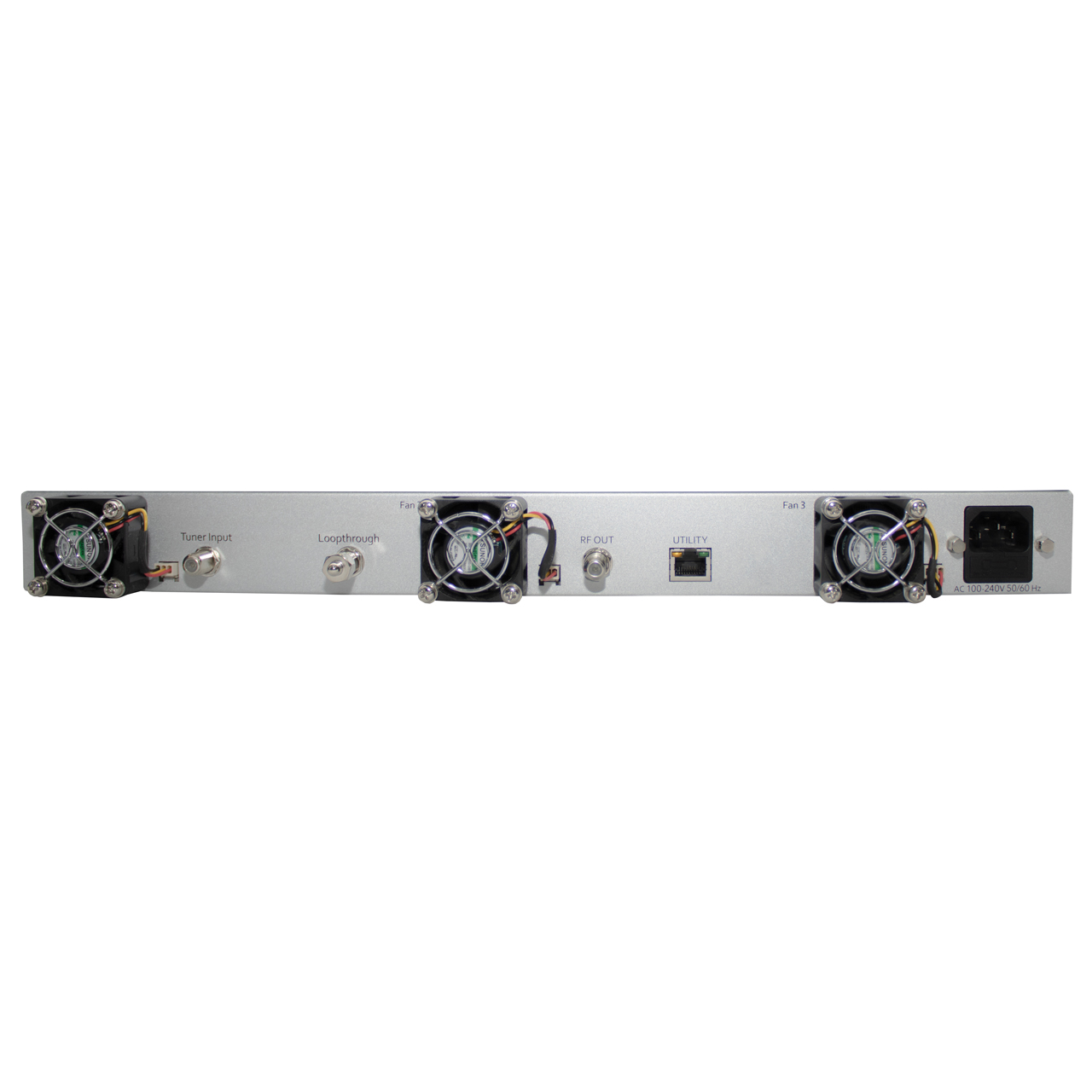

DataTronix DT-ATSC-QAM-8V2 Off-Air ATSC to QAM Converter - 8 RF Input/8 QAM-B Outputs

DT-ATSC-QAM-8V2 - Overview

• Features:

  • Accepts up to 8 RF inputs (ATSC-8VSB over-the-air or QAM)
  • Up to 8 Independent QAM-B Outputs that can also carry digital sub channels
  • Allows User to "Cherry Pick" Desired Programs as Needed
  • Graphic User Interface for configuration
  • Sources can be mapped to output QAM TV channels

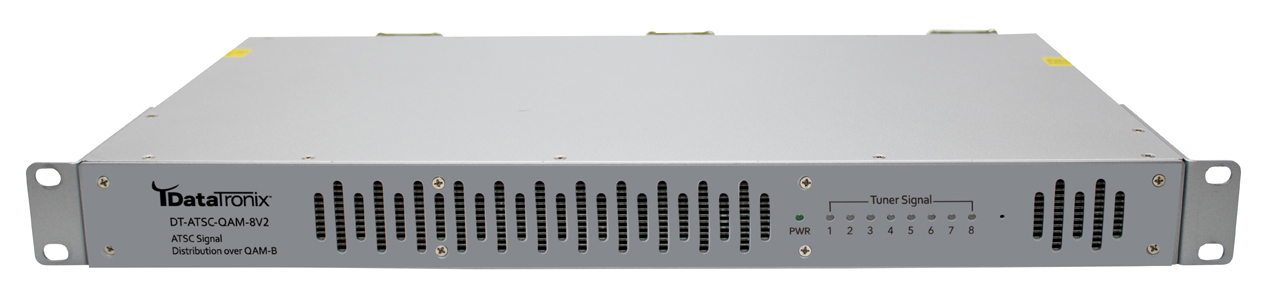

  • Front Panel LED Indicators
  • Rack mountable 1RU height


• Specifications:

  • Input
  • RF Mode (ATSC-8VSB and QAM):
    - Connector: 1x F-Type, Female
    - Input Impedance: 75Ω
  • Modulation:
    - ATSC-8VSB
    - ITU J.83 Annex B (64-QAM, 256-QAM)
  • Tuning Block Freq Range: 55 to 861MHz (Center)
  • Bandwidth: 6 MHz
  • Numbers of Tuner: 8
  • Input Level: 6 MHz
  • Loop Through:
    - Connector: 1x F-Type, Female, Passive

    Output
  • QAM:
    - Connector: 1x "F" Female
    - Modulation: 256-QAM/64-QAM
    - Standard: J.83 Annex B
  • Frequency Range:
    - 57 to 861 MHz (Under STD Mode)
    - 8 Independent RF Frequencies
  • Channels' Bandwidth: 6 MHz
  • Output Level: 45 dBmV Typical
  • Output Impedance: 75Ω
  • Level Adjustment: 0dB - -20dB
  • VCN: Auto (Major & Minor)/Manual (Major & Minor)/Manual (One Part)
  • Carrier Suppression: 55dB
  • RF Output Return Loss: 10dB Typical
  • Signal-to-Noise Ratio (SNR): 42dB Typical
  • MER: 41 dB Minimum, 44dB Typical

    Web Management
  • GigE:
    - Connector: 1x RJ45
  • Standard:
    - 100/1000Base-T Ethernet
    - Full/Half Duplex, Auto-Negotiation
  • HTTP: Embedded

    Emergency Alert System (EAS)(Optional)
  • GigE:
    - Connector: 1x RJ45
  • Standard:
    - 100/1000Base-T Ethernet
    - Full/Half Duplex, Auto-Negotiation
  • UDP/RTP: Supported (user-selectable)
  • Protocol: SCTE-18 Supported

    Alarms/Monitoring
  • Local Monitoring:
    - 8x NIM Status LEDs
    - 1x Power LED
  • Local Control: IP Reset Button
  • GUI Supported: Firefox, Chrome
  • Password Protected GUI: Changeable

    Power
  • Power Supply: 12VDC 5.4Amp
  • Consumption: 23 W Typical
  • Input Voltage Range: 100 - 240 VAC

    Mechanical and Environmental
  • Chassis (WxDxH): 19.01" x 9.45" x 1.74" (483mm x 240mm x 44.2mm)
  • Weight: 7.9lbs
  • Operating Temperature: 32°F - 122°F (0°C - 50°C)
  • Storage and Transportation Temperature: 32°F - 140°F (0°C - 60°C)
  • Language: English


• Item Includes:

  • 1x DT-ATSC-QAM-8V2
  • 1x Power Cable
  • 1x Installation/Configuration Manual


• Warranty:

  • 1 Year Warranty
