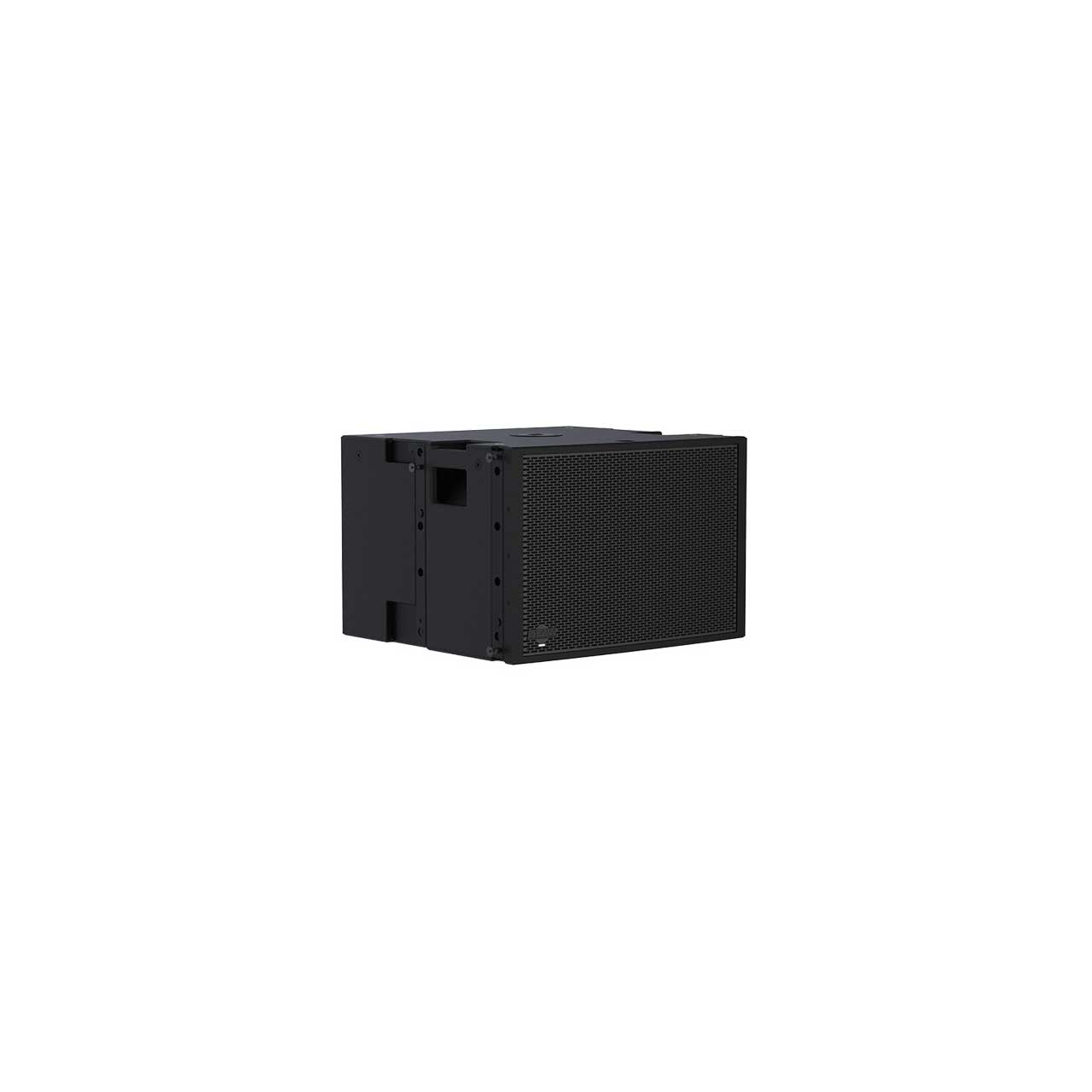

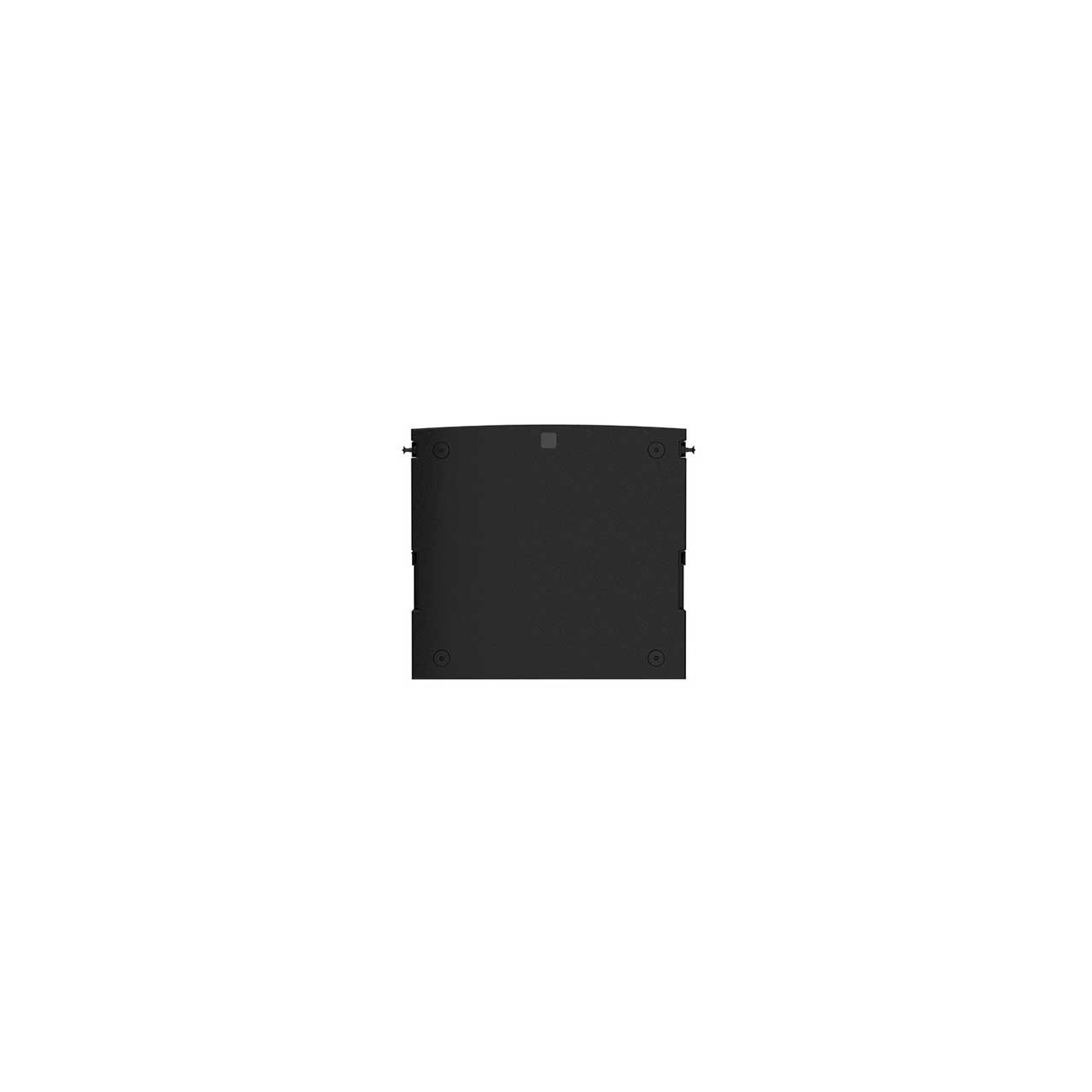

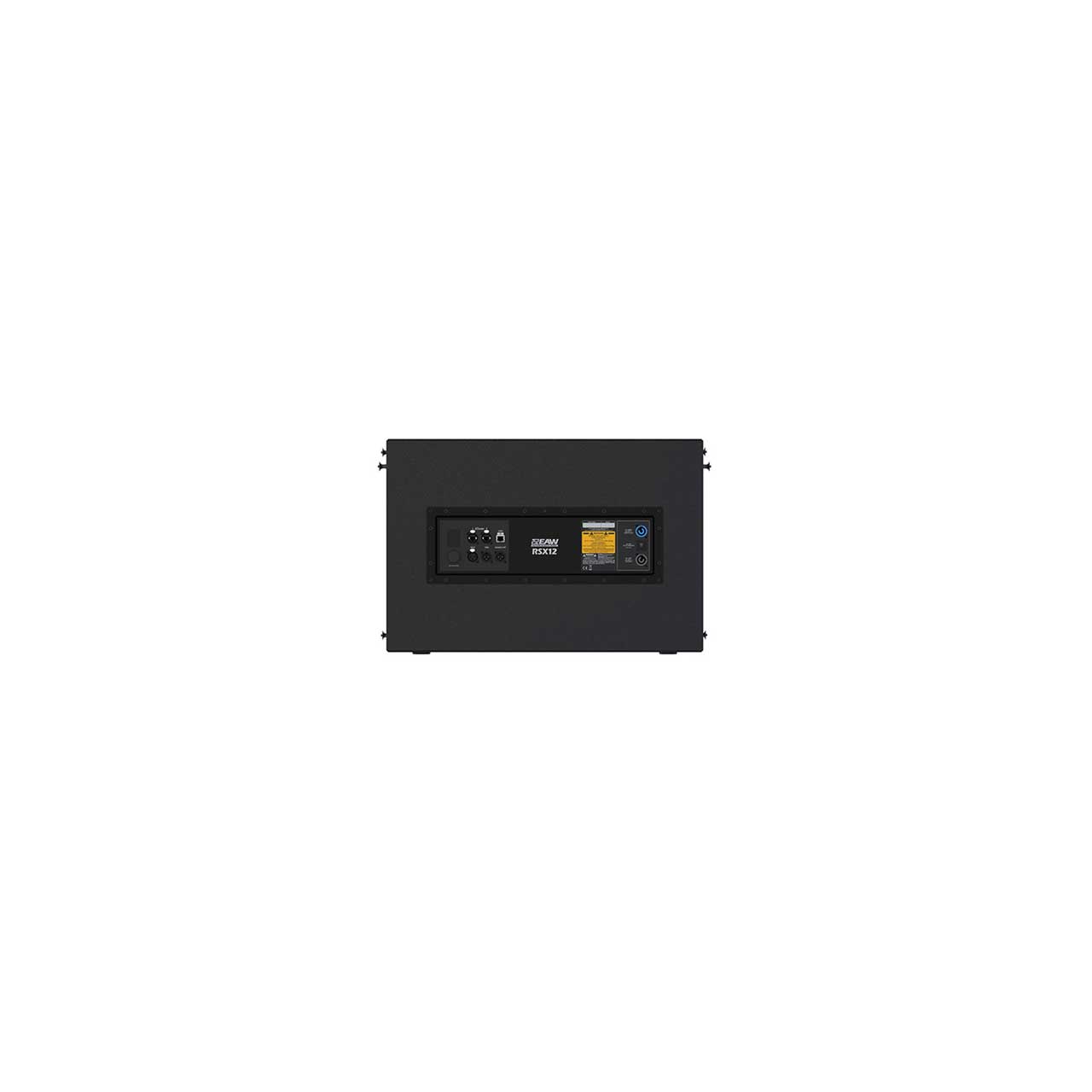

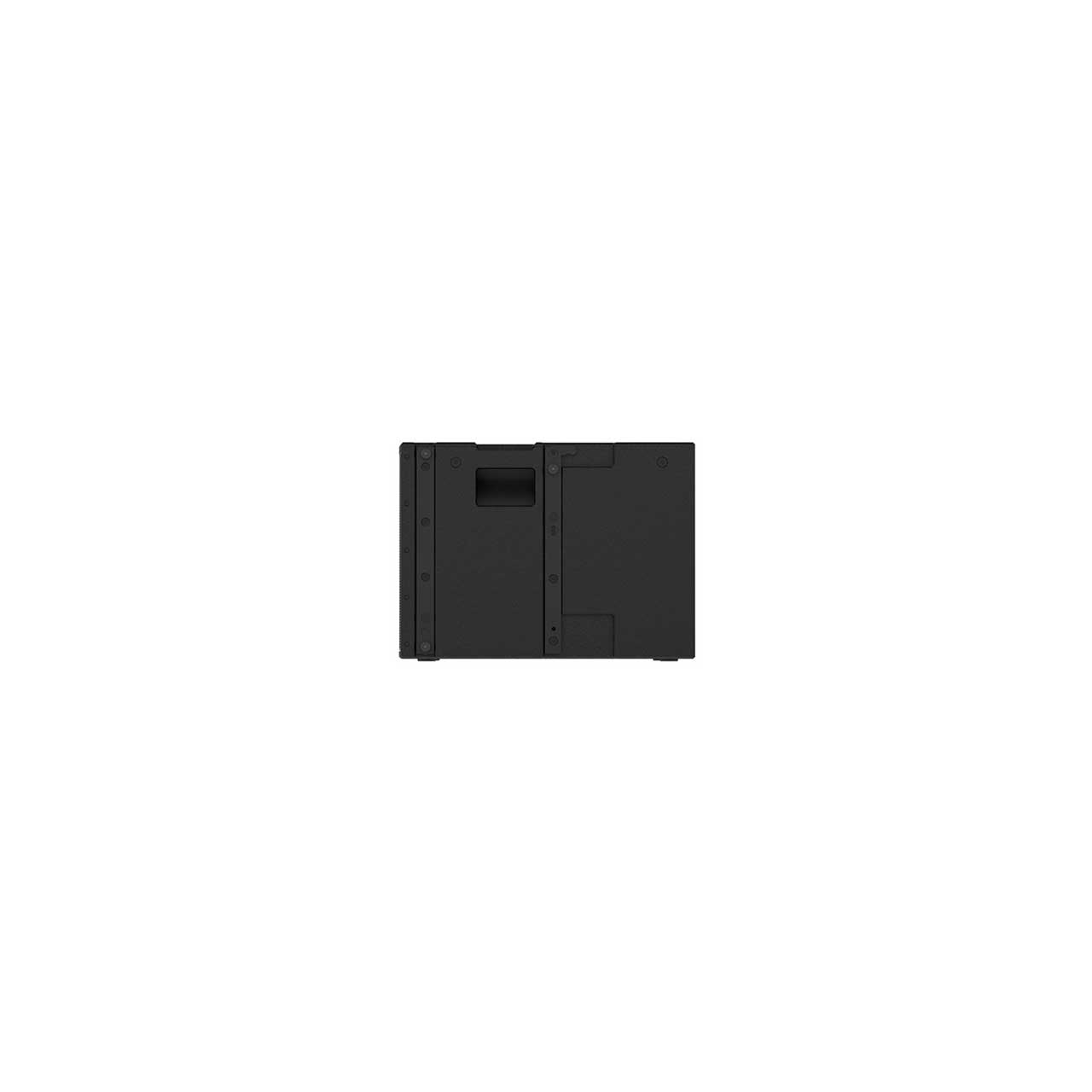

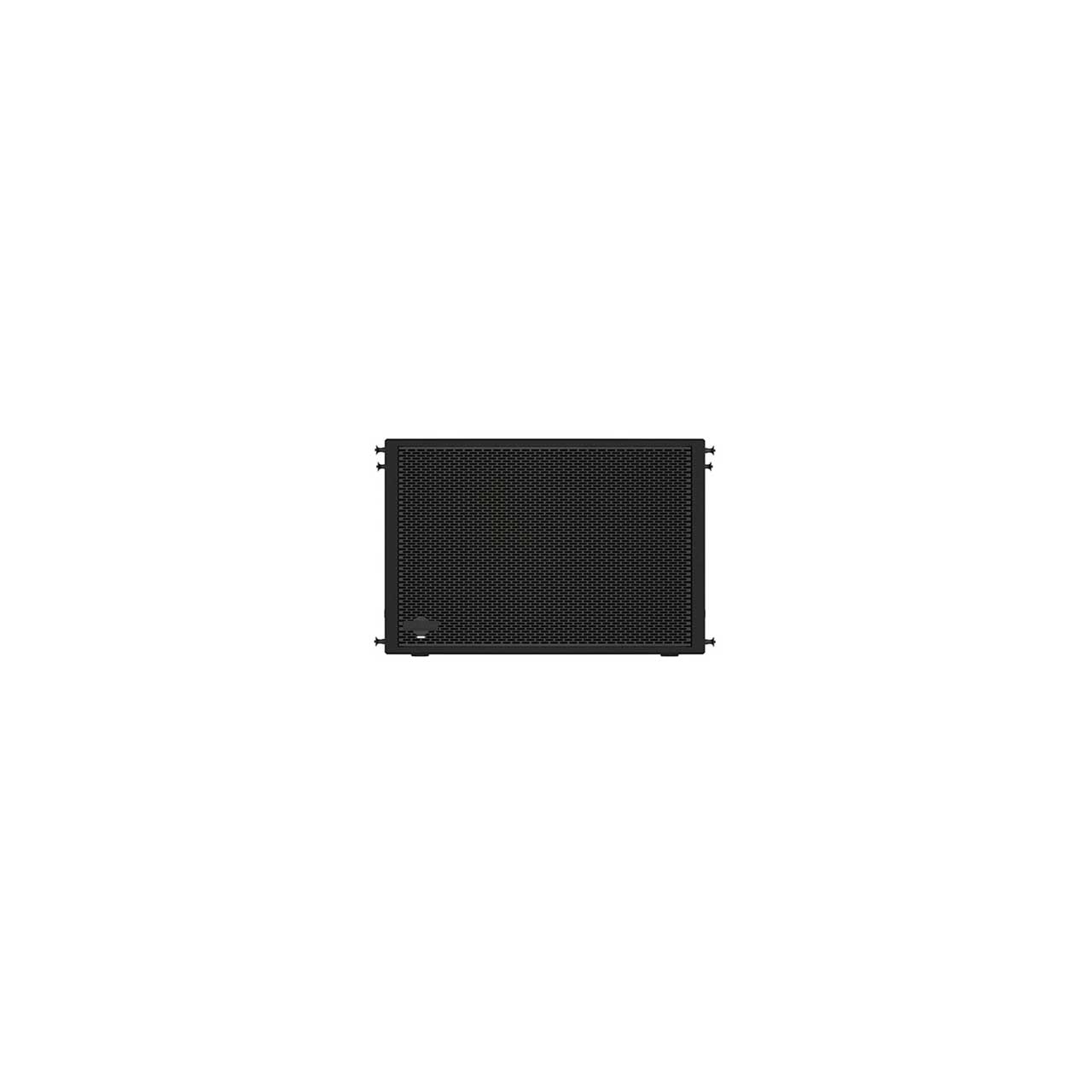

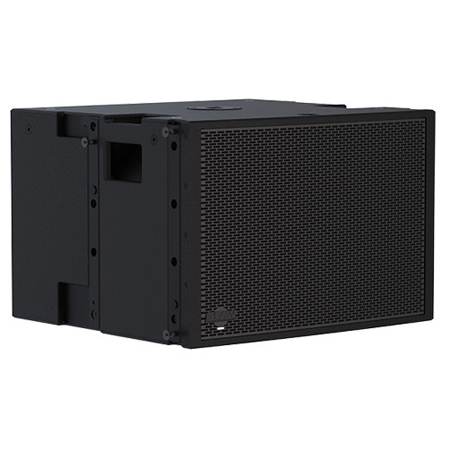

EAW Radius RSX12 Self-Powered Loudspeaker - 1000W

ITEM #: EAW-RSX12 MFG #: RSX12

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Free Shipping with $49 Minimum Order

Our Price:

$2,917.00

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


RSX12 - Overview

Designed to streamline setup and deliver maximum results in minimum time, RADIUS couples unique and intelligent features with EAW's signature acoustical design to deliver solutions for rental firms and system integrators. The RSX12 12" subwoofer is flyable and ultra-compact, ideal for installs or other applications with minimal floor space for subwoofers. The RSX12 features onboard electronics (1000W per channel) and ultra-wide ports that drastically reduce low-frequency turbulence. EAWmosaic™ app provides total system optimization from anywhere in the venue, plus intuitive room design and prediction in a single, comprehensive application. With the proven sonic performance of EAW's acoustic design and DSP mastery plus full Dante integration across the line, RADIUS delivers an intelligent and flexible system to fit any budget.

Perfect Applications Include:
House of Worship
Theatres, Auditorium and Performing Arts Centers
Live Music Clubs
Corporate AV Houses
Live Production/Regional Rental Houses
Dry Hire

EAW touring subwoofers harness pioneering technologies in acoustics, component design and signal processing to deliver extreme bandwidth, tonal consistency and storied impact.

The complete range includes customized companion solutions for optimal pairing with specific full-range products as well as more universal and now ubiquitous solutions that have largely evolved from the legendary SB1000. From the compact SBX220 through the thunderous SB2001 - the complete family of subwoofers offers extraordinary performance for a comprehensive variety of live applications.

  • Features:

    • Compact, flyable design ideal for installs with floor space constraints or specific aesthetic demands.
    • Extremely approachable EAWmosaic iOS app delivers system prediction, control and monitoring from any location in the venue.
    • Proven EAW acoustical design and DSP including Focusing and DynO provides a pristine impulse response at all output levels.
    • Integrated Dante networking (with loop-thru) on all models including Analog redundancy capability.

  • Specifications:

    • CONFIGURATION
    • Subsystem:
    • Transducer: LF - 1 x 12 in cone, 3 in voice coil
    • Loading: LF - Vented; HF - Horn-loaded
    • Operating Mode:
    • Amplifier Channels: Single-amp LF
    • Signal Processing: DSP w/ DynO™

      PERFORMANCE
    • Operating Range: 40 Hz to 300 kHz
    • Nominal Beamwidth: Horizontal 360°; Vertical 360°
    • Calculated Axial Output Limit (whole space SPL): Average: 118 dB (whole space), 124 dB (half space); Peak: 124 dB (whole space), 130 dB (half space)
    • Input Type: Electronically balanced
    • Max Input Level: 21dBu
    • Impedance: 20 kOhm (balanced)
    • Input Wiring: XLRF, Pin 1 chassis, pin 2 +, pin 3 - Separate loop-thru XLRM (for analog signal only)
    • Input Selection: Analog, Dante
    • Amplifiers & Processing (LF) Type: Modified Class D
    • Maximum Output: 1000W
    • Driver Protection: Integral DSP limiting
    • AC Mains (nominal) Connector: Neutrik PowerCon
    • Input: 100 V to 240 V
    • Frequency: 50 Hz to 60 Hz
    • Power Consumption: Idle - 50 W
    • Peak Draw: 1000 W
    • Controls/Communication Connections: 2x Neutrik etherCON, RJ-45
    • Protocols: Ethernet/Dante
    • Software: EAWmosaic™ (available on the App Store)
    • Indicators: LCD Screen on amplifier panel for UI, Logo LED (User-definable behavior)
    • User Controls: Push-button Rotary Encoder

      PHYSICAL
    • Dimensions (inches/millimeters):
    • Height: 17/437
    • Width: 25/640
    • Depth: 23/595
    • Weight (pounds/kilograms): 76/34.5
