EAW RSX208L RADIUS 3-Way Self-Powered Dante Integrated Loudspeaker with PowerCon - 70 Hz -18 kHz - 131 dB - Black

ITEM #: EAW-RSX208L MFG #: RSX208L

Primary Image
  • Product Image Thumbnail 1 of 3
  • Product Image Thumbnail 2 of 3
  • Product Image Thumbnail 3 of 3
Eastern Acoustic Works
Free Shipping with $49 Minimum Order

Our Price:

$3,918.00

Add to Wish ListLeasing Options
Availability: Typically Ships in 3-10 Business Days
iAvailability Description Popup
    Report Lower PriceLarge Quantity Quote

    RSX208L - Overview

    Designed to streamline setup and deliver maximum results in minimum time, the Eastern Acoustic Works RSX208L RADIUS couples unique and intelligent features with EAW's signature acoustical design to deliver solutions for rental firms and system integrators. The RADIUS articulated array features OptiLogic, providing automatic array self-detection and instant optimization including air loss compensation and more. EAWmosaic app provides total system optimization from anywhere in the venue, plus intuitive room design and prediction in a single, comprehensive application. With the proven sonic performance of EAW's acoustic design and DSP mastery plus full Dante integration across the line, RADIUS delivers an intelligent and flexible system to fit any budget.

    Applications:
    House of Worship
    Theatres, Auditoria, and Performing Arts Centers
    Live Music Clubs
    Corporate AV Houses
    Live Production/Regional Rental Houses
    Dry Hire

    • Features:

      • OptiLogic provides array self-detection via onboard infrared sensors and accelerometers for near-instant optimization that cuts down on setup and tuning time.
      • Extremely approachable EAWmosaic iOS app delivers system prediction, control and monitoring from any location in the venue.
      • Proven EAW acoustical design and DSP including Focusing and DynO provides a pristine impulse response at all output levels.
      • Integrated Dante networking (with loop-thru) on all models including Analog redundancy capability


    • Specifications:

      • Frequency Response: 70 Hz -18 kHz
      • Max SPL: 131 dB
      • Operating Mode:
        - Amplifier Channels: Tri-amp LF,LF/MF, HF
        - External Signal Processing: DSP w/EAW FocusingT and DynOT
      • Subsystem:
        - LF - 1 x 8 in cone, 2 in voice coil
        - LF/MF - 1 x 8 in cone, 2 in voice coil
        - HF - 2 x 1 in exit, 1.4 in voice coil compression drivers
      • Nominal Beamwidth:
        - Horizontal 120°
        - Vertical 12°
      • Power Handling: 3x 500W

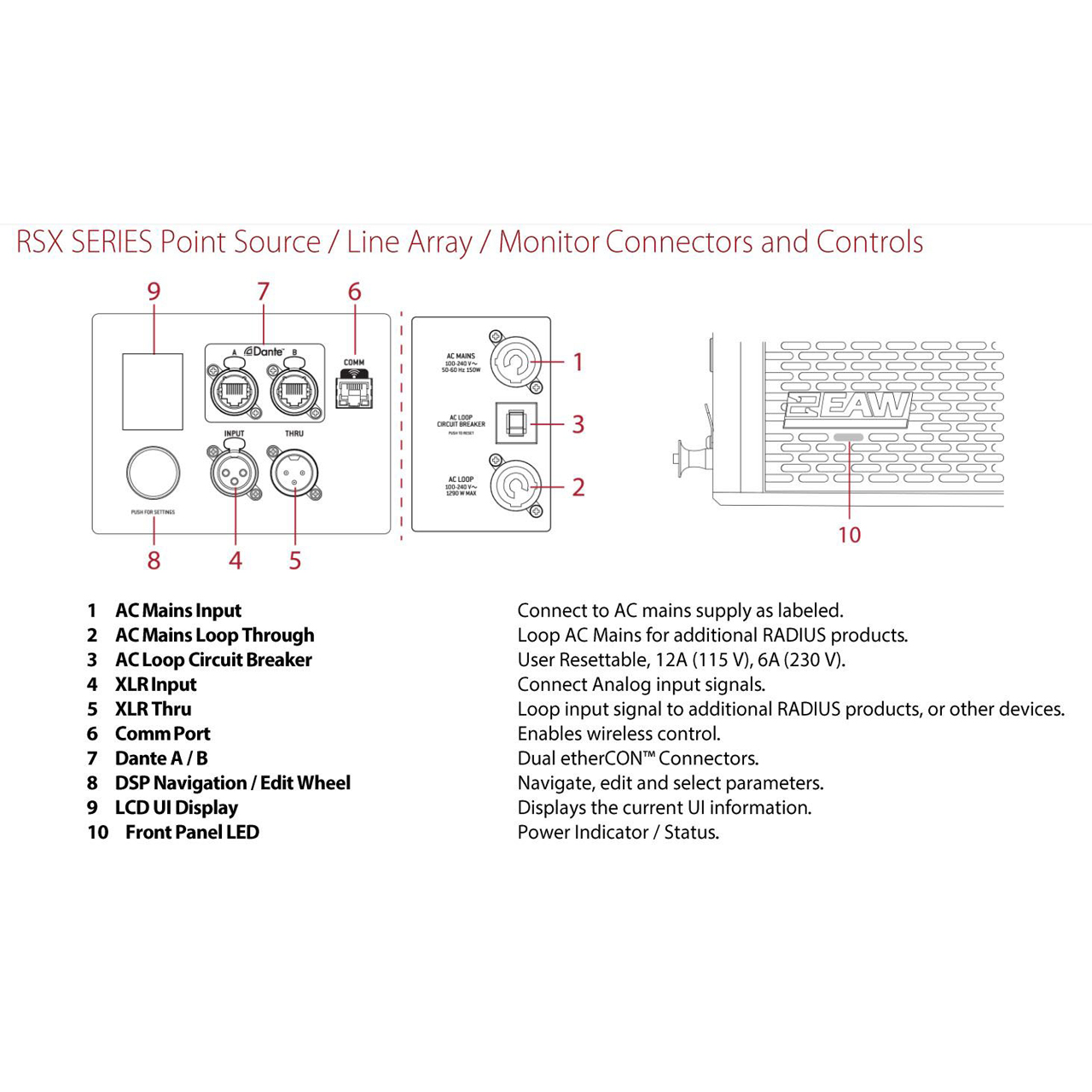

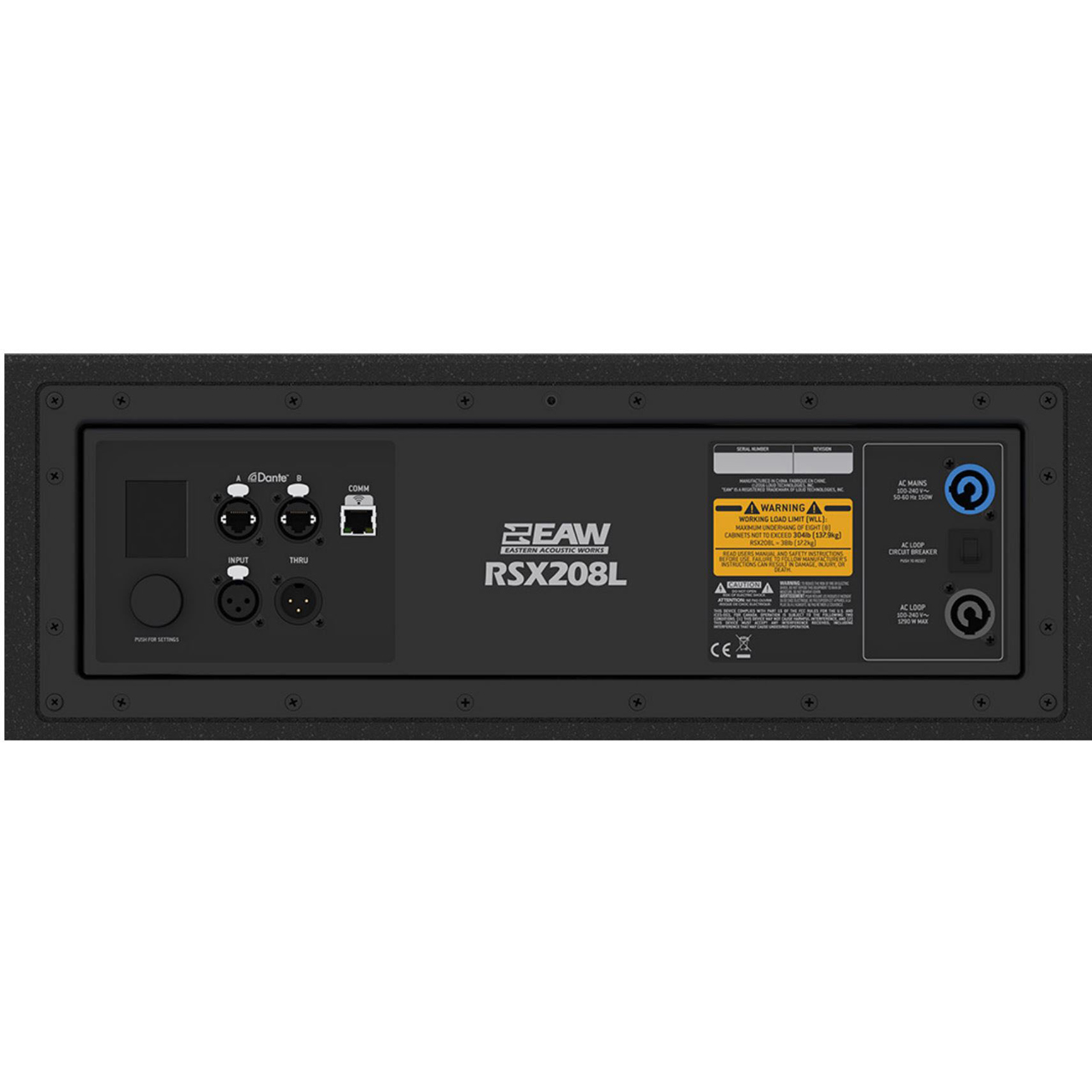

      • Connections:
        - Powercon AC Mains/Loop
        - 2x Neutrikr etherCONT
        - RJ-45
        - XLR Input/Loop
      • Dimensions:
        - Height: 9.80 in (248.9 mm)
        - Width: 25.20 in (640.0 mm)
        - Depth: 13.10 in (332.7 mm)
      • Weight: 40.5 lb (18.4 kg)


    • Warranty:

      • 3 Year Warranty
