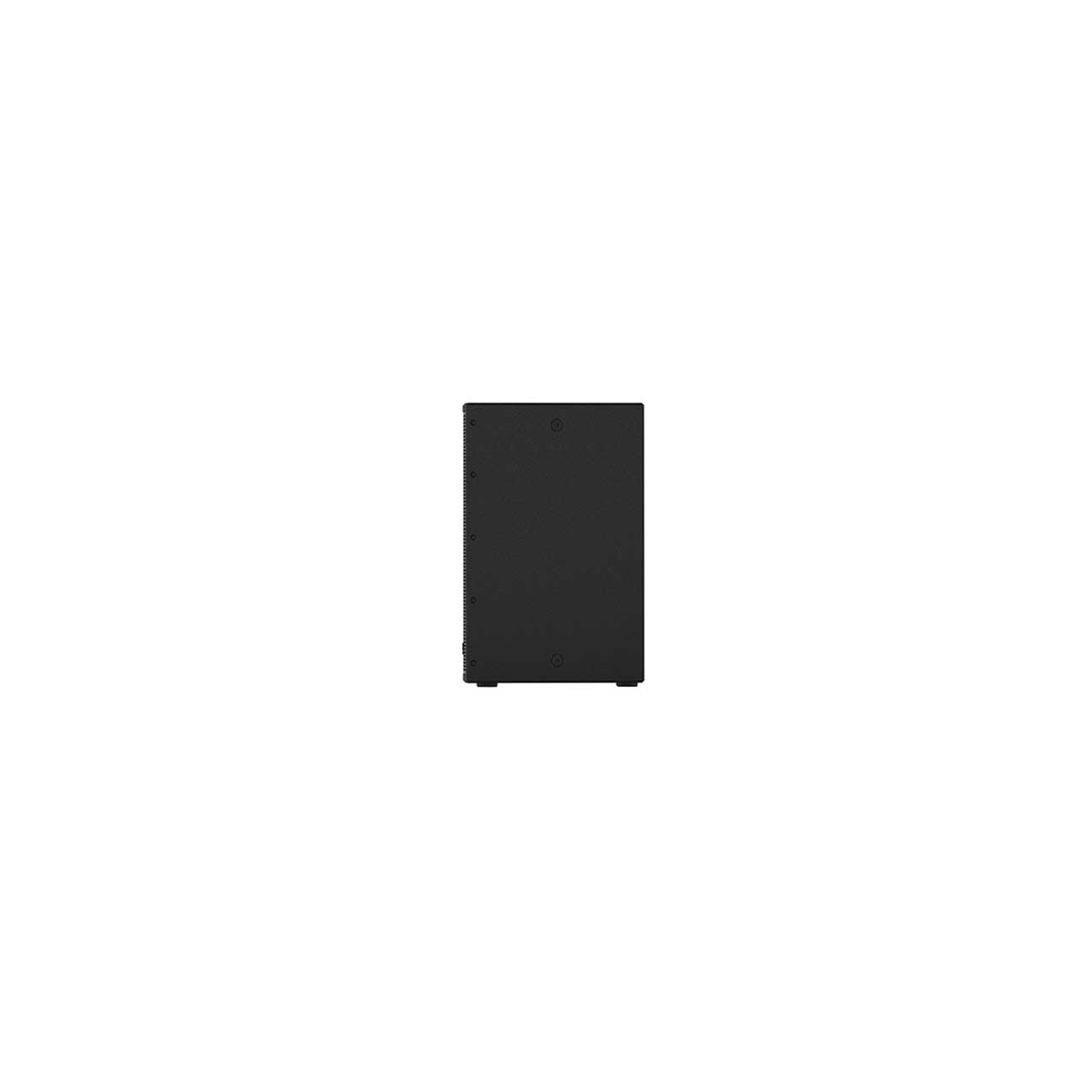

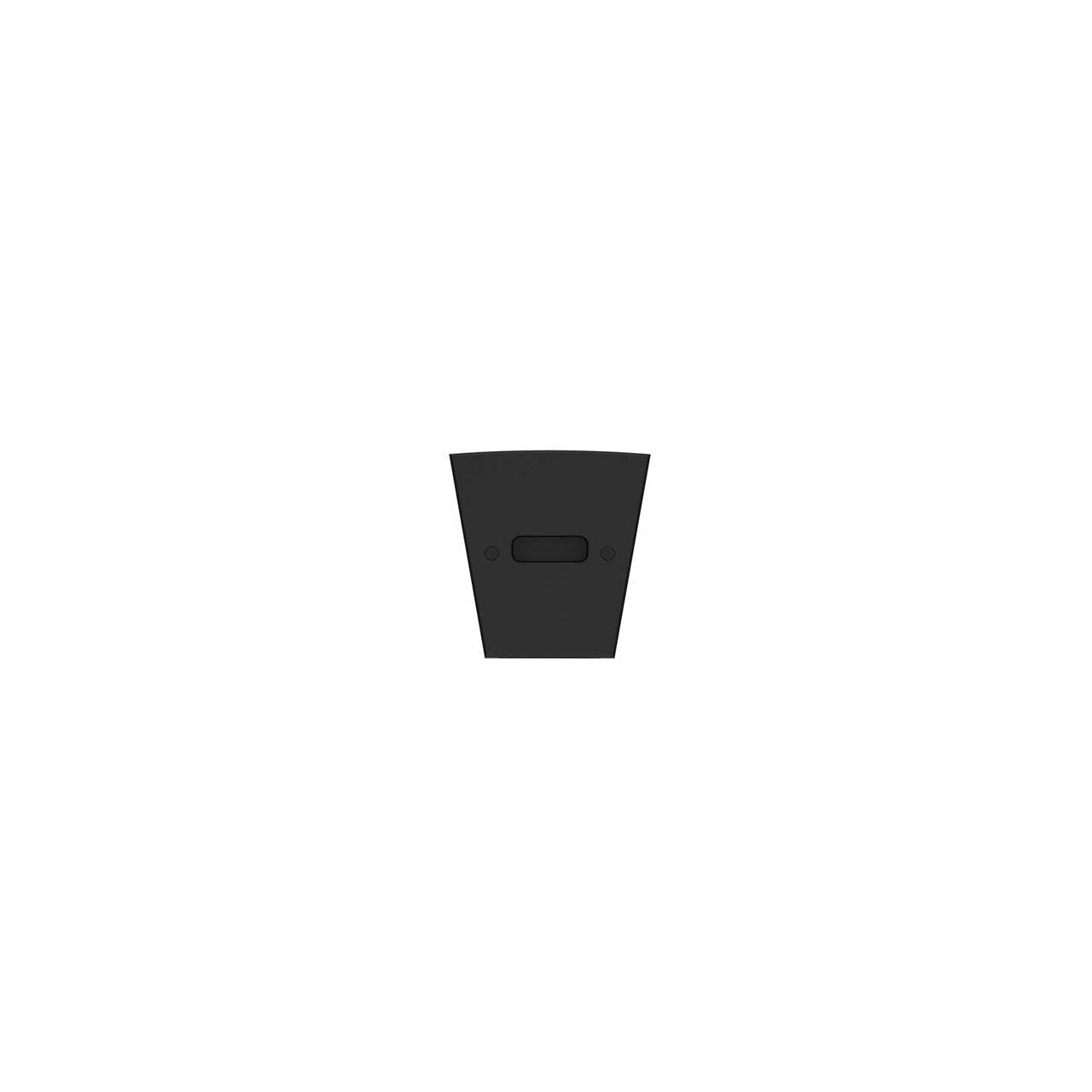

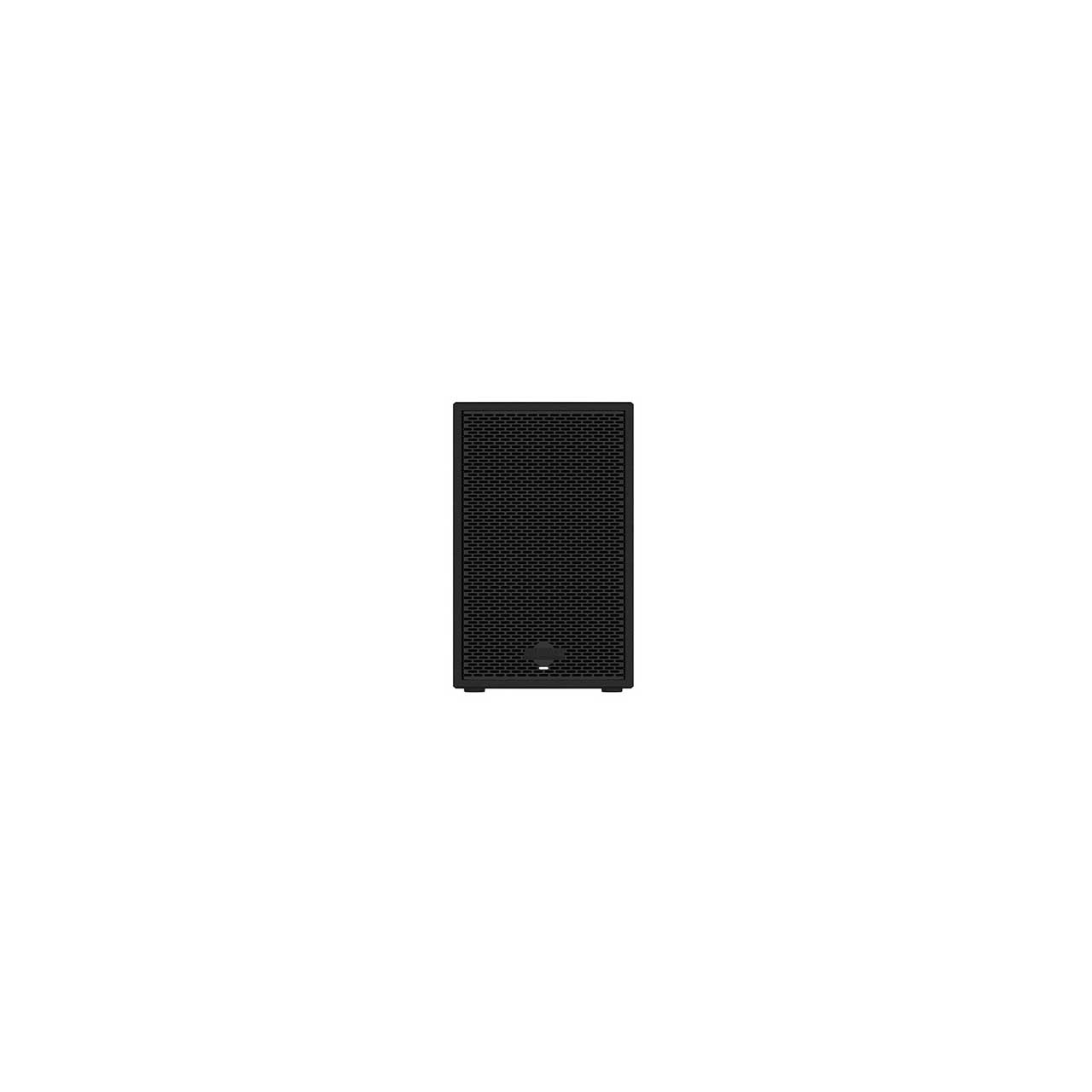

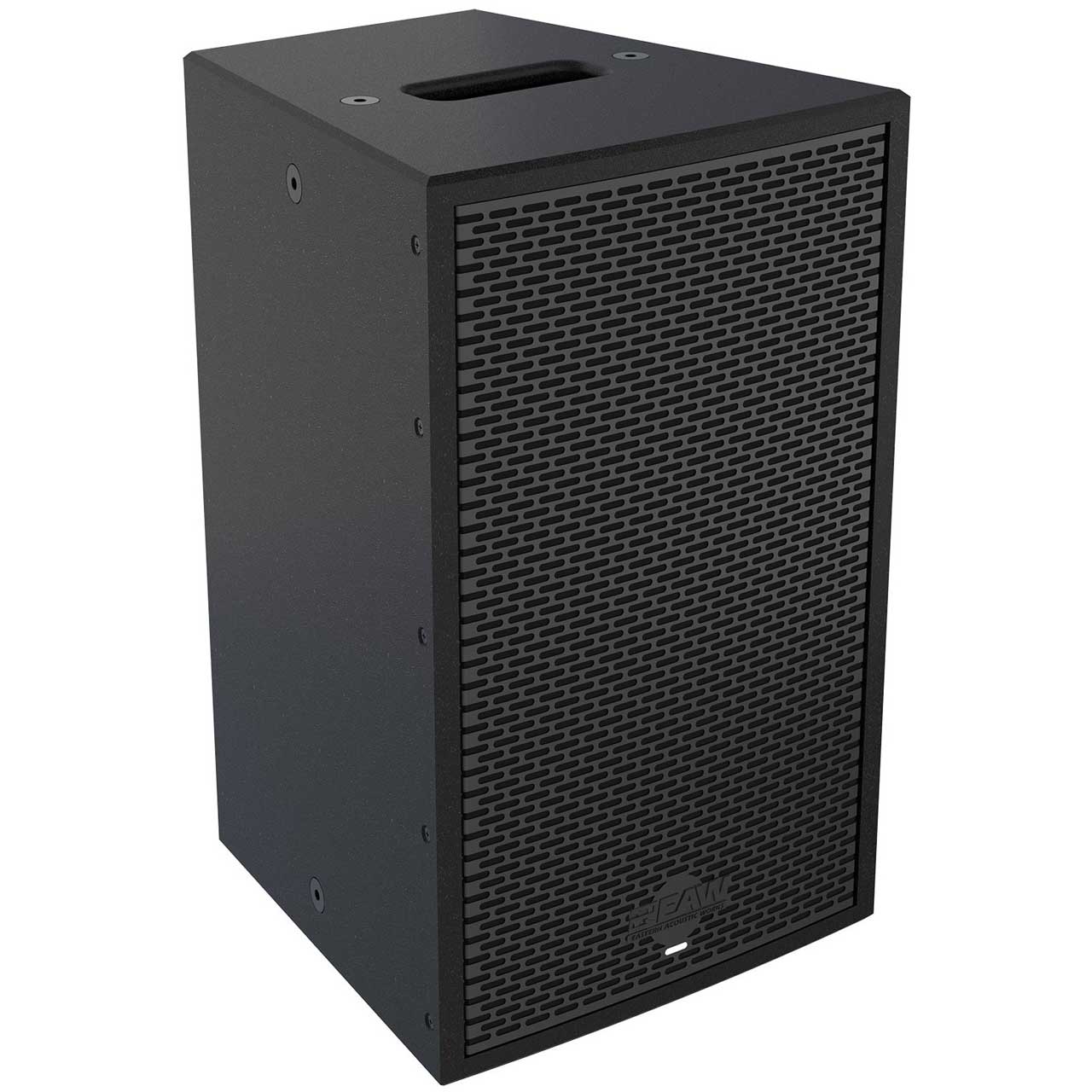

EAW Radius RSX89 2-Way Self-Powered Loudspeaker - 2 x 500W

ITEM #: EAW-RSX89 MFG #: RSX89

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Free Shipping with $49 Minimum Order

Our Price:

$1,643.00

Availability: Ships Factory Direct, Typically in 3-10 Business Days
iAvailability Description Popup


RSX89 - Overview

Designed to streamline setup and deliver maximum results in minimum time, RADIUS couples unique and intelligent features with EAW's signature acoustical design to deliver solutions for rental firms and system integrators. The RSX89 features onboard bi-amplified electronics (500W RMS/ 1000W peak) featuring signature EAW DSP including Focusing and DynO for pristine impulse response. The MK inspired constant directivity horn 90°x60° coverage and is rotatable for flexibility. EAWmosaic™ app provides total system optimization from anywhere in the venue, plus intuitive room design and prediction in a single, comprehensive application. With the proven sonic performance of EAW's acoustic design and DSP mastery plus full Dante integration across the line, RADIUS delivers an intelligent and flexible system to fit any budget.

Perfect Applications Include:
House of Worship
Theatres, Auditorium and Performing Arts Centers
Live Music Clubs
Corporate AV Houses
Live Production/Regional Rental Houses
Dry Hire

From the most compact 2-way JF systems through the celebrated 3-way KF systems upon which the company was established, EAW offers an extensive range of portable point source systems that are perfect for a wide variety of applications from fills to mains.

All systems incorporate highly customized devices with a "no-holds-barred" approach to output capability and bandwidth in a vehicle and human friendly package. The portable point source grouping includes both conventional externally-powered systems and comprehensively integrated systems complete with on-board power, multi-stage processing and networked audio and control.

  • Features:

    • Extremely approachable EAWmosaic™ iOS app delivers system prediction, control and monitoring from any location in the venue.
    • Proven EAW acoustical design and DSP including Focusing and DynO provides a pristine impulse response at all output levels.
    • Four pre-defined voicings provide a variety of tonal starting points.
    • Integrated Dante™ networking (with loop-thru) on all models including Analog redundancy capability.

  • Specifications:

    • CONFIGURATION
    • Subsystem:
    • Transducer: LF - 1 x 8 in cone, 2 in voice coil; HF - 1 x 1 in exit, 1.4 in voice coil compression driver
    • Loading: LF - Vented; HF - Horn-loaded
    • Operating Mode:
    • Amplifier Channels: Bi-amp (LF/HF)
    • Signal Processing: DSP w/EAW Focusing™ and DynO™

      PERFORMANCE
    • Operating Range: 70 Hz to 20 kHz
    • Nominal Beamwidth: Horizontal 90°; Vertical 60°
    • Calculated Axial Output Limit (whole space SPL): Average: 119 dB (LF/HF); Peak: 125 dB (LF/HF)
    • Input Type: Electronically balanced
    • Max Input Level: 21dBu
    • Impedance: 20 kOhm (balanced)
    • Input Wiring: XLRF, Pin 1 chassis, pin 2 +, pin 3 - Separate loop-thru XLRM (for analog signal only)
    • Input Selection: Analog, Dante
    • Amplifiers & Processing (LF/HF) Type: Modified Class D (LF/HF)
    • Maximum Output: 500W (LF/HF)
    • Driver Protection: Integral DSP limiting (LF/HF)
    • AC Mains (nominal) Connector: Neutrik PowerCon
    • Input: 100 V to 240 V
    • Frequency: 50 Hz to 60 Hz
    • Power Consumption: Idle - 50 W
    • Peak Draw: 400 W
    • Controls/Communication Connections: 2x Neutrik etherCON, RJ-45
    • Protocols: Ethernet/Dante
    • Software: EAWmosaic™ (available on the App Store)

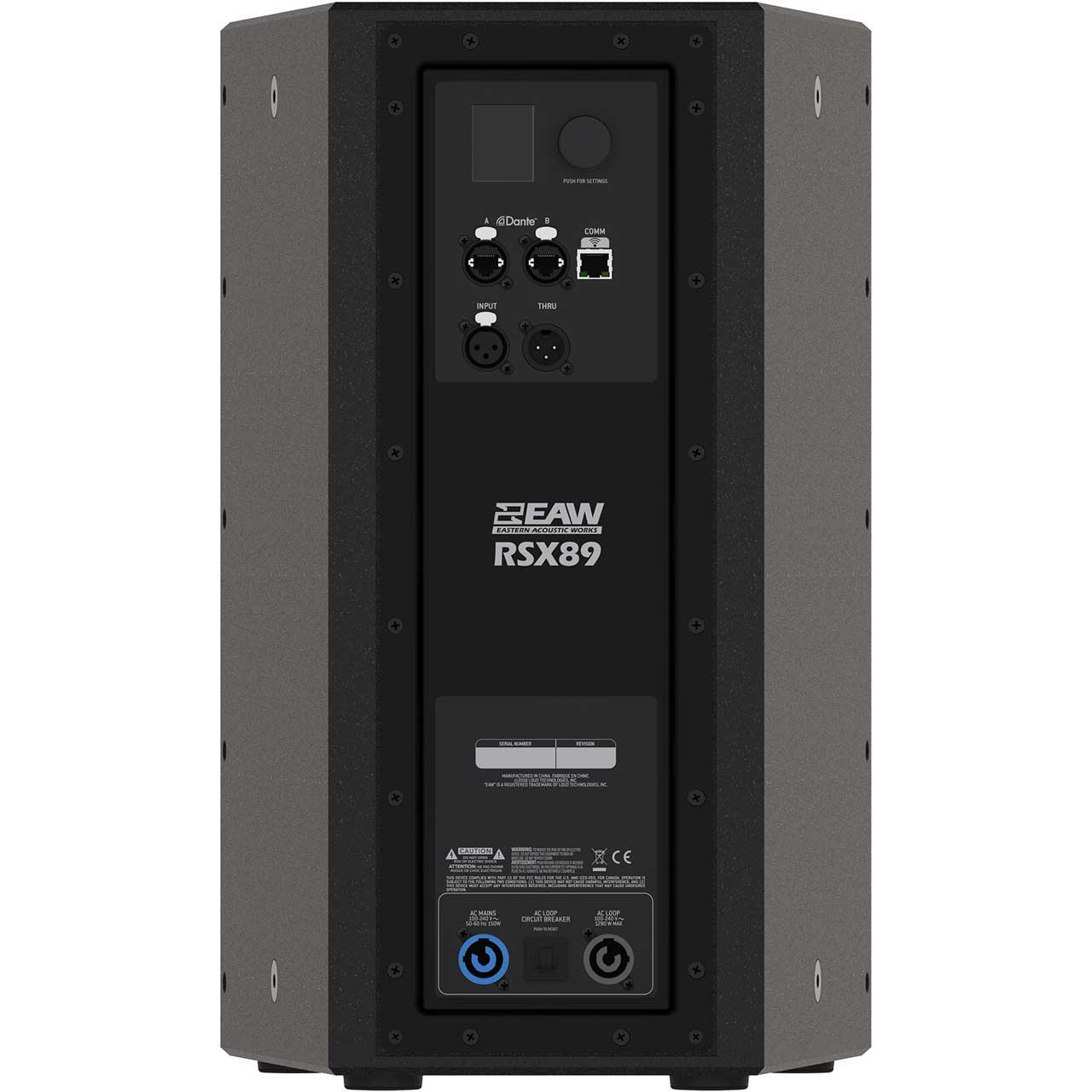

    • Indicators: LCD Screen on amplifier panel for UI, Logo LED (User-definable behavior)
    • User Controls: Push-button Rotary Encoder

      PHYSICAL
    • Dimensions (inches/millimeters):
    • Height: 19.5/498
    • Width: 12.4/315
    • Depth: 12.8/326
    • Weight (pounds/kilograms): 33.6/15.3
