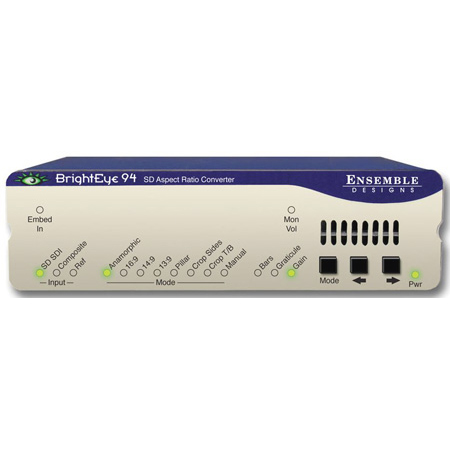

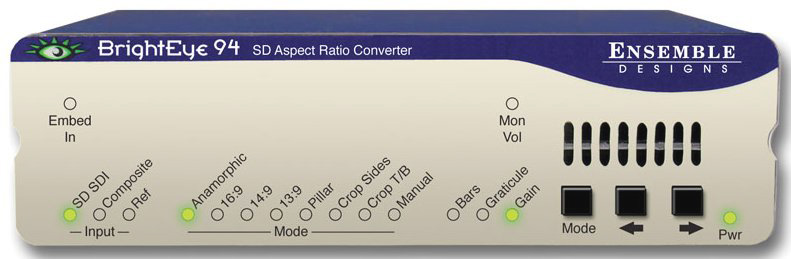

Ensemble Designs BrightEye 94 SD Aspect Ratio Converter

BE94 - Overview

• Features:

  • SD ARC
  • Timeable output
  • Mirror output mode for on-camera talent
  • Graticule and Safe Title generator
  • SDI, composite video and HDMI outputs
  • Frame sync
  • 12 and 16 bit processing
  • Passes embedded audio


• Specifications:

  • Analog Video Input
  • Number One
  • Type Analog Composite PAL or NTSC
  • Resolution Digitized at 12 bits
  • Impedance 75 U
  • Return Loss >40 dB
  • Input DC +/-1 volt DC
  • Input Hum <100 mV

    Serial Digital Input
  • Number One
  • Signal Type 270 Mb/s SD Serial Digital (SMPTE 259M)
  • Impedance 75 U
  • Return Loss >15 dB
  • Max Cable Length 300 meters for 270 Mb/s
  • Automatic Input Cable Equalization

    Analog Video Output
  • Number One
  • Type Composite PAL or NTSC
  • Delay Adjustable from 1 field to 1 frame
  • Return Loss >40 dB
  • Output DC <100 mV

    Reference Input
  • Number One
  • Type 1 V P-P Composite Video PAL or NTSC or
  • Tri-Level Sync
  • Impedance 75 U
  • Return Loss >40 dB

    Serial Digital Output
  • Number Two
  • Type SD Serial Digital 270 Mb/s SMPTE 259M
  • Delay Adjustable from 1 field to 1 frame
  • Processing 12 and 16 bit
  • Impedance 75 U
  • Return Loss >15 dB
  • Max Cable Length 300 meters

    HDMI Output
  • Number One
  • Connector HDMI
  • Type Follows SDI out

    Audio Monitoring Output
  • Number One (select from sixteen channels)
  • Connector 3.5 mm stereo mini jack

    General Specifications
  • Size 5.63" W x 1.65" H x 5.98" D
  • (143 mm x 42 mm x 152 mm)
  • including connectors and flange
  • Weight 1 lb 7 oz
  • Power 12 volts, 9 watts
  • (100-230 VAC modular power supply)
  • Temperature Range 0 to 40° C ambient (all specs met)
  • Relative Humidity 0 to 95%, non-condensing
  • Altitude 0 to 10,000 ft.
