ESE ES-101 Low Cost GPS Master Clock / Time Code Generator w/ 3 Types Of Time Code.

ITEM #: ES 101 MFG #: ES 101

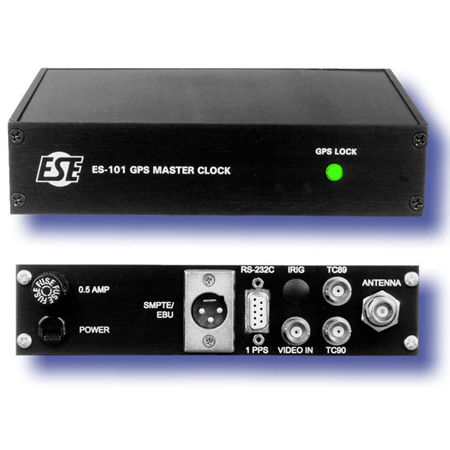

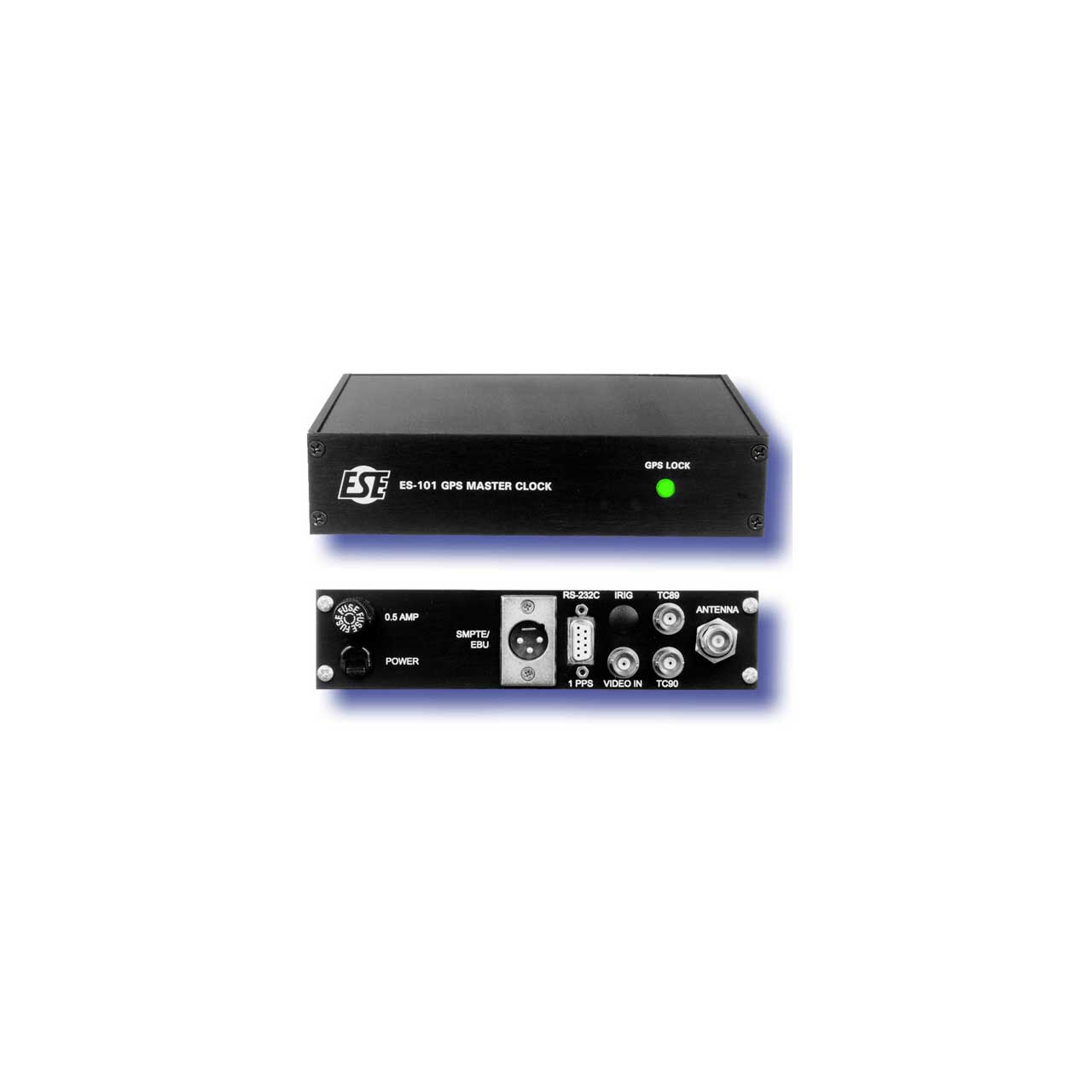

Primary Image
ESE
Free Shipping with $49 Minimum Order

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

List Price:

$995.00

Our Price:

$945.49

Add to Wish ListLeasing Options
Availability: Ships Factory Direct, Typically in 3-10 Business Days
iAvailability Description Popup
  • Special Order Item: non-cancelable, non-returnable, non-refundable.
Report Lower PriceLarge Quantity Quote

ES 101 - Overview

The ES-101 is a low-cost yet very accurate GPS Master Clock/Time Code Generator. The unit receives time and date information from Global Positioning System satellites and supplies this data to the user in the form of three (3) different types of time code. ... ASCII (RS-232C), ESE-TC89T and ESE-TC90T. Two (2) One Pulse Per Second outputs and a GPS "Lock" output are also standard features. A twelve-channel receiver is employed that is capable of tracking up to twelve (12) satellites simultaneously, although reception of only one is required for time data to be output. Several options are available that allow the unit to meet most any requirement asked from a Master Clock or Time Code Generator. Options available include SMPTE, EBU, IRIG-B or IRIG-E time code outputs.

The ES-101 also features ASCII (RS-232C), ESE-TC89 and ESE-TC90 Time Code outputs, two (2) One Pulse Per Second outputs and a GPS "Lock" output.

  • Features:

    • SMPTE/EBU, IRIG-B, USB, ASCII (RS-232C) & ESE Time Code Outputs.
    • GPS "Lock" indicator.
    • Automatic Or Manual Daylight Saving Time Correction
    • Leap Second Correction
    • Rugged Desk Top & Rack Mount Enclosures
    • Indoor / Outdoor Antenna With 16' Cable
    • Time Zone Offset
    • 6-Digit Or 9-Digit .56" LED Display
    • Loss Of GPS Signal Output
    • Dual 1 PPS Outputs
    • Optional DC Operation for Field and Ground Mobile Applications
      Options available.
    • 10nS:10nS Accuracy: The accuracy of the unit is improved to 10nS.
    • 6-Digit: Six-Digit Display: A 6-Digit (Hr, Min & Sec) Front Panel Mounted Display. Option 'P' is required.
    • 9-Digit:Nine-Digit Display: A 9-Digit (Days, Hr, Min & Sec) Front Panel Mounted Display (.55" LED) is provided. Option 'P' is required.
    • Ant: GPS Antenna: High Performance GPS Antenna for harsh RF Environments.
    • B: Parallel BCD Output: CMOS compatible, 5-volt logic in parallel four-line format. Specify the ES-169B.
    • BBU: Battery Back-Up: An internal Gel-Cell battery is provided capable of maintaining the unit's microprocessor for up to a 4-hour power outage.
    • DC: DC Operation: Requires the unit to be powered from a DC source exclusively, typically +12 to +35 VDC.
    • EBU: EBU Time Code: The unit is configured to output EBU Time Code instead of SMPTE (standard, or at no charge on many units).
    • HR: Relay Contact Closure: A contact closure occurs at the top of each Hour. Hour and 1/2 Hour closure may be ordered on some products. Relay contacts are rated at 10-Watts maximum load, 500mA maximum switching current.
    • IRIG-B: IRIG-B Output: IRIG-B Time Code Output. IRIG-E cannot be specified when this option is ordered.
    • IRIG-E: IRIG-E Output: IRIG-E Time Code Output. IRIG-B cannot be specified when this option is ordered.
    • J: 220 VAC/50 Hz Operation: The unit is configured to operate from 220 VAC line voltage. 117 VAC 50/60 Hz is standard. EBU and/or PAL may also be specified, if needed.
    • K: provides a 10 MHz output and a 1 KHz output. Options '10ns' and 'P' are required if option 'K' is specified.
    • P: 19" Front Panel (Rack Mount): Designed for mounting into a standard equipment rack. Panel is 1/8" black anodized Aluminum and chassis is 5" - 10" deep.
    • P2: Dual Rack Mount: Allows specific units to be mounted side-by-side on a single Rack Mount panel.
    • SMPTE/EBU: SMPTE or EBU Time Code outputs: SMPTE or EBU Time Code outputs may be specified (not available with IRIG).


  • Specifications:

    • Electrical: 117 VAC, 50/60 Hz
    • Power: 5 Watts Typical
    • Enclosure: Desk Top
    • Mechanical: 1.6" H x 7" W x 5" D
    • Accuracy: 1 PPS @ <500nS
    • Drift: 33mS/day (if no GPS signal)
    • Outputs: ESE-TC89: drives 100 Slaves @ 4000', ESE-TC90: drives100 Slaves @ 4000', 1 PPS: TTL, 20% Duty Cycle, 1 PPS: TTL, 50% Duty Cycle, RS-232C: ASCII Date & Time. me RS-232C: Date & Time Output RS-232C: Date & Time Output @9600 Baud, 8 Data, No Parity, 1 Stop.
    • GPS Receiver: Internal 12-Channel.
    • Antenna: Indoor/Outdoor with 16' Cable.
