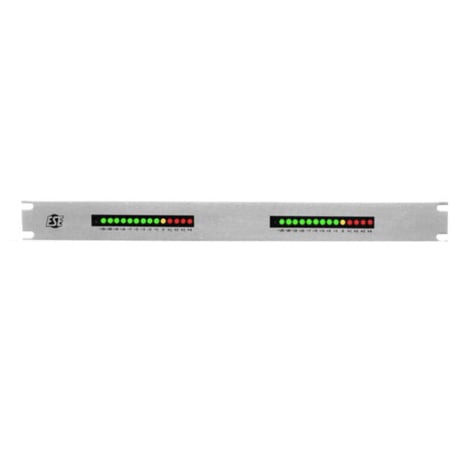

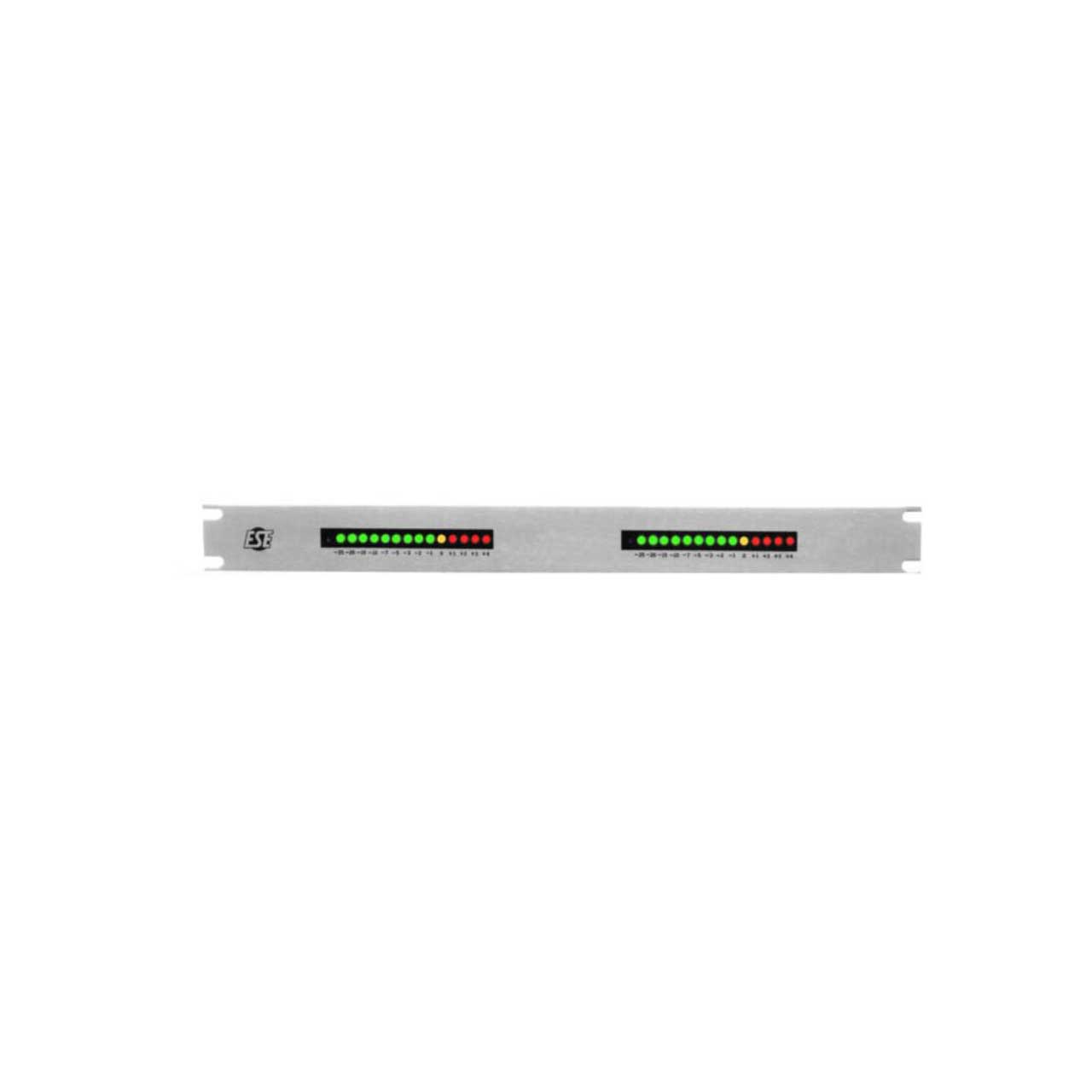

ESE ES-215H ESE ES-215HP2 Dual Horizontal Audio Level Indicators & Rack Mount In-Line VU Meters

ITEM #: ES-215HP2 MFG #: ES 215HP2

Primary Image
  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2
Free Shipping with $49 Minimum Order

List Price:

$370.00

Our Price:

$351.95

Availability: Ships Factory Direct, Typically in 3-10 Business Days
iAvailability Description Popup
  • Special Order Item: non-cancelable, non-returnable, non-refundable.


ES 215HP2 - Overview

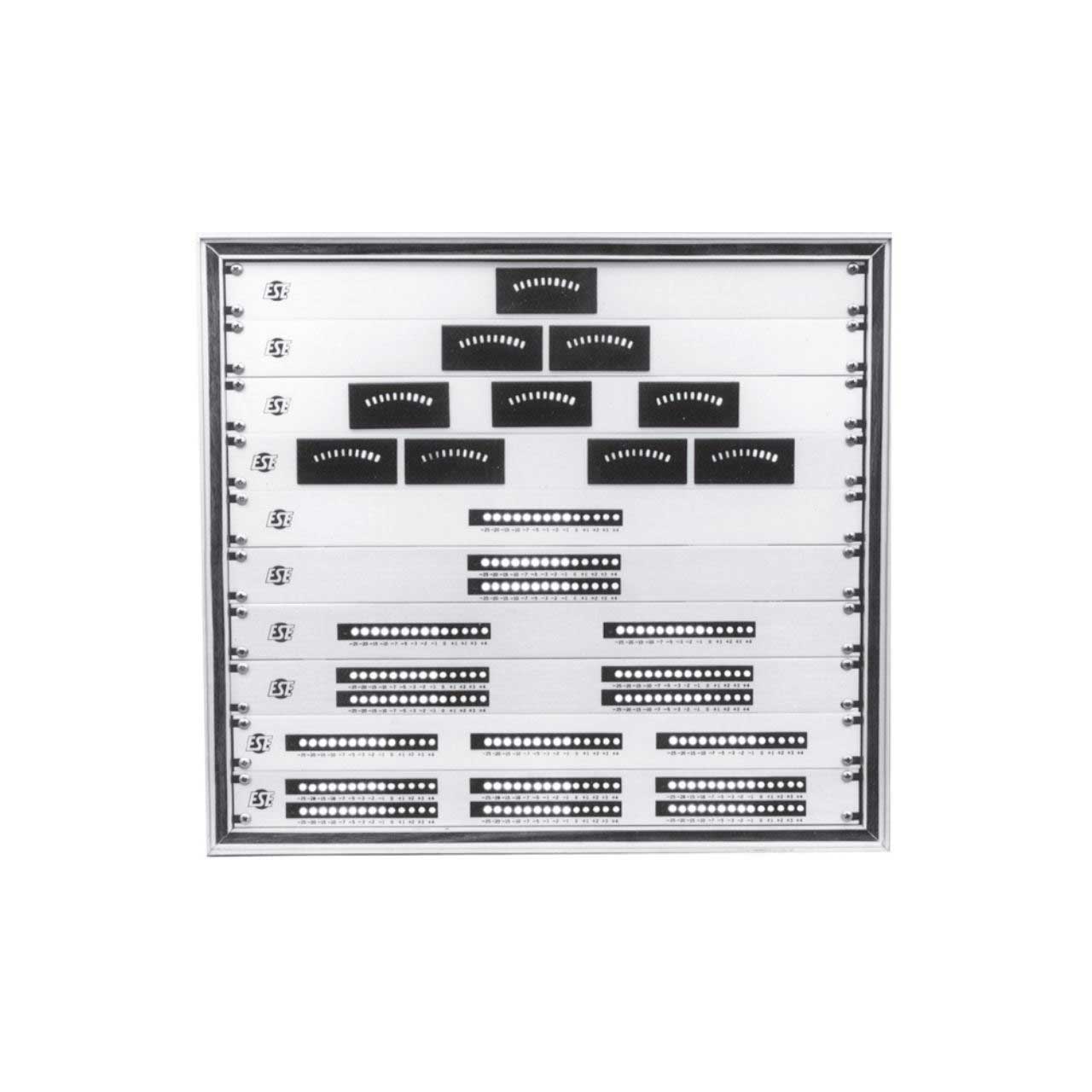

The ES-215 is an in-line audio level indicator which provides a purely digital representation of an audio signal's loudness. The unit features fourteen LED's (nine Green, one Yellow and four Red) that display levels of -25, -20, -15, -10, -7, -5, -3, -2, -1, 0, +1, +2, +3 and +4 db. Units are shipped in Peak mode. The panel is designed for console mounting. Four pigtail leads are provided for Hard Wiring Power and Audio hookup. The unit measures 7"W x 1.5"H x 3.5"D. ESE offers two basic versions of the "Digital" Audio Level (VU) Indicator. Each version has a reference level ("0 dB") adjustment and is optionally available in a rack mount configuration with as many as six units mounted on a single 1 3/4" x 19" panel.

  • Features:

    • 14 LED Levels
    • Peak Detecting
    • Fast or Slow Averaging (VU) optional
    • Balanced or Unbalanced input
    • Transformer isolated
    • Calibration adjustment
    • 15-35 VDC Power Input

  • Specifications:

    • Indicators: 14
    • Scale: +4 dB thru -25 dB
    • Reference Level "0" Adjustment: -16 dB to +30 dB
    • Input Impedance: 2200 ohms @ max. sensitivity 6000 ohms, balanced (any sensitivity)
    • 6800 ohms @ +8 dBm "House Level"
    • 10,000 ohms @ min. sensitivity
    • Input Circuit: Transformer isolated, balanced bridging
    • Frequency Response: 20 - 20 Khz +/- 1 dB (all modes)
    • Rise Times: Peak Mode - < 250 uSec Peak Mode - 1 mSec
    • Fast Averaging Mode - < 25 mSec VU Mode - 300 mSec
    • VU Mode - ~ 300 mSec
    • Fall Time: 300 mSec from full scale (all modes)
    • Power Requirement: Unregulated +15 to +35 VDC or regulated +12 VDC (220 mA max.)
    • Modes of Operation: Peak (unless otherwise specified), Fast Averaging (Apparent Loudness) VU (Slow Averaging)
    • Mode Selection: PCB jumper/component value change PCB Jumper
    • Mechanical: 7" x 1 1/2" x 3 1/2" Deep 3" x 1.4" x 1.5" Deep
    • Options: P, P2, HP2, P3, P4, P6
