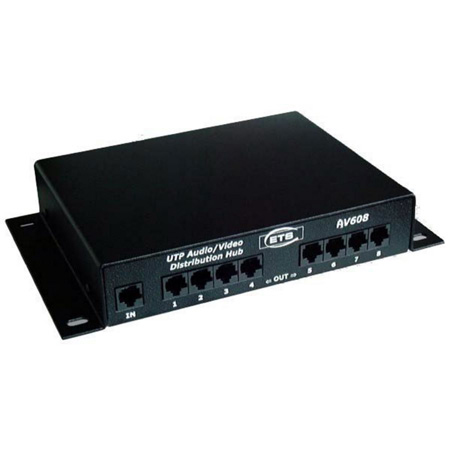

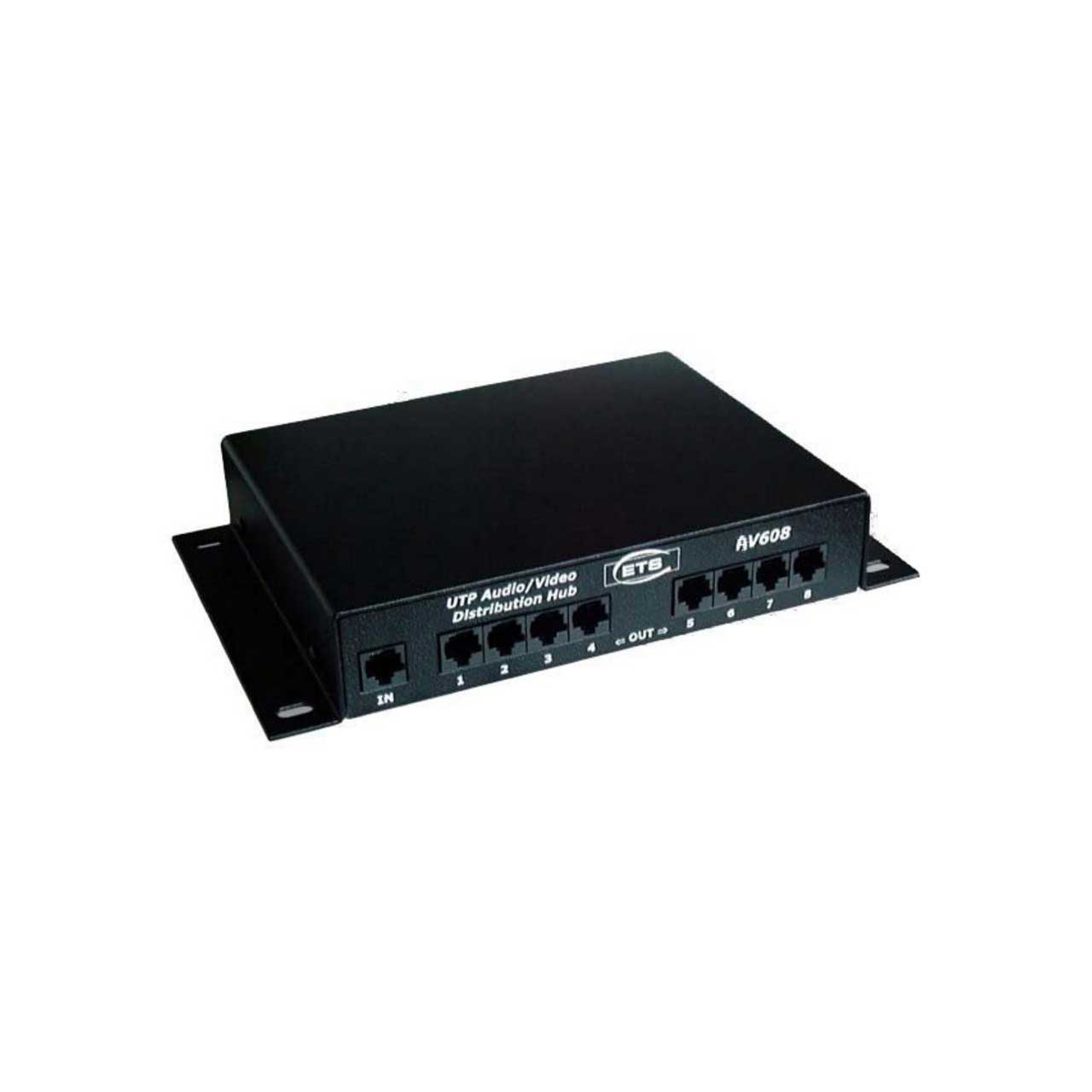

The ETS CAT5 A/V Broadcast System is a UTP Audio/Video Distribution Hub. It has baseband video with two channels of line-level audio transmit through the distribution amplifier, creating 8 out- put sets (video + stereo audio) from a single source. The powered AV608 can be cascaded twice (three tiers), yielding a total distribution of 512 displays from just one input source.

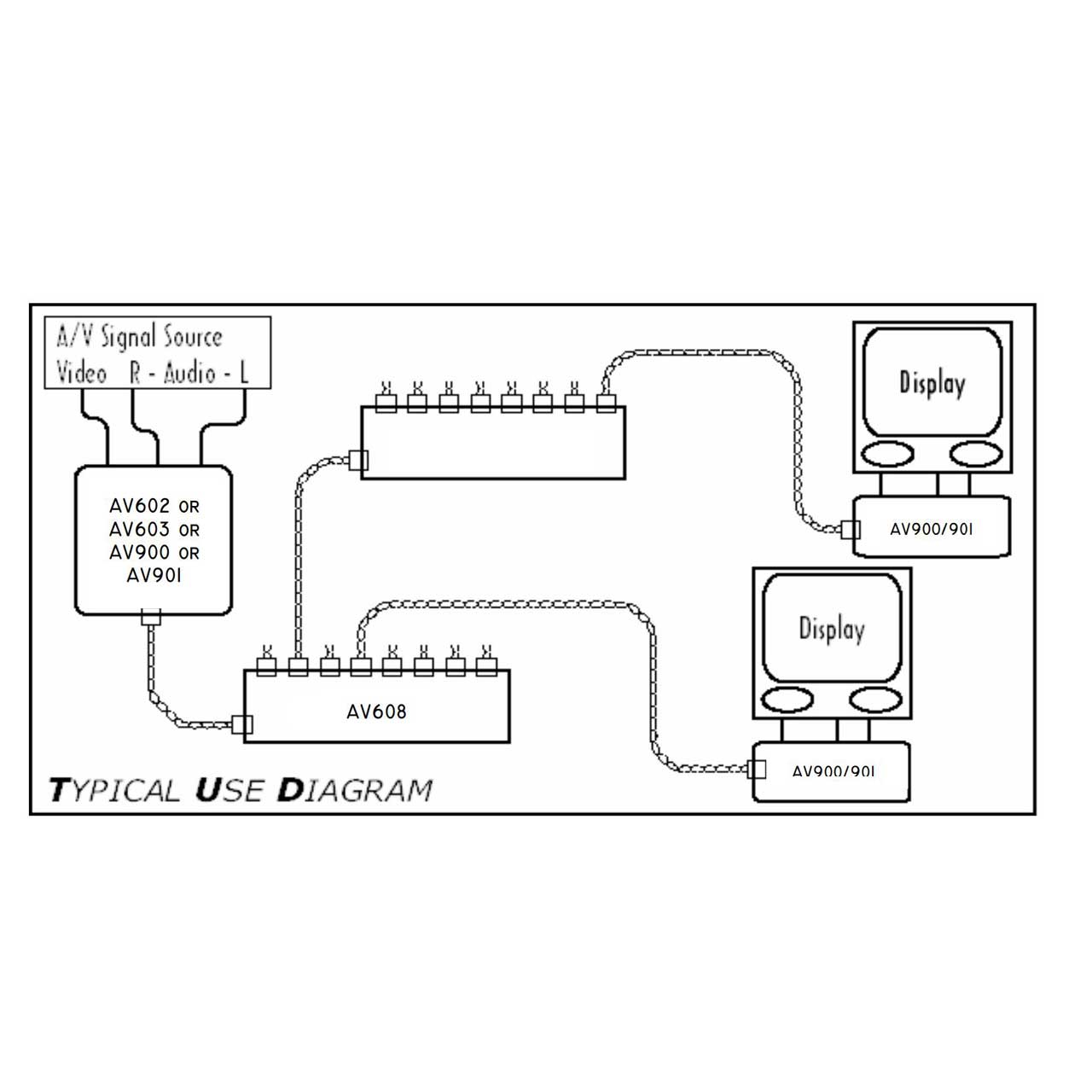

NTSC, PAL, SECAM or CCTV signals are converted to and from UTP using the AV900 or AV901 Baseband Audio/Video Baluns. Alternatively, the AV602 or AV603 Isolated Video/Audio Source Balun may be used between the signal source and the first AV608. The AV602 or AV603 provides full isolation of the video signal, preventing the visual artifacts that can be caused by ground loops.
The AV608 System supports color video and stereo audio over a total run length in excess of 330 meters (inclusive of all cable segments) on Category 5 or better cable. Black and white signals will typically be supported up to 750 meters.
Applications:
Point-of-Sale and In-store Advertising
Information and Entertainment Distribution
Educational Installations
Healthcare Facilities
Worship Halls
