ETS PA205M - Overview

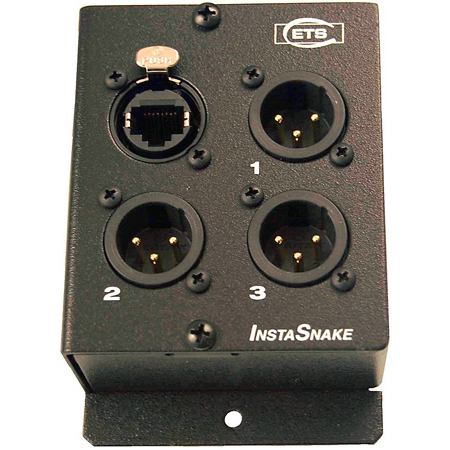

The ETS InstaSnake PA200 Series is configured for 3 sends and 1 return. Each passive send unit (PA205F) features 3 Female XLR and 1 Male XLR to RJ45 jack, all pins. Each passive receive unit (PA205M) features 3 Male XLR and 1 Female XLR to RJ45 jack, all pins. The PA205 will send phantom power over standard Cat5 or 6 cables. Phantom power has been tested to 850 feet over shielded cable. The basic units are a pair of passive units with bi-directional capability which can be input directly into analog or digital consoles. Designed to the highest professional standards the InstaSnake has a wide, flat frequency response, low THD and residual noise. The InstaSnake has been factory tested to 1900 feet over CAT5 using low Z dynamic microphones.

  • Features:

    • Very easy transport Low cost No ground loops Add second unit to increase the number of channels May be used for analog or digital audio Supports 48V phantom power Rugged, `road-ready' construction RoHS compliant USA Made 100% tested


  • Specifications:

    • Crosstalk -109 dB between Ch1 and Ch2 @ 20KHz -106 dB between Ch1 and Ch4, -106 dB between Ch2 and Ch3, -106 dB between Ch2 and Ch4, -109 dB between Ch3 and Ch4, -109 dB between Ch3 and Ch4 Distance: UTP – 1900 ft. STP 850 ft – phantom power only Up to 1105 ft (44.1 KHz.48 KHz sampling rate) Up to 877 ft (96 KHz sampling rate) Connectors: Female or Male XLR to Ethercon RJ45 jack or 110 punchdown (wall plate) Dimensions L x W x H: 107mm x 70mm x 45mm


  • Note

    :

    • You can mix and match Mic/Line, Line or AES/EBU configurations making the InstaSnake a versatile high quality solution at very affordable prices.
