Atlas Sound FA42T-6MB Strategy II 4 Inch 16W @ 70.7V/100V Motor Board Assembly

ITEM #: FA42T-6MB MFG #: FA42T-6MB

Primary Image
AtlasIED
Free Shipping with $49 Minimum Order

List Price:

$81.99

Our Price:

$67.99

Add to Wish ListLeasing Options
Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup
Report Lower PriceLarge Quantity Quote

FA42T-6MB - Overview

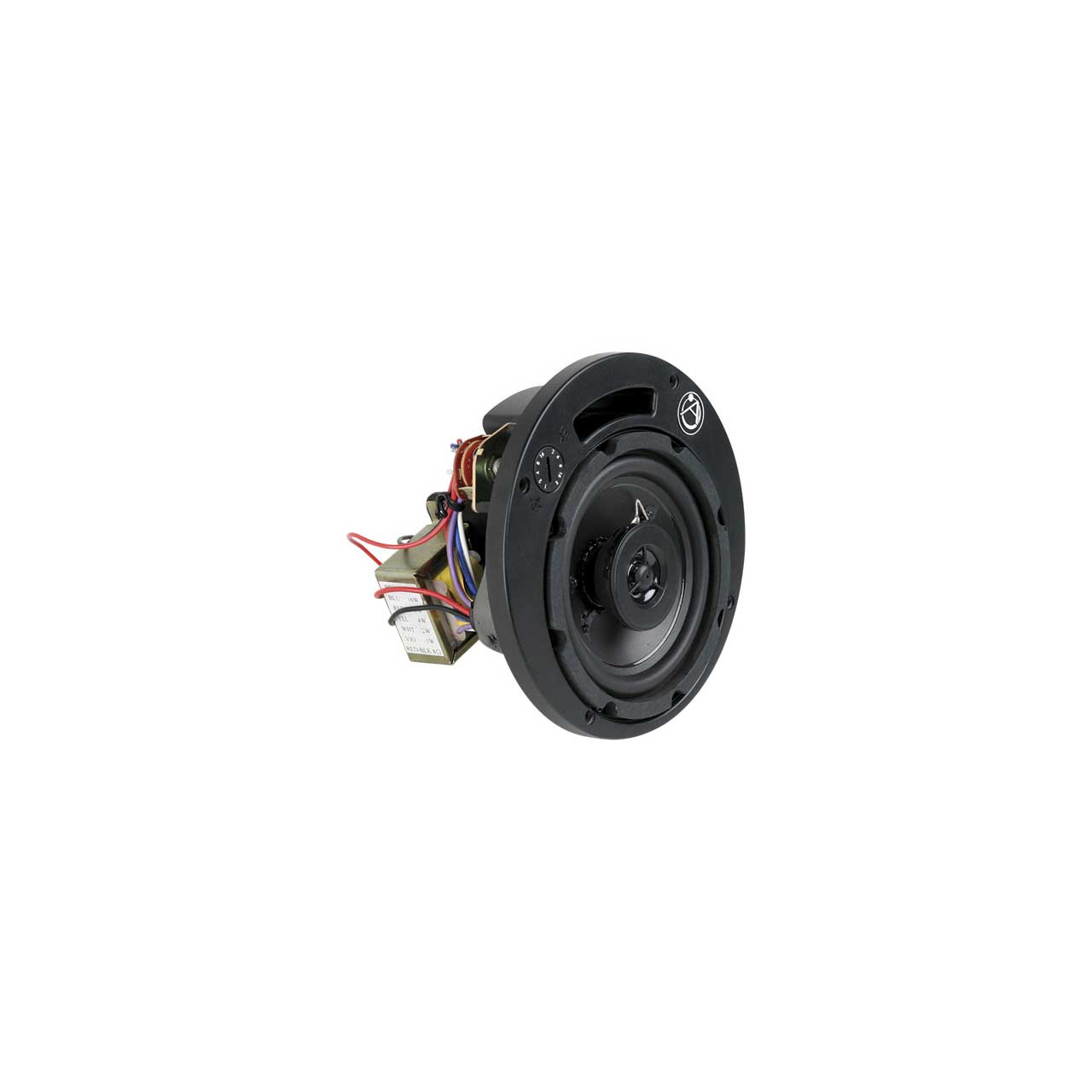

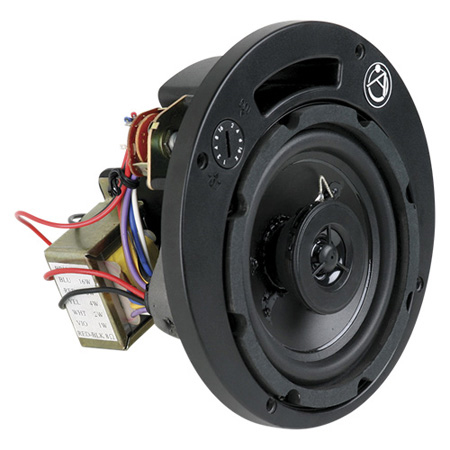

Model FA42T-6MB is the entire 4" speaker/transformer/selector switch/front plate assembly found in the FAP42T assembly. The footprint of the FA42T-6MB is identical to a standard FA series 6" speaker component. This footprint allows the motor board to fit into all original Strategy Series 6" enclosures in the exact same manner as a regular 6" FA speaker (FA136Txx).

  • Features:

    • 4" Speaker installs into 6" Strategy enclosure
    • Designed for division of labor installations when enclosures need to be installed before speakers are installed
    • Enhanced quality 70.7V/100V internal transformers minimize insertion loss and maintain low frequency response while providing increased output for higher SPL applications
    • Front mounted tap selector switch for easy system tuning adjustments
    • Motorboard assembly has same footprint and bolt-hole pattern as 6" speaker
    • Tuned port maximizes low frequency response from FA97-6 & FA95-6 enclosure
    • UL1480 for General Signaling Listed file UEAY.S1824


  • Specifications:

    • Depth 5 1/2" (13.97 cm)
    • Diameter 7" (17.78 cm)
    • Shipping Weight 4.00 lbs (1.81 kgs)
    • Frequency Response 75Hz - 20kHz
    • Power Taps 1, 2, 4, 8, 16
    • Speaker Type Coaxial
    • Dispersion 130°
    • Sensitivity 88dB Average
    • UL Listed/Standard 1480


  • GTIN:

    0612079179800
