Ferrofish PULSE-16-MX AD/DA Converter - ADAT and MADI

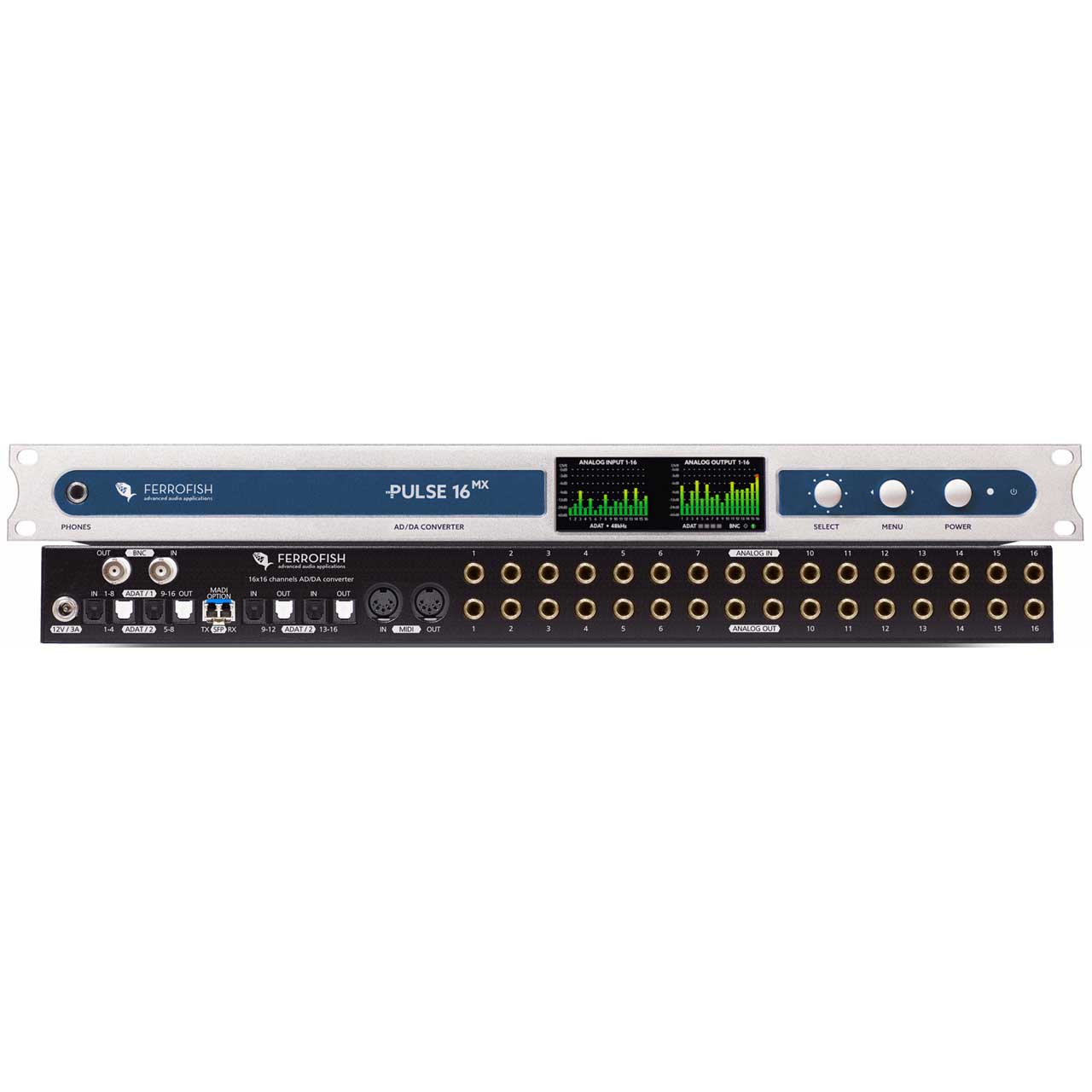

PULSE-16-MX - Overview

• Features:

  • Routing Matrix: The internal matrix allows the free routing and splitting of all 112 Inputs to all 112 Outputs in blocks of 8 channels; This matrix is shown as a grid inside the ROUTING menu. The inputs are shown in the columns, while the rows represent the outputs. A solid square between these lines indicates a connection; The matrix is saved within the device presets and can be recalled at any time
  • Direct Headphone Monitoring: The headphone output on the front allows it to monitor every mono or stereo I/O directly from the unit - no additional device or DAW interface is necessary; The headphones signal can be easily selected via a dedicated source control on the TFT display
  • Fully. Guided. Control.

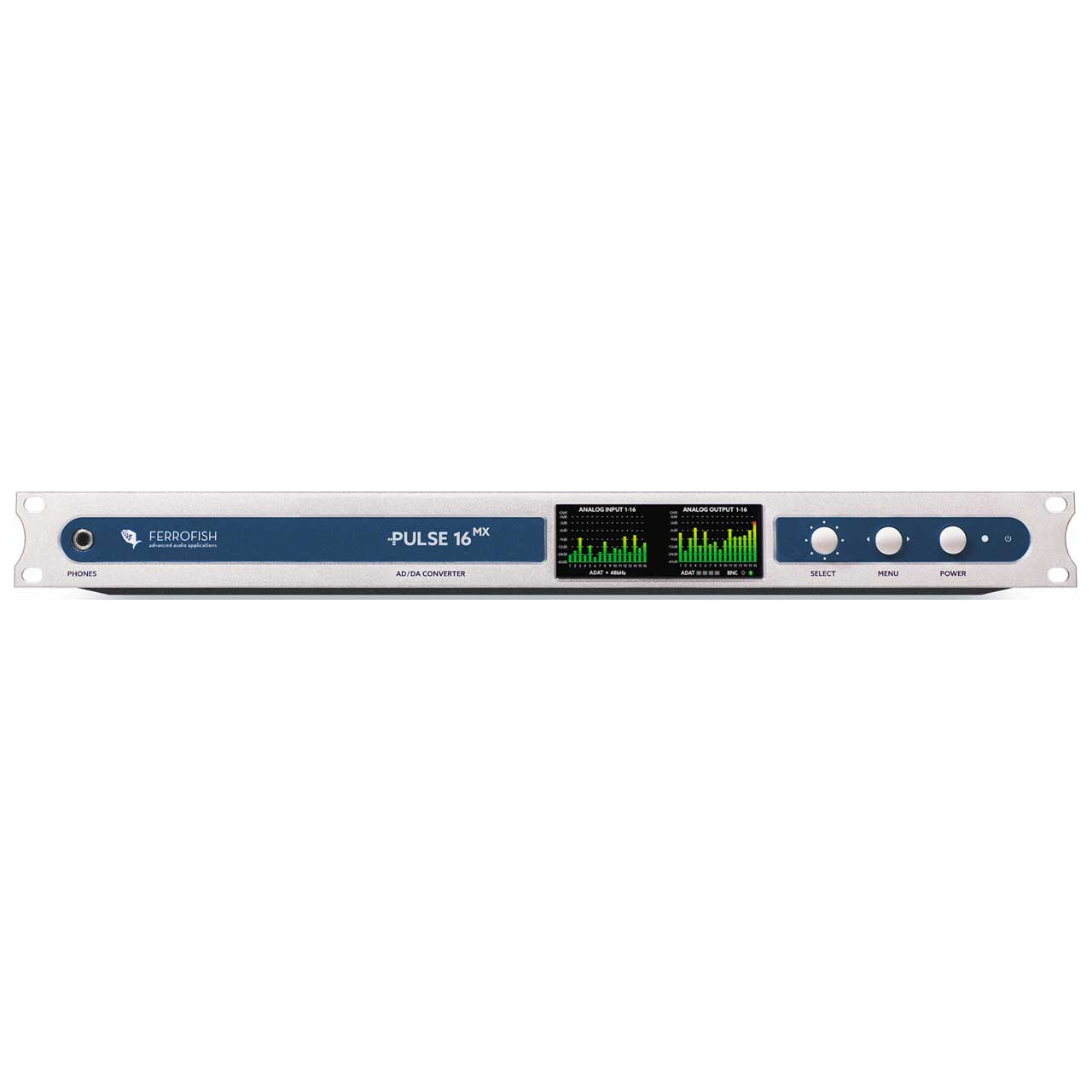

  • Two high-resolution TFT displays provide complete control of all features:
    Detailed level information for all 2 x 16 signals at a glance
    Analog Gains
    Routing matrix
    Headphone control, including source selection
    Settings (e. g. Clock, Termination, TFT Brightness, Device Lock)
    Preset control (Save, Load)
  • The innovative on-board contextual help, much loved by Ferrofish users, allows it to use this high-tech device, without reaching for the manual
  • SMUX4 with 192 kHz operation (requires installed MADI option)
  • Delay-compensation for MADI chain (requires installed MADI option)
  • MIDI over MADI Preset Management (requires installed MADI option)


• Specifications:

  • PULSE 16 MX (Multimode included)
  • PULSe 16 optional via SFP:
    SFP port for MADI optical Multimode or Singlemode SFP module
    64 channels @32kHz, 44.1kHz, 48kHz
    32 channels @64kHz, 88.2kHz, 96kHz
    16 channels @128kHz, 176.4kHz, 192kHz
  • Support of MIDI over MADI.
  • Latency: 2 samples

    Analog Inputs (AD)
  • 2 x CS5368 (Cirrus Logic)
  • 16 x TRS ¬" (6.3mm), female
  • Analog switches: +20dBu, +13dBu, +4dBu
  • Digital gain: +20dBu ... -8dBu, 1dB steps
  • Latency:
    @48kHz: 7.8/fs, 0.16ms
    @96kHz: 5.4/fs, 0.06ms
    @192kHz: 6.6/fs, 0.03ms
  • OpAmps: RC4580
  • Level indicator: TFT screen, 28 levels

    Analog Outputs (DA)
  • 2 x CS4365 (Cirrus Logic)
  • 16 x TRS ¬" (6.3mm), female
  • Digital gain: +20dBu ... -8 dBu, 1dB steps
  • Latency:
    @48kHz: 12/fs, 0.25ms
    @96kHz: 9/fs, 0.09ms
    @192kHz: 5/fs, 0.03ms
  • OpAmps: RC4580

    Headphones Out
  • 1 x ¼" (6.3mm) TRS jack, stereo.
  • Selectable mono or stereo source.
  • Digitally controlled volume level.

    ADAT I/O
  • 4+4 optical ports (8 channels each with 48 kHz)
  • 16 channels @32kHz, 44.1kHz, 48kHz
  • 16 channels @64kHz, 88.2kHz, 96kHz
  • 8 channels @128kHz, 176.4kHz, 192kHz (SMUX4 - only with installed MADI MX option)
  • Latency: 2 samples
    MIDI I/O
  • 2 x DIN5 connector for remote control of the unit
  • Conversion MIDI <> MIDI over MADI possible (MADI MX option required.)

    Wordclock I/O
  • BNC: 1 x input, 1 x output
  • 75 Ohm Termination switchable for input

    Power Supply
  • 12V, 3A
  • 1 x input jack with screw lock.
  • Power required: 12VA in operation, 0,1VA in standby mode
  • (Efficiency Level VI)
  • Internal resettable polyfuse
  • 1 x power supply included

    Dimensions
  • 1HU
  • Depth: 19cm (7.5") (including connectors)
  • Weight: 2 kg (4.4lbs)
  • Ambient temperature: 41° to 113°F (+5° up to +45°C)

    Internal Clock
  • TCXO (temp. compensated oscillator) with high accuracy.
  • Initial accuracy: ±1.5ppm
  • Over temperature range: ±2.5ppm
  • Aging: ±1ppm

    PLL
  • Digitally controlled PLL / Jitter reduction system
  • Output jitter: 50ps; 100ps typ

    LCD Displays
  • 2 x TFT Color Screens for the complete control of all analog I/O levels and all settings of the unit
  • One Key Control provides an easy control of all functions
  • Multi language help pages guides available (No need to study the manual)
