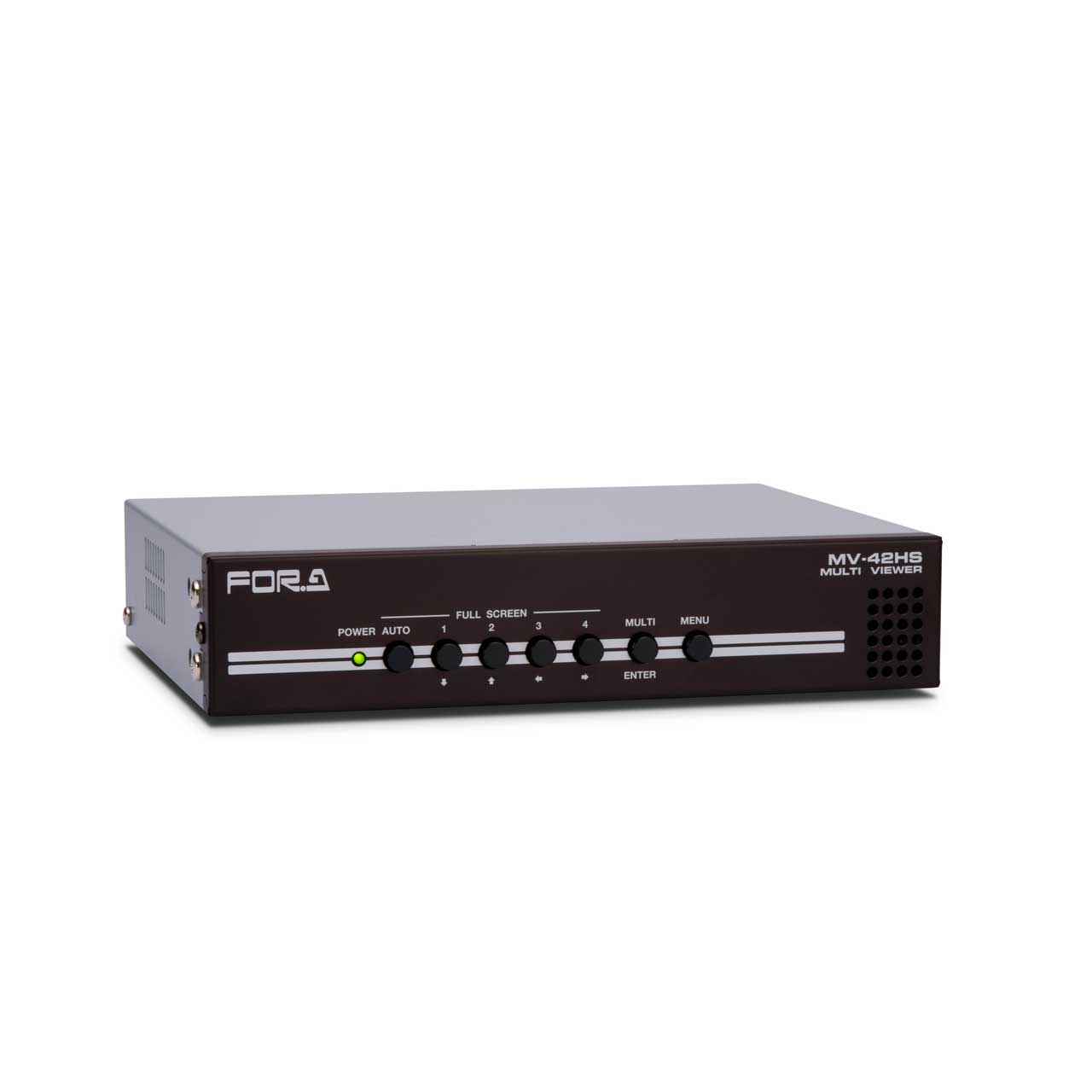

FOR-A MV-42HS Half Rack4-Channel HD-SDI and SD-SDI Multi Viewer

MV-42HS - Overview

• Features:

  • Support for mixed input of HD-SDI and SD-SDI signals (Mixed and asynchronous input supported)
  • Support for mixed input of analog composite (option)
  • Audio level metering for HD/SD-SDI embedded audio signals (Up to 8 channels display)
  • HD-SDI and DVI-D (1920 x 1080 or 1280 x 720) high definition image output
  • Full screen, 2-split (right and left), and quad screen output selectable
  • Video loss detection
  • Display of ancillary time code (ATC) embedded on HD/SD-SDI input signals
  • Title display of up to 16 characters for each input (alphanumeric and symbol)
  • With the interface option, genlock input, color selectable (red and green) tally indicator display, remote control via LAN, and date/time display can also be supported


• Specifications:

  • Video Input: 4 inputs in the following video formats (Mixed input, asynchronous acceptable)
  • Video Input: HD-SDI: 1.485 Gbps or 1.485/1.001 Gbps 75Ω BNC, Color format: YCbCr (4:2:2), Quantization: 10-bit
  • Video Inputs: SD-SDI: 270 Mbps 75Ω BNC, Color format:YCbCr (4:2:2), Quantization: 10-bit
  • Video Format: 1080/60i, 1080/59.94i, 1080/50i, 1080/30p, 1080/30PsF, 1080/29.97p, 1080/25p, 1080/25PsF, 1080/24p, 1080/24PsF, 1080/23.98p, 1080/23.98PsF, 720/60p, 720/59.94p, 720/50p, 720/24p, 720/23.98p, 525/60 (NTSC), 625/50 (PAL)
  • Video Output: HD-SDI: 1 output, 1.485 Gbps or 1.485/1.001 Gbps 75Ω BNC
  • Color format: YCbCr (4:2:2), Quantization: 10-bit * Embedded audio is unsupported
  • DVI-D: 1 output, DVI-D connector, Color format: RGB, Quantization: 8-bit * HDCP is unsupported
  • Output Video Format: 1080/59.94i, 1080/50i, 720/59.94p, 720/50p
  • I/O Delay: Max. 1.5 frames
  • Screen Display: Full screen, 2-split screen, Quad screen
  • Audio Level Metering: Audio level metering for HD/SD-SDI input signal embedded audios (Up to 8 channels)
  • Time Code Display: Embedded time code display for HD/SD-SDI signals
  • Title Display: Max. 16 characters x1 line for each input channel, Character types: Alphanumeric characters and symbols
  • Data Backup: Stores the setting data to EEPROM
  • Interface: RS-232C: 9-pin D-sub (male) x 1 Baud rate: 38,400 bps, data length: 8-bit, stop bit: 1-bit, Parity: NONE
  • Temperature: 32°F - 104°F (0°C - 40°C)
  • Humidity: 30% - 90% (no condensation)
  • Power: 12 V DC (DC jack) *AC adaptor can be separately purchased.
  • Power Consumption: 22 VA (12 W) (at 100 V), 23 VA (11 W) (at 200 V)
  • Dimensions (HxWxD): 1.73" x 8.35" x 6.34" (44mm x 212mm x 161mm)
  • Weight: 2.76lbs (1.25kg)
